Overview
Konnect Design Multishare 21 HDBT

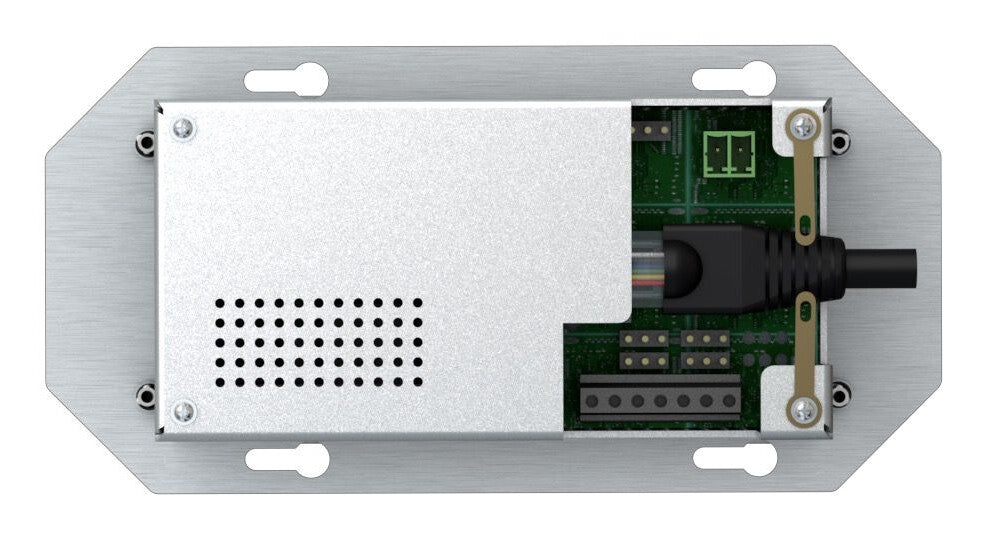

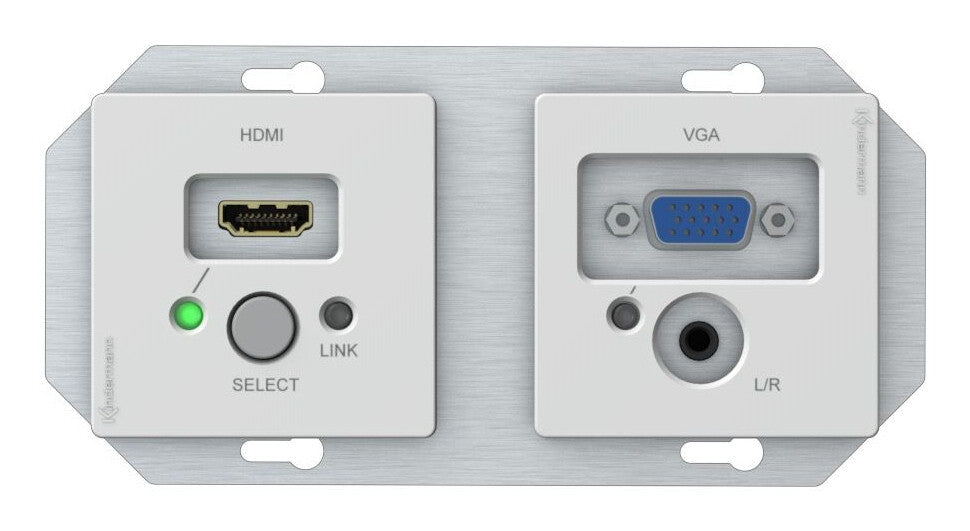

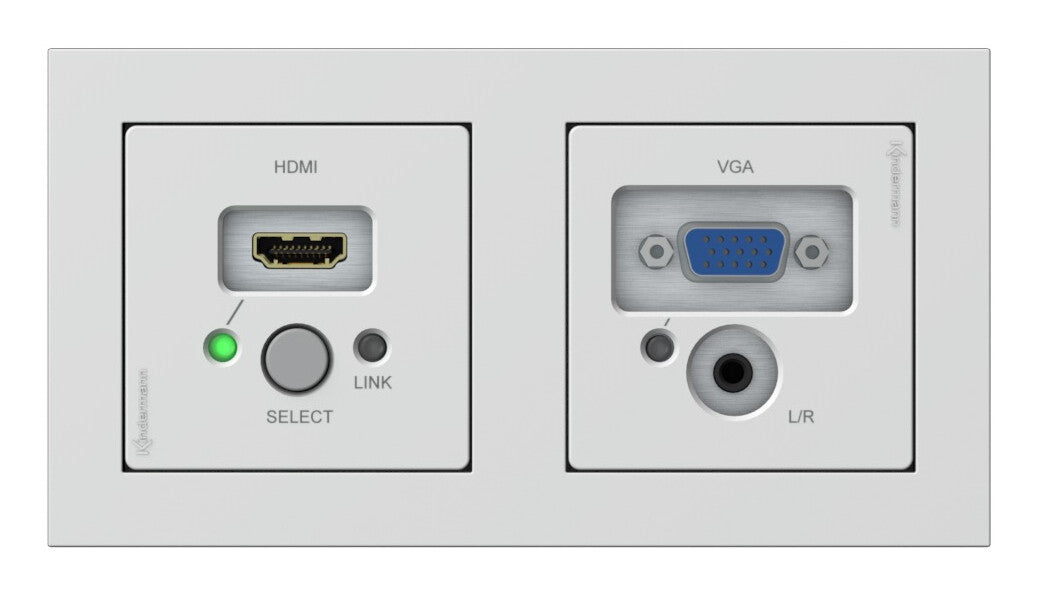

The Konnect design click Multishare 21 wall-plate is a multi-format HDBaseT compatible transmitter for 2-gang switch boxes. It allows to transmit HDMI, VGA and audio signals as well as control commands via a single CAT-6/7 cable up to a distance of 70 m to an HDBaseT compatible receiver without signal loss. Any connected active signal source is detected and selected automatically or can be switched via a button press.
Konnect design Multishare 21 HDBT can also power up/down the connected display device via RS232 upon detection of an active input signal. The wall-plate can be powered locally or from the remote receiver side.
Recommended HDBaseT compatible receiver: Kindermann 7488 000 066
- Inputs: 1 HDMI, 1 VGA/3,5mm audio
- Output: RJ45 (HDBaseT compatible)
- Transmission distance: up to 70 m at Full HD/WUXGA resolution or 40m at 4K@30Hz via Cat-6/7 installation cable
- Supports HDMI 1.4a, 4Kx2K (30 Hz)
- HDCP 1.4 compliant, 3D compatible
- Supports VGA signals up to WUXGA (1920 x 1200@60 Hz)
- Advanced EDID Management: Pass- through, predefined EDID, manually captured EDID, (for both VGA and HDMI)
- Control options: automatic source selection, front button, RS232, contact closure with LED feedback
- Power supply either via local PSU 24 VDC / 0,5 A (included) or via PoC/PoH using an HDBaseT compatible receiver
- Dimensions: 103 x 52 x 40mm (WxHxD)
Specifications
Features
| Maximum operating distance | 70 m |
|---|---|
| Sockets quantity | 4 |
| Socket type | HDMI + VGA + 3.5mm + RJ-45 |
Design
| Frame | Yes |
|---|---|
| Product colour | White |
Show all 10 specificationsShow fewer specifications
Power
| Rated current | 0.5 A |
|---|---|
| Rated voltage | 24 V |
Weight & dimensions
| Height | 52 mm |
|---|---|
| Depth | 40 mm |
| Width | 103 mm |
