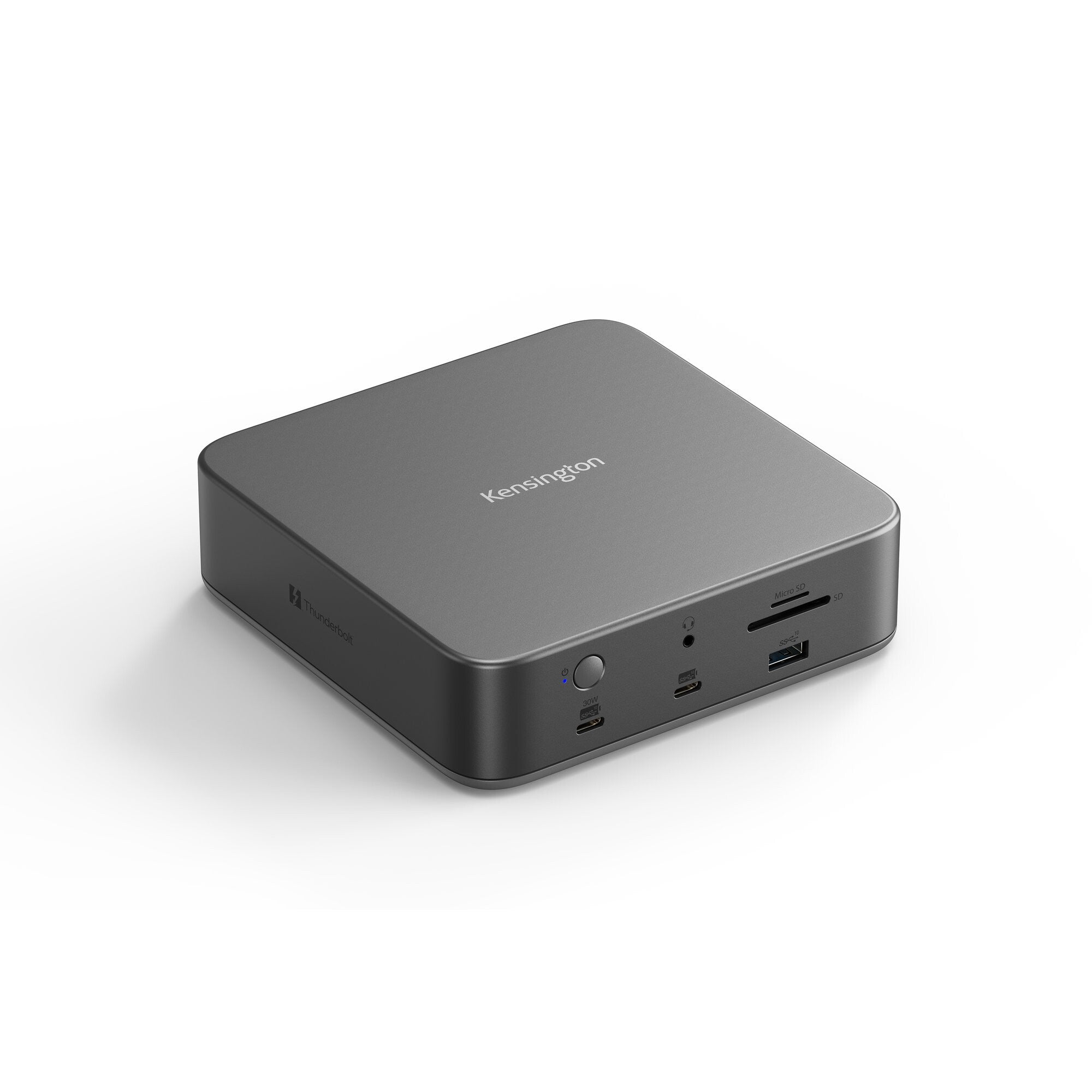

Kensington SD5010T5 EQ Thunderbolt 5 Triple 4K Docking Station
Couldn't load pickup availability
- Data transfer speeds up to 80Gbps.
- Security cable lock slots.
- Free Kensington DockWorksTM software.
- 3-year limited warranty.
- Ethernet performance on Apple devices reached approximately 1.6 Gbps during testing.
- andwidth Boost up to 120Gbps for video-intensive usage.
- Up to Triple 4K or Dual 8K for Windows or Dual 6K+4K for macOS.**** A Thunderbolt 5 dock can support three external displays with M5 Pro and M5 Max chips.
- Up to 140W dynamic Power Delivery.
- Built-in SD and Micro SD card readers.
- Compatible with ThunderboltTM 5, ThunderboltTM 4, USB4® and USB-C® devices.
- Windows and macOS compatible.
- Outer case contains 100% post-consumer recycled (PCR) aluminium.
- Zero-footprint mounting option.

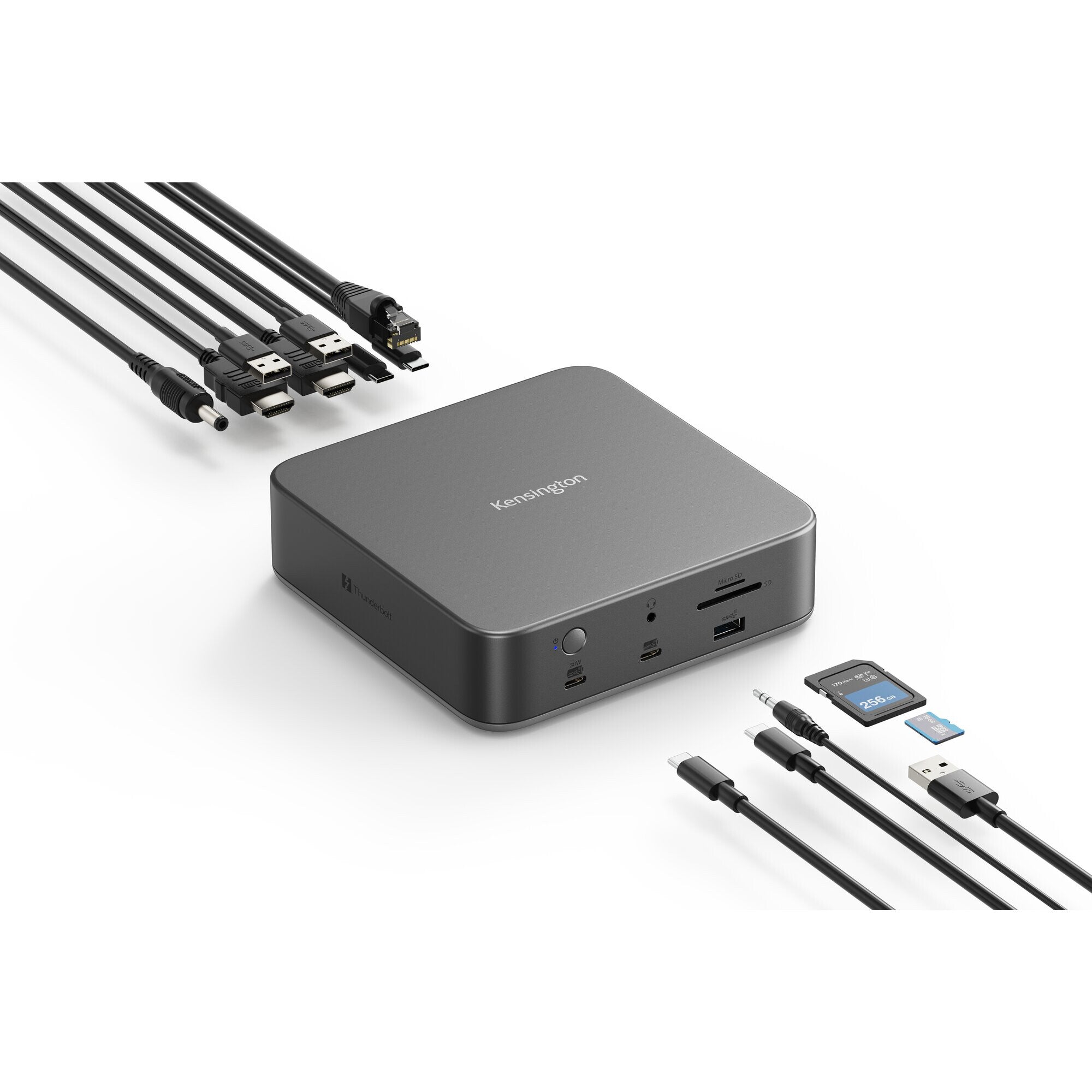

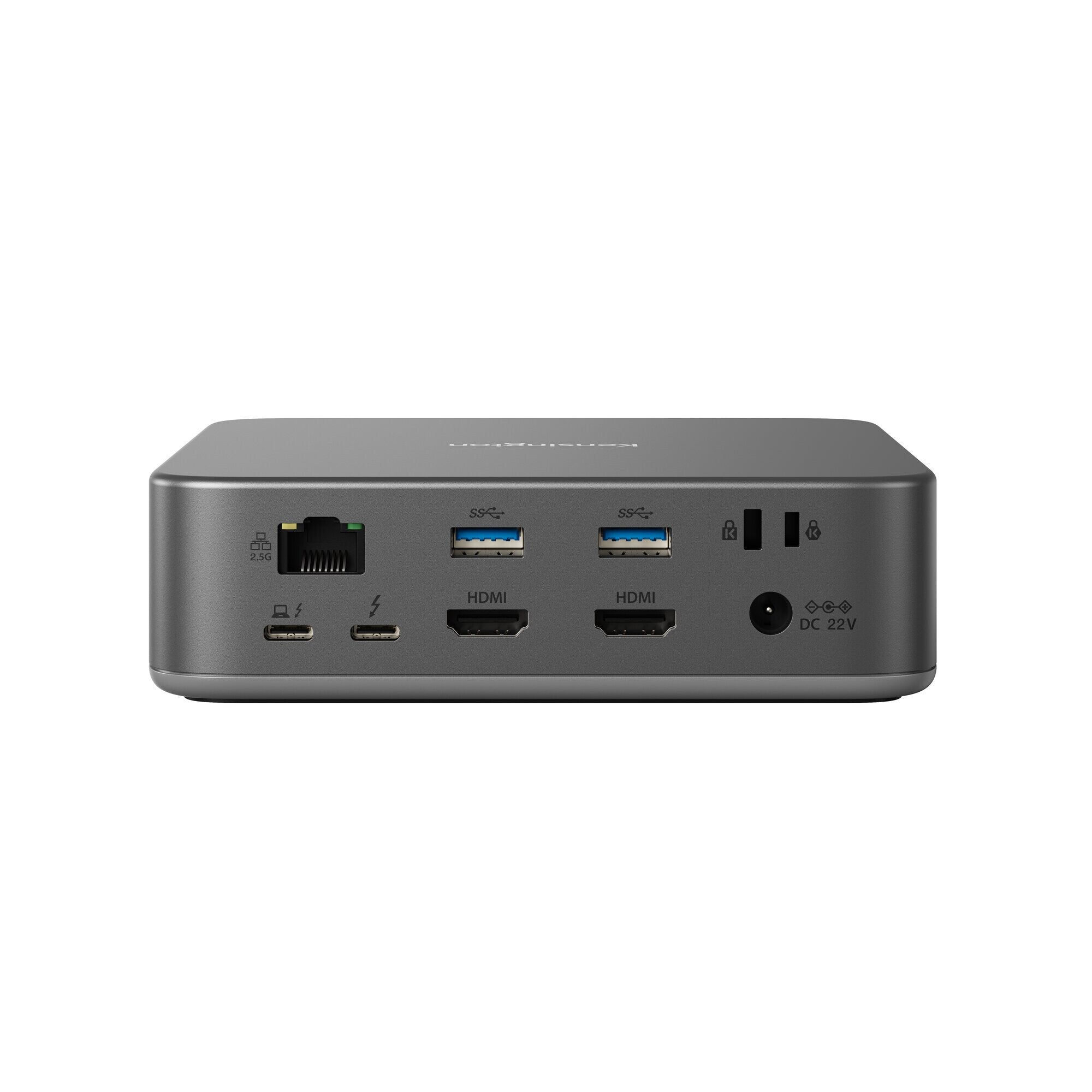

The SD5010T5 EQ ThunderboltTM 5 Triple 4K Docking Station is designed for professionals demanding peak performance. Windows and macOS compatible, SD5010T5 boosts workflow efficiency with lightning-fast 80Gbps data transfers and up to 120Gbps for video-intensive usage via Bandwidth Boost. It supports up to Triple 4K or Dual 8K for Windows and Dual 6K+4K for macOS, ensuring high-quality visuals and smooth multitasking. It delivers up to 140W of Power Delivery to your laptop. When the laptop is undocked, your connected devices can still be charged. Boasting 2 x ThunderboltTM 5 ports (host + downstream), 2 x HDMI® ports, 1 x USB-A 3.2 Gen2 port, 2 x USB-A 3.2 Gen1 ports, 2 x USB-C® Gen2 ports, an audio jack, dual SD/Micro Card readers and 2.5Gbps Ethernet, this docking station maximises productivity with cutting-edge technology. Its outer case contains 100% post-consumer recycled (PCR) aluminium and it is delivered in Forest Stewardship Council (FSC®) certified packaging. Includes Kensington DockWorksTM Software for Windows users and is supported by a 3-year limited warranty.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 140 W |
| USB Power Delivery revision | 3.1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Thunderbolt 5 ports quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| USB Type-C DisplayPort Alternate Mode | Yes |
| DC-in jack | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,1000,2500 Mbit/s |
| Performance | |
|---|---|
| Product colour | Grey |
| Colour name | Space Gray |
| Card reader integrated | Yes |
| Compatible memory cards | SD, MicroSD (TransFlash) |
| Data transfer rate | 80 Gbit/s |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 240 Hz |
| Number of displays supported | 3 |
| Cable lock slot | Yes |
| Cable lock slot type | Nano, Kensington |
| LED indicators | Power |
| Housing material | Aluminium, Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS) |
| Plug and Play | Yes |
| Country of origin | Vietnam |
| Power | |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Output current | 8.2 A |
| Output voltage | 22 V |
| Software | |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Width | 140 mm |
| Depth | 140 mm |
| Height | 40 mm |
| Weight | 890 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 180 mm |
| Package depth | 190 mm |
| Package height | 110 mm |
| Package weight | 1.85 kg |
| Packaging content | |
|---|---|
| Warranty card | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
| Cables included | Thunderbolt, Power |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), ICES, RCM, UKCA, CB, REACH, RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 6 pc(s) |
| Other features | |
|---|---|
| Special features | EQ |
| USB ports quantity | 3 |
| Compatible operating systems | macOS 14.5 or above; Windows 11 (23H2 or later) |
