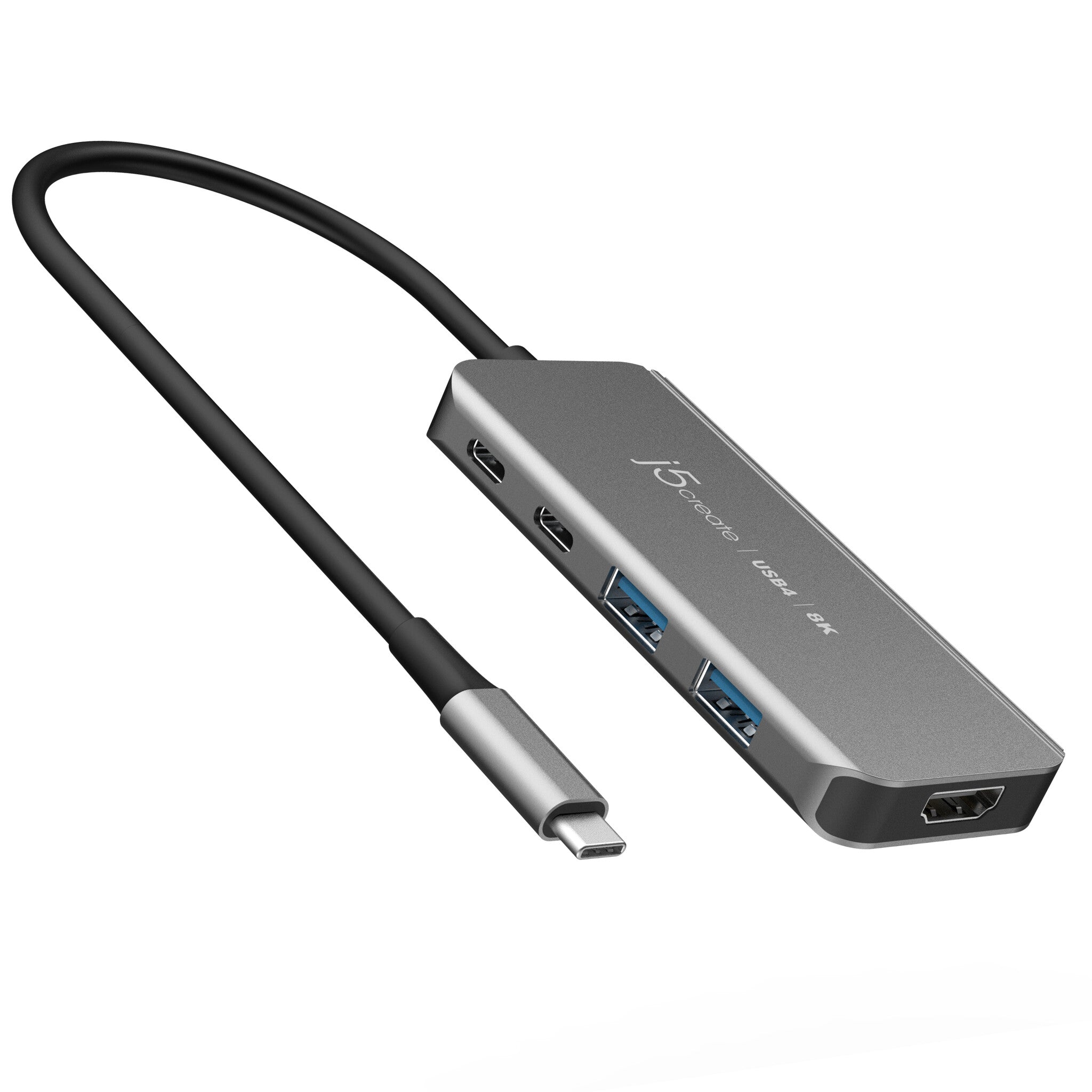

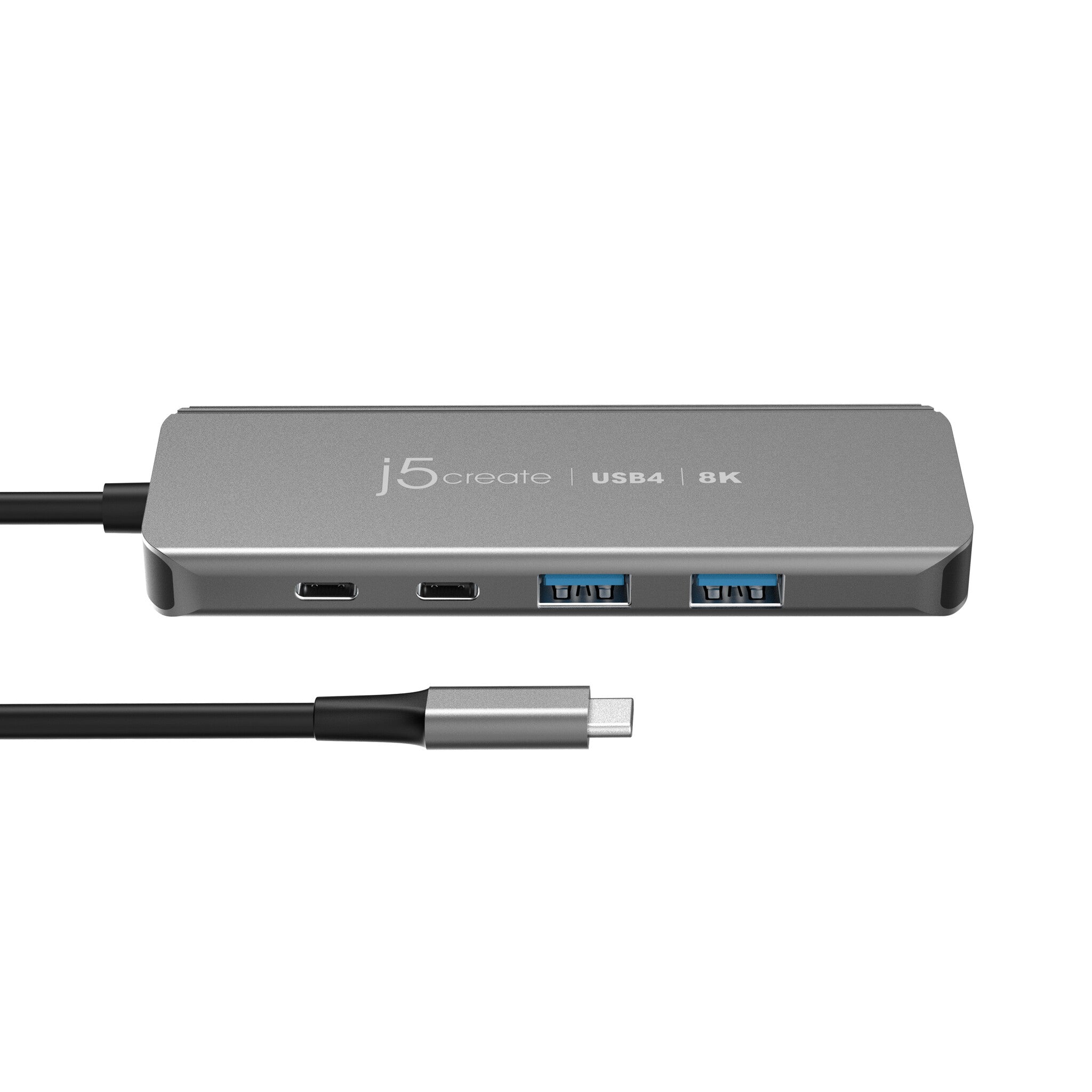

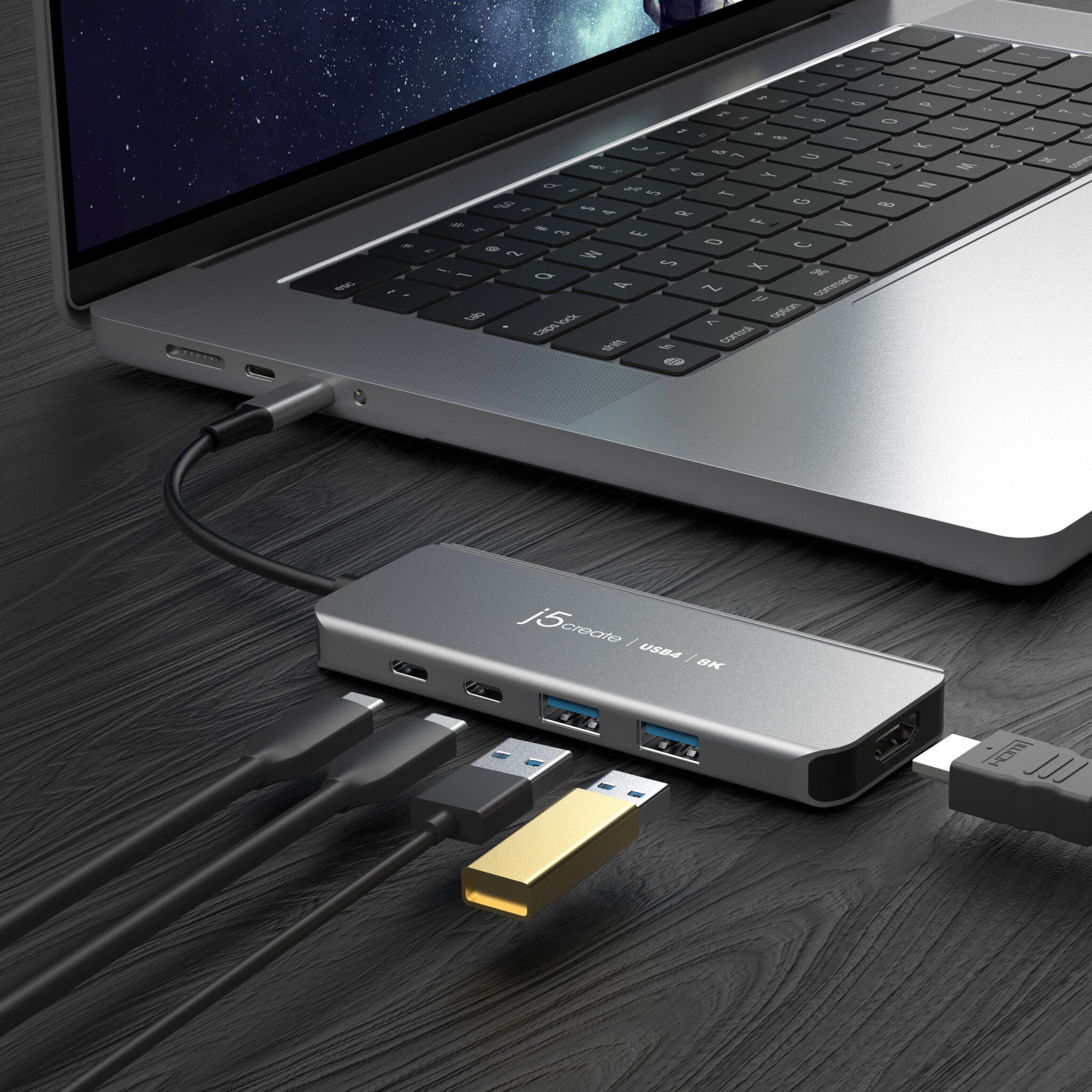

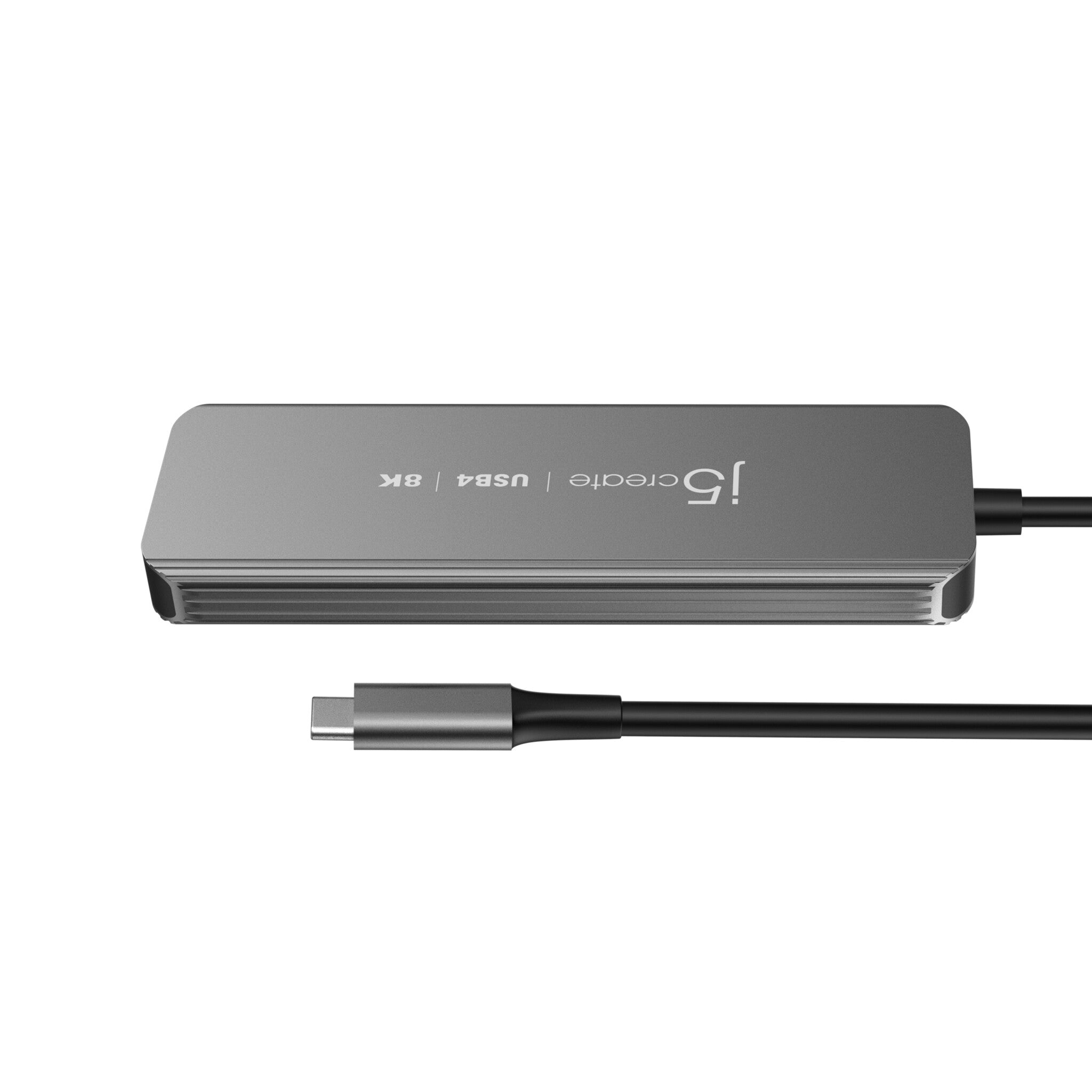

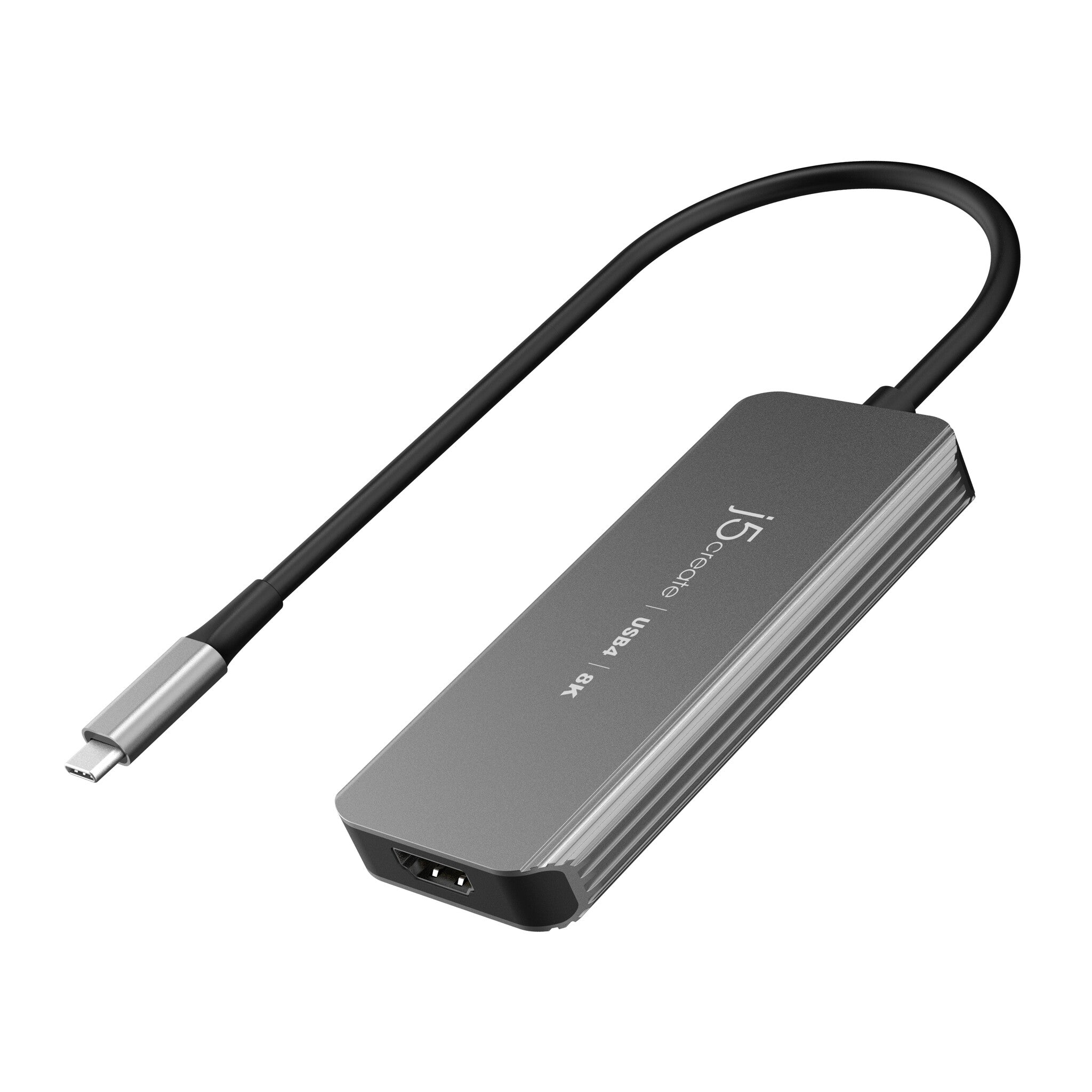

j5create JCH453 USB4® 8K60 Slim Hub
£85.99
Couldn't load pickup availability
- Supports resolutions up to 8K60 and 4K144
- Compatible with Thunderbolt™ 4, Thunderbolt™ 3 or other USB-C® host laptops

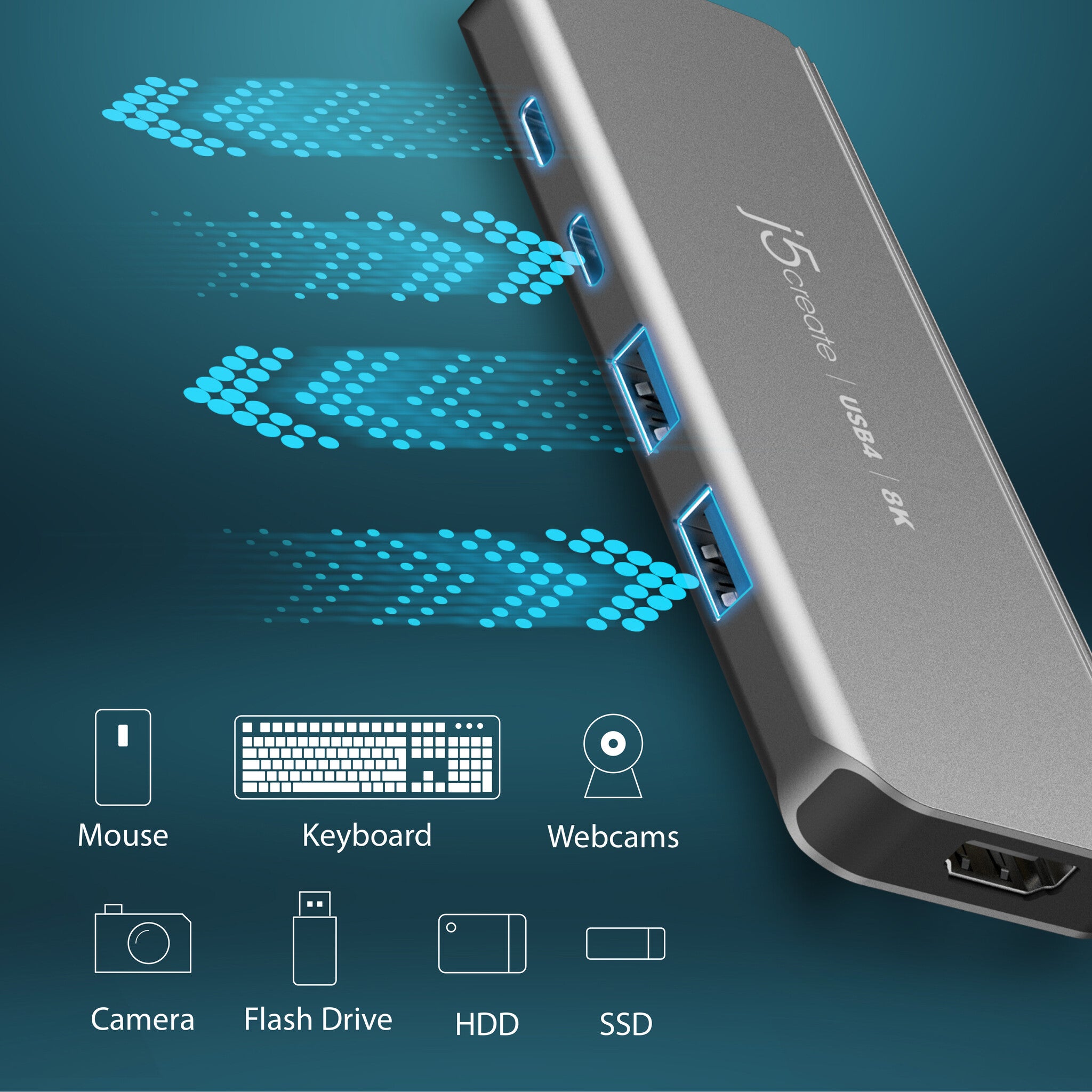

- Two SuperSpeed+ USB™ Type-A 10Gbps port to accommodate modern peripherals
- Two USB-C® port supports up to 10Gbps data transmission

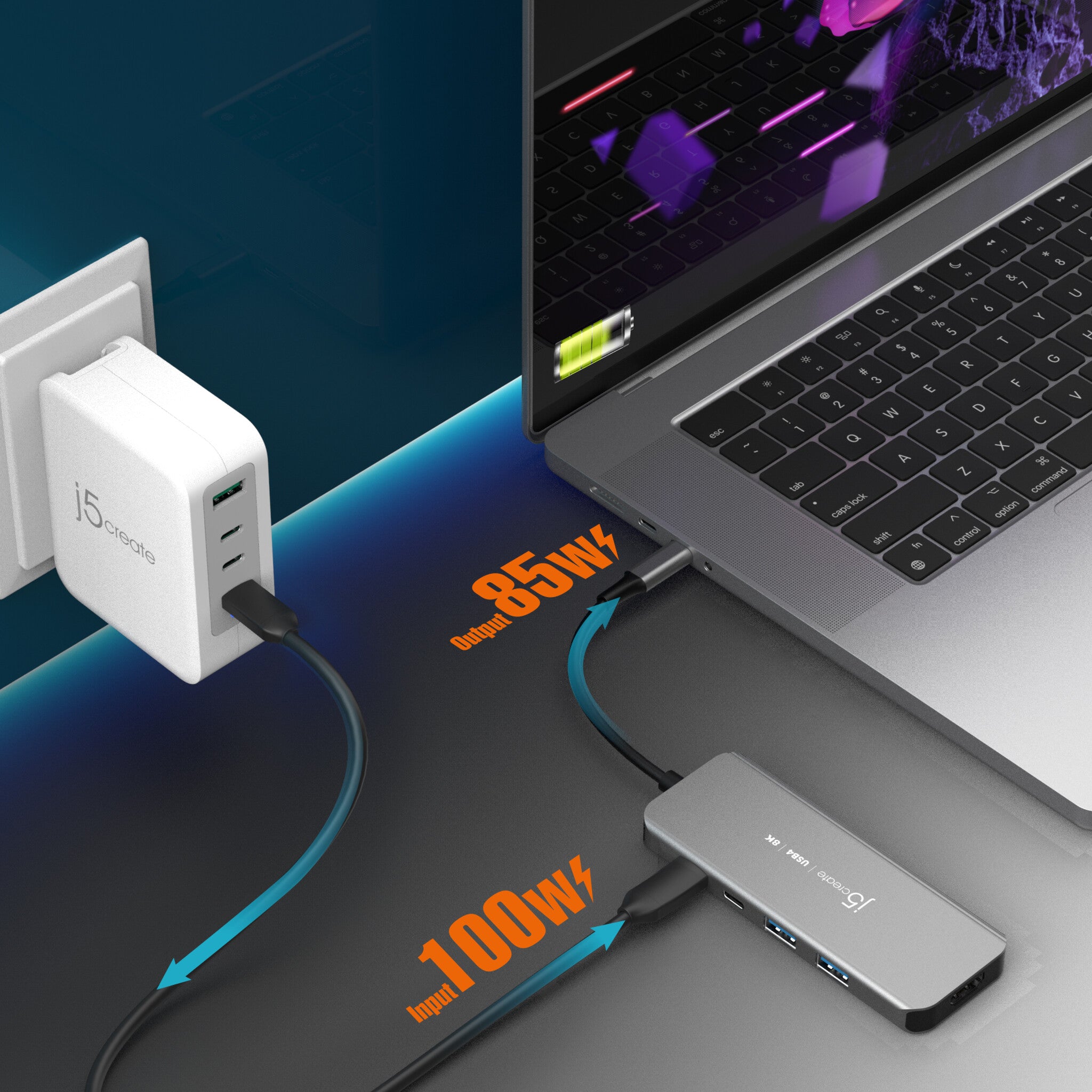

- Power Delivery 3.0 offers up to 100W of pass-through charging
- Multiple data and display protocols efficiently share bandwidth to offer optimal performance
- Wide compatibility with various operating systems and devices
- Plug-and-play, no driver installation required
A USB4® multi-port hub incorporates the latest USB4® controller offering compatibility with Thunderbolt™ 4 and older USB™ specifications.
With up to 40Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a high-definition monitor setup. Enjoy up to 8K resolution and access data faster without affecting system performance. Additionally, it has four USB™ SuperSpeed+ 10Gbps ports (2 USB-C® and 2 Type-A) for charging, connecting peripherals and high-speed data storage devices. It is also equipped a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 100W of pass-through power.

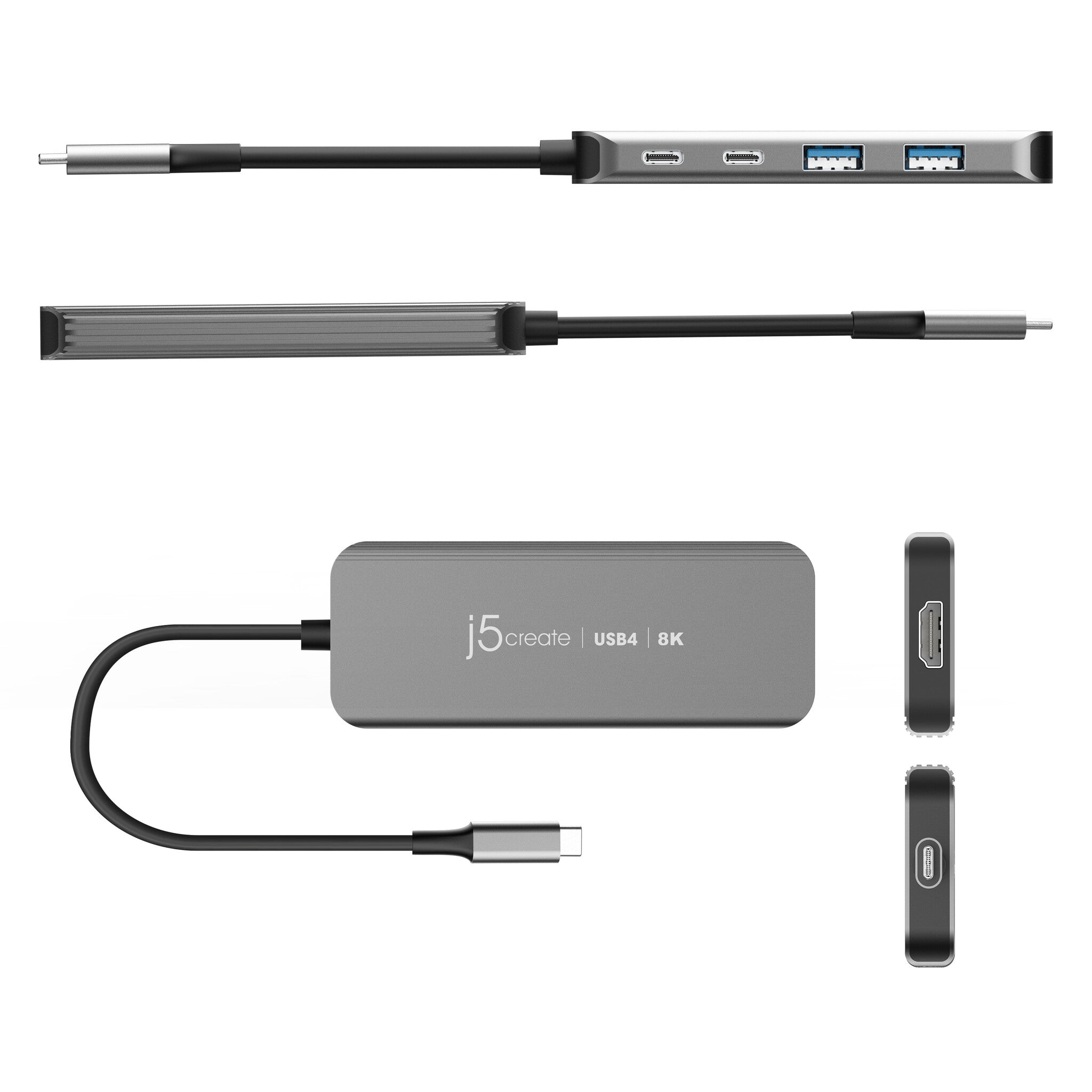

| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |

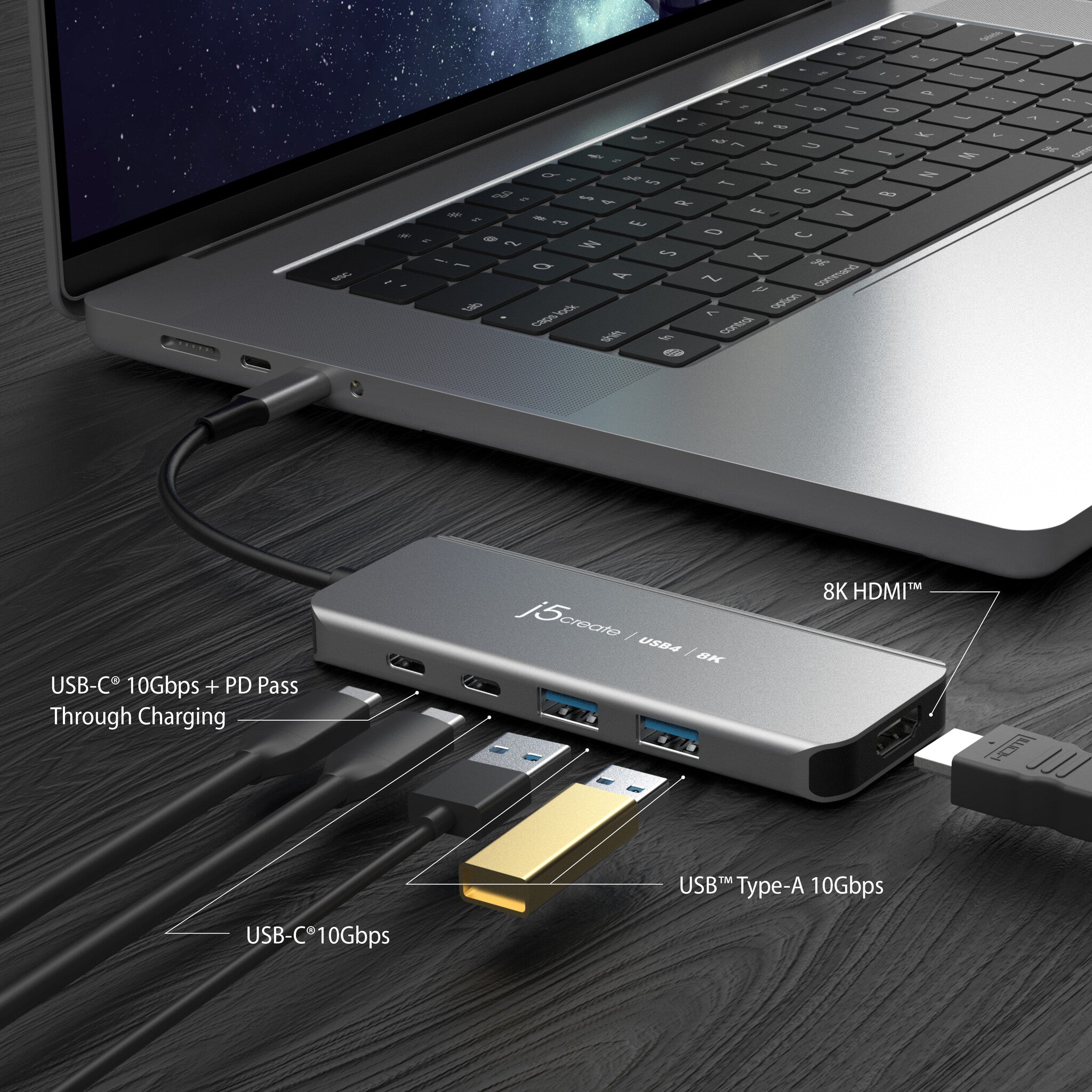

| Hub interfaces | HDMI, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Type-C |
| Host interface | USB4 |
| Ports quantity | 5 |
| Features | |
|---|---|
| Plug and Play | Yes |
| Number of displays supported | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| Product colour | Grey |
| Housing material | Aluminium |
| Maximum resolution (HDMI) | 7680 x 4320 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160, 7680 x 4320 |
| Data transfer rate | 10000 Mbit/s |
| Power | |
|---|---|
| Power plug type | Type C |
| Output current | 4.75 A |
| Output voltage | 20 V |
| Input voltage | 20 V |
| Input current | 5 A |
| System requirements | |
|---|---|
| Minimum system requirements | Available Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® host laptops.GPU and video source:DisplayPort™ 1.4 alt mode with DSC supports 8K 60 Hz or 4K 144HzDisplayPort™ 1.4 alt mode without DSC supports 8K 30 Hz or 4K 120 Hz DSC = VESA® Display Stream Compression (DSC) Standard. Only available on NVIDIA® GeForce® RTX 20 Series and AMD™ Radeon™ RX 6000 Series GPUs or above* Recommended Graphics GPUs: Intel® UHD graphics for 11th Gen Intel® processors or above* Notes: Mac® computers support up to 4K 60Hz on an 8K HDMI™ display |
| Other operating systems supported | ChromeOS |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 74 g |
| Height | 11 mm |
| Depth | 45 mm |
| Width | 116.3 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 138 g |
| Package height | 17.5 mm |
| Package depth | 85 mm |
| Package width | 189.9 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Packaging content | 1 - JCH453 USB4® 8K60 Slim Hub1 - Quick Installation Guide (QIG) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 85% |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating temperature (T-T) | -1 - 41 °C |
