j5create JCD543P USB-C™ Triple Display Docking Station with 100W PD Adapter
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £34.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- CompatibilityMacbook™ Pro 2016 & NewerSurface Pro™ 7Surface Go™Surfacebook™ 2Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0
- Weight300 g
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- TRIPLE DISPLAY FLEXIBILITY & ADAPTABILITY
- Create a triple-monitor setup with 4K HDMI™, 1080p VGA, and 4K DisplayPort™ outputs and together with your laptop display, you can have a maximum of 4 displays. Available display combinations:
- HDMI™ + VGA + DisplayPort™
- HDMI™ + VGA + HDMI™
- USB-C™ 100W POWER DELIVERY
- With the attached USB-C™ cable, the dock will power and charge power-hungry laptops, with up to 100W Power Delivery and power your connected peripherals when it’s used with a USB-C™ power adapter
- MULTIPLE CONNECTIONS
- To support all of your USB™ peripherals, the dock provides a total of four USB™ 3.0 ports (1 USB-C™ and 3 USB™ Type-A ports), a Gigabit Ethernet port, SD™/microSD™ card slots and a combo audio jack
- BC 1.2 FAST CHARGING
- One of the USB™ 3.0 Type-A ports is a fast-charge port, so you can charge your mobile devices faster than you can from a standard USB™ port
- CUTTING-EDGE DESIGN

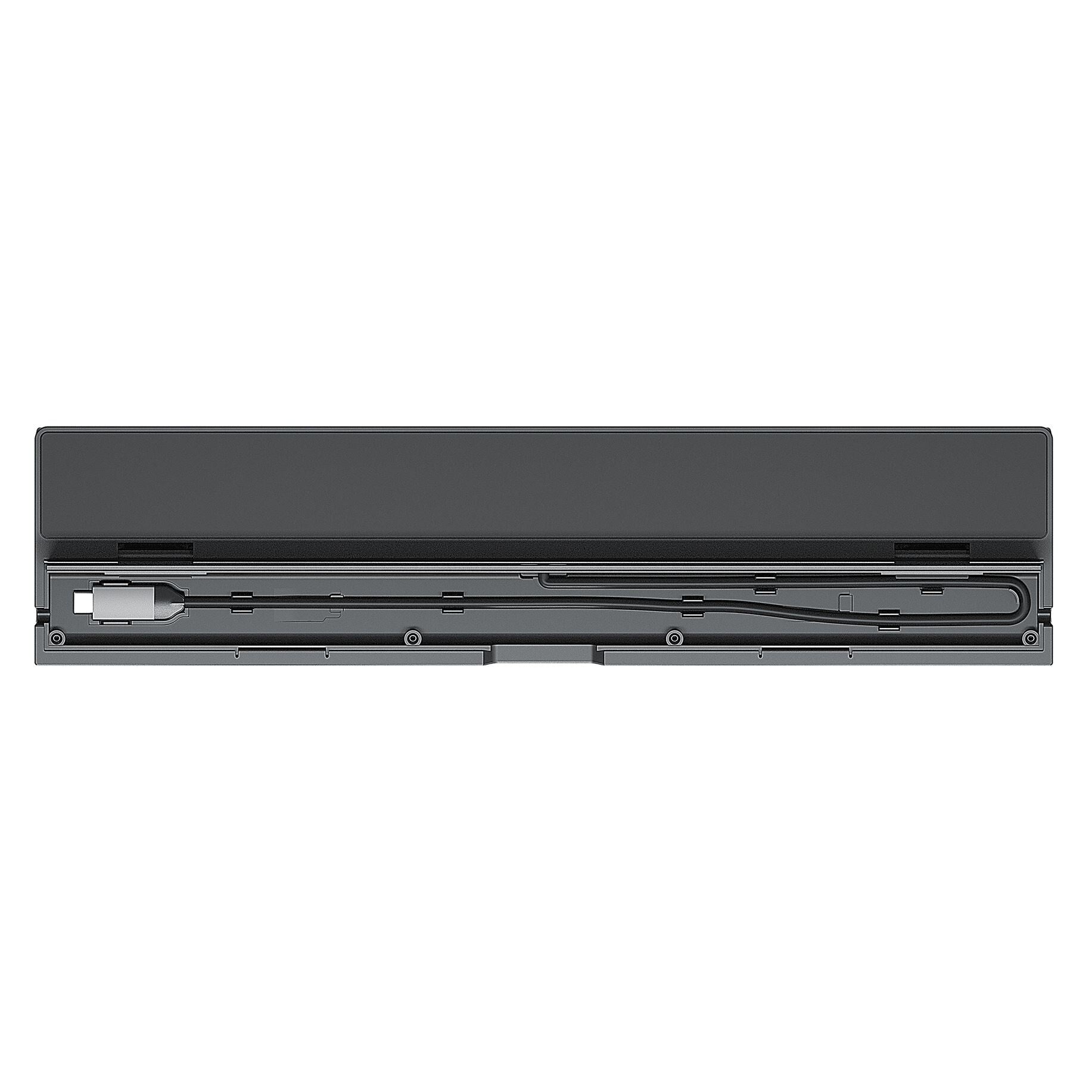

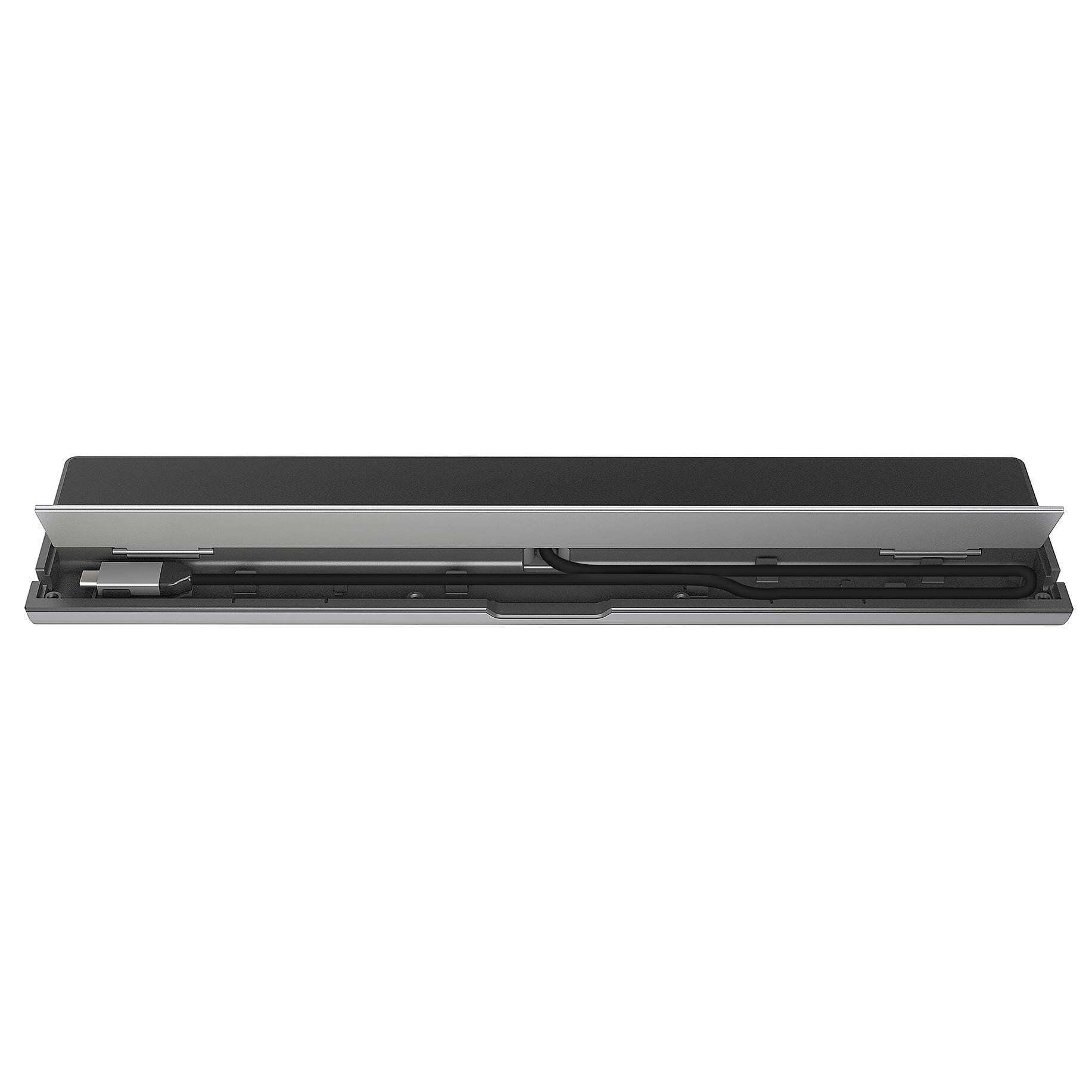

- Advanced heat-eliminating design is the perfect solution to expand your laptop into a full-sized workstation without the worry of overheating and with the double-sided cable storage compartment, you can place the cable any way you like

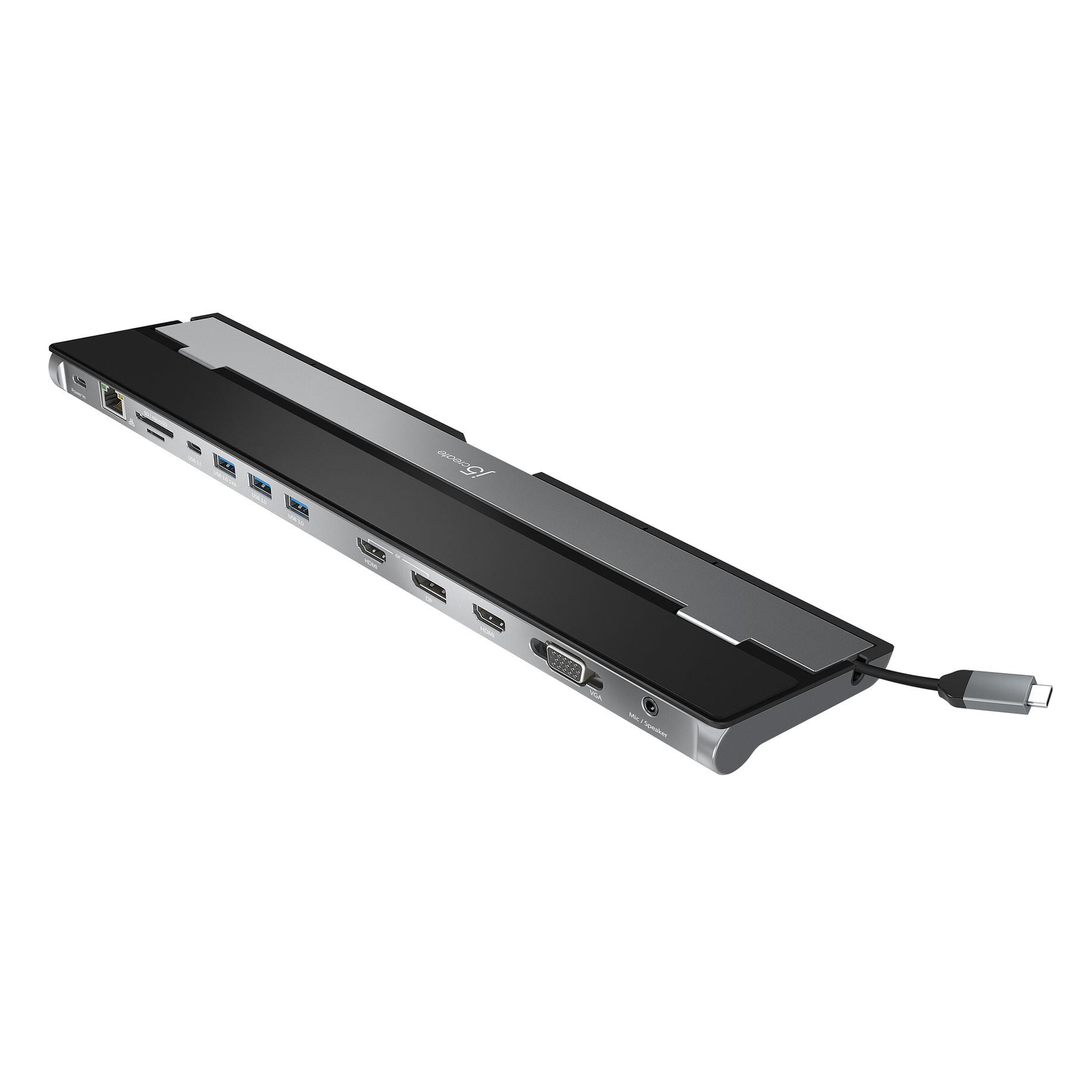

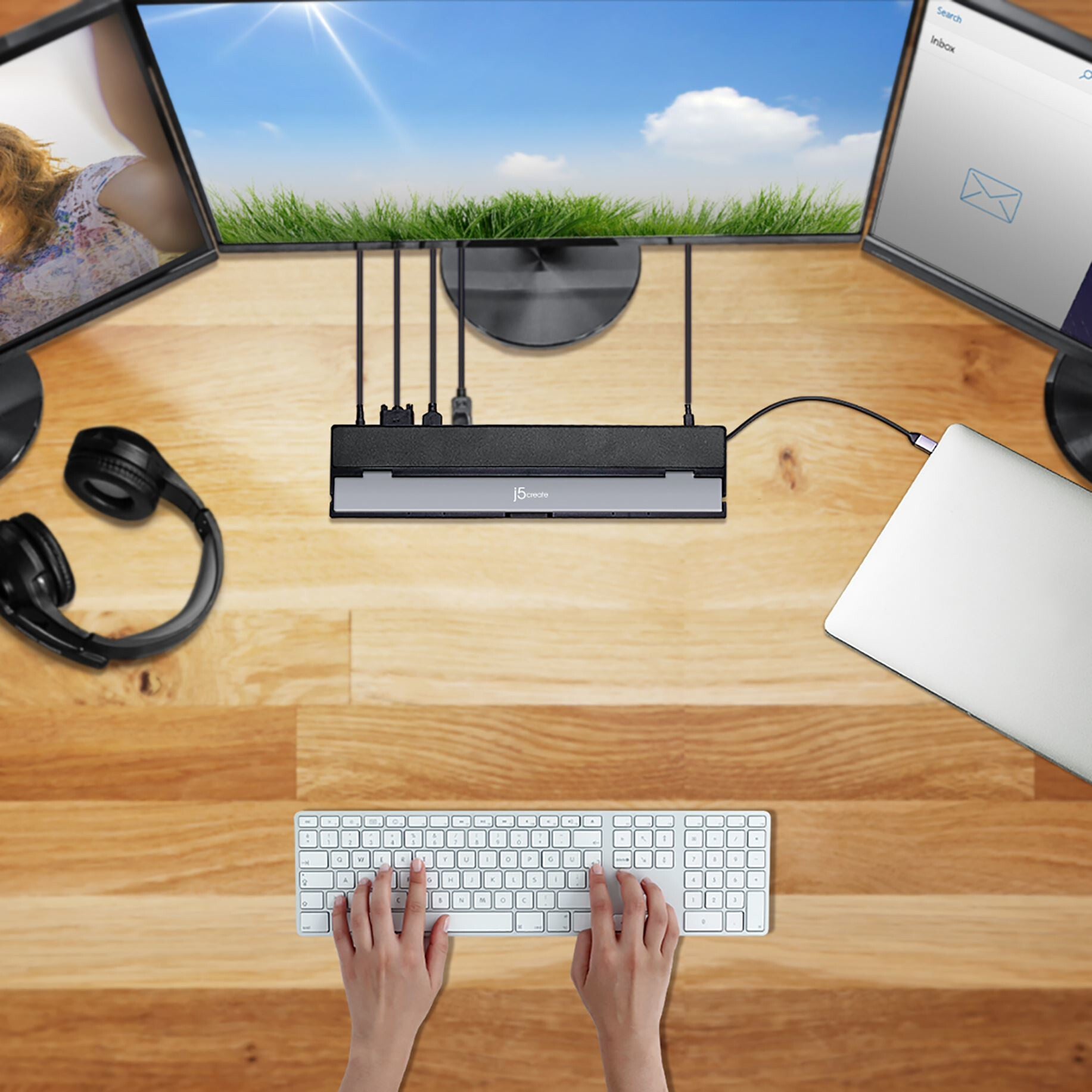

This triple display docking station turns your Mac® or Windows® laptop into a full workstation with a DisplayPort™ output, two HDMI™ outputs, and a VGA output, with resolution support up to 4K (3840 x 2160) on two displays and 1080p on the other one. You can also use your laptop screen for four displays in total, making it easy to access multiple applications at once. With 100W Power Delivery, three USB™ 3.0 ports, and a USB-C™ port, the docking station is perfect for your MacBook®, Dell® XPS™, or other USB-C™ laptop requiring additional ports.
This USB™ 3.0 docking station is also equipped with an RJ45 Gigabit Ethernet port, memory card reader/writer, and combo audio jack for maximum productivity. The elevated design assists with heat dissipation and, with its double-sided cable storage compartment, ensures an easy connection regardless of your USB-C™ port’s location.
All 13 ports are combined into one slim docking station, so you’ll have all the connections you need to stay productive!
Specifications
Ports & interfaces
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|---|
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Microphone in | No |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology | Wired |
Network
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
Show all 57 specificationsShow fewer specifications
Performance
| Compatibility | Macbook™ Pro 2016 & NewerSurface Pro™ 7Surface Go™Surfacebook™ 2Available USB-C™ port that supports DisplayPort™ Alt Mode and USB™ Power Delivery 2.0 or 3.0 |
|---|---|
| Country of origin | Taiwan |
| Housing material | Aluminium |
| Display modes | Extended, Mirror |
| Number of displays supported | 3 |
| Maximum analog resolution | 1920 x 1080 pixels |
| Maximum digital resolution | 3840 x 1080 pixels |
| HD type | 4K Ultra HD |
| Data transfer rate | 5 Gbit/s |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Card reader integrated | Yes |
| Colour name | Silver and Black |
| Product colour | Black, Silver |
Power
| USB cable length | 0.45 m |
|---|---|
| Power consumption (typical) | 4.5 W |
| Output voltage | 20 V |
| Output current | 4.75 A |
| Input current | 0.8 A |
| Power supply | 100 W |
| AC input voltage | 110 - 220 V |
| Power connector | USB Type-C |
| Power source type | DC, USB |
Software
| Mac operating systems supported | Yes |
|---|---|
| Windows operating systems supported | Yes |
Operational conditions
| Storage relative humidity (H-H) | 0 - 85% |
|---|---|
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating temperature (T-T) | 0 - 48 °C |
Weight & dimensions
| Weight | 300 g |
|---|---|
| Height | 23.4 mm |
| Depth | 350 mm |
| Width | 82.5 mm |
Packaging content
| Cables included | USB Type-C |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |

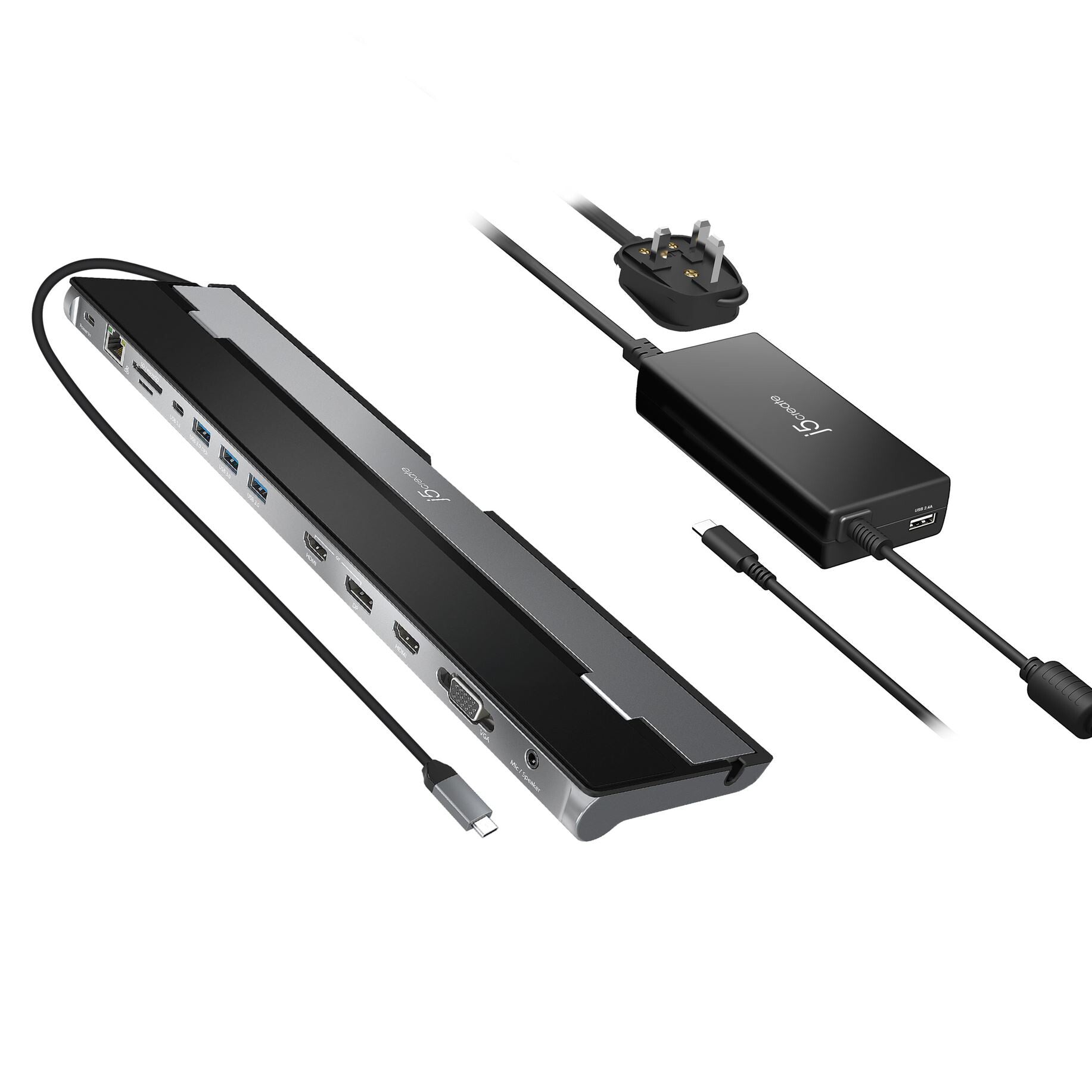

| Packaging content | 1 - JCD543P USB-C™ Triple Display Docking Station1 - JUP2290 100W USB-C™ Super Charger1 - Quick Installation Guide |
Technical details
| Warranty period | 2 year(s) |
|---|
Other features
| I/O ports | 2 - USB™ 3.0 Type-A 1 - USB™ 3.0 Type-A fast charge 1 - USB-C™ 3.1 Gen 1 1 - USB-C™ Power Delivery 3.02 - 4K HDMI™ 1 - DisplayPort™ 1 - VGA1 - SD™ & microSD™ memory card reader/writer 1 - RJ45 Gigabit Ethernet 1 - 3.5 mm combo audio jack |
|---|---|
| Special features | Simultaneous DisplayPort™, HDMI™ and VGA Output, 13 ports in one sleek design for all your needs |
