Intel · MPN: BX80616L3406
£206.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £68.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

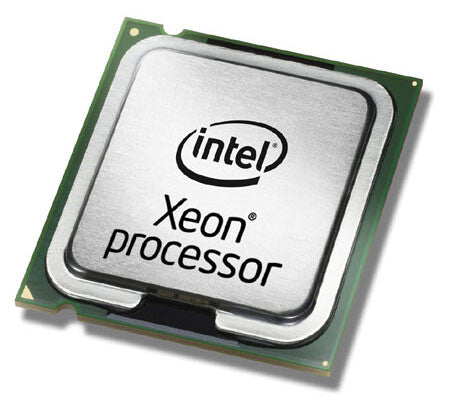

  • Intel® Xeon® L3406 2.26 GHz
  • 4 MB Smart Cache LGA 1156 (Socket H)
  • Processor cores: 2 32 nm 64-bit 30 W
  • Maximum internal memory supported by processor: 16 GB DDR3-SDRAM
  • Box Cooler included

Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

Intel® 64
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software.¹ Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.

Idle States
Idle States (C-states) are used to save power when the processor is idle. C0 is the operational state, meaning that the CPU is doing useful work. C1 is the first idle state, C2 the second, and so on, where more power saving actions are taken for numerically higher C-states.

Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.

Intel® Demand Based Switching
Intel® Demand Based Switching is a power-management technology in which the applied voltage and clock speed of a microprocessor are kept at the minimum necessary levels until more processing power is required. This technology was introduced as Intel SpeedStep® Technology in the server marketplace.

Execute Disable Bit
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.

Intel® VT-x with Extended Page Tables (EPT)
Intel® VT-x with Extended Page Tables (EPT), also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Extended Page Tables in Intel® Virtualization Technology platforms reduces the memory and power overhead costs and increases battery life through hardware optimization of page table management.

Specifications

Processor

Processor manufacturerIntel
Processor familyIntel® Xeon®
Processor modelL3406
Processor base frequency2.26 GHz
Processor cores2
Processor socketLGA 1156 (Socket H)
Processor lithography32 nm
Cooler includedYes
Component forServer/workstation
Processor seriesIntel Xeon 3400 Series
Processor threads4
System bus rate2.5 GT/s
Processor operating modes64-bit
Processor boost frequency2.53 GHz
Processor cache4 MB
Processor cache typeSmart Cache
Thermal Design Power (TDP)30 W
VID Voltage Range0.65 - 1.4 V
Compatible chipsetsIntel® 3400, Intel® 3420, Intel® 3450
SteppingC2
Bus typeDMI
CPU multiplier (bus/core ratio)17
Memory bandwidth supported by processor (max)17 GB/s
Processor codenameClarkdale
Processor codeSLBQQ
Processor ARK ID47555

Memory

Maximum internal memory supported by processor16 GB
Memory types supported by processorDDR3-SDRAM
Memory clock speeds supported by processor1066 MHz
Memory channelsDual-channel
ECCYes
Show all 84 specificationsShow fewer specifications

Graphics

On-board graphics cardNo

Features

Thermal Monitoring TechnologiesNo
Idle StatesYes
Execute Disable BitYes
Market segmentServer
Maximum number of PCI Express lanes16
PCI Express slots version2.0
PCI Express configurations1x16, 2x8
Number of Processing Die Transistors382 M
Processing Die size81 mm²
Number of Graphics & IMC Die Transistors177 M
Graphics & IMC Die Size114 mm²
Supported instruction setsSSE4.2
Graphics & IMC lithography45 nm
Physical Address Extension (PAE)Yes
CPU configuration (max)1
PCI Express CEM revision2.0
Embedded options availableNo
Export Control Classification Number (ECCN)3A991
Commodity Classification Automated Tracking System (CCATS)NA

Processor special features

Enhanced Intel SpeedStep TechnologyYes
Intel Trusted Execution TechnologyYes
Intel® AES New Instructions (Intel® AES-NI)No
Intel® Turbo Boost Technology1.0
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel Enhanced Halt StateYes
Intel Demand Based SwitchingYes
Intel® vPro™ Platform EligibilityNo
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel Virtualization Technology (VT-x)Yes
Intel 64Yes
Intel VT-x with Extended Page Tables (EPT)Yes

General

Product familyXeon

Operational conditions

Tcase53.9 °C

Technical details

Processor cache4096 KB
Product typeProcessor
Supported memory typesDDR3-SDRAM
Processor core voltage0.6500-1.400 V
Product nameIntel Xeon L3406 (4M Cache, 2.26 GHz)
Born on dateQ1'10
Product familyIntel Xeon Processor 3000 Sequence
Last change63903513
Processor brand nameIntel Xeon
Bus type unitsGT/s
Bus bandwidth2.5
Bus speed2.5 GT/s
Maximum memory16.38 GB
StatusDiscontinued
Launch dateQ1'10

Weight & dimensions

Processor package size37.5 x 37.5 mm

Other features

Intel® Virtualization Technology (Intel® VT)VT-d, VT-x
Cache memory4 MB
Maximum internal memory16777 MB
