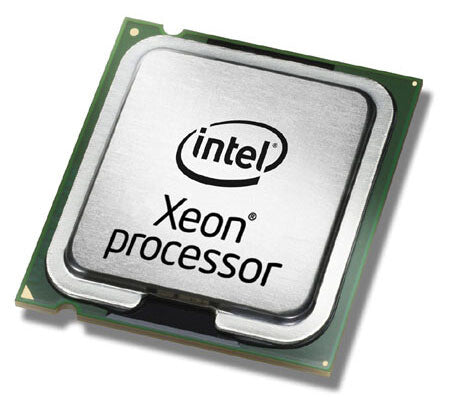

Intel Xeon E7530 processor 1.87 GHz 12 MB L3 Tray
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £491.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Intel® Xeon® 7000 Sequence E7530 1.87 GHz
- 12 MB L3 LGA 1567 (Socket LS)
- Processor cores: 6 45 nm 64-bit 105 W
- Tray
Designed for maximum performance and reliability, these massively scalable 2-way to 256-way, 64-bit multi-core servers are designed to provide exceptional scalable performance and mission-critical class reliability for your most data-demanding applications and virtualization projects.
Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
Specifications
Processor
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Xeon® 7000 Sequence |
| Processor model | E7530 |
| Processor base frequency | 1.87 GHz |
| Processor cores | 6 |
| Processor socket | LGA 1567 (Socket LS) |
| Processor lithography | 45 nm |
| Cooler included | No |
| Processor series | Intel Xeon 7500 Series |
| Processor threads | 12 |
| System bus rate | 5.86 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 2.13 GHz |
| Processor cache | 12 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 105 W |
| VID Voltage Range | 0.675 - 1.35 V |
| Bus type | QPI |
| Processor codename | Nehalem EX |
| Processor code | SLBRJ |
| Processor ARK ID | 46491 |
Features
| Execute Disable Bit | Yes |
|---|---|
| Market segment | Server |
| Embedded options available | No |
| Export Control Classification Number (ECCN) | 3A991.A.1 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
Show all 49 specificationsShow fewer specifications
Processor special features
| Enhanced Intel SpeedStep Technology | Yes |
|---|---|
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel 64 | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
General
| Product family | Xeon |
|---|
Operational conditions
| Maximum operating temperature | 64 °C |
|---|---|
| Tcase | 64 °C |
Technical details
| Processor cache | 12288 KB |
|---|---|
| Product type | Processor |
| Processor core voltage | 0.675-1.35 V |
| Product name | Intel Xeon E7530 (12M Cache, 1.86 GHz, 5.86 GT/s Intel QPI) |
| Born on date | Q1'10 |
| Product family | Intel Xeon Processor 7000 Sequence |
| Last change | 63903513 |
| Processor brand name | Intel Xeon |
| Bus type units | GT/s |
| Bus bandwidth | 5.86 |
| Bus speed | 5.86 GT/s |
| Status | Discontinued |
| Launch date | Q1'10 |
Other features
| Cache memory | 12 MB |
|---|
