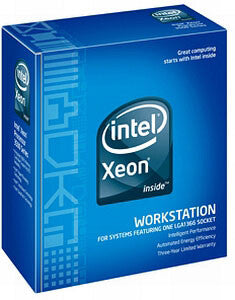

Intel Xeon E7-4830 processor 2.13 GHz 24 MB Smart Cache Box
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £699.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Intel® Xeon® E7 Family E7-4830 2.13 GHz
- 24 MB Smart Cache LGA 1567 (Socket LS)
- Processor cores: 8 32 nm 64-bit 105 W
- Maximum internal memory supported by processor: 2.05 TB DDR3-SDRAM
- Box Cooler included
Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.
Intel® Hyper-Threading Technology
Intel® Hyper-Threading Technology (Intel® HT Technology) delivers two processing threads per physical core. Highly threaded applications can get more work done in parallel, completing tasks sooner.
Enhanced Intel SpeedStep® Technology
Enhanced Intel SpeedStep® Technology is an advanced means of enabling high performance while meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep® Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep® Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
Specifications
Processor
| Processor ARK ID | 53676 |
|---|---|
| Processor code | SLC3Q |
| Processor codename | Westmere EX |
| CPU multiplier (bus/core ratio) | 16 |
| Bus type | QPI |
| Stepping | A2 |
| Processor front side bus | 1333 MHz |
| Thermal Design Power (TDP) | 105 W |
| Processor cache type | Smart Cache |
| Processor cache | 24 MB |
| Processor boost frequency | 2.4 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 6.4 GT/s |
| Processor threads | 16 |
| Processor series | Intel Xeon E7-4800 |
| Component for | Server/workstation |
| Cooler included | Yes |
| Processor lithography | 32 nm |
| Processor socket | LGA 1567 (Socket LS) |
| Processor cores | 8 |
| Processor base frequency | 2.13 GHz |
| Processor model | E7-4830 |
| Processor family | Intel® Xeon® E7 Family |
| Processor manufacturer | Intel |
Memory
| ECC | Yes |
|---|---|
| Memory channels | Quad-channel |
| Memory types supported by processor | DDR3-SDRAM |
| Maximum internal memory supported by processor | 2.05 TB |
Show all 62 specificationsShow fewer specifications
Features
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
|---|---|
| Export Control Classification Number (ECCN) | 5A992C |
| Scalability | S4S |
| Embedded options available | No |
| CPU configuration (max) | 4 |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Thermal Monitoring Technologies | Yes |
Processor special features
| Intel VT-x with Extended Page Tables (EPT) | Yes |
|---|---|
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Conflict-Free processor | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
General
| Product family | Xeon |
|---|
Operational conditions
| Tcase | 64 °C |
|---|
Technical details
| Bus bandwidth | 6.4 |
|---|---|
| Bus type units | GT/s |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor E7 Family |
| Launch date | Q2'11 |
| Status | Discontinued |
| Bus speed | 6.4 GT/s |
| Processor cache | 24576 KB |
| Supported memory types | DDR3-SDRAM |
| Product type | Processor |
Weight & dimensions
| Processor package size | 49.17mm x 56.47mm |
|---|
Other features
| Maximum internal memory | 2097152 MB |
|---|
