Intel · MPN: AT80614003597AC
£440.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £146.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Processor modelE5645
  • CompatibilityIntel Server Board S5520URIntel Server Board S5520HCIntel Workstation Board S5520SCIntel Server Board S5500BCIntel Server Board S5500WBIntel Server Board S5500HCVIntel Server Board S5500HVIntel Server Board S5500WB12VIntel Compute Module MFS5520VIRIntel Server Board S5520HCTIntel Server Board S5520URTIntel Server System SR1680MVIntel Workstation System SC5650SCWSIntel Server System SR1630BCRIntel Server System SC5650BCDPRIntel Server System SC5650HCBRPRIntel Server System SR2625URLXRIntel Server System SR2625URLXTIntel Server System SR2625URBRPRIntel Server System SR1600URRIntel Server System SR1600URHSRIntel Server System SR1625URRIntel Server System SR1625URSASRIntel Server System SR2600URBRPRIntel Server System SR2600URLXRIntel Server System SR2600URSATARIntel Server System SR2612URRIntel Server System SR1695WBACIntel Server System SR1695WBDCIntel Server System SR1690WBR
All specifications

Out of stock

FREE delivery

Express £9.99

Overview

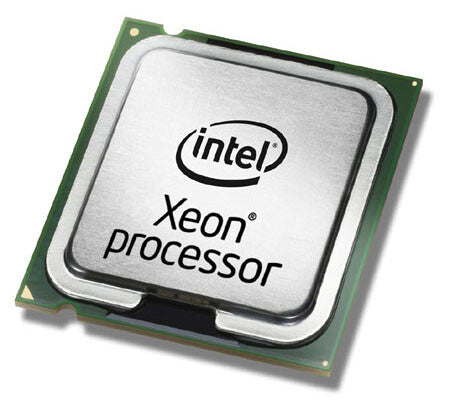

  • Intel® Xeon® 5000 Sequence E5645 2.4 GHz
  • 12 MB Smart Cache LGA 1366 (Socket B)
  • Processor cores: 6 32 nm 64-bit 80 W
  • Maximum internal memory supported by processor: 288 GB DDR3-SDRAM
  • Tray

Performance. Efficiency. Agility.
Intel’s newest dual-core processor for dual processor (DP) servers and workstations delivers a new level of energy-efficient performance from the innovative Intel® Core™ microarchitecture, optimized for low-power, dual-core, 64-bit computing.

Dual-core processing
Significant performance headroom, especially for multi-threaded applications, helps boost system utilization through virtualization and application responsiveness.

Intel® Core™ microarchitecture
Better performance on multiple application types and user environments at a substantially reduce power envelope.

Majority of SKUs at 65W
Significantly lower power (compared to previous generation) helps improve data center density and power/thermal operating costs.

Ultra-dense, ultra low-power SKUs at 40W
Low-voltage SKU available at reduced power envelopes will deliver even higher performance per watt — helps reduce power/thermal operating costs and improve data center density.

4 MB shared L2 cache
Increases efficiency of L2 cache-to-processor data transfers, maximizing main memory to processor bandwidth and reducing latency.
Entire L2 cache can be allocated to one core.

1066 and 1333 MHz system bus
Faster system bus speeds than previous generations for increased throughput.

Intel® Virtualization Technology
New processor hardware enhancements that support software-based virtualization, enabling migration of more environments — including 64-bit OSs and applications — to virtual environments.

Intel® Extended Memory 64 Technology (Intel® EM64T)
Flexibility for 64-bit and 32-bit applications and operating systems.

Enhanced Intel® Speedstep™ Technology
Helps reduce average system power consumption and potentially improves system acoustics.

Specifications

Processor

Processor ARK ID48768
Processor codenameWestmere EP
Memory bandwidth supported by processor (max)32 GB/s
Number of QPI links2
CPU multiplier (bus/core ratio)18
Bus typeQPI
SteppingB1
VID Voltage Range0.75 - 1.35 V
Thermal Design Power (TDP)80 W
Processor cache typeSmart Cache
Processor cache12 MB
Processor boost frequency2.67 GHz
Processor operating modes64-bit
System bus rate5.86 GT/s
Processor threads12
Processor seriesIntel Xeon 5600 Series
Component forServer/workstation
Cooler includedNo
Processor lithography32 nm
Processor socketLGA 1366 (Socket B)
Processor cores6
Processor base frequency2.4 GHz
Processor modelE5645
Processor familyIntel® Xeon® 5000 Sequence
Processor manufacturerIntel

Memory

ECCYes
Memory channelsTriple-channel
Memory clock speeds supported by processor800,1066,1333 MHz
Memory types supported by processorDDR3-SDRAM
Maximum internal memory supported by processor288 GB
Show all 74 specificationsShow fewer specifications

Graphics

On-board graphics cardNo

Features

Commodity Classification Automated Tracking System (CCATS)G077159
Export Control Classification Number (ECCN)5A992C
Embedded options availableYes
CPU configuration (max)2
Supported instruction setsSSE4.2
Market segmentServer
Execute Disable BitYes
Idle StatesYes
Thermal Monitoring TechnologiesNo

Processor special features

Intel VT-x with Extended Page Tables (EPT)Yes
Intel 64Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel Demand Based SwitchingYes
Intel Enhanced Halt StateYes
Conflict-Free processorNo
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Turbo Boost Technology1.0
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel Trusted Execution TechnologyYes
Enhanced Intel SpeedStep TechnologyYes

General

Product familyXeon

Operational conditions

Tcase76.2 °C

Technical details

Bus bandwidth5.86
Bus type unitsGT/s
Processor brand nameIntel Xeon
Last change63903513
Product familyIntel Xeon Processor 5000 Sequence
Launch dateQ1'10
StatusDiscontinued
Born on dateQ1'10
Product nameIntel Xeon E5645 (12M Cache, 2.40 GHz, 5.86 GT/s Intel QPI)
Maximum memory288 GB
Bus speed5.86 GT/s
Processor core voltage0.750-1.350 V
Processor cache12288 KB
Supported memory typesDDR3-SDRAM
Product typeProcessor

Weight & dimensions

Processor package size42.5mm x 45mm

Other features

Maximum internal memory294912 MB
Cache memory12 MB
CompatibilityIntel Server Board S5520URIntel Server Board S5520HCIntel Workstation Board S5520SCIntel Server Board S5500BCIntel Server Board S5500WBIntel Server Board S5500HCVIntel Server Board S5500HVIntel Server Board S5500WB12VIntel Compute Module MFS5520VIRIntel Server Board S5520HCTIntel Server Board S5520URTIntel Server System SR1680MVIntel Workstation System SC5650SCWSIntel Server System SR1630BCRIntel Server System SC5650BCDPRIntel Server System SC5650HCBRPRIntel Server System SR2625URLXRIntel Server System SR2625URLXTIntel Server System SR2625URBRPRIntel Server System SR1600URRIntel Server System SR1600URHSRIntel Server System SR1625URRIntel Server System SR1625URSASRIntel Server System SR2600URBRPRIntel Server System SR2600URLXRIntel Server System SR2600URSATARIntel Server System SR2612URRIntel Server System SR1695WBACIntel Server System SR1695WBDCIntel Server System SR1690WBR
Intel® Virtualization Technology (Intel® VT)VT-d, VT-x
