Intel · MPN: AT80574KL080N
£1,083.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £361.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

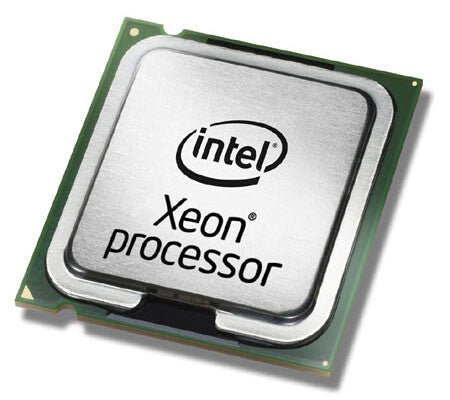

  • Intel® Xeon® E5472 3 GHz
  • 12 MB L2 LGA 771 (Socket J)
  • Processor cores: 4 45 nm 64-bit 80 W
  • Tray

Performance. Efficiency. Agility.
Intel’s newest dual-core processor for dual processor (DP) servers and workstations delivers a new level of energy-efficient performance from the innovative Intel® Core™ microarchitecture, optimized for low-power, dual-core, 64-bit computing.

The Dual-Core Intel Xeon processor 5100 series is ideal for intense computing environments, 32-bit and 64-bit business-critical applications and high-end workstations. Combined with the Intel® 5000 chipset family and Fully Buffered DIMM (FBDIMM) technology, the new Dual-Core Intel Xeon processor 5100 series-based platforms are expected to deliver up to 3 times the performance and 3.5 times the performance/watt of previous-generation single-core Intel® Xeon® processors. The new Dual-Core Intel Xeon processor 5100 series-based platforms are expected to deliver up to 2.25 times the performance and 2.35 times the performance/watt of previous-generation dual-core Intel Xeon processors.

The Dual-Core Intel Xeon processor 5100 series is compatible with Intel® 5000P, 5000V and 5000X series of chipsets. Server boards based on these chipsets are optimized for dual core with advanced platform features of Dual Independent Bus and Fully Buffered DIMM memory technology offering up to 4X and 3X available bandwidth of current generation platforms. Improved I/O performance is possible with PCI Express* and the option of Intel I/O Acceleration Technology.

Dual-core processing
Significant performance headroom, especially for multi-threaded applications, helps boost system utilization through virtualization and application responsiveness.

Intel® Core™ microarchitecture
Better performance on multiple application types and user environments at a substantially reduce power envelope.

Majority of SKUs at 65W
Significantly lower power (compared to previous generation) helps improve data center density and power/thermal operating costs.

Ultra-dense, ultra low-power SKUs at 40W
Low-voltage SKU available at reduced power envelopes will deliver even higher performance per watt — helps reduce power/thermal operating costs and improve data center density.

4 MB shared L2 cache
Increases efficiency of L2 cache-to-processor data transfers, maximizing main memory to processor bandwidth and reducing latency.
Entire L2 cache can be allocated to one core.

1066 and 1333 MHz system bus
Faster system bus speeds than previous generations for increased throughput.

Intel® Virtualization Technology
New processor hardware enhancements that support software-based virtualization, enabling migration of more environments — including 64-bit OSs and applications — to virtual environments.

Intel® Extended Memory 64 Technology (Intel® EM64T)
Flexibility for 64-bit and 32-bit applications and operating systems.

Enhanced Intel® Speedstep™ Technology
Helps reduce average system power consumption and potentially improves system acoustics.

Specifications

Processor

Processor ARK ID33085
Processor codenameHarpertown
Processor system typeDP
CPU multiplier (bus/core ratio)7.5
Bus typeFSB
SteppingE0
FSB ParityYes
VID Voltage Range0.85 - 1.35 V
Processor front side bus1600 MHz
Thermal Design Power (TDP)80 W
Processor cache typeL2
Processor cache12 MB
Processor operating modes64-bit
Processor threads4
Processor seriesIntel Xeon 5400 Series
Component forServer/workstation
Cooler includedNo
Processor lithography45 nm
Processor socketLGA 771 (Socket J)
Processor cores4
Processor base frequency3 GHz
Processor modelE5472
Processor familyIntel® Xeon®
Processor manufacturerIntel

Graphics

On-board graphics cardNo
Show all 62 specificationsShow fewer specifications

Features

Commodity Classification Automated Tracking System (CCATS)NA
Export Control Classification Number (ECCN)3A991.A.1
Embedded options availableNo
Number of Graphics & IMC Die Transistors820 M
Processing Die size214 mm²
Number of Processing Die Transistors820 M
Market segmentServer
Execute Disable BitYes
Idle StatesYes
Thermal Monitoring TechnologiesYes

Processor special features

Intel VT-x with Extended Page Tables (EPT)No
Intel 64Yes
Intel Virtualization Technology (VT-x)Yes
Intel Demand Based SwitchingYes
Intel Enhanced Halt StateYes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Turbo Boost TechnologyNo
Intel Trusted Execution TechnologyNo
Enhanced Intel SpeedStep TechnologyYes

General

Product familyXeon

Operational conditions

Tcase67 °C

Technical details

Bus bandwidth1600
Bus type unitsMHz
Processor brand nameIntel Xeon
Last change63903513
Product familyIntel Xeon Processor 5000 Sequence
Launch dateQ4'07
StatusDiscontinued
Born on dateQ4'07
Product nameIntel Xeon E5472 (12M Cache, 3.00 GHz, 1600 MHz FSB)
Bus speed1600 MHz
Processor cache12288 KB
Product typeProcessor

Weight & dimensions

Processor package size37.5 x 37.5 mm

Other features

Cache memory12 MB
Supplemental SKUNo
Intel® Virtualization Technology (Intel® VT)VT-x
