Intel · MPN: CM8063501453800
£561.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £187.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

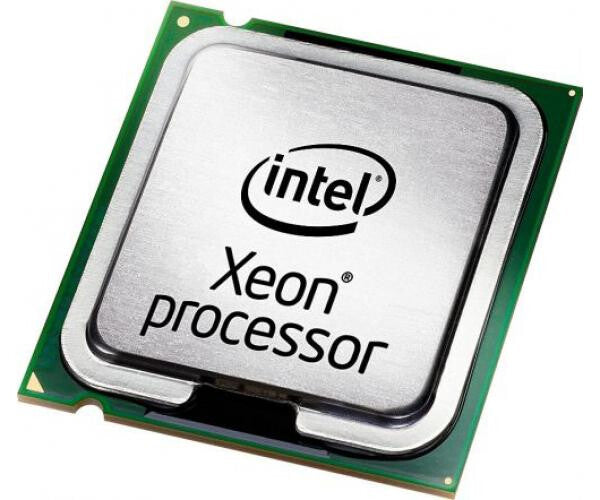

  • Intel® Xeon® E5 V2 Family E5-4603V2 2.2 GHz
  • 10 MB Smart Cache LGA 2011 (Socket R)
  • Processor cores: 4 22 nm 64-bit 95 W
  • Maximum internal memory supported by processor: 768 GB DDR3-SDRAM
  • Tray

Servers, workstations, and storage solutions based on the new Intel® Xeon® processor E5 family deliver the best combination of performance, built-in capabilities, and cost-effectiveness to make data centers more flexible and efficient. From virtualization and cloud computing solutions to design automation or real-time financial transactions, you’ll be delighted by better than ever performance no matter what tasks you face.

Your investment in industry standard technology from Intel combined with innovative solutions from partners help future-proof your data center with infrastructure that grows with your business.

Technology to scale innovative private cloud services
Today’s private clouds enable greater business agility and efficiency by delivering innovative and scalable services that drive value back into the organizations they serve. Building and managing these services require systems that scale to meet your ever changing needs, while delivering solutions to the challenges IT managers face every day. Server and storage platforms based on the Intel® Xeon® processor E5 family are built to be at the heart of today’s data centers and enable powerful, versatile private cloud solutions.

New Intel® Xeon® processor E5: a new performance sweet spot
The Intel® Xeon® processor E5 family support key cloud requirements that make your data center agile and more responsive to changing business needs. Maintaining industry leadership for power efficiency and continuing Intel Xeon processor performance advancements, the Intel® Xeon® processor E5 family gives you additional performance when you need it for single- and multi-threaded applications, including increased floating-point performance for technical computing workloads.

Specifications

Processor

Processor manufacturerIntel
Processor familyIntel® Xeon® E5 V2 Family
Processor modelE5-4603V2
Processor base frequency2.2 GHz
Processor cores4
Processor socketLGA 2011 (Socket R)
Processor lithography22 nm
Cooler includedNo
Component forServer/workstation
Processor seriesIntel Xeon E5-4600 v2
Processor threads8
System bus rate6.4 GT/s
Processor operating modes64-bit
Processor boost frequency2.2 GHz
Processor cache10 MB
Processor cache typeSmart Cache
L3 cache speed2.2 GHz
Thermal Design Power (TDP)95 W
VID Voltage Range0.65 - 1.3 V
SteppingS1
Bus typeQPI
Number of QPI links2
Memory bandwidth supported by processor (max)42.6 GB/s
Processor codenameIvy Bridge EP
Processor codeSR1B6
Processor ARK ID75793

Memory

Maximum internal memory supported by processor768 GB
Memory types supported by processorDDR3-SDRAM
Memory clock speeds supported by processor800,1066,1333 MHz
Memory channelsQuad-channel
ECCYes
Show all 87 specificationsShow fewer specifications

Graphics

On-board graphics cardNo

Features

Thermal Monitoring TechnologiesYes
Idle StatesYes
Execute Disable BitYes
Market segmentServer
Maximum number of PCI Express lanes40
PCI Express slots version3.0
PCI Express configurationsx4, x8, x16
Supported instruction setsAVX
Physical Address Extension (PAE)Yes
CPU configuration (max)4
PCI Express CEM revision3.0
Embedded options availableNo
Scalability4S
Export Control Classification Number (ECCN)5A992C
Commodity Classification Automated Tracking System (CCATS)G077159

Processor special features

Intel® Smart CacheYes
Enhanced Intel SpeedStep TechnologyYes
Intel Trusted Execution TechnologyYes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Turbo Boost TechnologyNo
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Transactional Synchronization ExtensionsNo
Intel Secure Key Technology version1.00
Conflict-Free processorNo
Intel TSX-NI version0.00
Intel Enhanced Halt StateYes
Intel® OS GuardYes
Intel® Secure KeyYes
Intel Demand Based SwitchingYes
Intel TSX-NINo
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel Virtualization Technology (VT-x)Yes
Intel 64Yes
Intel VT-x with Extended Page Tables (EPT)Yes

General

Product familyXeon

Operational conditions

Tcase77 °C

Technical details

Processor cache10240 KB
Product typeProcessor
Supported memory typesDDR3-SDRAM
Processor core voltage0.65-1.30 V
Product nameIntel Xeon E5-4603 v2 (10M Cache, 2.20 GHz)
Born on dateQ1'14
Product familyIntel Xeon Processor E5 v2 Family
Last change63903513
Processor brand nameIntel Xeon v2
Bus type unitsGT/s
Bus bandwidth6.4
Bus speed6.4 GT/s
Maximum memory768 GB
StatusLaunched
Launch dateQ1'14

Weight & dimensions

Processor package size52.5mm x 45mm

Other features

Intel® Virtualization Technology (Intel® VT)VT-d, VT-x
Cache memory10 MB
Maximum internal memory786432 MB
