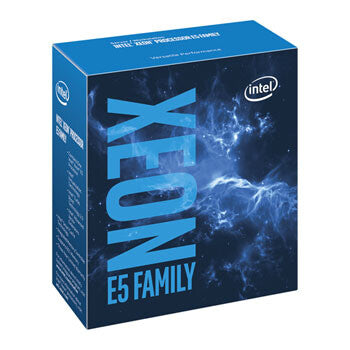

Intel · MPN: BX80660E52630V4
£683.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £227.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

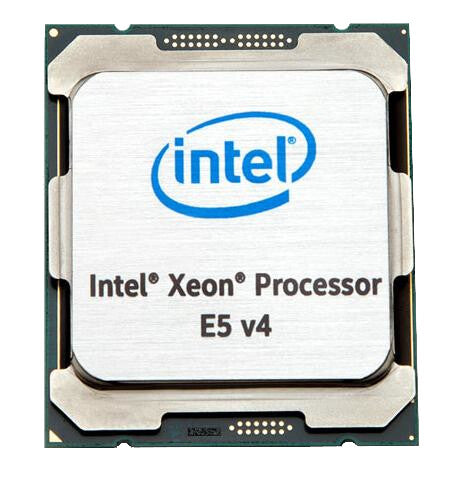

  • Intel® Xeon® E5 v4 E5-2630V4 2.2 GHz
  • 25 MB Smart Cache LGA 2011-v3
  • Processor cores: 10 14 nm 64-bit 85 W
  • Maximum internal memory supported by processor: 1.54 TB DDR4-SDRAM
  • Box Cooler included

The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.

Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.

Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.

Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.

Specifications

Processor

Processor ARK ID92981
Processor codenameBroadwell
Memory bandwidth supported by processor (max)68.3 GB/s
Number of QPI links2
Bus typeQPI
Thermal Design Power (TDP)85 W
Processor cache typeSmart Cache
Processor cache25 MB
Processor boost frequency3.1 GHz
Processor operating modes64-bit
System bus rate8 GT/s
Processor threads20
Processor seriesIntel Xeon E5-2600 v4
Component forServer/workstation
Cooler includedYes
Processor lithography14 nm
Processor socketLGA 2011-v3
Processor cores10
Processor base frequency2.2 GHz
Processor modelE5-2630V4
Processor familyIntel® Xeon® E5 v4
Processor manufacturerIntel

Memory

ECCYes
Memory channelsQuad-channel
Memory clock speeds supported by processor1600,1866,2133 MHz
Memory types supported by processorDDR4-SDRAM
Maximum internal memory supported by processor1.54 TB
Show all 86 specificationsShow fewer specifications

Graphics

Discrete graphics card modelNot available
On-board graphics card modelNot available
On-board graphics cardNo
Discrete graphics cardNo

Features

Commodity Classification Automated Tracking System (CCATS)G077159
Export Control Classification Number (ECCN)5A992C
Scalability2S
Embedded options availableNo
PCI Express CEM revision3.0
CPU configuration (max)2
Physical Address Extension (PAE)Yes
Supported instruction setsAVX 2.0
PCI Express configurations1x16, 1x4, 1x8
PCI Express slots version3.0
Maximum number of PCI Express lanes40
Market segmentServer
Execute Disable BitYes
Idle StatesYes
Thermal Monitoring TechnologiesYes

Processor special features

Intel VT-x with Extended Page Tables (EPT)Yes
Intel Identity Protection Technology version0.00
Intel Secure Key Technology version1.00
Intel 64Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel Demand Based SwitchingYes
Intel® Secure KeyYes
Intel TSX-NIYes
Intel® OS GuardYes
Intel Enhanced Halt StateYes
Intel® vPro™ Platform EligibilityYes
Intel TSX-NI version1.00
Conflict-Free processorYes
Intel® Transactional Synchronization ExtensionsYes
Intel® Turbo Boost Technology 2.0 frequency3.1 GHz
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Turbo Boost Technology2.0
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel Trusted Execution TechnologyYes
Intel® Identity Protection Technology (Intel® IPT)No
Intel Flex Memory AccessNo
Enhanced Intel SpeedStep TechnologyYes

General

Product familyXeon

Operational conditions

Tcase74 °C

Technical details

End of servicing updates dateThursday, June 30, 2022
Servicing statusEnd of Servicing Updates
Bus bandwidth8
Bus type unitsGT/s
Processor brand nameIntel Xeon
Last change63903513
Product familyIntel Xeon Processor E5 v4 Family
Launch dateQ1'16
StatusLaunched
Bus speed8 GT/s
Processor cache25600 KB
Supported memory typesDDR4-SDRAM
Product typeProcessor

Weight & dimensions

Processor package size45mm x 52.5mm

Other features

Maximum internal memory1572864 MB
