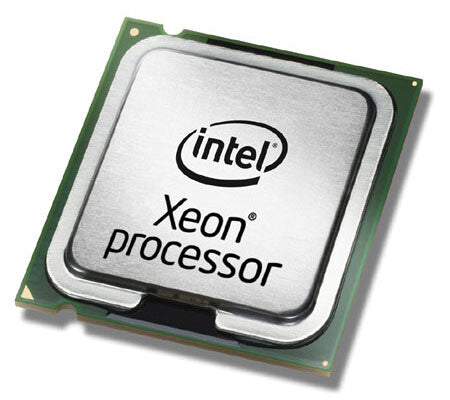

Intel Xeon E5-1650V3 processor 3.5 GHz 15 MB Smart Cache Tray
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £197.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Intel Xeon E5 v3 E5-1650V3 3.5 GHz
- 15 MB Smart Cache LGA 2011-v3
- Processor cores: 6 22 nm 64-bit 140 W
- Maximum internal memory supported by processor: 768 GB DDR4-SDRAM
- Tray
Servers, workstations, and storage solutions based on the new Intel® Xeon® processor E5 family deliver the best combination of performance, built-in capabilities, and cost-effectiveness to make data centers more flexible and efficient. From virtualization and cloud computing solutions to design automation or real-time financial transactions, you’ll be delighted by better than ever performance no matter what tasks you face.
Your investment in industry standard technology from Intel combined with innovative solutions from partners help future-proof your data center with infrastructure that grows with your business.
Technology to scale innovative private cloud services
Today’s private clouds enable greater business agility and efficiency by delivering innovative and scalable services that drive value back into the organizations they serve. Building and managing these services require systems that scale to meet your ever changing needs, while delivering solutions to the challenges IT managers face every day. Server and storage platforms based on the Intel® Xeon® processor E5 family are built to be at the heart of today’s data centers and enable powerful, versatile private cloud solutions.
New Intel® Xeon® processor E5: a new performance sweet spot
The Intel® Xeon® processor E5 family support key cloud requirements that make your data center agile and more responsive to changing business needs. Maintaining industry leadership for power efficiency and continuing Intel Xeon processor performance advancements, the Intel® Xeon® processor E5 family gives you additional performance when you need it for single- and multi-threaded applications, including increased floating-point performance for technical computing workloads.
Specifications
Processor
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel Xeon E5 v3 |
| Processor model | E5-1650V3 |
| Processor base frequency | 3.5 GHz |
| Processor cores | 6 |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 22 nm |
| Cooler included | No |
| Component for | Server/workstation |
| Processor series | Intel Xeon E5-1600 v3 |
| Processor threads | 12 |
| System bus rate | 0 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.8 GHz |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| L3 cache speed | 3.5 GHz |
| Thermal Design Power (TDP) | 140 W |
| VID Voltage Range | 0.65 - 1.3 V |
| Stepping | R2 |
| Bus type | QPI |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| Processor codename | Haswell |
| Processor code | SR20J |
| Processor ARK ID | 82765 |
Memory
| Maximum internal memory supported by processor | 768 GB |
|---|---|
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Show all 85 specificationsShow fewer specifications
Graphics
| On-board graphics card | No |
|---|
Features
| Thermal Monitoring Technologies | Yes |
|---|---|
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| Physical Address Extension (PAE) | Yes |
| CPU configuration (max) | 1 |
| PCI Express CEM revision | 3.0 |
| Embedded options available | No |
| Scalability | 1S |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
Processor special features
| Intel® Smart Cache | Yes |
|---|---|
| Intel Flex Memory Access | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology 2.0 frequency | 3.8 GHz |
| Intel® Transactional Synchronization Extensions | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Conflict-Free processor | No |
| Intel TSX-NI version | 0.00 |
| Intel Enhanced Halt State | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel Demand Based Switching | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel TSX-NI | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel 64 | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
General
| Product family | Xeon |
|---|
Operational conditions
| Tcase | 66.7 °C |
|---|
Technical details
| Processor cache | 15360 KB |
|---|---|
| Product type | Processor |
| Supported memory types | DDR4-SDRAM |
| Product family | Intel Xeon Processor E5 v3 Family |
| Last change | 63903513 |
| Processor brand name | Intel Xeon v2 |
| Bus type units | GT/s |
| Bus speed | 0 GT/s |
| Maximum memory | 768 GB |
| Status | Discontinued |
| Launch date | Q3'14 |
Weight & dimensions
| Processor package size | 52.5mm x 45mm |
|---|
Other features
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
|---|---|
| Maximum internal memory | 786432 MB |
