Intel · MPN: BX80677E31230V6
£265.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £88.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

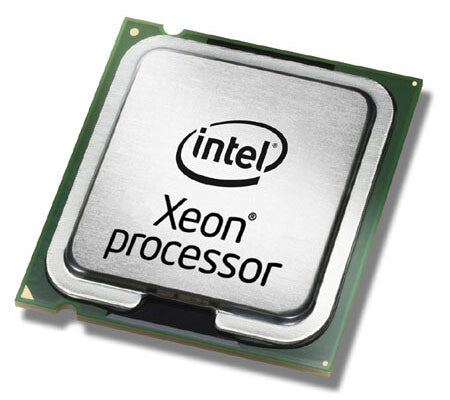

  • Intel® Xeon® E3 v6 E3-1230 v6 3.5 GHz
  • 8 MB Smart Cache LGA 1151 (Socket H4)
  • Processor cores: 4 14 nm 64-bit 72 W
  • Maximum internal memory supported by processor: 64 GB DDR4-SDRAM, DDR3L-SDRAM
  • Box Cooler included

Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.

Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Specifications

Processor

Processor ARK ID97474
Processor codenameKaby Lake
Memory bandwidth supported by processor (max)37.5 GB/s
Bus typeDMI3
SteppingB0
VID Voltage Range0.55 - 1.52 V
Thermal Design Power (TDP)72 W
Processor cache typeSmart Cache
Processor cache8 MB
Processor boost frequency3.9 GHz
Processor operating modes64-bit
System bus rate8 GT/s
Processor threads8
Component forServer/workstation
Cooler includedYes
Processor lithography14 nm
Processor socketLGA 1151 (Socket H4)
Processor cores4
Processor base frequency3.5 GHz
Processor modelE3-1230 v6
Processor familyIntel® Xeon® E3 v6
Processor manufacturerIntel

Memory

ECCYes
Memory channelsDual-channel
Memory clock speeds supported by processor1866,2400 MHz
Memory types supported by processorDDR4-SDRAM, DDR3L-SDRAM
Maximum internal memory supported by processor64 GB
Show all 95 specificationsShow fewer specifications

Graphics

Discrete graphics card modelNot available
On-board graphics card 4K supportNo
On-board graphics card modelNot available
On-board graphics cardNo
Discrete graphics cardNo

Features

Commodity Classification Automated Tracking System (CCATS)G077159
Export Control Classification Number (ECCN)5A992C
Scalability1S
Embedded options availableNo
PCI Express CEM revision3.0
CPU configuration (max)1
Supported instruction setsSSE4.1, SSE4.2, AVX 2.0
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version3.0
Maximum number of PCI Express lanes16
Market segmentServer
Execute Disable BitYes
Idle StatesYes
Thermal Monitoring TechnologiesYes

Processor special features

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)No
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Software Guard Extensions (Intel SGX)Yes
Intel Secure Key Technology version1.00
Intel 64Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® Secure KeyYes
Intel Clear Video TechnologyNo
Intel TSX-NIYes
Intel® OS GuardYes
Intel® Optane™ Memory ReadyYes
Intel Enhanced Halt StateYes
Intel® vPro™ Platform EligibilityYes
Intel® Boot GuardYes
Intel TSX-NI version1.00
Conflict-Free processorYes
Intel® Transactional Synchronization ExtensionsYes
Intel® Turbo Boost Technology 2.0 frequency3.9 GHz
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Turbo Boost Technology2.0
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel Trusted Execution TechnologyYes
Intel® Quick Sync Video TechnologyNo
Intel® InTru™ 3D TechnologyNo
Intel® Clear Video HD Technology (Intel® CVT HD)No
Intel® Memory Protection Extensions (Intel® MPX)Yes
Enhanced Intel SpeedStep TechnologyYes

General

Product familyXeon

Technical details

Servicing statusBaseline Servicing
Maximum resolution & refresh rate (VGA)N/A
Bus bandwidth8
Bus type unitsGT/s
Maximum resolution & refresh rate (HDMI)N/A
Maximum resolution & refresh rate (Integrated Flat Panel)N/A
Processor brand nameIntel Xeon
Last change63903513
Product familyIntel Xeon Processors
Launch dateQ1'17
StatusLaunched
Maximum resolution & refresh rate (DisplayPort)N/A
Maximum memory64 GB
Bus speed8 GT/s
Processor cache8192 KB
Supported memory typesDDR4-SDRAM, DDR3L-SDRAM
Product typeProcessor

Weight & dimensions

Processor package size37.5 x 37.5 mm

Other features

Graphics outputN/A
Maximum internal memory65536 MB
