Intel · MPN: BX80677E31225V6
£227.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £75.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

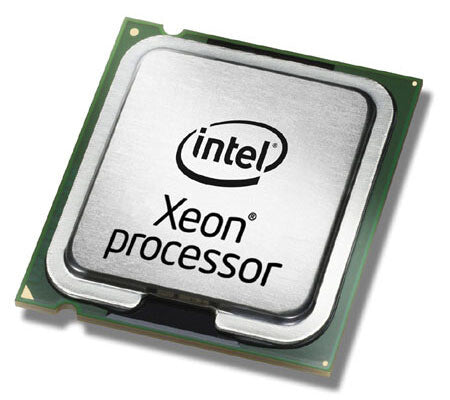

  • Intel® Xeon® E3 v6 E3-1225 v6 3.3 GHz
  • 8 MB Smart Cache LGA 1151 (Socket H4)
  • Processor cores: 4 14 nm 64-bit 73 W
  • Maximum internal memory supported by processor: 64 GB DDR4-SDRAM, DDR3L-SDRAM
  • On-board graphics card Intel® HD Graphics P630

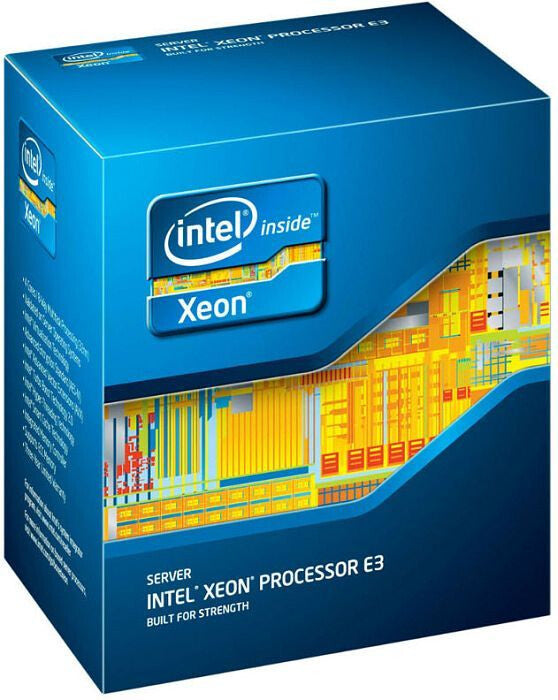

  • Box Cooler included

Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Intel® vPro™ Technology is a set of security and manageability capabilities built into the processor aimed at addressing four critical areas of IT security: 1) Threat management, including protection from rootkits, viruses, and malware 2) Identity and web site access point protection 3) Confidential personal and business data protection 4) Remote and local monitoring, remediation, and repair of PCs and workstations.

Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Specifications

Processor

Processor ARK ID97476
Processor codenameKaby Lake
Memory bandwidth supported by processor (max)37.5 GB/s
Bus typeDMI3
VID Voltage Range0.55 - 1.52 V
Thermal Design Power (TDP)73 W
Processor cache typeSmart Cache
Processor cache8 MB
Processor boost frequency3.7 GHz
Processor operating modes64-bit
System bus rate8 GT/s
Processor threads4
Component forServer/workstation
Cooler includedYes
Processor lithography14 nm
Processor socketLGA 1151 (Socket H4)
Processor cores4
Processor base frequency3.3 GHz
Processor modelE3-1225 v6
Processor familyIntel® Xeon® E3 v6
Processor manufacturerIntel

Memory

ECCYes
Memory channelsDual-channel
Memory clock speeds supported by processor1866,2400 MHz
Memory types supported by processorDDR4-SDRAM, DDR3L-SDRAM
Maximum internal memory supported by processor64 GB
Show all 111 specificationsShow fewer specifications

Graphics

Discrete graphics card modelNot available
On-board graphics card ID0x191D
On-board graphics card refresh rate at maximum resolution (DisplayPort)60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI)24 Hz
On-board graphics card maximum resolution (DisplayPort)4096 x 2304 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)4096 x 2304 pixels
On-board graphics card maximum resolution (HDMI)4096 x 2160 pixels
On-board graphics card DirectX version12.0
On-board graphics card OpenGL version4.4
On-board graphics card 4K supportYes
Number of displays supported (on-board graphics)3
On-board graphics card dynamic frequency (max)1150 MHz
On-board graphics card base frequency350 MHz
On-board graphics card outputs supportedEmbedded DisplayPort (eDP), DisplayPort, HDMI, DVI
Maximum on-board graphics card memory64 GB
On-board graphics card modelIntel® HD Graphics P630
On-board graphics cardYes
Discrete graphics cardNo

Features

Commodity Classification Automated Tracking System (CCATS)G077159
Export Control Classification Number (ECCN)5A992C
Scalability1S
Embedded options availableNo
PCI Express CEM revision3.0
CPU configuration (max)1
Supported instruction setsSSE4.1, SSE4.2, AVX 2.0
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version3.0
Maximum number of PCI Express lanes16
Market segmentServer
Execute Disable BitYes
Idle StatesYes
Thermal Monitoring TechnologiesYes

Processor special features

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Software Guard Extensions (Intel SGX)Yes
Intel Secure Key Technology version1.00
Intel 64Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® Secure KeyYes
Intel Clear Video TechnologyYes
Intel TSX-NIYes
Intel® OS GuardYes
Intel® Optane™ Memory ReadyYes
Intel Enhanced Halt StateYes
Intel® vPro™ Platform EligibilityYes
Intel® Boot GuardYes
Intel TSX-NI version1.00
Conflict-Free processorYes
Intel® Transactional Synchronization ExtensionsYes
Intel® Turbo Boost Technology 2.0 frequency3.7 GHz
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Turbo Boost Technology2.0
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel Trusted Execution TechnologyYes
Intel® Quick Sync Video TechnologyYes
Intel® InTru™ 3D TechnologyYes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Memory Protection Extensions (Intel® MPX)Yes
Enhanced Intel SpeedStep TechnologyYes

General

Product familyXeon

Technical details

Servicing statusBaseline Servicing
Maximum resolution & refresh rate (VGA)N/A
Bus bandwidth8
Bus type unitsGT/s
Maximum resolution & refresh rate (HDMI)4096x2160@24Hz
Maximum resolution & refresh rate (Integrated Flat Panel)4096x2304@60Hz
Processor brand nameIntel Xeon
Last change63903513
Product familyIntel Xeon Processors
Launch dateQ1'17
StatusLaunched
Maximum resolution & refresh rate (DisplayPort)4096x2304@60Hz
Maximum memory64 GB
Bus speed8 GT/s
Processor ID0x591D
Processor cache8192 KB
Supported memory typesDDR4-SDRAM, DDR3L-SDRAM
Product typeProcessor
Maximum graphics card memory64 GB

Weight & dimensions

Processor package size37.5 x 37.5 mm

Other features

Graphics outputeDP/DP/HDMI/DVI
Video decodingYes
Maximum internal memory65536 MB
