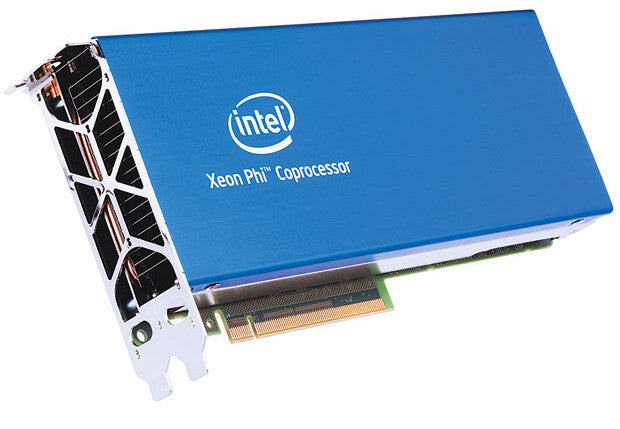

Intel Xeon 7120A processor 1.24 GHz 30.5 MB L2 Tray
Couldn't load pickup availability
- Intel® Xeon Phi™ 7120A 1.24 GHz
- 30.5 MB L2
- Processor cores: 61 22 nm 64-bit 300 W
- Maximum internal memory supported by processor: 16 GB
- Tray
Delivers over a teraFLOPS (floating-point operations per second) of double-precision peak performance. Additionally, as compared with Intel® Xeon® processor E5 family-based servers, the Intel® Xeon Phi™ coprocessor delivers up to 2.3 times higher peak FLOPS and up to 3 times more performance per watt and up to 7 times better performance on certain financial services applications.
Applications can support both Intel® Xeon® processors and Intel® Xeon Phi™ coprocessors which use common languages, models, and familiar and standard development tools, so there’s no need to learn new languages or tools.
Leverage the compute flexibility of Intel® Xeon Phi™ coprocessors to either use in Intel® Xeon® processors to accelerate processing of highly parallel code, or create independent, high-performance computing compute nodes with its own IP address and can run applications independently—unlike a basic accelerator.
| Processor | |
|---|---|
| Processor ARK ID | 80555 |
| Processor codename | Knights Corner |
| Memory bandwidth supported by processor (max) | 352 GB/s |
| Thermal Design Power (TDP) | 300 W |
| Processor cache type | L2 |
| Processor cache | 30.5 MB |
| Processor boost frequency | 1.33 GHz |
| Processor operating modes | 64-bit |
| Processor threads | 61 |
| Processor series | Intel Xeon Phi Coprocessor 7100 Series |
| Component for | Server/workstation |
| Cooler included | No |
| Processor lithography | 22 nm |
| Processor cores | 61 |
| Processor base frequency | 1.24 GHz |
| Processor model | 7120A |
| Processor family | Intel® Xeon Phi™ |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Hexadeca-channel |
| Maximum internal memory supported by processor | 16 GB |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Export Control Classification Number (ECCN) | 3A991 |
| Embedded options available | No |
| PCI Express CEM revision | 2.0 |
| Supported instruction sets | IMCI |
| PCI Express slots version | 2.0 |
| Market segment | Server |
| Processor special features | |
|---|---|
| Intel® Turbo Boost Technology | 1.0 |
| General | |
|---|---|
| Product family | Xeon |
| Packaging data | |
|---|---|
| Package type | Tray |
| Package height | 79 mm |
| Package depth | 356 mm |
| Package width | 236 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8471500150 |
| Technical details | |
|---|---|
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Phi Coprocessor x100 Product Family |
| Launch date | Q2'14 |
| Status | Discontinued |
| Born on date | Q2'14 |
| Product name | Intel Xeon Phi Co 7120A (16GB, 1.238 GHz, 61 core) |
| Maximum memory | 16 GB |
| Processor cache | 31232 KB |
| Product type | Processor |
| Other features | |
|---|---|
| Maximum internal memory | 16384 MB |
| Cache memory | 30.5 MB |
