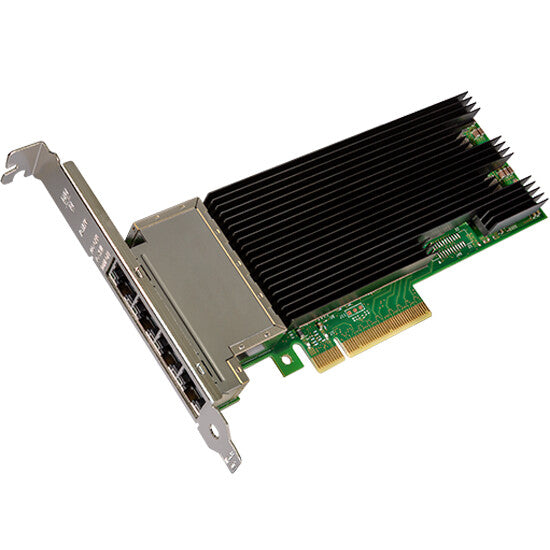

Intel X710T4BLK network card Internal Ethernet 10000 Mbit/s
£620.99
Couldn't load pickup availability
- Wired
- PCI Express 3.0 Ethernet
- 10 Gigabit Ethernet 10000 Mbit/s 10/100/1000BaseT(X)
- Internal Component for: Server
Intel® Ethernet Converged Network Adapters X710
Intel continues its history of Ethernet leadership by introducing the latest 10 gigabit family of adapters, powered by the Intel® Ethernet Controller X710.
The Intel® Ethernet Converged Network Adapter X710 family addresses the demanding needs of the next-generation agile data center by providing unmatched features for virtualization, flexibility for LAN and SAN networking, and proven reliable performance.
The family of adapters delivers superior performance up to 80 Gb/s (40 Gb/s Tx, 40 Gb/s Rx) bidirectional throughput (quad-port adapter required) in a PCI Express v3.0 x8 slot.
| Ports & interfaces | |
|---|---|
| PCI Card form factor | Full-height |
| PCI version | 3.0 |
| Ethernet LAN (RJ-45) ports | 4 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| LAN controller | Intel® XL710 |
| Maximum operating distance | 100 m |
| Supported network protocols | TCP, UDP, IP |
| Quality of Service (QoS) support | Yes |
| iSCSI support | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
|---|---|
| Certification | Class A: USA-FCC; Canada - ICES-003/NMB-003, European Union - CE, Japan - VCCI, Taiwan - BSMI, Korea - MSIP, Australia/New Zealand - RCM, SafetyEN/UL and CSA C22.2 60950-l| |
| LED indicators | Yes |
| Product colour | Black, Green |
| Component for | Server |
| Internal | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 24.69 W |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Other operating systems supported | FreeBSD |
| Linux operating systems supported | Yes |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Weight & dimensions | |
|---|---|
| Depth | 167.1 mm |
| Width | 68.7 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Product series | 700 Series Network Adapters (up to 40GbE) |
| Product family | Intel 10 Gigabit server adapter |
| Launch date | Q4'16 |
| Status | Launched |
| Last change | 64826840 |
| Network interface card type | Server |
| Product brief URL | http://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x710-t4-brief.html |
| Storage Over Ethernet | iSCSI, NFS |
| Network interface card cable medium | Copper |
| Target market | Artificial Intelligence, High Performance Computing |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Interface type | PCIe v3.0 (8.0GT/s) |
| Processor family | 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE) |
| Controller type | Intel® Ethernet Controller XL710 |
| Cabling type | RJ45 Category 6 up to 55m; Category 6A up to 100m |
| Low halogen options available | No |
| Quantity per pack | 1 pc(s) |
| Storage-over-ethernet | Yes |
| On-chip QoS and Traffic Management | Yes |
| Speed & slot width | 8.0 GT/s, x8 Lane |
| iWARP/RDMA | No |
| Ethernet adapter ARK ID | 93428 |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Fiber Channel over Ethernet | Yes |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Product type | Network Interface Card |
| PCI-SIG* SR-IOV Capable | Yes |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Intel Data Direct I/O Technology | Yes |
| Market segment | LAD |
| Cable type | RJ45 Category 6 up to 55m; Category 6A up to 100m |
