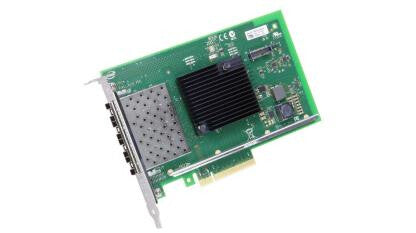

Intel X710-DA4 Internal Ethernet 10000 Mbit/s
Couldn't load pickup availability
- Wired
- PCI Express Ethernet
- 10 Gigabit Ethernet, Gigabit Ethernet 10000 Mbit/s 10GBase-T
- Internal
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
| Ports & interfaces | |
|---|---|
| PCI Card form factor | Half-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| LAN controller | Intel® XL710-AM1 |
| VLAN tagging | Yes |
| iSCSI support | Yes |
| Cabling technology | 10GBase-T |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.3, IEEE 802.3ad |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
|---|---|
| Product colour | Black, Green |
| Internal | Yes |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2, Windows Server 2012 R2 x64 |
| Linux operating systems supported | Yes |
| Compatible operating systems | intel.com/support/EthernetOS |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Product codename | Fortville |
| Product series | Intel Converged X710 |
| Product family | Intel 10 Gigabit server adapter |
| Status | Launched |
| Intelligent Offloads | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Interface type | PCIe v3.0 (8.0 GT/s) |
| On-chip QoS and Traffic Management | Yes |
| iWARP/RDMA | No |
| Ethernet adapter ARK ID | 83965 |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Flexible Port Partitioning | Yes |
| Fiber Channel over Ethernet | No |
| Intel Ethernet Power Management | Yes |
| Product type | 13 |
| PCI-SIG* SR-IOV Capable | Yes |
| Number of VLANs | 4096 |
| Intel Data Direct I/O Technology | Yes |
| Data transfer rate | 8 GT/s |
