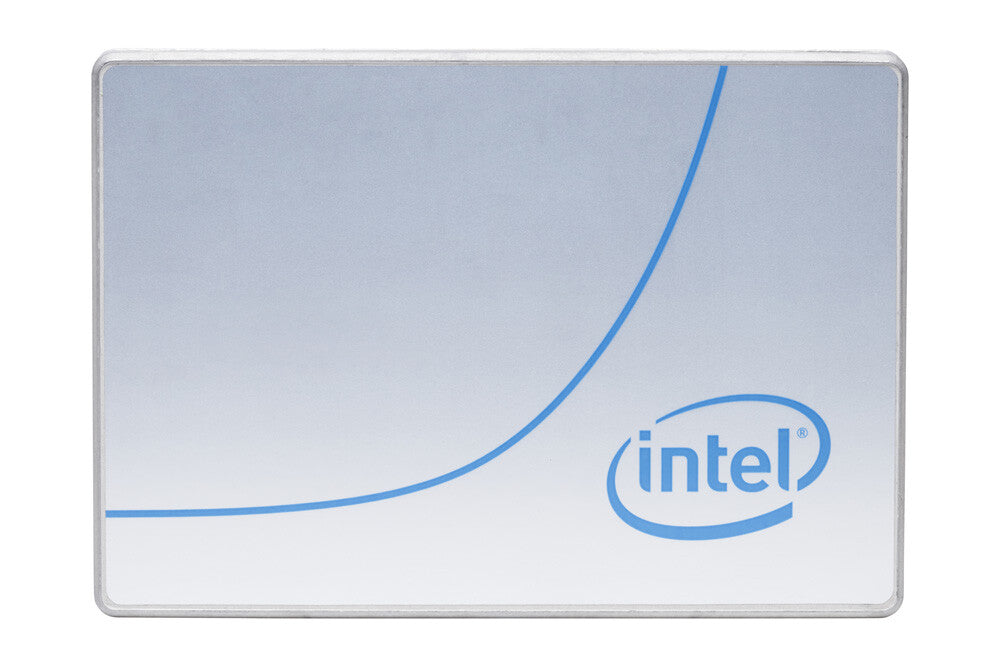

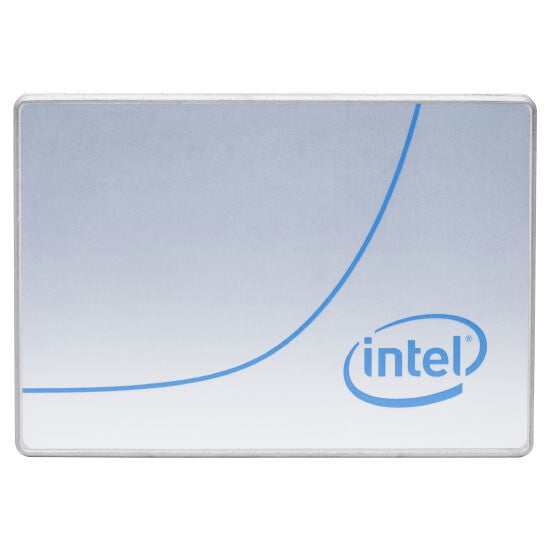

Intel SSDPE2KX010T701 internal solid state drive 1 TB 2.5" PCI Express 3.0 TLC
Couldn't load pickup availability
- 1 TB 2.5" PCI Express 3.0
- TLC
- Component for: PC/Laptop
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
| Features | |
|---|---|
| Temperature monitoring and logging | Yes |
| SSD ARK ID | 99030 |
| Market segment | Server |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| SSD temperature monitoring | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| End-to-End Data Protection | Yes |
| PCI Express interface data lanes | x4 |
| Write latency | 29 µs |
| Read latency | 80 µs |
| Random write (100% span) | 32000 IOPS |
| Random read (100% span) | 294000 IOPS |
| Component for | PC/Laptop |
| Memory type | TLC |
| Interface | PCI Express 3.0 |
| SSD form factor | 2.5" |
| SSD capacity | 1 TB |
| Brand-specific features | |
|---|---|
| Intel® Smart Response Technology | No |
| Intel Smart Response Technology version | 0.00 |
| Intel® Remote Secure Erase | No |
| Intel High Endurance Technology (HET) | No |
| Intel® Rapid Start Technology | No |
| Operational conditions | |
|---|---|
| Operating / non-operating shock | 1000 G/0.5 msec |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 35 °C |
| Operating temperature (T-T) | 0 - 35 °C |
| Other features | |
|---|---|
| Product codename | Cliffdale |
| Product series | Intel® SSD DC P4500 Series |
| Product family | Data center SSD |
| SSD weight | 131 g |
| Launch date | Q2'17 |
| Drive capacity | 1 TB |
| SSD power consumption (active) | Sequential Avg. 11W (Write), 9.6 W (Read) |
| SSD shock | 1000 G/0.5 msec |
| Last change | 63903513 |
| Intel Rapid Start Technology version | 0.00 |
| Remote Secure Erase (RSE) technology version | 0.00 |
| SSD endurance rating | 1.38 PBW |
| Product brief URL | http://www.intel.com/content/www/us/en/solid-state-drives/ssd-dc-p4500-brief.html |
| Sequential reading | 3200 MB/s |
| Sequential writing speed | 600 MB/s |
| Status | Launched |
| SSD hardware encryption | AES 256 bit |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
