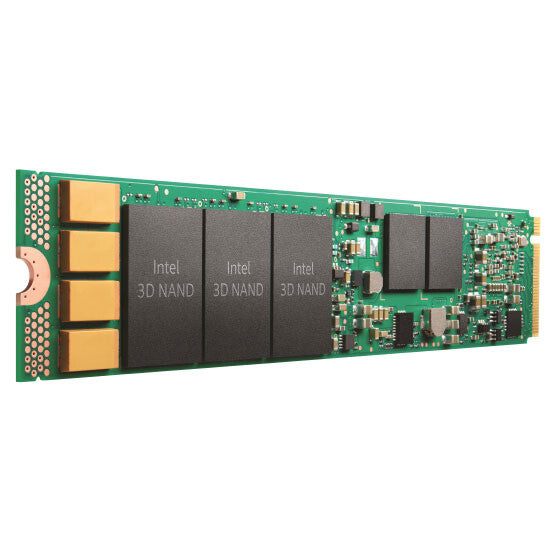

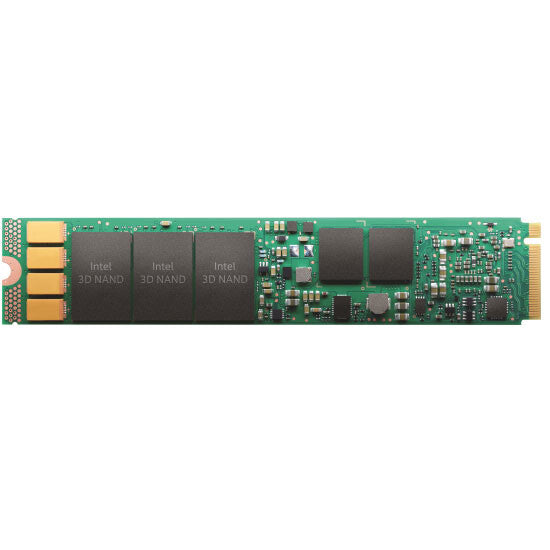

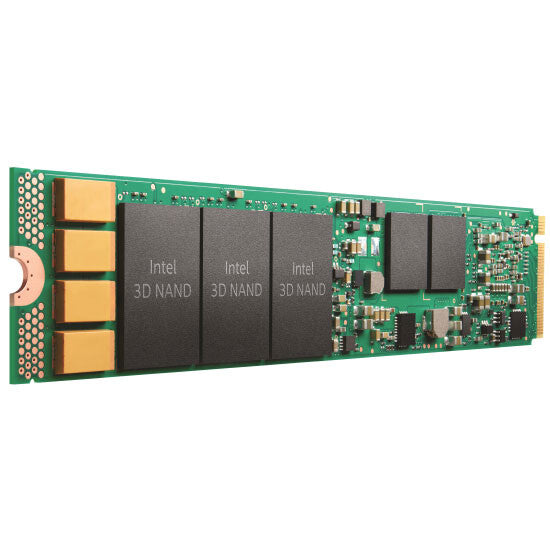

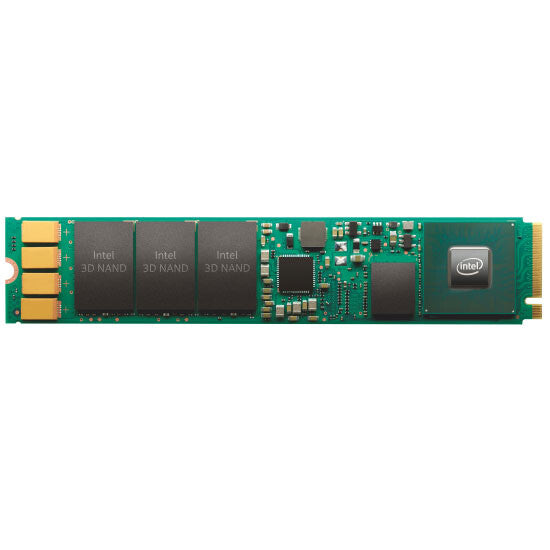

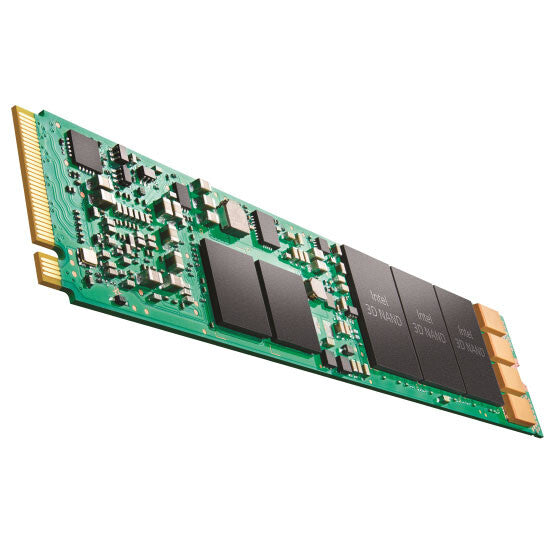

Intel SSD DC P4501 Series 1 TB M.2 PCI Express 3.1 NVMe 3D TLC
Couldn't load pickup availability
- 1 TB M.2 PCI Express 3.1
- Read speed: 2100 MB/s
- Write speed: 530 MB/s
- 3D TLC NVMe
- Hardware encryption 256-bit AES
- Component for: Server/workstation
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
| Features | |
|---|---|
| TBW rating | 1830 |
| Mean time between failures (MTBF) | 2000000 h |
| SSD temperature monitoring | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| End-to-End Data Protection | Yes |
| PCI Express interface data lanes | x4 |
| Write latency | 30 µs |
| Read latency | 100 µs |
| Random write (100% span) | 36000 IOPS |
| Random read (100% span) | 275000 IOPS |
| Write speed | 530 MB/s |
| Read speed | 2100 MB/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| Memory type | 3D TLC |
| NVMe | Yes |
| Interface | PCI Express 3.1 |
| SSD form factor | M.2 |
| SSD capacity | 1 TB |
| Power | |
|---|---|
| Power consumption (idle) | 3 W |
| Power consumption (average) | 8.25 W |
| Brand-specific features | |
|---|---|
| Intel® Smart Response Technology | No |
| Intel High Endurance Technology (HET) | No |
| Intel® Rapid Start Technology | No |
| Weight & dimensions | |
|---|---|
| Weight | 13 g |
| Depth | 110 mm |
| Width | 22 mm |
| Operational conditions | |
|---|---|
| Non-operating shock | 1000 G |
| Operating shock | 1000 G |
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Operating temperature (T-T) | 0 - 70 °C |
| Other features | |
|---|---|
| Product colour | Black, Green |
