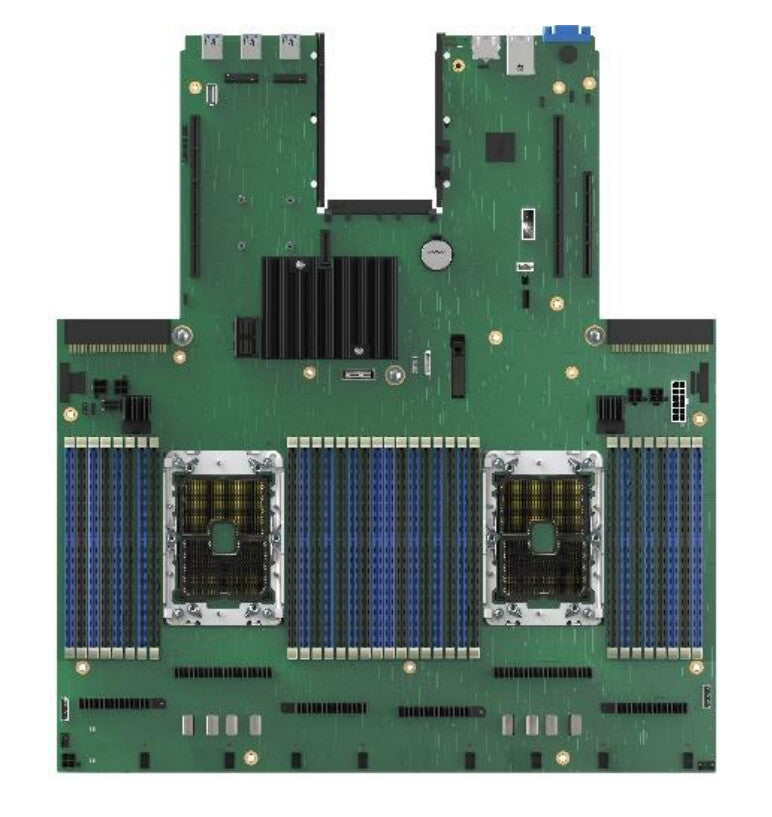

Intel · MPN: M50CYP2SB1U
£924.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £308.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Intel LGA 4189 Intel® Xeon®
  • Server Intel C621A
  • DDR4-SDRAM 32 DIMM Maximum internal memory: 12 TB
  • SATA RAID support
  • ASPEED AST2500
  • BIOS type: UEFI

Intel® Trusted Execution Technology
Intel® Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel® processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

TPM Version
TPM (Trusted Platform Module) is a component that provides hardware level security upon system boot-up via stored security keys, passwords, encryption and hash functions.

Integrated BMC with IPMI
IPMI (Intelligent Platform Management Interface) is a standardized interface used for out-of-band management of computer systems. The integrated BMC (Baseboard Management Controller) is a specialized microcontroller that enables IPMI.

Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.

Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.

RAID Configuration
RAID (Redundant Array of Independent Disks) is a storage technology that combines multiple disk drive components into a single logical unit, and distributes data across the array defined by RAID levels, indicative of the level of redundancy and performance required.

Intel® Remote Management Module Support
The Intel® Remote Management Module (Intel® RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).

Intel® Advanced Management Technology
Intel® Advanced Management Technology features an isolated, independent, secure, and highly reliable network connection, with an Integrated Baseboard Management Controller (Integrated BMC) configuration from within BIOS. Also includes an embedded web user interface that launches key platform diagnostic capabilities over the network, an out-of-band (OOB) platform inventory, failsafe firmware updates, and an automatic Integrated BMC stall detection and reset.

# of UPI Links
Intel® Ultra Path Interconnect (UPI) links are a high speed, point-to-point interconnect bus between the processors, delivering increased bandwidth and performance over Intel® QPI.

Intel® Node Manager
Intel® Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.

Intel® Optane™ Persistent Memory Supported
Intel® Optane™ persistent memory is a revolutionary tier of non-volatile memory that sits between memory and storage to provide large, affordable memory capacity that is comparable to DRAM performance. Delivering large system-level memory capacity when combined with traditional DRAM, Intel Optane persistent memory is helping transform critical memory constrained workloads – from cloud, databases, in-memory analytics, virtualization, and content delivery networks.

Specifications

Processor

Memory bandwidth supported by processor (max)3200 GB/s
Maximum number of SMP processors2
Compatible processor seriesIntel® Xeon®
Processor socketLGA 4189
Processor manufacturerIntel

Memory

Memory bandwidth (max)3200 GB/s
Maximum internal memory12 TB
ECC сompatibilityECC
Memory channelsHexadeca-channel
Memory slots typeDIMM
Number of memory slots32
Supported memory typesDDR4-SDRAM
Show all 61 specificationsShow fewer specifications

Storage controllers

RAID levels0, 1, 5, 10
RAID supportYes
Supported storage drive interfacesSATA

Graphics

Graphics cardAST2500
Graphics card familyASPEED
On-board graphics cardYes
Parallel processing technology supportNot supported

Internal I/O

Total number of SATA connectors10
Number of SATA connectors10
Number of SATA III connectors10
USB 2.0 connectors1

Rear panel I/O ports

Serial ports quantity2
VGA (D-Sub) ports quantity1
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 2.0 ports quantity1

Network

Wi-FiNo

Features

Rack-Friendly boardYes
Motherboard chipsetIntel C621A
Motherboard chipset familyIntel
Component forServer

Expansion slots

PCI Express slots version4.0

BIOS

BIOS typeUEFI

Processor special features

Intel® Optane™ Memory ReadyYes
Intel Advanced Management TechnologyYes
Intel Remote Management Module SupportY
Intel Intelligent Power Node ManagerYes
Trusted Platform Module (TPM)Yes
Intel® Optane™ DC Persistent Memory SupportedYes
Intel Trusted Execution TechnologyYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Trusted Platform Module (TPM) version2.0
Integrated BMC with IPMIYes

Weight & dimensions

Depth477.4 mm
Width428 mm

Other features

Export Control Classification Number (ECCN)5A002U
Commodity Classification Automated Tracking System (CCATS)G157815L1
Thermal Design Power (TDP)270 W
Chassis typeRack
CPU configuration (max)2
Number of DIMM slots32

Technical details

Riser slot 3 number of lanes16
Riser slot 2 number of lanes32
Riser slot 1 number of lanes32
Supported RAID configuration0/1/5/10
Launch dateQ2'21
StatusLaunched
USB ports quantity6
USB version2.0/3.2 Gen 1 (3.1 Gen 1)
