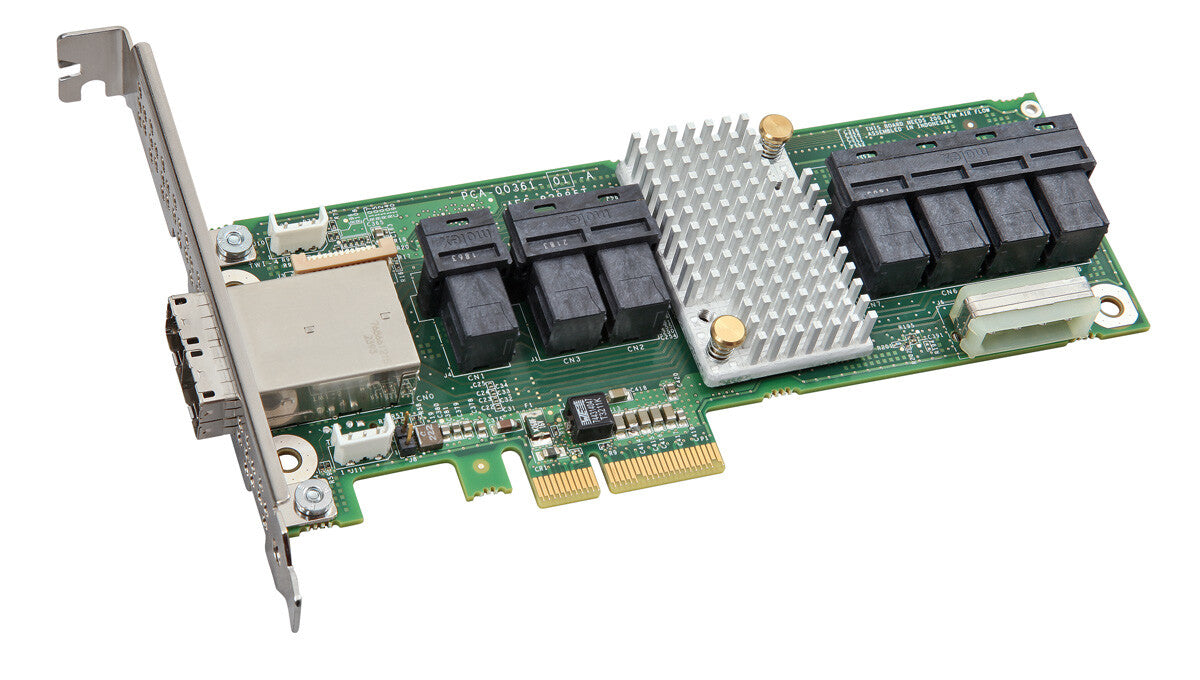

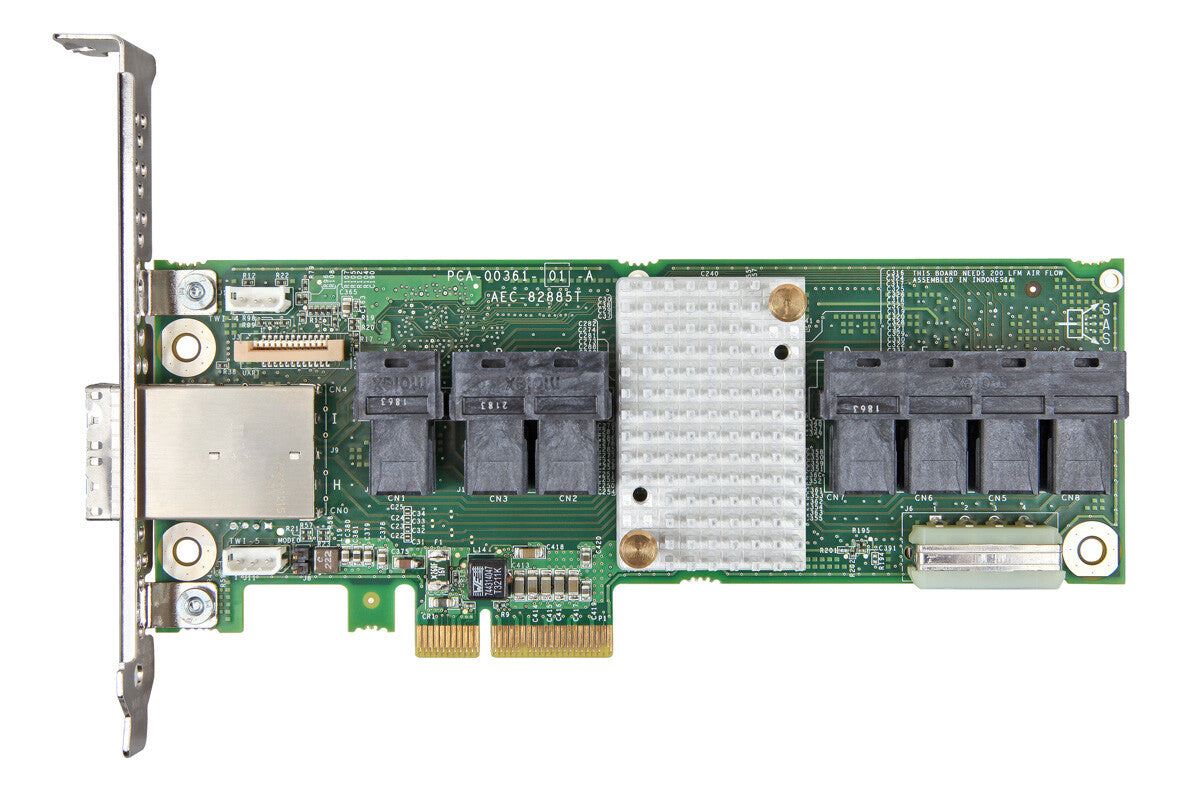

Intel RES3FV288 RAID controller PCI Express x4 12 Gbit/s
£250.99
Couldn't load pickup availability
- Supported storage drive interfaces: SAS, Serial ATA
- Host interface: PCI Express x4
- RAID levels: JBOD
- 12 Gbit/s
28 internal port and eight external port, 12-Gb/s capable expander card for use with Intel® RAID products.
| Ports & interfaces | |
|---|---|
| External mini-SAS ports | 8 |
| Internal mini-SAS ports | 20 |
| Host interface | PCI Express x4 |
| Supported storage drive interfaces | SAS, Serial ATA |
| Performance | |
|---|---|
| Compatible products | Intel Server System R1208WT2GSIntel Server System R1208WTTGSIntel Server System R1304WT2GSIntel Server System R1304WTTGSIntel Server System R2208WT2YSIntel Server System R2208WTTYC1Intel Server System R2208WTTYSIntel Server System R2224WTTYSIntel Server System R2308WTTYSIntel Server System R2312WTTYS |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Export Control Classification Number (ECCN) | 4A994 |
| Sustained data transfer rate (native) | 12288 MB/s |
| Internal memory | 8 MB |
| Form factor | Low Profile MD2 Card |
| Data transfer rate | 12 Gbit/s |
| RAID levels | JBOD |
| Power | |
|---|---|
| Voltage | 12 V |
| Technical details | |
|---|---|
| Launch date | Q2'14 |
| Status | Launched |
| Last change | 63903513 |
| Expected discontinuance date | Q2'23 |
| Last order date | 2019-08-03 05:00:37 |
| Born on date | Q2 '14 |
| PCI Express host interface | PCIe x4 |
| Product name | Intel RAID Expander RES3FV288 |
| Extended warranty available for purchase (select countries) | Yes |
| Target market | Scalable Performance |
| Product type | RAID |
| Data transfer rate | 12288 Mbit/s |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Weight & dimensions | |
|---|---|
| Packaging content | (1) Expander board and (2) short cables to connect to a RAID card or module |
| Depth | 167.6 mm |
| Width | 63.5 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Other features | |
|---|---|
| Supported devices | SAS/SATA |
| External ports | 8 |
| Internal ports | 28 |
| Market segment | Server |
| RAID ARK ID | 81277 |
| PCI Card form factor | Full-height (low-profile) |
