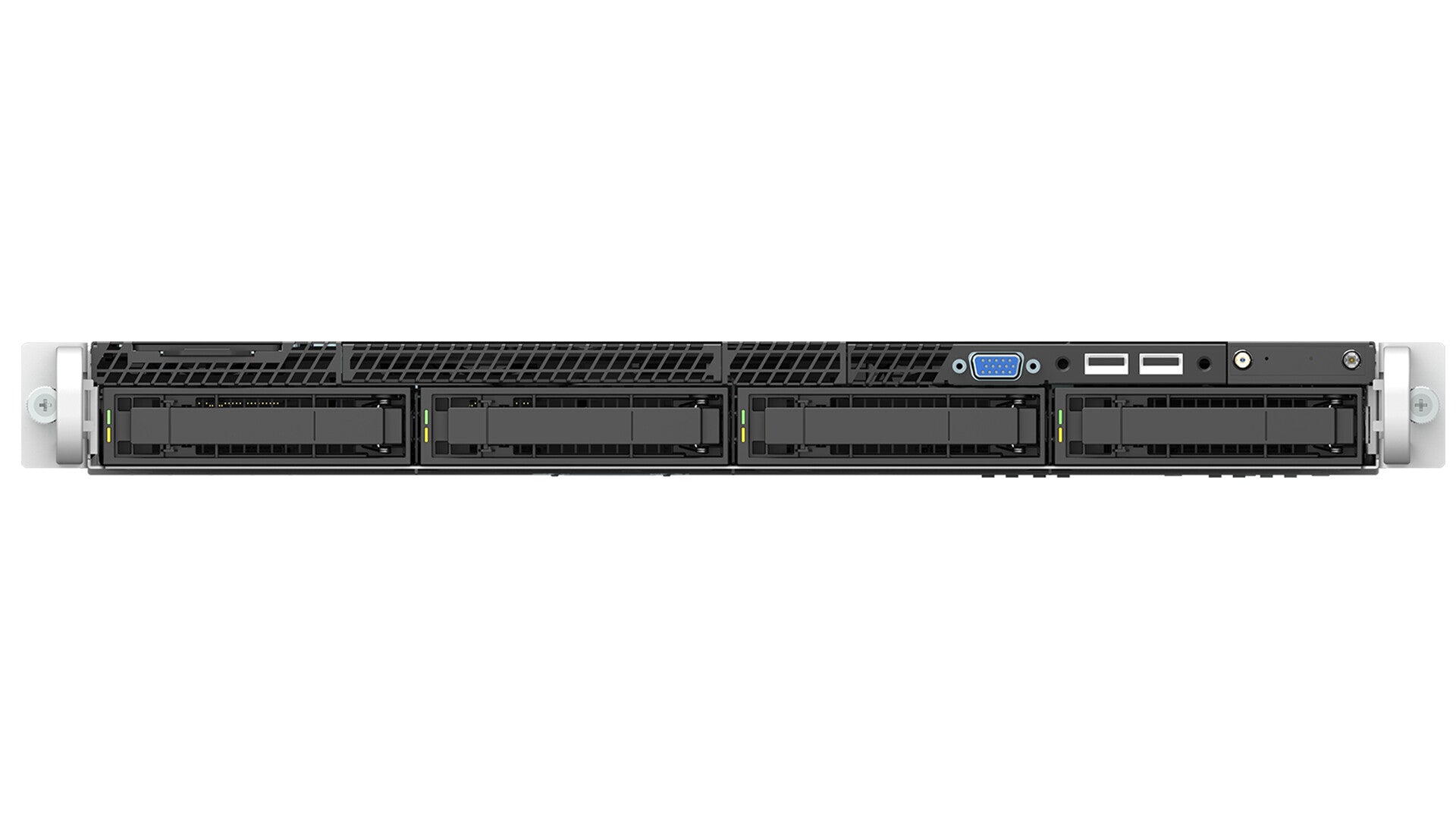

Intel · MPN: R1304WF0ZSR
£1,143.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £381.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Rack (1U) Intel® C624 LGA 3647 (Socket P)
  • Number of processors supported: 2
  • Number of DIMM slots: 24
  • Maximum internal memory: 6 TB
  • Number of storage drives supported: 6
  • Hot-swap HDD bays
  • Ethernet LAN Ethernet LAN (RJ-45) ports: 1
  • 1300 W
  • Grey, Black

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

TPM Version
TPM (Trusted Platform Module) is a component that provides hardware level security upon system boot-up via stored security keys, passwords, encryption and hash functions.

Integrated BMC with IPMI
IPMI (Intelligent Platform Management Interface) is a standardized interface used for out-of-band management of computer systems. The integrated BMC (Baseboard Management Controller) is a specialized microcontroller that enables IPMI.

Intel® Rapid Storage Technology
Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.

Riser Slot 1: Included Slot Configuration(s)
This is the configuration of the installed riser card for this specific slot for systems that ship with risers pre-installed.

Riser Slot 2: Included Slot Configuration(s)
This is the configuration of the installed riser card for this specific slot for systems that ship with risers pre-installed.

Integrated Graphics
Integrated graphics allow for incredible visual quality, faster graphic performance and flexible display options without the need for a separate graphics card.

RAID Configuration
RAID (Redundant Array of Independent Disks) is a storage technology that combines multiple disk drive components into a single logical unit, and distributes data across the array defined by RAID levels, indicative of the level of redundancy and performance required.

Intel® Remote Management Module Support
The Intel® Remote Management Module (Intel® RMM) allows you to securely gain access and control servers and other devices from any machine on the network. Remote access includes remote management capability, including power control, KVM, and media redirection, with a dedicated management network interface card (NIC).

Connector for Intel® Integrated RAID Module
Internal IO expansion module indicates a mezzanine connector on Intel® Server Boards that supports a variety of Intel(r) I/O Expansion Modules using a x8 PCI Express* interface. These modules are either RoC (RAID-on-Chip) or SAS (Serial Attached SCSI) modules that are not used for external connectivity through the rear I/O panel.

PCIe OCuLink Connectors (NVMe support)
Onboard PCIe OCuLink connectors provide direct-attach NVMe SSD support.

Max # of UPI Links
Intel® Ultra Path Interconnect (UPI) links are a high speed, point-to-point interconnect bus between the processors, delivering increased bandwidth and performance over Intel® QPI.

Intel® Node Manager
Intel® Intelligent Power Node Manager is a platform resident technology that enforces power and thermal policies for the platform. It enables data center power and thermal management by exposing an external interface to management software through which platform policies can be specified. It also enables specific data center power management usage models such as power limiting.

Intel® Optane™ Persistent Memory Supported
Intel® Optane™ persistent memory is a revolutionary tier of non-volatile memory that sits between memory and storage to provide large, affordable memory capacity that is comparable to DRAM performance.  Delivering large system-level memory capacity when combined with traditional DRAM, Intel Optane persistent memory is helping transform critical memory constrained workloads – from cloud, databases, in-memory analytics, virtualization, and content delivery networks.

Specifications

Processor

Compatible processor seriesIntel® Xeon®
Number of processors supported2
Processor manufacturerIntel
Processor socketLGA 3647 (Socket P)
Motherboard chipsetIntel® C624
Built-in processorNo

Memory

Maximum internal memory6 TB
Supported memory typesDDR4-SDRAM
Number of DIMM slots24
Show all 59 specificationsShow fewer specifications

Storage

SSD form factorM.2
RAID levels0, 1, 10
Storage drive sizes supportedM.2
Hot-swap HDD baysYes
Number of storage drives supported6

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet

Ports & interfaces

Number of SATA connectors10
Serial ports quantity2
Ethernet LAN (RJ-45) ports1
USB ports quantity5

Expansion slots

PCI Express OCuLink connectors (NVMe support)4
PCI Express x24 Riser Super slots1
PCI Express x16 (Gen 3.x) slots2

Features

Number of UPI links2
Compatible operating systemsVMware*|Ubuntu*
Export Control Classification Number (ECCN)5A992C
Commodity Classification Automated Tracking System (CCATS)G157815L2
Intel® Optane™ DC Persistent Memory SupportedYes
Trusted Platform Module (TPM) version2.0
Trusted Platform Module (TPM)Yes
Integrated BMC with IPMIYes

Processor special features

Internal I/O Expansion Module x8 Gen 31
Processor ARK ID132549
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel Intelligent Power Node ManagerYes
Intel Remote Management Module SupportY
Intel Rapid Storage TechnologyYes

Design

Heat sink includedYes
Heat sink(2) 1U Standard Heat Sink FXXCA78X108HS
Rack-Friendly boardYes
LED indicatorsYes
Product colourGrey, Black
Chassis typeRack (1U)

Power

Number of power supply units1
Thermal Design Power (TDP)165 W
Redundant power supply (RPS) supportYes
Power supply1300 W
Power supply typeAC

Weight & dimensions

Width430 mm

Other features

Product codenameWolf Pass
Extended warranty available for purchase (select countries)Yes
Launch dateQ1'22
Riser slot 1 number of lanes24
Riser slot 2 number of lanes24
Supported boardIntel Server Board S2600WF0R
Target marketMainstream
StatusLaunched
CPU configuration (max)2
On-board graphics cardNo
