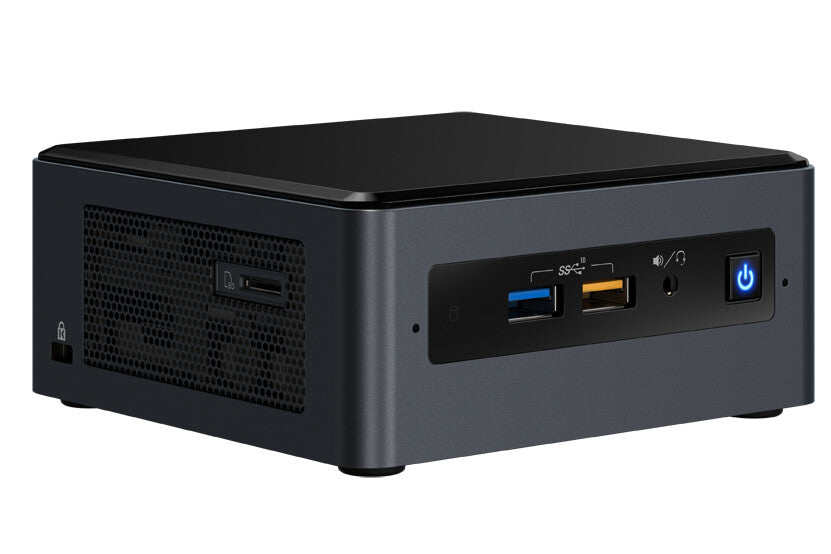

Intel NUC BOXNUC8I3BEH2 PC/workstation barebone UCFF Black i3-8109U BGA 1528 3 GHz
Couldn't load pickup availability
- UCFF Black
- Built-in processor Intel i3-8109U 3 GHz
- 2 SO-DIMM Maximum internal memory: 32 GB DDR4-SDRAM
- HDD & SSD M.2,2.5
- Intel Iris Plus Graphics 655
- Ethernet LAN Wi-Fi
Get ready for spectacularly responsive performance from the Intel® NUC Mini PC kits with 8th generation Intel® Core™ i3 processors. The latest generation of Intel NUC kits let you or your customers build the exact system they want. From choosing chassis size to memory options to storage configurations, the benefit of building an Intel NUC kit is the ability to completely customize the kit for your specific usage. Whether working on presentations, word processing, or streaming media, the Intel® NUC8i3BEK and NUC8i3BEH Mini PC kits deliver the features people want—in a size that fits easily into any lifestyle and any room in the house.
The first Intel NUC Mini PC kits with a dual-core 8th generation Intel® Core™ i3 processor

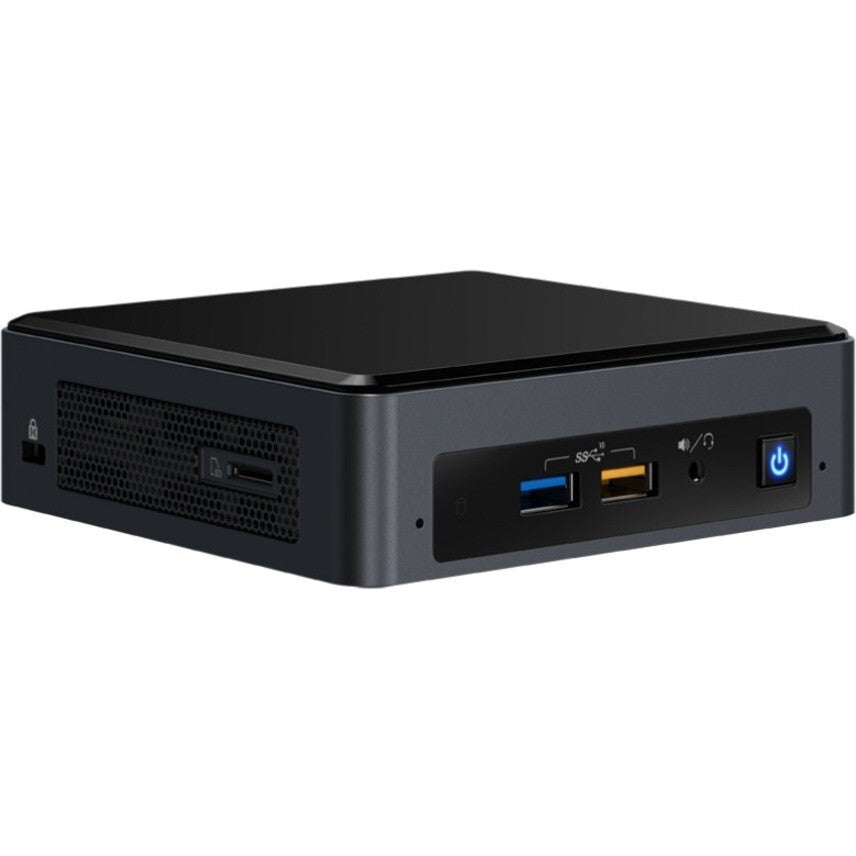

The Intel NUC8i3BEK Mini PC kit with a true dual-core 8th generation Intel Core i3 processor delivers a big jump in performance compared to the previous generation Intel® NUC7i3BNH/BNK kits. Whether it’s built for a new home PC or a system with 4K UHD graphics for picture perfect entertainment, the Intel NUC8i3BEK Mini PC kit gives great visual immersion with Iris® Plus Graphics 655 and the unprecedented performance of Intel® Core™ processors

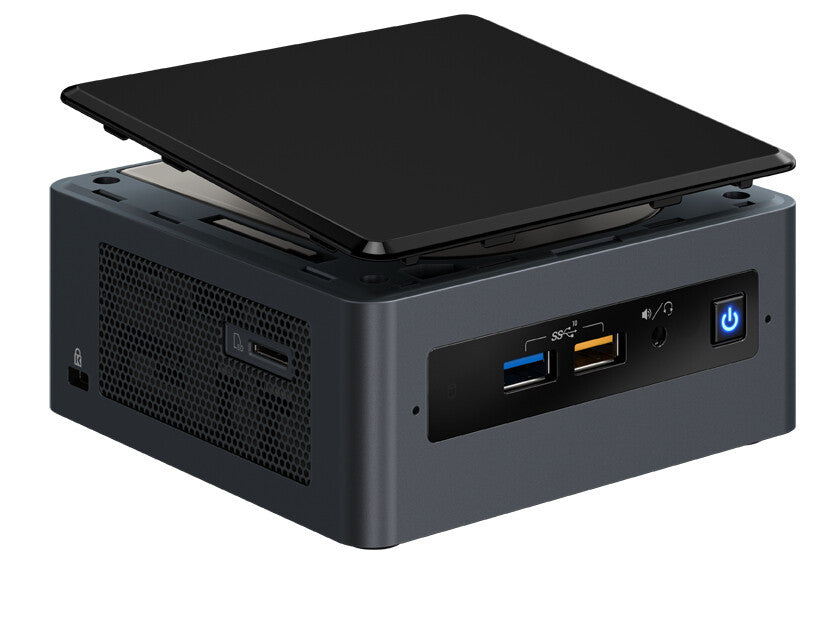

The slightly taller Intel NUC8i3BEH has the same processor and graphics, and also has room for a 2.5" HDD and is Intel® Optane™ memory ready. By coupling a 2.5" HDD and Intel Optane memory, performance improves dramatically with up to 1.4x3,4 faster media loading.
Work Like a Boss with Thunderbolt™ 3, USB 3.1, and 4K Ultra HD

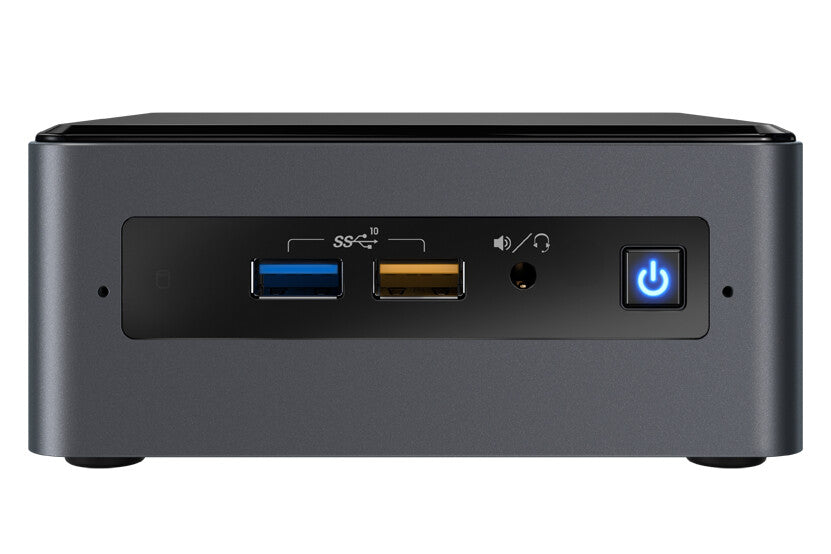

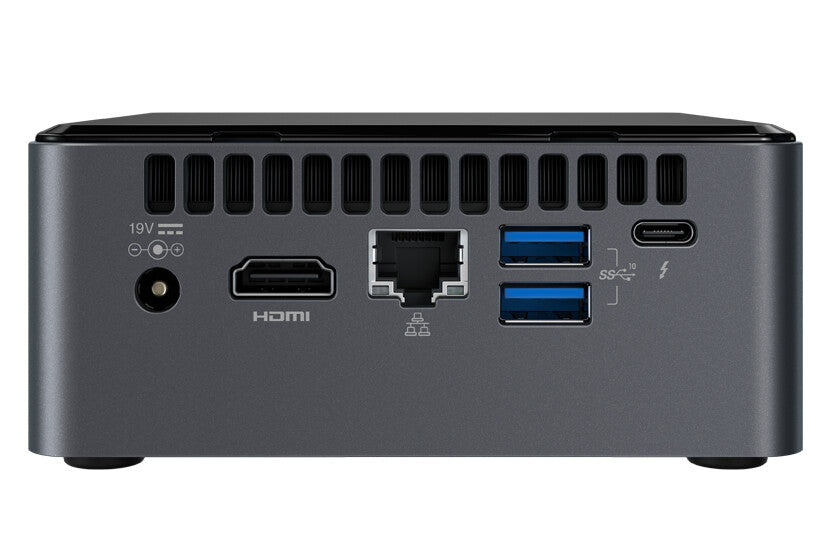

The Intel NUC Mini PC kits have chassis that are connectivity powerhouses. Both come with Thunderbolt™ 3 which supports up to 40 GBps of data transfer, four USB 3.1 ports, two additional USB ports via 1x4 internal headers. There’s also room for an M.2 SSD. The Intel NUC Mini PC kits support triple displays all in 4K Ultra HD—with an HDMI* 2.0a port and DisplayPort* 1.2 via USB-C—so images or work can show across three screens without losing fidelity
Think you know what small can do? Think again
In a footprint that’s almost zero—especially when compared with a tower—the Intel NUC Mini PC kits can be custom built to have the performance and features of a desktop PC in a device that fits in the palm of your hand. The small size means the Intel NUC can be positioned almost anywhere—from behind a display to tucked discretely in an entertainment center. And with improved cooling, fan noise is minimal—which means a quieter experience no matter where the Intel NUC is positioned.
| Processor | |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 8th gen Intel® Core™ i3 |
| Processor model | i3-8109U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 3 GHz |
| Processor lithography | 14 nm |
| Processor cache | 4 MB |
| L3 cache | 4 MB |
| Thermal Design Power (TDP) | 28 W |
| Memory bandwidth supported by processor (max) | 38.4 GB/s |
| Processor codename | Coffee Lake |
| CPU configuration (max) | 1 |
| Memory | |
|---|---|
| Memory slots type | SO-DIMM |
| Number of DIMM slots | 2 |
| Number of memory slots | 2 |
| Removable memory card slot | microSDXC with UHS-I support |
| Memory bandwidth (max) | 38.4 GB/s |
| Memory voltage | 1.2 V |
| Memory channels | Dual-channel |
| Maximum internal memory | 32 GB |
| Supported memory clock speeds | 2400 MHz |
| Supported memory types | DDR4-SDRAM |
| ECC | No |
| Storage | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | M.2,2.5 |
| SSD form factor | M.2 |
| Number of storage drives supported | 2 |
| RAID levels | 0, 1 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSDXC |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Plus Graphics 655 |
| Maximum graphics card memory | 32768 MB |
| Number of displays supported | 3 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Copper ethernet cabling technology | 1000BASE-T |
| LAN controller | Intel® I219-V |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Internal USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| Combo headphone/mic port | Yes |
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| M.2 card slot (storage) | 2242/2280 |
| USB ports quantity | 6 |
| Number of SATA III connectors | 2 |
| Thunderbolt 3 ports quantity | 1 |
| Thunderbolt ports quantity | 1 |
| Consumer infrared headers | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Graphics output | HDMI 2.0a; USB-C (DP1.2) |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express x4 slots | 1 |
| Number of M.2 (M) slots | 1 |
| Design | |
|---|---|
| Chassis type | UCFF |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
| Market positioning | Business |
| ARK ID | 126150 |
| Safety | IEC 60950-1, UL 60950-1, EN 60950-1, CAN/CSA-C22.2 No. 60950-1 |
| Status | Launched |
| Product family | Intel® NUC Kits |
| Product series | Intel® NUC Kit with 8th Generation Intel® Core™ Processors |
| Product codename | BEAN CANYON |
| Performance | |
|---|---|
| Motherboard form factor | UCFF |
| Processor socket | BGA 1528 |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Core™ i3 |
| BIOS type | EEPROM |
| BIOS memory size | 64 Mbit |
| System Management BIOS (SMBIOS) version | 2.5 |
| Trusted Platform Module (TPM) | No |
| Audio output channels | 7.1 channels |
| Consumer infrared Rx sensor | Yes |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Supported RAID configuration | 2.5" HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1) |
| Processor special features | |
|---|---|
| Intel® vPro™ Platform Eligibility | No |
| Intel Express BIOS update | Yes |
| Intel Visual BIOS | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel® OS Guard | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel Rapid Storage Technology | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Execute Disable Bit | Yes |
| Intel Trusted Execution Technology | No |
| Intel Flex Memory Access | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Embedded options available | No |
| General | |
|---|---|
| Product family | NUC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Software | |
|---|---|
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Operating system installed | No |
| Certificates | |
|---|---|
| Certification | CISPR 32, FCC, ICES, EN, ETSI EN, AS/NZS, VCCI, KN, CNS, RoHS, WEEE |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 90 W |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 117 mm |
| Depth | 112 mm |
| Height | 51 mm |
| Packaging content | |
|---|---|
| Processor included | Intel® Core™ i3-8109U Processor (4M Cache, up to 3.60 GHz) |
| Other features | |
|---|---|
| Additional headers | CEC, 2x USB2.0, FRONT_PANEL |
| HDD size | 2.5" |
| Processor ARK ID | 135936 |
| Number of SATA connectors | 2 |
| DC input voltage | 12 - 19 V |
| Launch date | Q3'18 |
