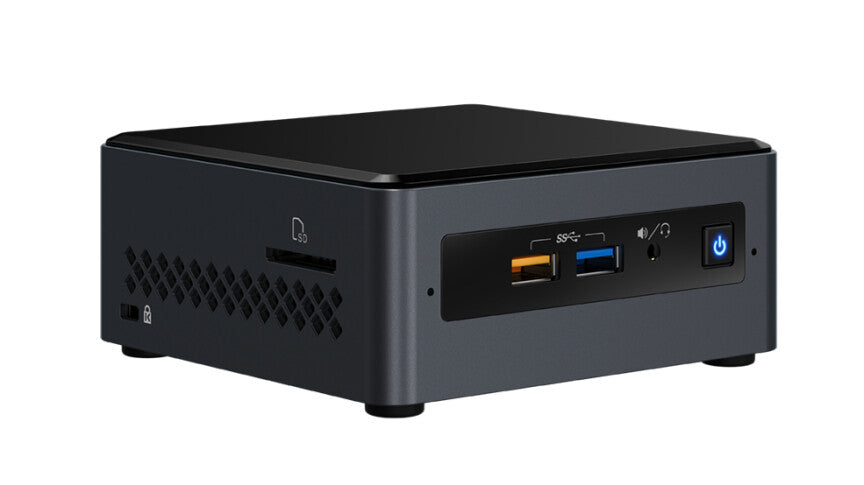

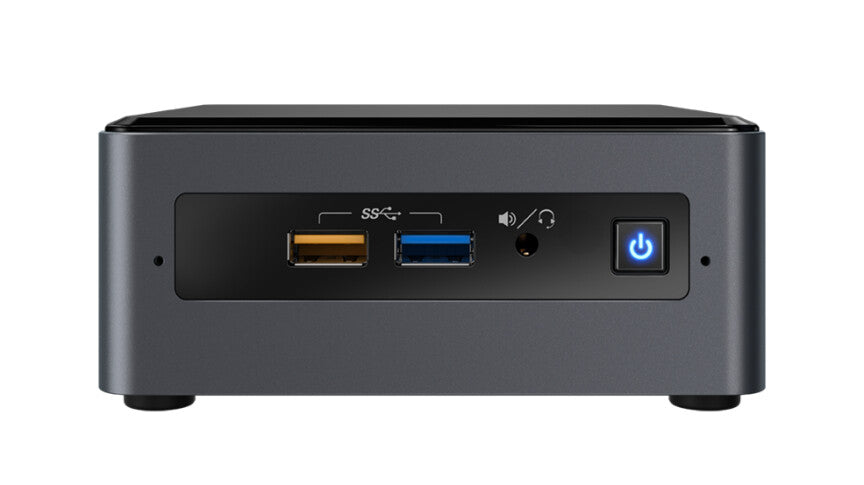

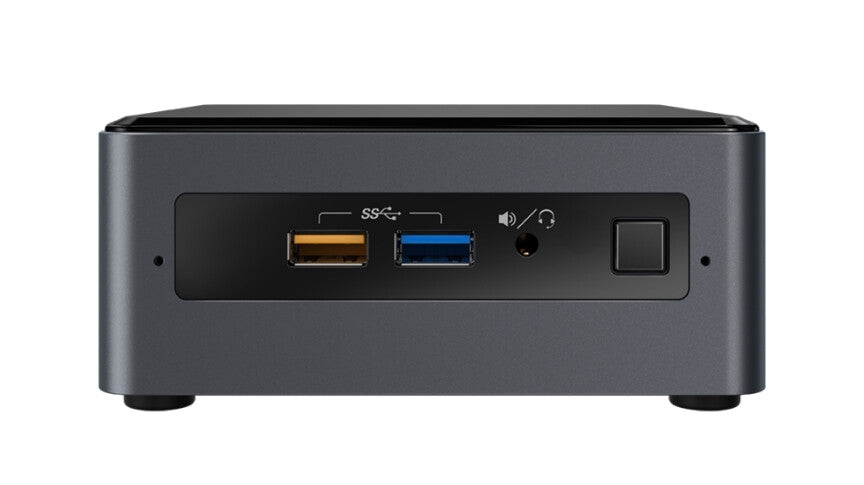

Intel NUC BOXNUC7CJYSAL PC/workstation Intel Celeron J J4005 4 GB DDR4-SDRAM 32 GB eMMC Windows 10 Mini PC Black
£162.99
Couldn't load pickup availability
- Mini PC Black
- Intel Celeron J J4005 2 GHz Processor cores: 2
- 4 GB DDR4-SDRAM 2400 MHz 1 x 4 GB
- 32 GB eMMC Card reader integrated
- Intel® UHD Graphics 600
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 5 (802.11ac) Bluetooth 5.0
- Windows 10 64-bit
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.
Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Celeron J |
| Processor model | J4005 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.7 GHz |
| Processor frequency | 2 GHz |
| Processor socket | BGA 1090 |
| Processor cache | 4 MB |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 10 W |
| Processor codename | Gemini Lake |
| Tjunction | 105 °C |
| PCI Express configurations | 1x2, 1x2+2x1, 1x4, 2x1, 4x1 |
| Maximum number of PCI Express lanes | 6 |
| PCI Express slots version | 2.0 |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory bandwidth supported by processor (max) | 38.4 GB/s |
| ECC supported by processor | No |
| Memory | |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Number of DIMM slots | 2 |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2400 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| ECC | No |
| Storage | |
|---|---|
| Total storage capacity | 32 GB |
| Optical drive type | No |
| Storage media | eMMC |
| Number of storage drives supported | 1 |
| HDD size | 2.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 32 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SDXC |
| Embedded storage capacity | 32768 MB |
| Graphics | |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 600 |
| On-board graphics card burst frequency | 700 MHz |
| Number of displays supported (on-board graphics) | 3 |
| Maximum on-board graphics card memory | 8 GB |
| On-board graphics card dynamic frequency (max) | 700 MHz |
| On-board graphics card base frequency | 250 MHz |
| On-board graphics card ID | 0x3185 |
| On-board graphics card DirectX version | 12.0 |
| Number of execution units | 12 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN controller model | Intel Dual Band Wireless-AC 9462 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |

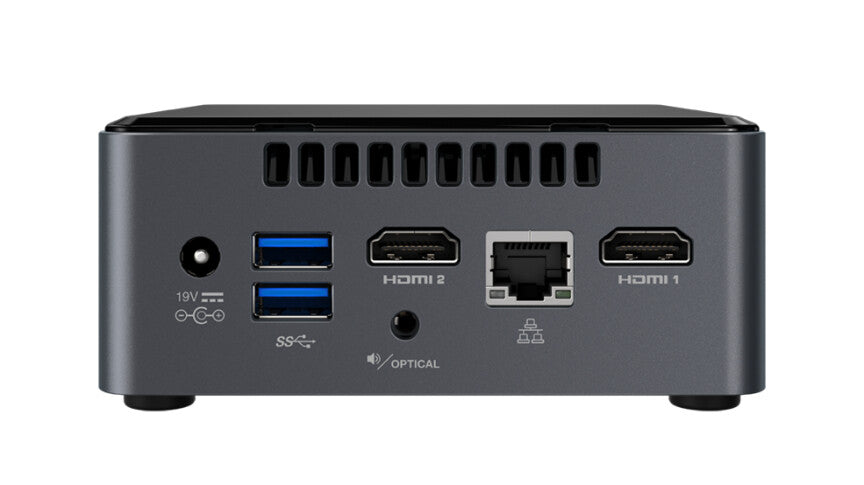

| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DVI port | No |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| S/PDIF out port | Yes |
| DC-in jack | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Infrared data port | Yes |
| Total number of SATA connectors | 1 |
| Number of SATA III connectors | 1 |
| Graphics output | 2x HDMI 2.0a |
| Design | |
|---|---|
| Number of 2.5" bays | 1 |
| Product colour | Black |
| Form factor | UCFF (4" x 4") |
| Intel® vPro™ Platform Eligibility | No |
| Product series | Intel® NUC Mini PC with Intel® Celeron® Processors |
| Product codename | JUNE CANYON |
| Performance | |
|---|---|
| Product type | Mini PC |
| Motherboard form factor | UCFF |
| Audio output channels | 7.1 channels |
| Password protection | Yes |
| Password protection type | BIOS, User |
| Trusted Platform Module (TPM) | No |
| Removable memory card slot | SDXC with UHS-I support |
| Supported RAID configuration | N/A |
| Status | Launched |
| Software | |
|---|---|
| Operating system installed | Windows 10 |
| Operating system architecture | 64-bit |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Pre-installed operating system | Windows 10, 64-bit* |
| Processor special features | |
|---|---|
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| UART | Yes |
| Intel Smart Response Technology version | 0.00 |
| Processor ARK ID | 128992 |
| Processor package size | 25 x 24 mm |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Enhanced Halt State | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| CPU configuration (max) | 1 |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | Yes |
| Power | |
|---|---|
| Power supply input voltage | 12 - 19 V |
| DC input voltage | 12 - 19 V |
| Weight & dimensions | |
|---|---|
| Width | 115 mm |
| Depth | 111 mm |
| Height | 51 mm |
| Packaging content | |
|---|---|
| Processor included | Intel® Celeron® J4005 Processor (4M Cache, up to 2.70 GHz) |
| General | |
|---|---|
| Product family | NUC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8471500150 |
| Features | |
|---|---|
| Consumer infrared Rx sensor | Yes |
| Other features | |
|---|---|
| Number of SATA connectors | 1 |
| Additional headers | CEC, 2x USB2.0, AUX_PWR, FRONT_PANEL |
| USB ports quantity | 6 |
| ARK ID | 126136 |
| Number of displays supported | 2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
