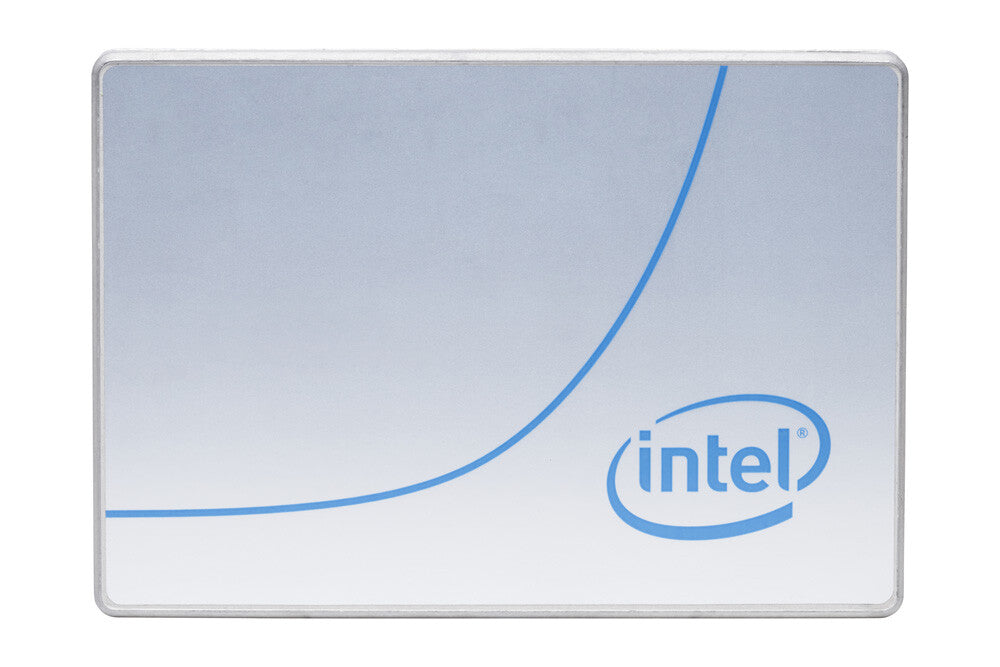

Intel DC P4500 1 TB 2.5" PCI Express 3.0 NVMe 3D1 TLC
Couldn't load pickup availability
- 1 TB 2.5" PCI Express 3.0
- Read speed: 3200 MB/s
- Write speed: 600 MB/s
- 3D1 TLC NVMe
- Hardware encryption 256-bit AES
- Component for: PC/Laptop
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
| Features | |
|---|---|
| SSD ARK ID | 99030 |
| Market segment | Server |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| SSD temperature monitoring | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| End-to-End Data Protection | Yes |
| PCI Express interface data lanes | x4 |
| Write latency | 20 µs |
| Read latency | 85 µs |
| Random write (100% span) | 32000 IOPS |
| Random read (100% span) | 294000 IOPS |
| Write speed | 600 MB/s |
| Read speed | 3200 MB/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | PC/Laptop |
| Memory type | 3D1 TLC |
| NVMe | Yes |
| Interface | PCI Express 3.0 |
| SSD form factor | 2.5" |
| SSD capacity | 1 TB |
| Power | |
|---|---|
| Power consumption (idle) | 5 W |
| Power consumption (write) | 11 W |
| Power consumption (read) | 9.6 W |
| Brand-specific features | |
|---|---|
| Intel® Smart Response Technology | No |
| Intel® Remote Secure Erase | No |
| Intel High Endurance Technology (HET) | No |
| Intel® Rapid Start Technology | No |
| Weight & dimensions | |
|---|---|
| Weight | 131 g |
| Height | 15 mm |
| Operational conditions | |
|---|---|
| Non-operating shock | 1000 G |
| Operating shock | 1000 G |
| Non-operating vibration | 3.13 G |
| Operating vibration | 2.17 G |
| Operating temperature (T-T) | 0 - 35 °C |
| Other features | |
|---|---|
| Product codename | Cliffdale |
| Product family | Data center SSD |
| Launch date | Q2'17 |
| SSD endurance rating | 1.38 PBW |
| Status | Launched |
