Intel · MPN: CM8066201920506
£179.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £59.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

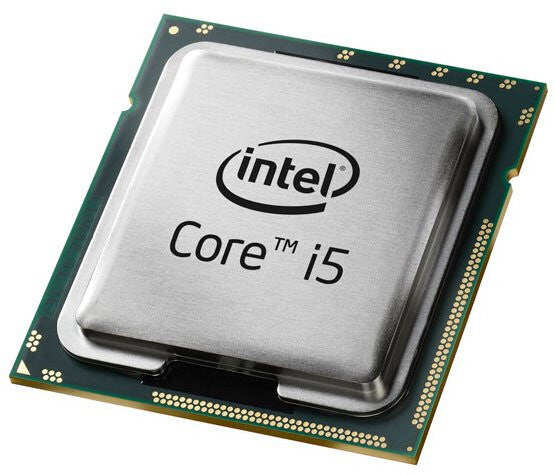

  • Intel® Core™ i5 i5-6400 2.7 GHz
  • 6 MB Smart Cache LGA 1151 (Socket H4)
  • Processor cores: 4 14 nm 64-bit 65 W
  • Maximum internal memory supported by processor: 64 GB DDR4-SDRAM, DDR3L-SDRAM
  • On-board graphics card Intel® HD Graphics 530
  • Tray

Lithography
Lithography refers to the semiconductor technology used to manufacture an integrated circuit, and is reported in nanometer (nm), indicative of the size of features built on the semiconductor.

of Cores
Cores is a hardware term that describes the number of independent central processing units in a single computing component (die or chip).

of Threads
A Thread, or thread of execution, is a software term for the basic ordered sequence of instructions that can be passed through or processed by a single CPU core.

TDP
Thermal Design Power (TDP) represents the average power, in watts, the processor dissipates when operating at Base Frequency with all cores active under an Intel-defined, high-complexity workload. Refer to Datasheet for thermal solution requirements.

Processor Graphics
Processor Graphics indicates graphics processing circuitry integrated into the processor, providing the graphics, compute, media, and display capabilities. Intel® HD Graphics, Iris™ Graphics, Iris Plus Graphics, and Iris Pro Graphics deliver enhanced media conversion, fast frame rates, and 4K Ultra HD (UHD) video. See the Intel® Graphics Technology page for more information.

4K Support
4K support indicates the product's support of 4K resolution, defined here as minimum 3840 x 2160.

Intel® Turbo Boost Technology
Intel® Turbo Boost Technology dynamically increases the processor's frequency as needed by taking advantage of thermal and power headroom to give you a burst of speed when you need it, and increased energy efficiency when you don’t.

Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Instruction Set
An instruction set refers to the basic set of commands and instructions that a microprocessor understands and can carry out. The value shown represents which Intel’s instruction set this processor is compatible with.

Intel® AES New Instructions
Intel® AES New Instructions (Intel® AES-NI) are a set of instructions that enable fast and secure data encryption and decryption. AES-NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.

Secure Key
Intel® Secure Key consists of a digital random number generator that creates truly random numbers to strengthen encryption algorithms.

Intel® Software Guard Extensions (Intel® SGX)
Intel® Software Guard Extensions (Intel® SGX) provide applications the ability to create hardware enforced trusted execution protection for their applications’ sensitive routines and data. Run-time execution is protected from observation or tampering by any other software (including privileged software) in a system.

Intel® Memory Protection Extensions (Intel® MPX)
Intel® Memory Protection Extensions (Intel® MPX) provides a set of hardware features that can be used by software in conjunction with compiler changes to check that memory references intended at compile time do not become unsafe at runtime due to buffer overflow or underflow.

Execute Disable Bit
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network.

Intel® Device Protection Technology with Boot Guard
Intel® Device Protection Technology with Boot Guard helps protect the system’s pre-OS environment from viruses and malicious software attacks.

Specifications

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation6th gen Intel® Core™ i5
Processor modeli5-6400
Processor base frequency2.7 GHz
Processor cores4
Processor socketLGA 1151 (Socket H4)
Processor lithography14 nm
Cooler includedNo
Component forPC
Processor seriesIntel Core i5-6400 Desktop series
Processor threads4
System bus rate8 GT/s
Processor operating modes64-bit
Processor boost frequency3.3 GHz
Processor cache6 MB
Processor cache typeSmart Cache
Thermal Design Power (TDP)65 W
SteppingR0
Bus typeDMI3
Memory bandwidth supported by processor (max)34.1 GB/s
Processor codenameSkylake
Processor ARK ID88185
Generation6th Generation

Memory

Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR4-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor1333,1600,1866,2133 MHz
Memory voltage supported by processor1.35 V
Memory channelsDual-channel
ECCNo
Show all 125 specificationsShow fewer specifications

Graphics

On-board graphics cardYes
On-board graphics card modelIntel® HD Graphics 530
Maximum on-board graphics card memory64 GB
On-board graphics card outputs supportedEmbedded DisplayPort (eDP), DisplayPort, HDMI, DVI
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)950 MHz
Number of displays supported (on-board graphics)3
On-board graphics card 4K supportYes
On-board graphics card OpenGL version4.5
On-board graphics card DirectX version12.0
On-board graphics card maximum resolution (HDMI)4096 x 2304 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel)4096 x 2304 pixels
On-board graphics card maximum resolution (DisplayPort)4096 x 2304 pixels
On-board graphics card refresh rate at maximum resolution (HDMI)24 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel)60 Hz
On-board graphics card refresh rate at maximum resolution (DisplayPort)60 Hz
On-board graphics card ID0x1912

Features

Thermal Monitoring TechnologiesYes
Idle StatesYes
Execute Disable BitYes
Market segmentDesktop
Maximum number of PCI Express lanes16
PCI Express slots version3.0
PCI Express configurations1x16, 2x8, 1x8+2x4
Supported instruction setsSSE4.1, SSE4.2, AVX 2.0
Thermal solution specificationPCG 2015C
Graphics & IMC lithography14 nm
CPU configuration (max)1
PCI Express CEM revision3.0
Embedded options availableNo
Scalability1S
Export Control Classification Number (ECCN)5A992C
Commodity Classification Automated Tracking System (CCATS)G077159

Processor special features

Intel® Insider™Yes
Intel® Wireless Display (Intel® WiDi)Yes
Intel® Memory Protection Extensions (Intel® MPX)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Quick Sync Video TechnologyYes
Intel® Identity Protection Technology (Intel® IPT)Yes
Enhanced Intel SpeedStep TechnologyYes
Intel Trusted Execution TechnologyNo
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Turbo Boost Technology2.0
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Turbo Boost Technology 2.0 frequency3.3 GHz
Intel® Transactional Synchronization ExtensionsNo
Intel Small Business Advantage (SBA) version1.00
Intel Stable Image Platform Program (SIPP) version0.00
Intel Secure Key Technology version1.00
Intel Identity Protection Technology version1.00
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel Stable Image Platform Program (SIPP)No
Intel Clear Video TechnologyYes
Intel® Boot GuardYes
Conflict-Free processorYes
Intel TSX-NI version0.00
Intel Enhanced Halt StateYes
Intel® OS GuardYes
Intel® Secure KeyYes
Intel® vPro™ Platform EligibilityNo
Intel® Optane™ Memory ReadyNo
Intel TSX-NINo
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel Virtualization Technology (VT-x)Yes
Intel 64Yes
Intel Software Guard Extensions (Intel SGX)Yes
Intel VT-x with Extended Page Tables (EPT)Yes

General

Product seriesi5
Product familyCore

Operational conditions

Tcase71 °C

Technical details

Processor cache6144 KB
Maximum graphics card memory64 GB
Product typeProcessor
Supported memory typesDDR4-SDRAM, DDR3L-SDRAM
Maximum resolution (WiDi)1080p
Number of graphics cores2
Maximum resolution & refresh rate (VGA)N/A
Product family6th Generation Intel Core i5 Processors
Last change63903513
Processor brand nameIntel Core i5
Intel Core i5 Processor
Maximum resolution & refresh rate (Integrated Flat Panel)4096x2304@60Hz
Maximum resolution & refresh rate (HDMI)4096x2304@24Hz
Bus type unitsGT/s
Bus bandwidth8
Processor ID0x1912
Bus speed8 GT/s
Maximum memory64 GB
Maximum resolution & refresh rate (DisplayPort)4096x2304@60Hz
StatusDiscontinued
Launch dateQ3'15

Weight & dimensions

Processor package size37.5 x 37.5 mm

Other features

Video decodingYes
Maximum internal memory65536 MB
Graphics outputeDP/DP/HDMI/DVI
