iiyama TF1215MC-B1 computer monitor 30.7 cm (12.1") 1024 x 768 pixels LCD Touchscreen Black
iFrame
£428.99
Couldn't load pickup availability
- Semi outdoor solution
- Touch through-glass
- Anti-fingerprint coating
- Touch technology - Capacitive
- Open frame brackets
Built into a rugged, edge-to-edge glass bezel the ProLite TF1215MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use semi-outdoor public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It can operate in temperatures ranging from -20˚C-to 60˚C and is IP65 rated, resulting in dust and water resistance from the front making it a reliable solution for pick-up points and kiosks. For ease of integration, the TF1215MC-B1 can be equipped with optional external mounting brackets ( OMK3-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display | |
|---|---|
| Surface hardness | 7H |
| Display diagonal (metric) | 31 cm |
| Viewable size, vertical | 18.4 cm |
| Viewable size, horizontal | 24.6 cm |
| Vertical scan range | 56 - 75 Hz |
| Horizontal scan range | 31.4 - 60 kHz |
| Pixel pitch | 0.24 x 0.24 mm |
| Display number of colours | 16.2 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Response time | 25 ms |
| Display brightness | 450 cd/m² |
| Display brightness (typical) | 540 cd/m² |
| Number of simultaneous touchpoints | 10 |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Panel type | IPS |
| Touchscreen | Yes |
| Display technology | LCD |
| Native aspect ratio | 4:3 |
| Display resolution | 1024 x 768 pixels |
| Display diagonal | 30.7 cm (12.1") |
| Performance | |
|---|---|
| Palm rejection | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Design | |
|---|---|
| Glass thickness | 3.15 mm |
| Front bezel colour | Black |
| Product colour | Black |

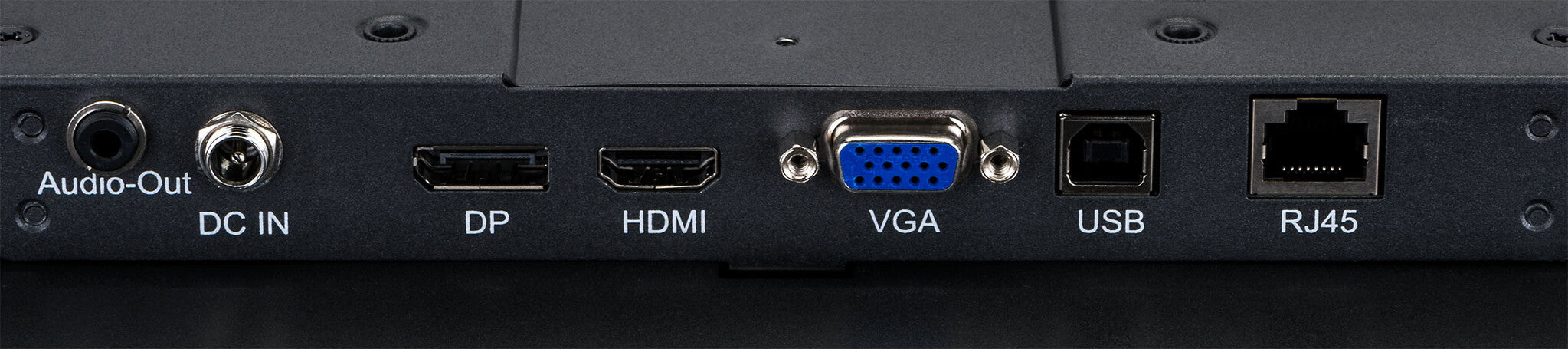

| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| Audio output | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Touch port | Yes |
| Ergonomics | |
|---|---|
| LED indicators | Yes |
| Plug and Play | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) | Yes |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power supply type | External |
| AC adapter output voltage | 12 V |
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 0.55 W |
| Power consumption (typical) | 10 W |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Energy efficiency class (SDR) | F |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 2.1 kg |
| Height (without stand) | 248 mm |
| Depth (without stand) | 41.5 mm |
| Width (without stand) | 308.5 mm |
| Weight (with stand) | 2.1 kg |
| Height (with stand) | 248 mm |
| Depth (with stand) | 41.5 mm |
| Width (with stand) | 308.5 mm |
| Packaging data | |
|---|---|
| Package weight | 3.9 kg |
| Package height | 355 mm |
| Package depth | 165 mm |
| Package width | 435 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| Other features | |
|---|---|
| Touch method | finger, glove (latex), capacitive stylus |
| User controls | picture (contrast, brightness, H. position, V. position, phase, clock, auto adjust), advanced (colour temperature, sharpness), OSD (OSD timeout, OSD position, OSD H. position, OSD V. position, touch switch), option (reset, language, source select, display mode, factory) |
| Control panel | Menu, Scroll up / Brightness, Scroll down / Contrast, Select, Power |
| Certification | CE, EAC, RoHS, ErP, WEEE, cULus, REACH |
| Brightness | 450 cd/m² |
| Packaging content | AC adapter, external control pad |
| Active display area (W x H) | 245.8 x 184.3 mm |
| Weight | 2.1 kg |
| Height | 248 mm |
| Width | 308.5 mm |
| Depth | 41.5 mm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Display viewable area (HxV) | 245.8 x 184.3 mm |
| AC adapter included | Yes |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| International Protection (IP) code | IP65 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
