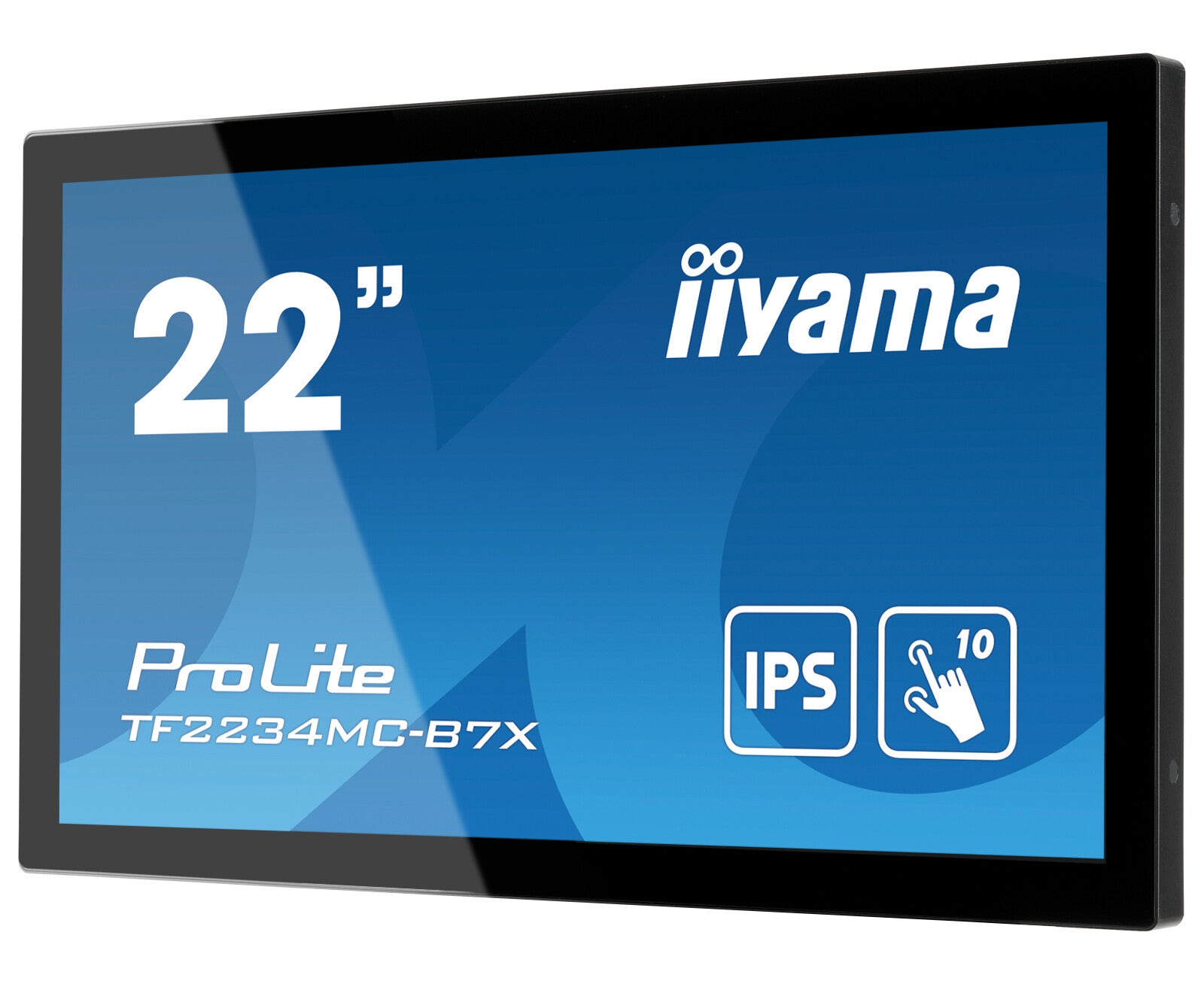

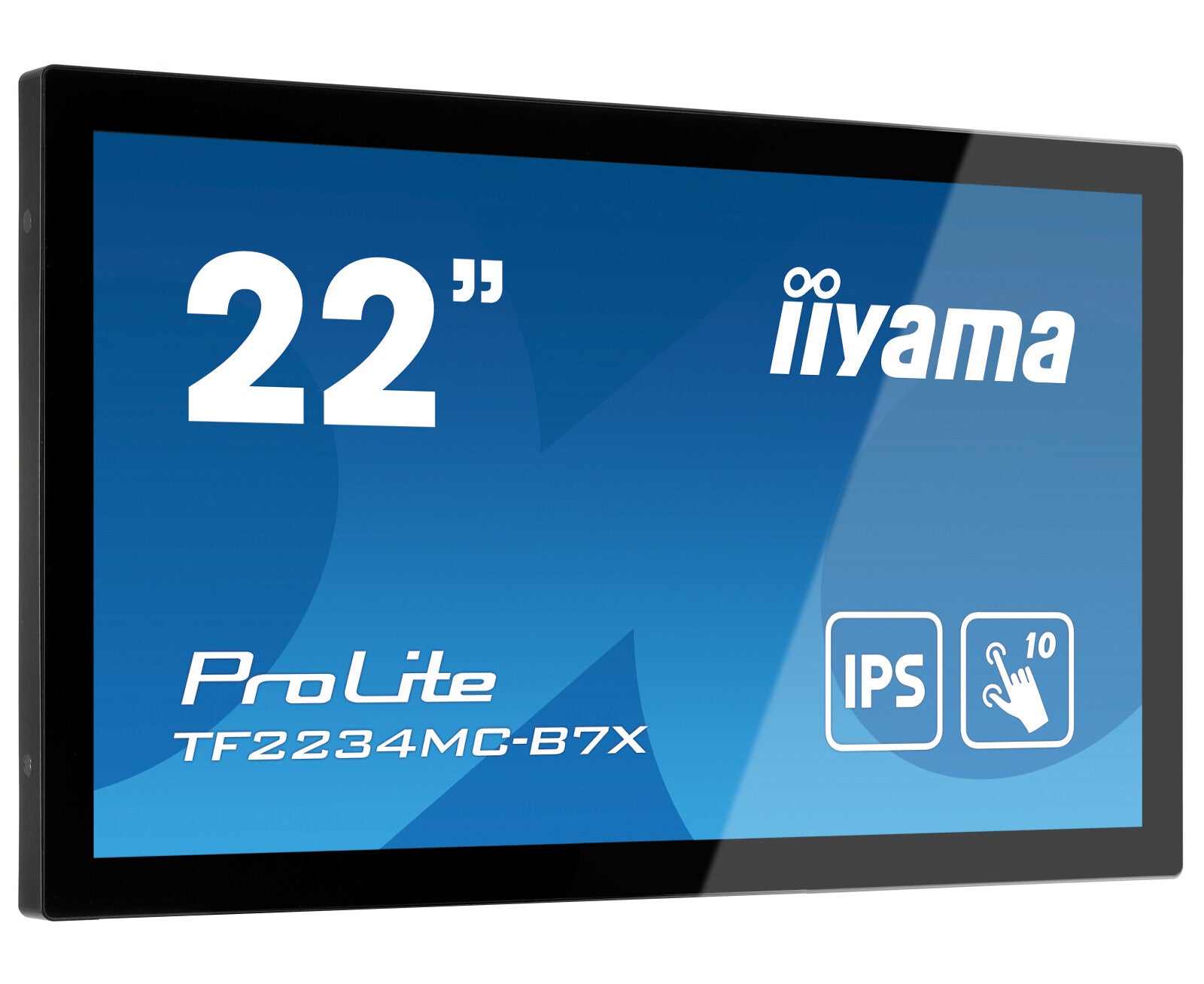

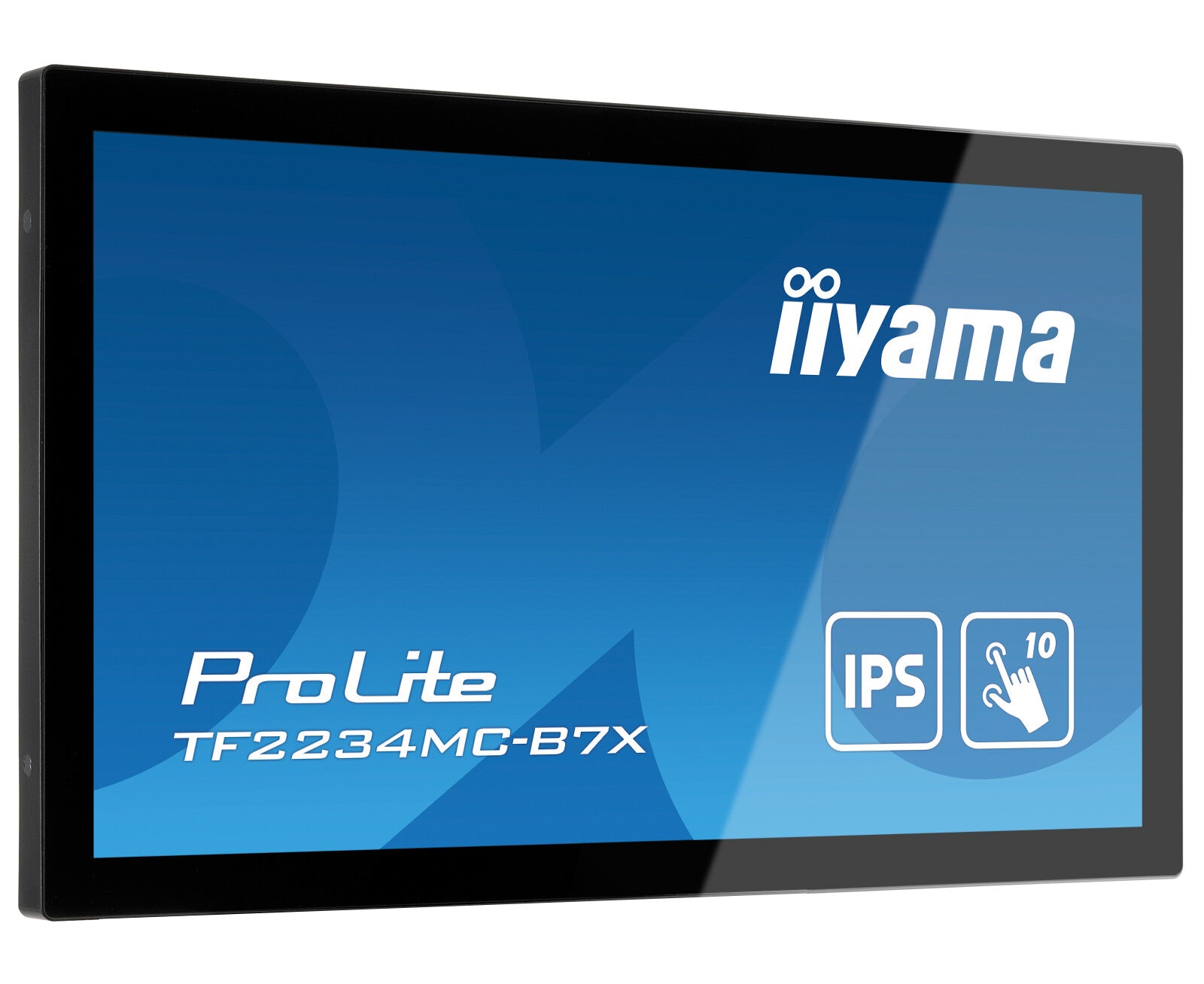

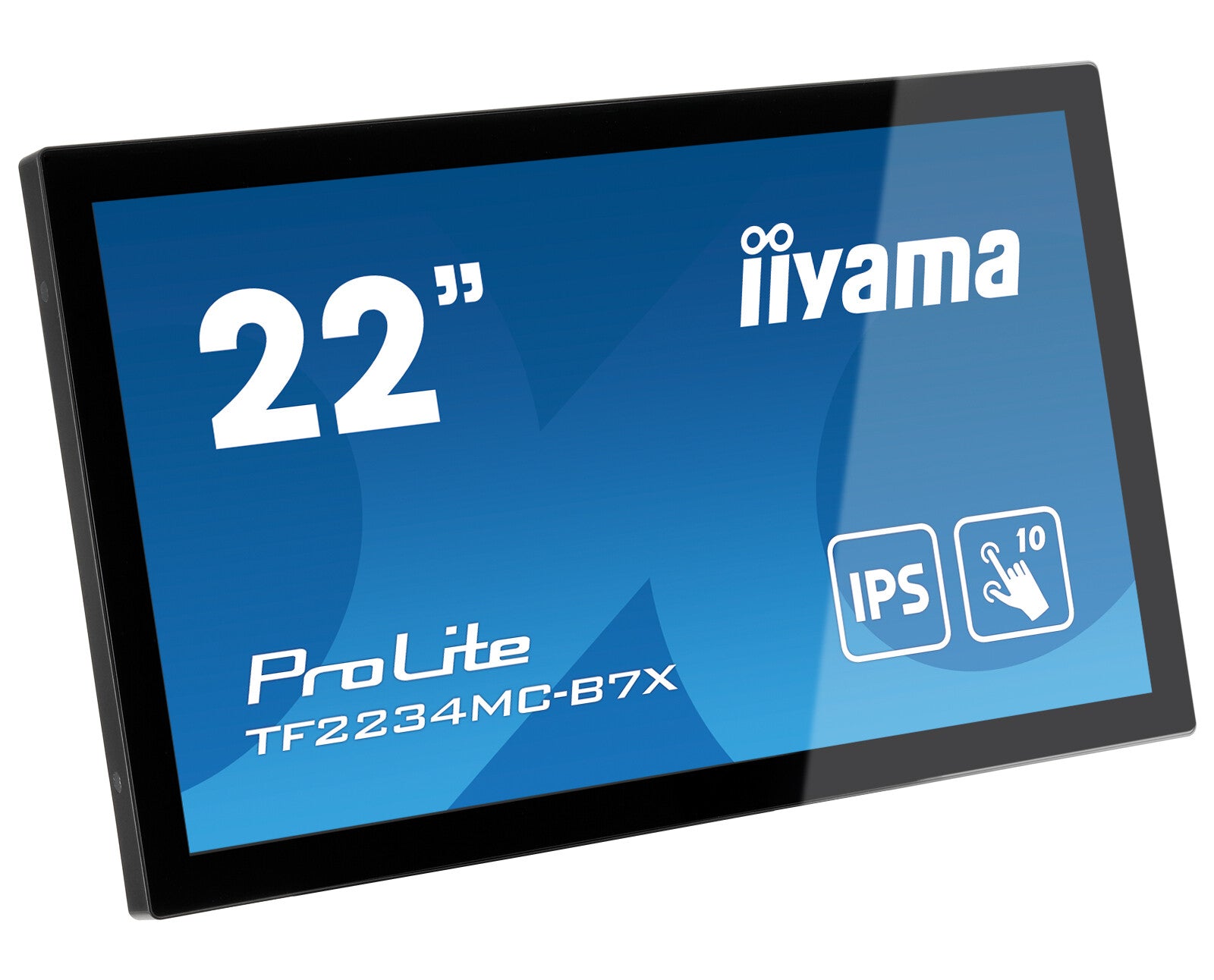

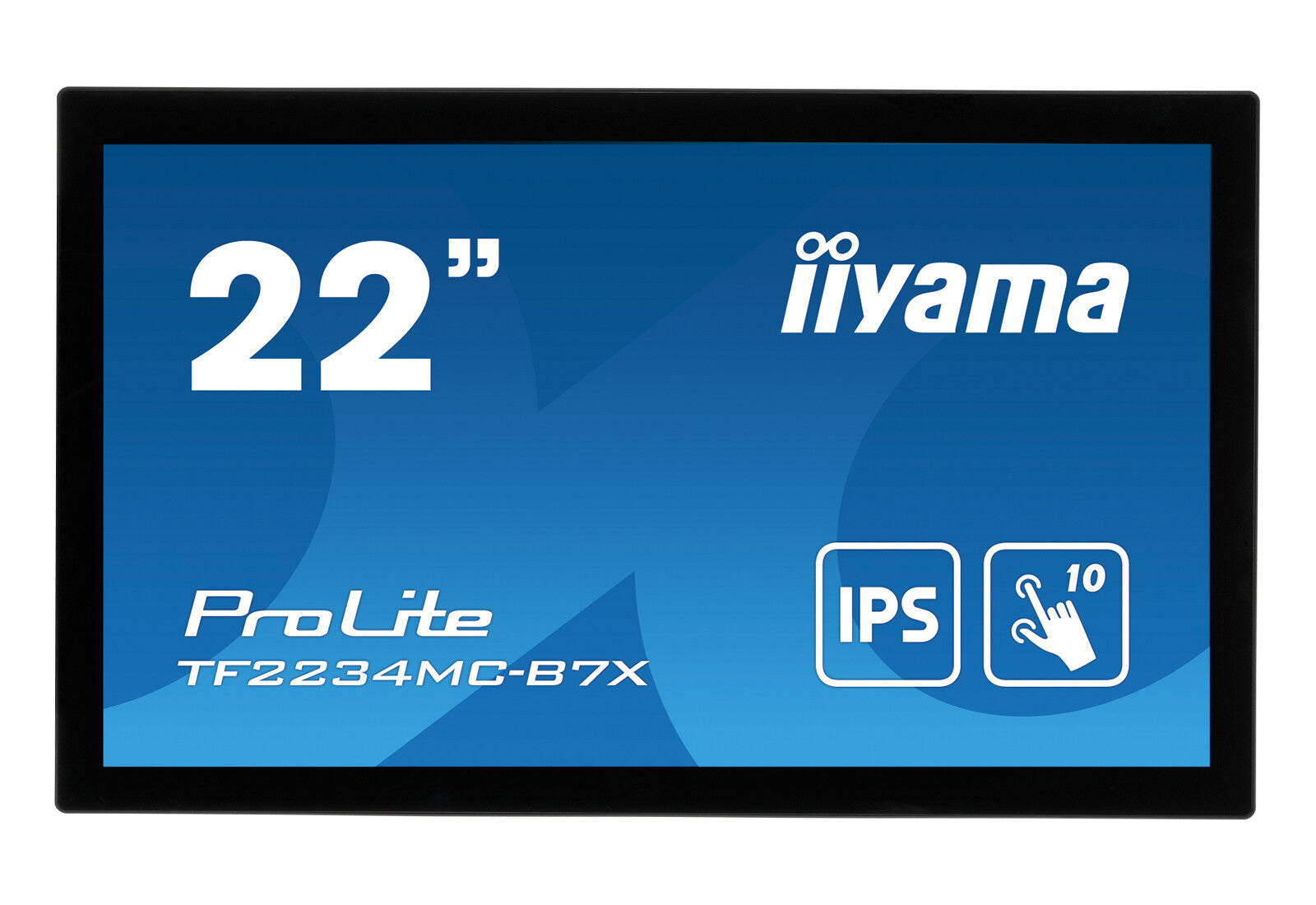

iiyama ProLite TF2234MC-B7X computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
£448.99
Couldn't load pickup availability
- 54.6 cm (21.5") Black
- HDMI DisplayPorts quantity: 1
- Screen shape: Flat
- Response time: 8 ms Response time measurement type: GTG (Gray to Gray)
- 1920 x 1080 pixels Full HD Panel type: IPS
- Energy efficiency class (SDR): F ErP CE, cULus, EAC, REACH, RoHS, WEEE
The ProLite TF2234MC-B7X uses 10 pt Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage, kiosk integrators, Instore Retail, Gaming and Interactive Presentations. In addition to the superb image quality, the monitor comes with IP65 rating, which means it is dust and water resistant and with Touch-Through-Glass technology delivering seamless and accurate touch response for true kiosk integration or behind-glass-retail. For ease of integration, this monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
| Display | |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | IPS |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 350 cd/m² |
| Display brightness | 305 cd/m² |
| Response time | 8 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.247 x 0.247 mm |
| Horizontal scan range | 30 - 84 kHz |
| Viewable size, vertical | 26.8 cm |
| Display diagonal (metric) | 54.6 cm |
| Surface hardness | 7H |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Palm rejection | Yes |
| Multimedia | |
|---|---|
| Built-in camera | No |
| Built-in microphone | No |
| Design | |
|---|---|
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 1.5 mm |
| Ports & interfaces | |
|---|---|
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Ergonomics | |
|---|---|

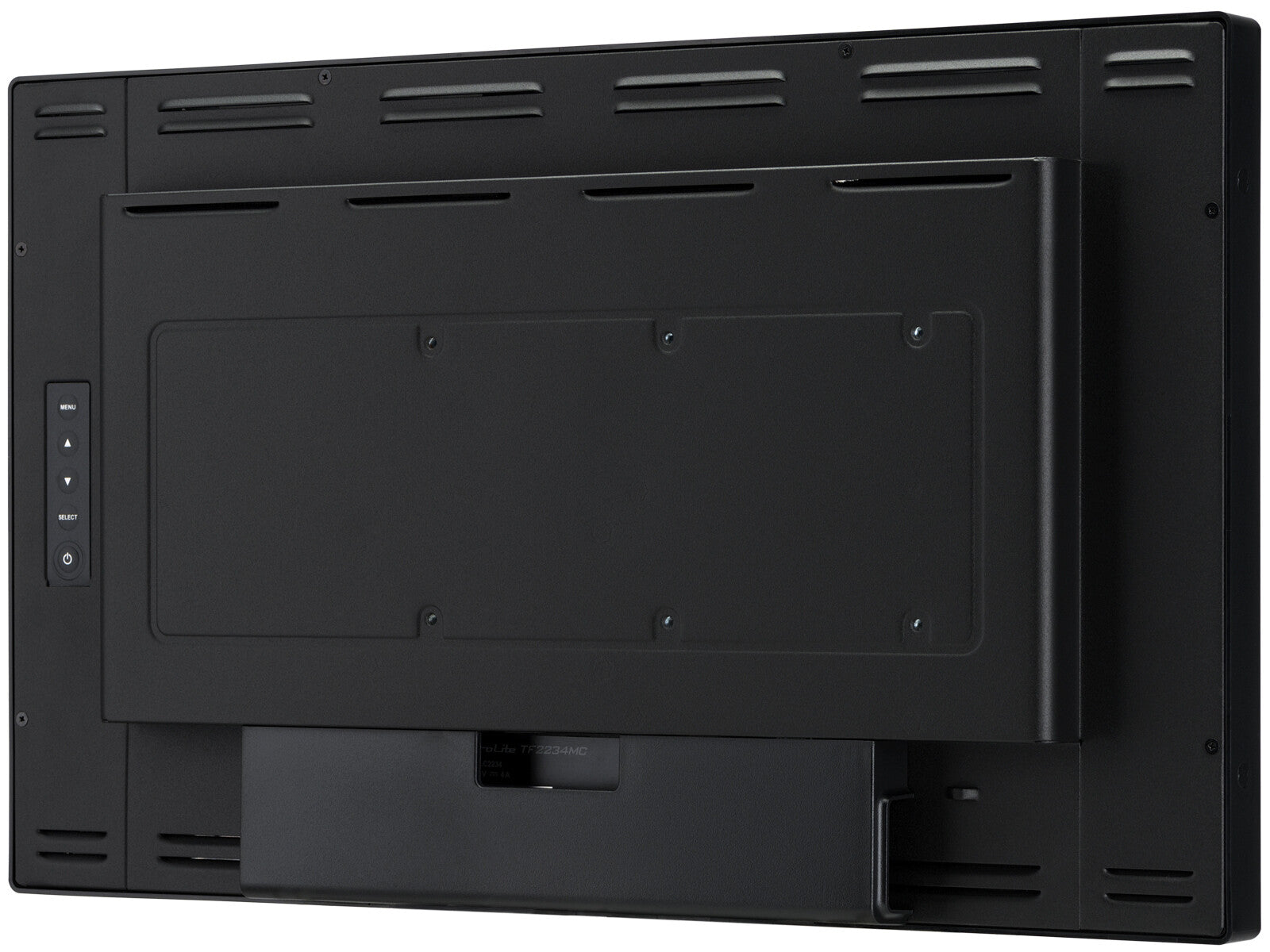

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian |
| Number of OSD languages | 8 |
| Power | |
|---|---|
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 19 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 517.5 mm |
| Depth (with stand) | 46 mm |
| Height (with stand) | 313.5 mm |
| Weight (with stand) | 4.4 kg |
| Width (without stand) | 517.5 mm |
| Depth (without stand) | 46 mm |
| Height (without stand) | 313.5 mm |
| Weight (without stand) | 4.4 kg |
| Packaging data | |
|---|---|
| Package width | 610 mm |
| Package depth | 160 mm |
| Package height | 405 mm |
| Package weight | 6.8 kg |
| Packaging content | |
|---|---|

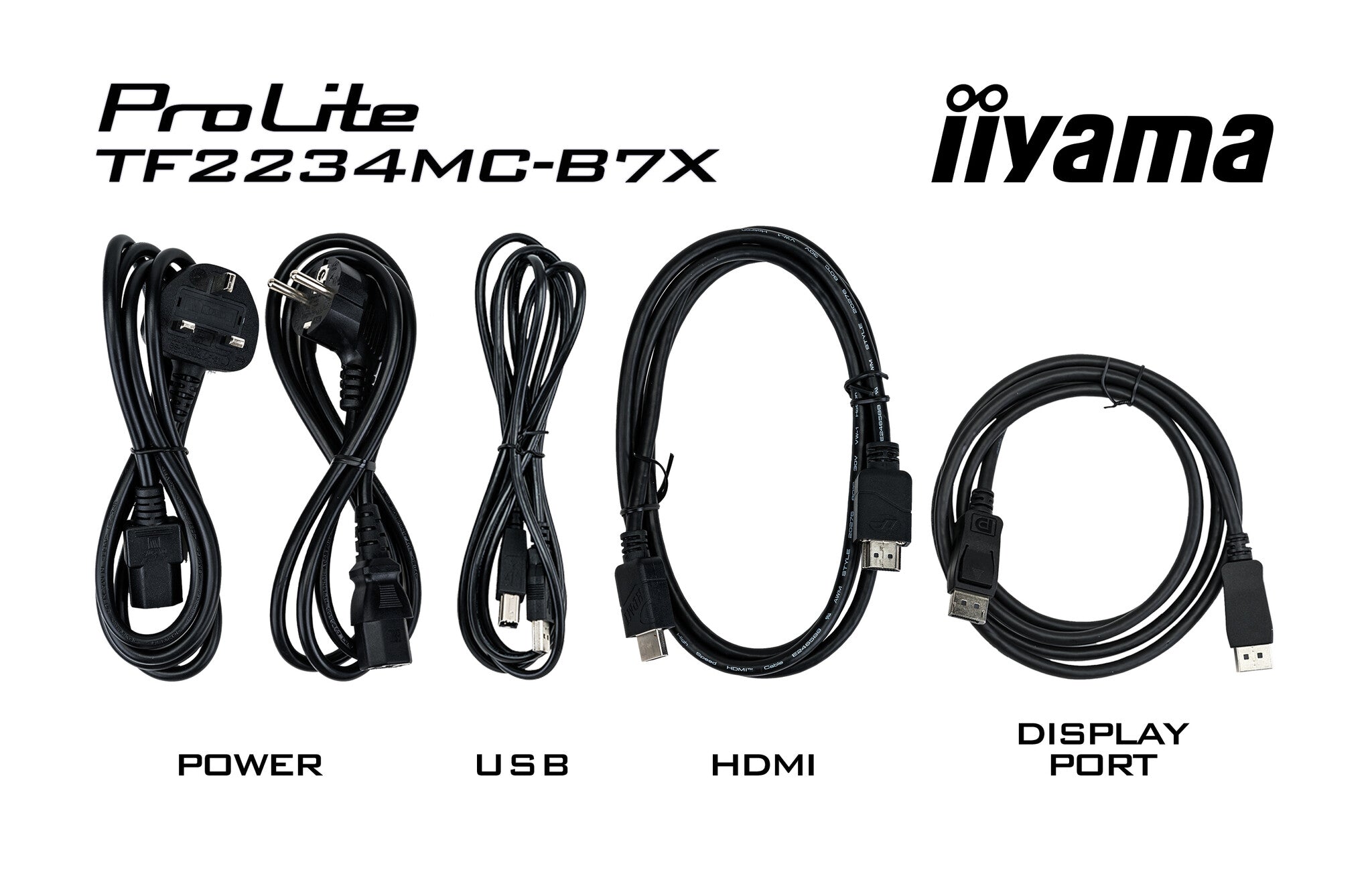

| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | Yes |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| International Protection (IP) code | IP65 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| AC adapter included | Yes |
| Brightness | 305 cd/m² |
| Packaging content | AC adapter |

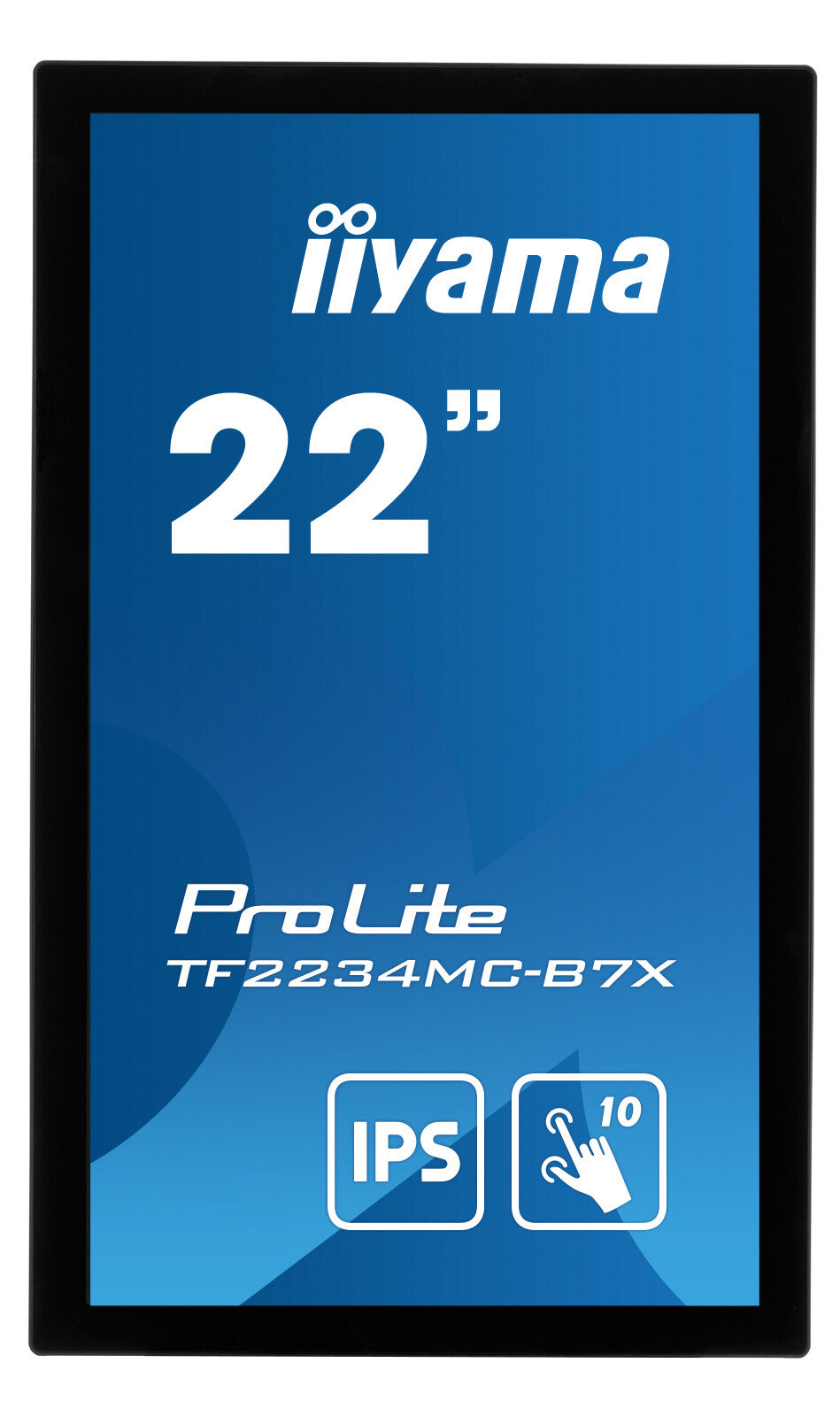

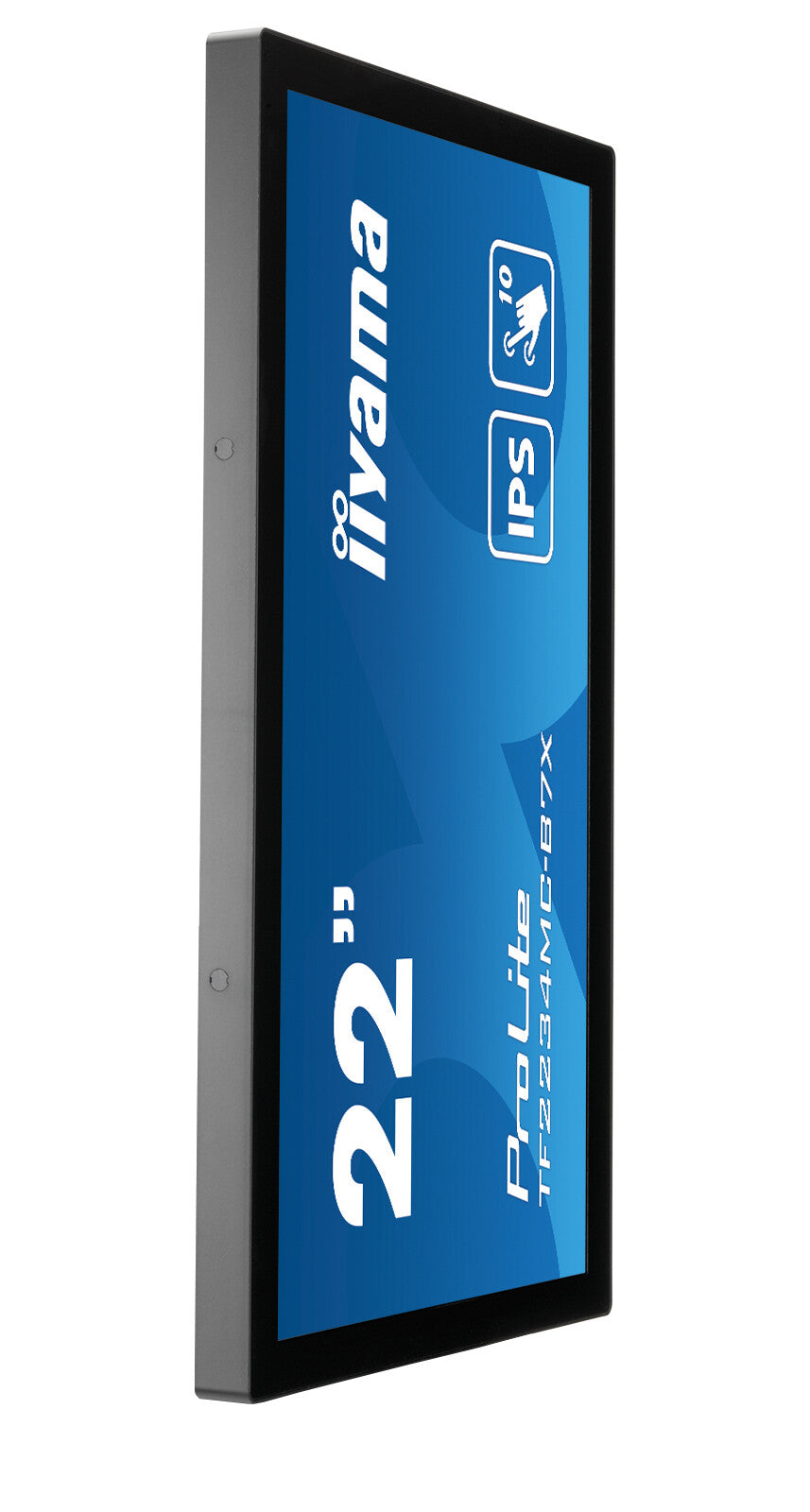

| Placement supported | Horizontal/Vertical |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, WEEE |
| Depth | 46 mm |
| Width | 517.5 mm |
| Height | 313.5 mm |
| Weight | 4.4 kg |
| Display viewable area (HxV) | 476 x 267.7 mm |
| Certification | CE, EAC, RoHS, ErP, WEEE, cULus, REACH |

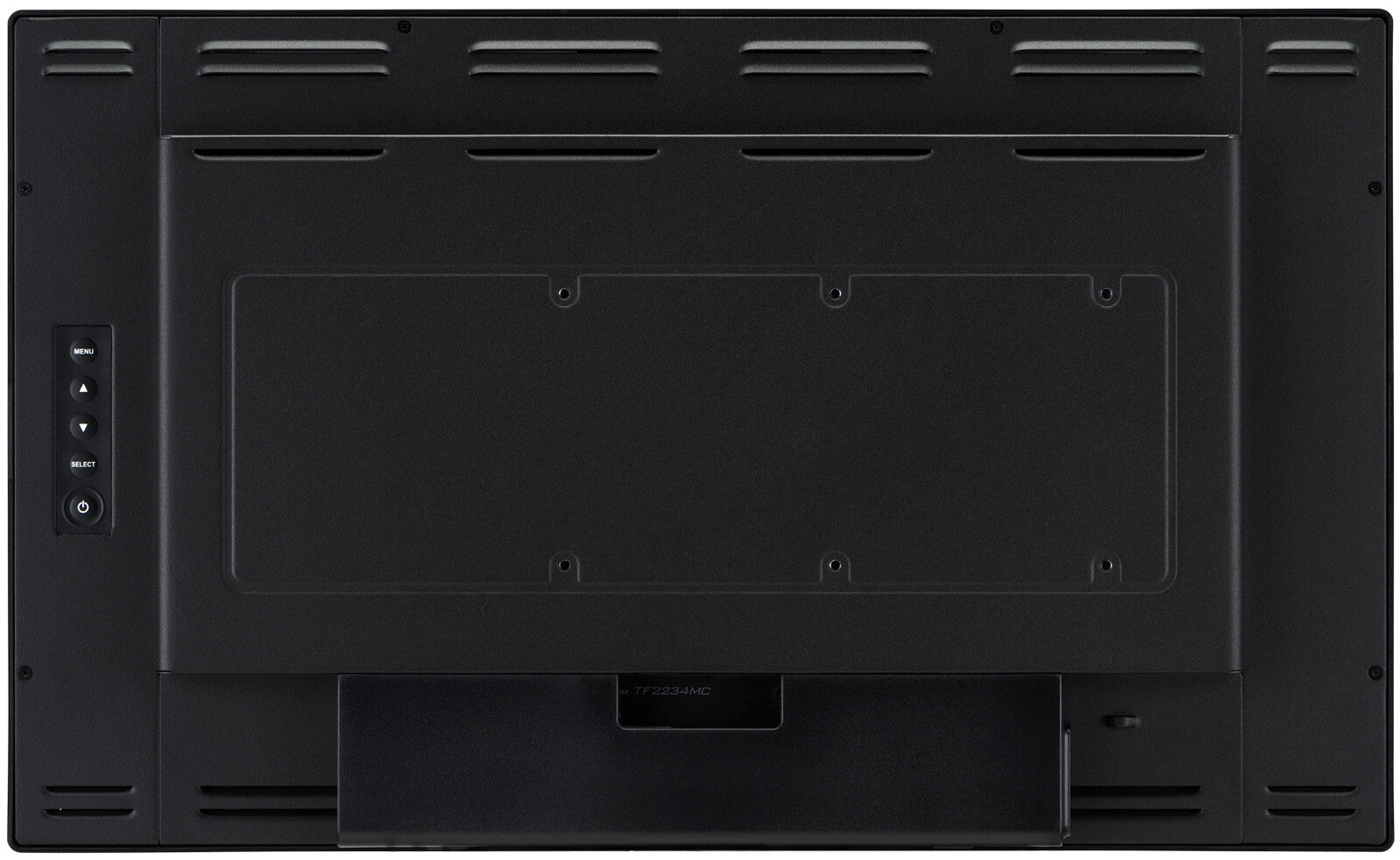

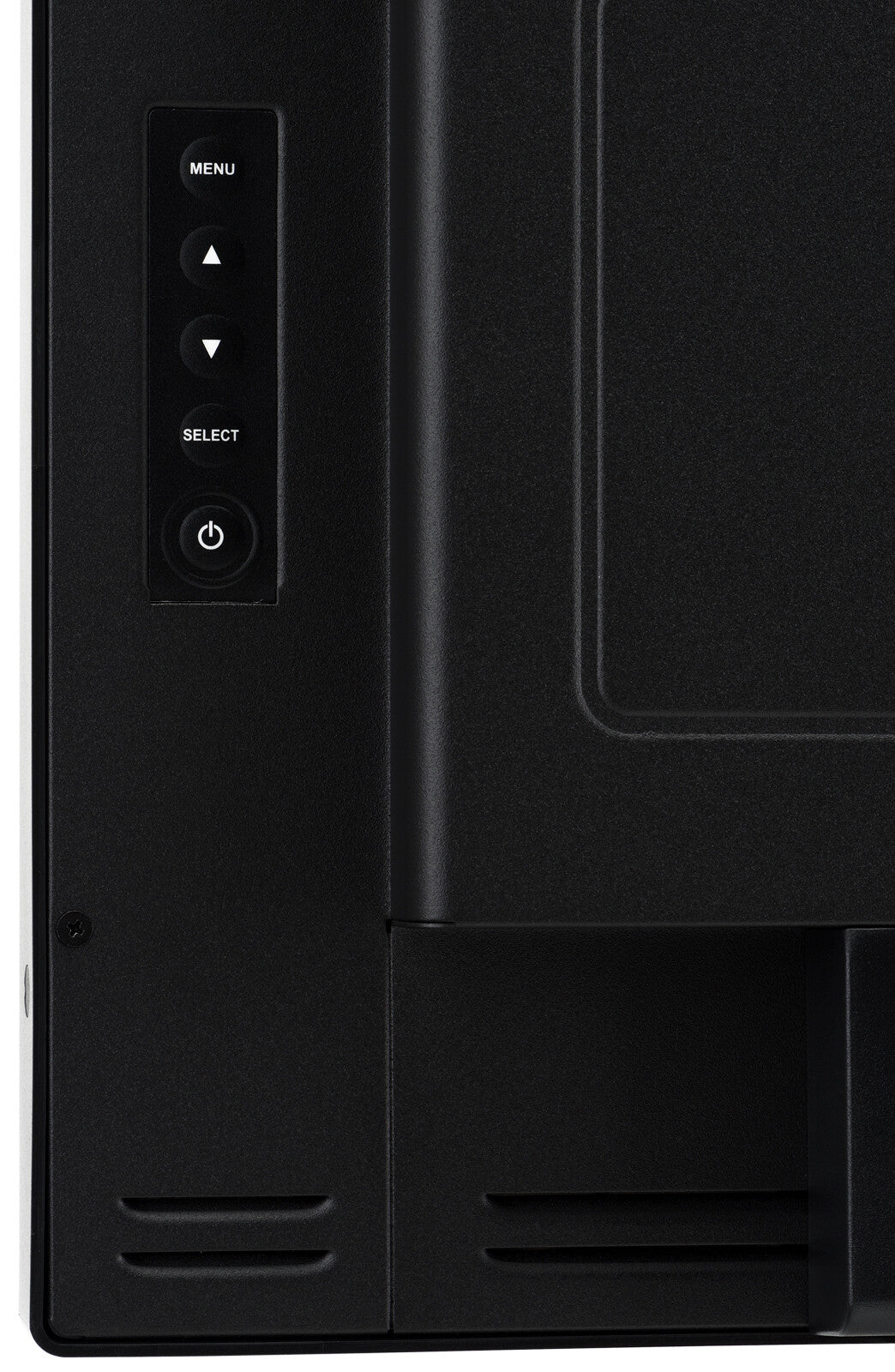

| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Touch method | stylus, finger, glove (latex) |
| Logistics data | |
|---|---|
| Products per pallet | 48 pc(s) |
| Pallet net width | 109 cm |
| Pallet net length | 192.7 cm |
| Pallet net height | 109 cm |
| Harmonized System (HS) code | 85285210 |
