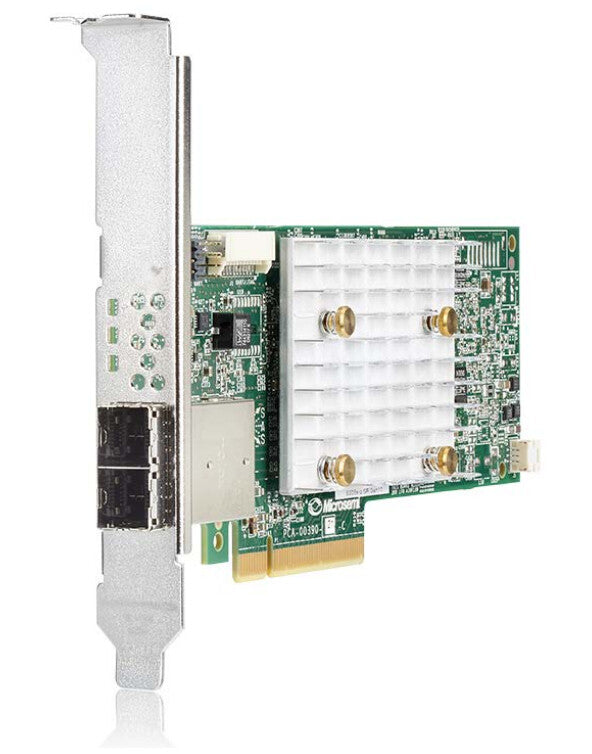

HPE SmartArray P408e-p SR Gen10 RAID controller PCI Express x8 3.0 12 Gbit/s
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,238.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Supported storage drive interfaces: SAS, Serial ATA
- Host interface: PCI Express x8
- RAID levels: 0, 1, 1 ADM, 5, 6, 10 ADM, 10, 50, 60
- 12 Gbit/s
Are you looking for a high performance enterprise-level controller to connect to externally attached drives? The HPE Smart Array P408e-p SR Gen10 Controller, supporting 12 Gb/s SAS and PCIe 3.0, provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. This controller has eight external SAS lanes, allowing connection to SAS or SATA drives in an external disk enclosure, supports Mixed Mode operations of RAID and HBA simultaneously, and offers encryption for data-at-rest on any drive. The Smart Array P408e-p SR Gen10 Controller is ideal for maximizing performance while supporting advanced RAID levels with 4 GB Flash-Backed Write Cache (FBWC). This controller occupies a PCIe expansion slot. The Gen10 controllers are supported by the HPE Smart Storage Battery. The HPE Smart Storage Battery supports multiple devices and is sold separately.
Features
Increased Performance for Faster Data Insights
- The HPE Smart Array P408e-p SR Gen10 Controller is an enterprise-class RAID controller that increases performance in messaging, database, or general server applications and delivers 12 Gb/s SAS connectivity on HPE ProLiant Gen10 Servers when connected to 12 Gb/s external storage devices.
- Increases performance with 4 GB Flash-Backed Write Cache (FBWC) and reduces latency in write-intensive applications that require heavy logging such as databases.
- Enhances performance in storage environments where data is read repeatedly from a large number of SSDs by using HPE SSD Smart Path to create a faster I/O path between the controller and SSD.
- Accelerate access to data in HDD environments by caching hot data onto SSDs with HPE Smart Array SR SmartCache (optional license).
Built-in Reliability and Security
- The HPE Smart Array P408e-p SR Gen10 Controller protects data-at-rest on any drive attached to the controller with HPE Smart Array SR Secure Encryption (optional license).
- Comply with regulations for sensitive data, such as HIPAA and Sarbanes-Oxley with HPE Smart Array SR Secure Encryption—FIPS 140-2 Implementation Under Test with expected FIPS 140-2 Level 1 validation complete in 2018.
- Preserve data integrity with HPE SmartSSD Wear Gauge, which alerts you to potential drive issues before a drive fails.
- Long-term data retention with 4 GB Flash-Backed Write Cache (FBWC) for improved data reliability.
Improved Efficiency and Storage Management
- The HPE Smart Array P408e-p SR Gen10 Controller has increased flexibility with Mixed Mode which operates in RAID and HBA simultaneously and eliminates the expense of having to purchase another controller.
- Rapidly configure simple RAID volumes on servers with the UEFI storage configuration tool, which also facilitates scripting support to configure an array via iLO through RESTful interface.
- Quickly set up, configure, and manage drives attached to the controller with HPE Smart Storage Administrator (SSA), an intuitive interface used to create RAID volumes, manage advanced controller features, and deploy Smart Array solutions.
Specifications
Ports & interfaces
| External mini-SAS HD ports | 2 |
|---|---|
| PCI Express slots version | 3.0 |
| Host interface | PCI Express x8 |
| Supported storage drive interfaces | SAS, Serial ATA |
Performance
| Compatible products | HPE D3610 Disk EnclosureHPE D3710 Disk EnclosureHPE D6020 Disk EnclosureHPE ProLiant DL360 Gen10HPE ProLiant DL380 Gen10HPE ProLiant DL560 Gen10HPE ProLiant DL580 Gen10HPE ProLiant ML110 Gen10HPE ProLiant ML350 Gen10HPE ProLiant XL170r Gen10HPE ProLiant XL190r Gen10HPE ProLiant XL230K Gen10 |
|---|---|
| Data transfer rate | 12 Gbit/s |
| RAID levels | 0, 1, 1 ADM, 5, 6, 10 ADM, 10, 50, 60 |
Show all 8 specificationsShow fewer specifications
General
| Product family | SmartArray |
|---|
