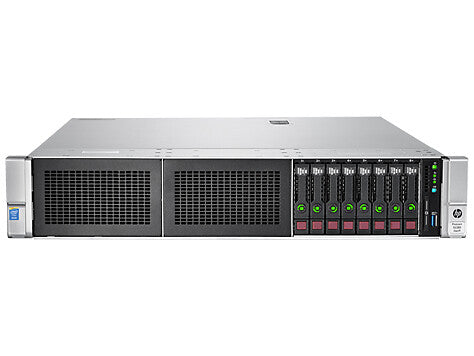

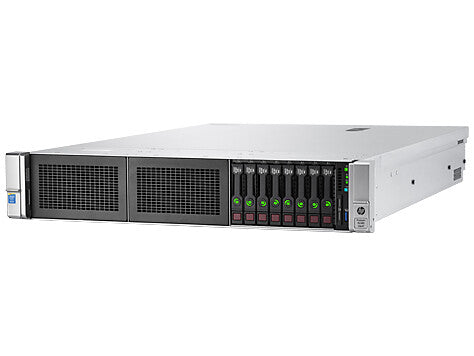

HPE ProLiant DL380 server 0 GB Rack (2U) Intel Xeon E5 v3 E5-2690V3 2.6 GHz 32 GB 800 W
Couldn't load pickup availability
- Intel Xeon E5 v3 E5-2690V3 2.6 GHz
- 32 GB 2 x 16
- Rack (2U) 800 W
What is your server bottleneck...storage, processing, expansion?
The world’s best-selling server 1 just got better. The HP ProLiant DL380 Gen9 Server delivers the latest performance and expandability in the HP 2P rack portfolio. Reliability, serviceability and near continuous availability, backed by a comprehensive warranty, making it ideal for any server environment. Deploy the data center standard.
Designed to reduce costs and complexity, leveraging Intel’s latest E5-2600 v3 processors with up to 70% 2 performance gain, plus the latest HP DDR4 SmartMemory supporting 1.5 TB and up to 14% 3 performance increase. Additional support for 12 Gb/s SAS, 40 Gb NIC with a broad range of graphics and compute options. Manage the DL380 Gen9 Server in any IT environments by automating the most essential server lifecycle management tasks: deploy, update, monitor, and maintain with ease. Run everything from the most basic to mission critical applications, and can be deployed with confidence.1 Q114 IDC WW Quarterly Server Tracker, May 30, 2014.
2 Source as of 3 April 2014: Intel internal measurements on platform with two E5-2697 v2 (12C, 2.7GHz), 8x8GB DDR3-1866, RHEL6.3. Platform with two E5-2697 v3 (14C, 2.6GHz, 145W), 8x8GB DDR4-2133, RHEL6.3.
3 Based on similar capacity DIMM comparing HP server vs. non HP server with DDR4, July 2014. 1.5TB support with 64GB DIMMs to be available by early 2015.
| Processor | |
|---|---|
| Conflict-Free processor | No |
| Thermal Monitoring Technologies | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 22 nm |
| Processor threads | 24 |
| Processor operating modes | 64-bit |
| Processor codename | Haswell |
| Tcase | 89.9 °C |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Maximum number of PCI Express lanes | 40 |
| Processor package size | 52.5 x 45 mm |
| Supported instruction sets | AVX 2.0 |
| Scalability | 2S |
| Embedded options available | No |
| PCI Express configurations | x4, x8, x16 |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| ECC supported by processor | Yes |
| Physical Address Extension (PAE) | Yes |
| Processor series | Intel Xeon E5-2600 v3 |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 9.6 GT/s |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 135 W |
| Memory channels supported by processor | Quad |
| Processor cache | 30 MB |
| Processor cores | 12 |
| Processor boost frequency | 3.5 GHz |
| Processor frequency | 2.6 GHz |
| Processor model | E5-2690V3 |
| Processor family | Intel Xeon E5 v3 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory slots | 24x DIMM |
| Memory layout (slots x size) | 2 x 16 GB |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Supported storage drive interfaces | SAS, Serial ATA |
| Optical drive type | No |
| Total storage capacity | 0 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Chassis type | Rack (2U) |
| Processor special features | |
|---|---|
| Intel TSX-NI | No |
| Intel Clear Video Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Insider™ | No |
| Intel Dual Display Capable Technology | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel® Smart Cache | Yes |
| Intel HD Graphics | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 81713 |
| Intel® Quick Sync Video Technology | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel Flex Memory Access | No |
| Intel Demand Based Switching | Yes |
| Intel Identity Protection Technology version | 0.00 |
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Power | |
|---|---|
| Number of redundant power supplies installed | 1 |
| Power supply | 800 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Weight | 14.8 kg |
| Depth | 679.4 mm |
| Height | 87.3 mm |
| Width | 445.4 mm |
