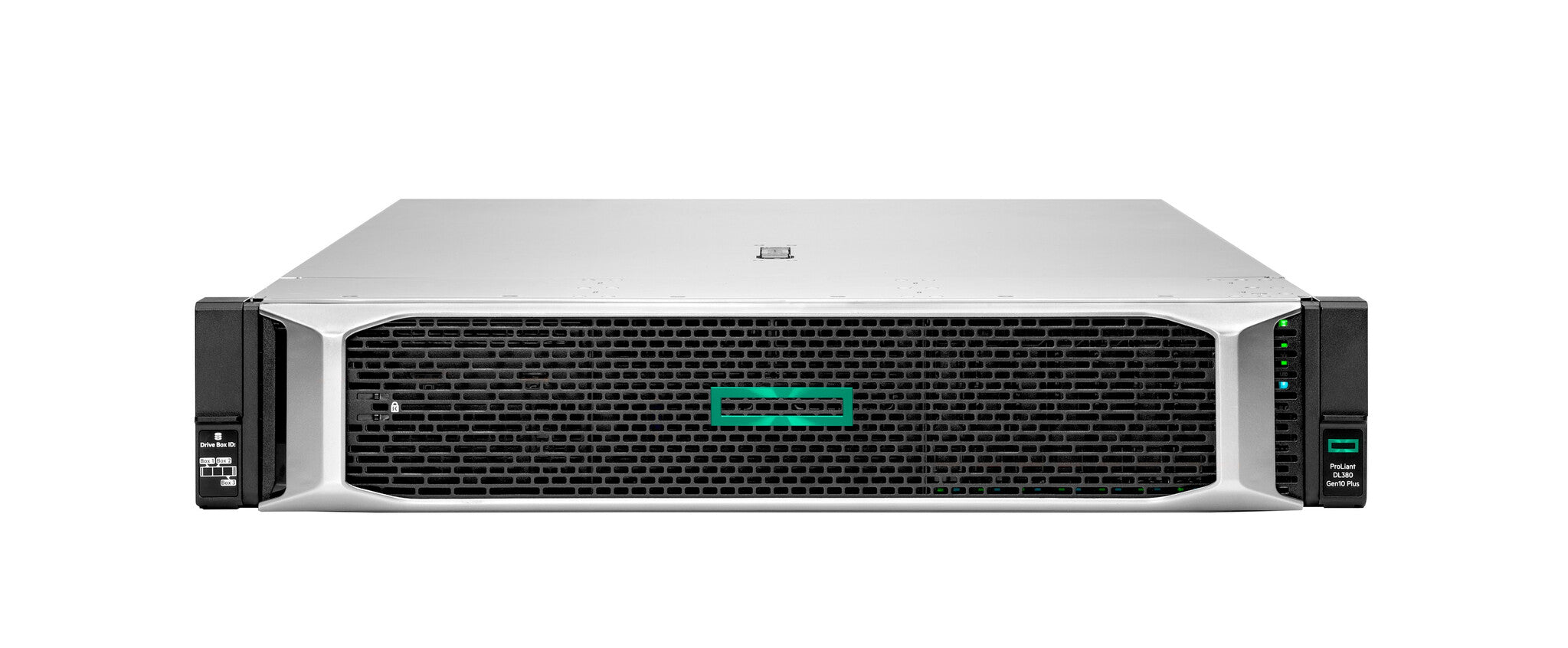

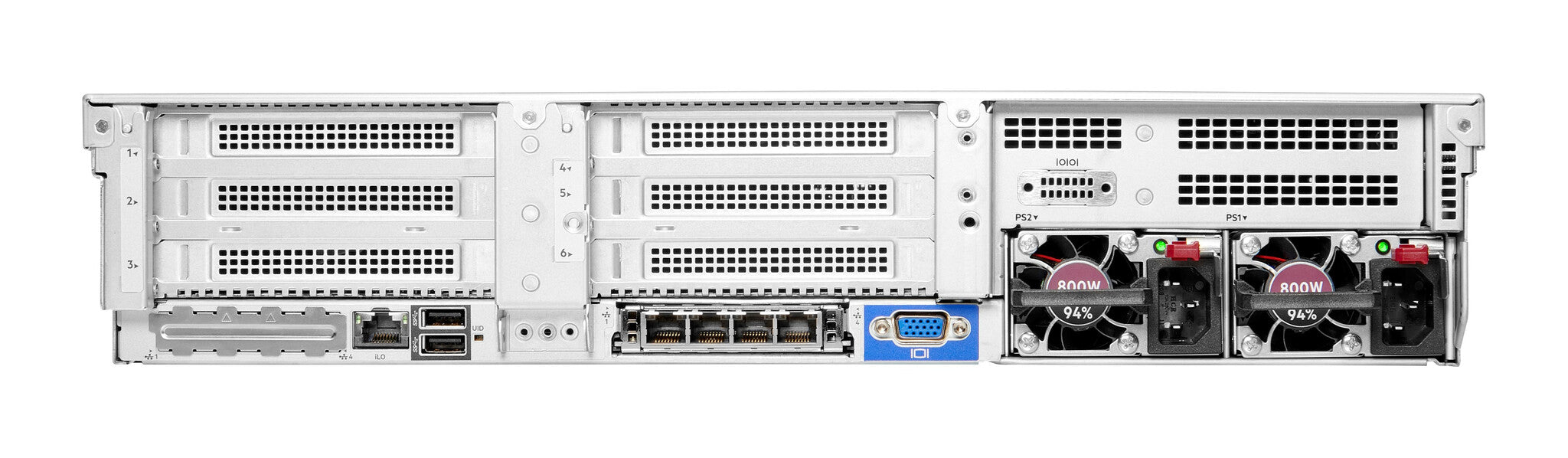

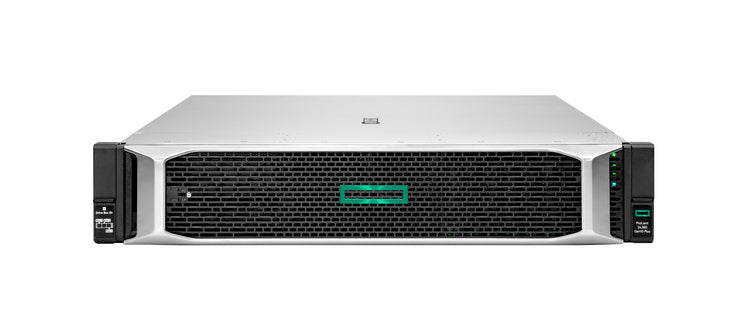

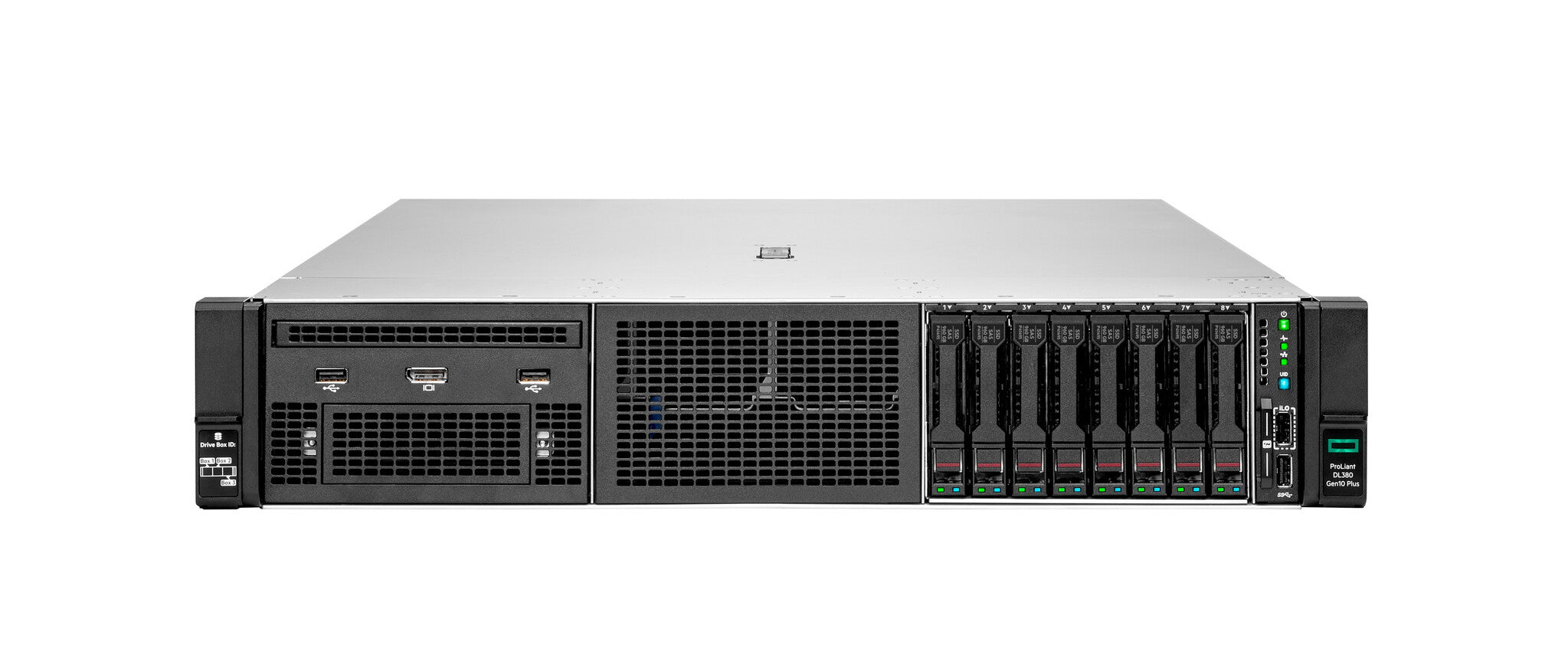

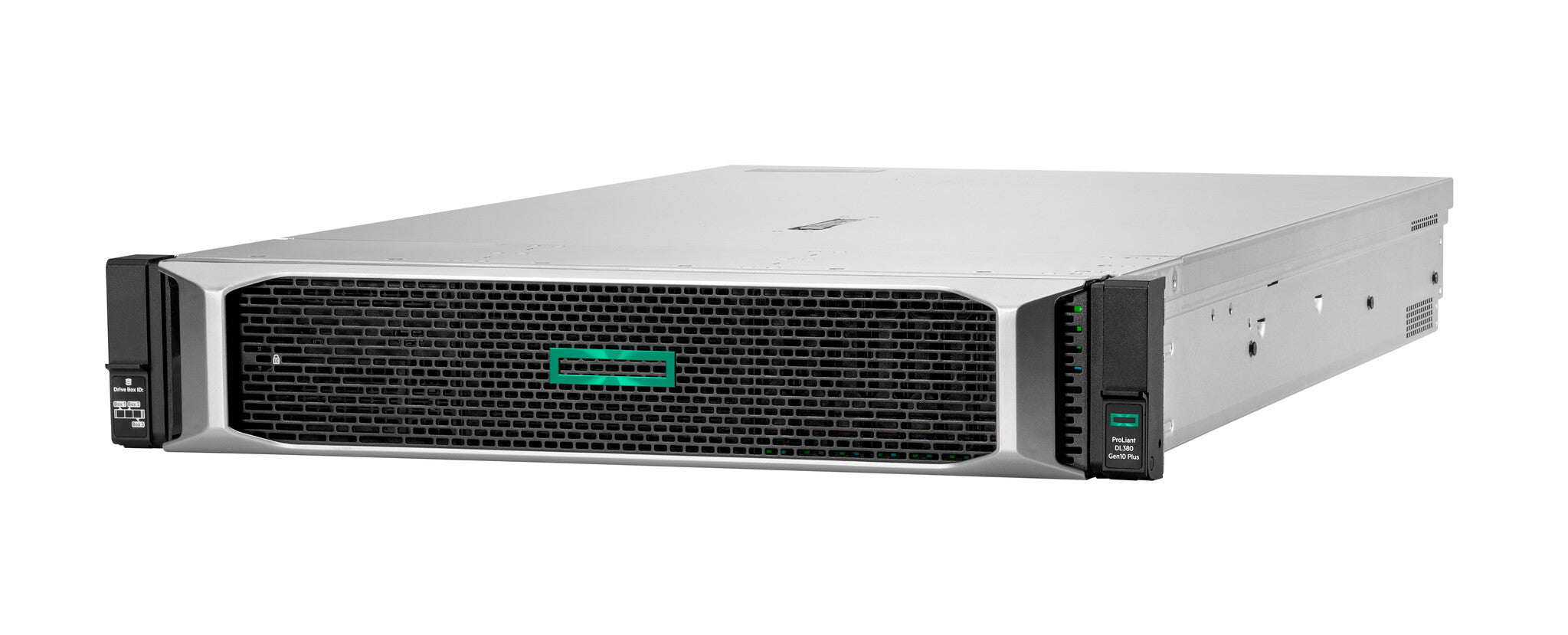

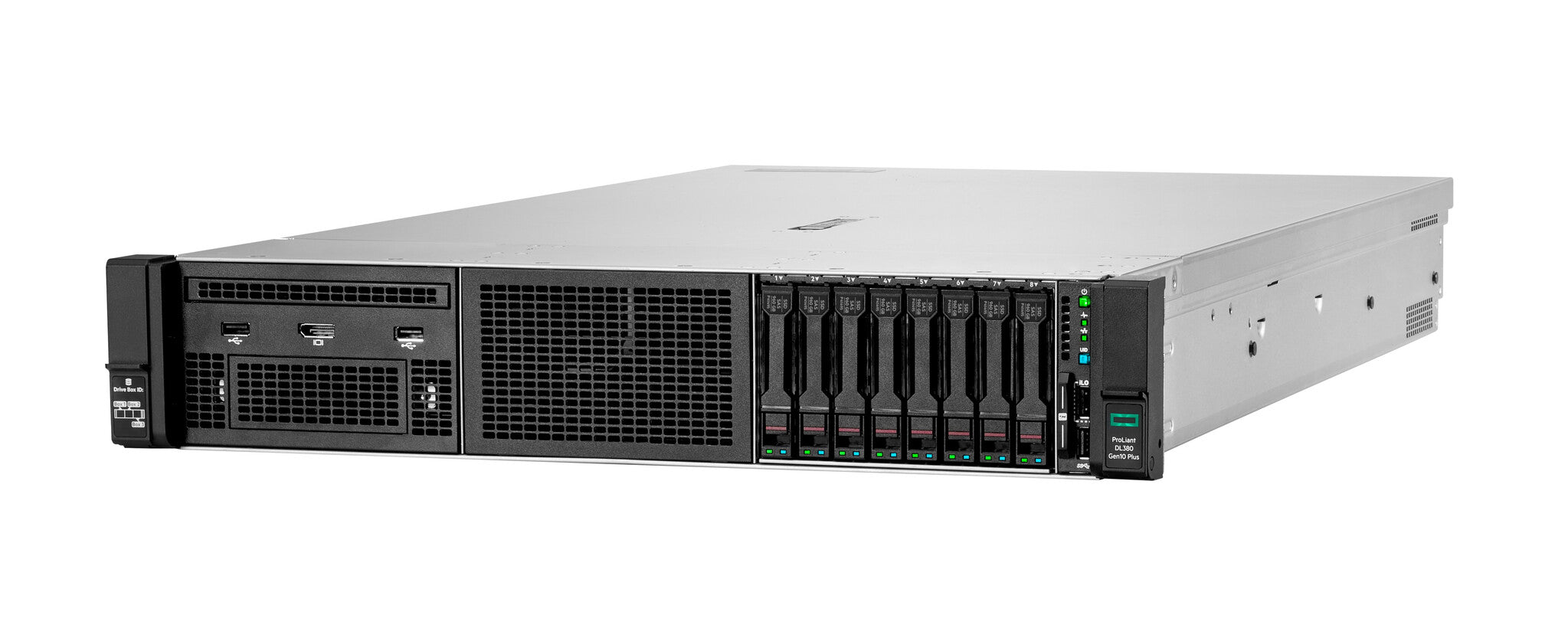

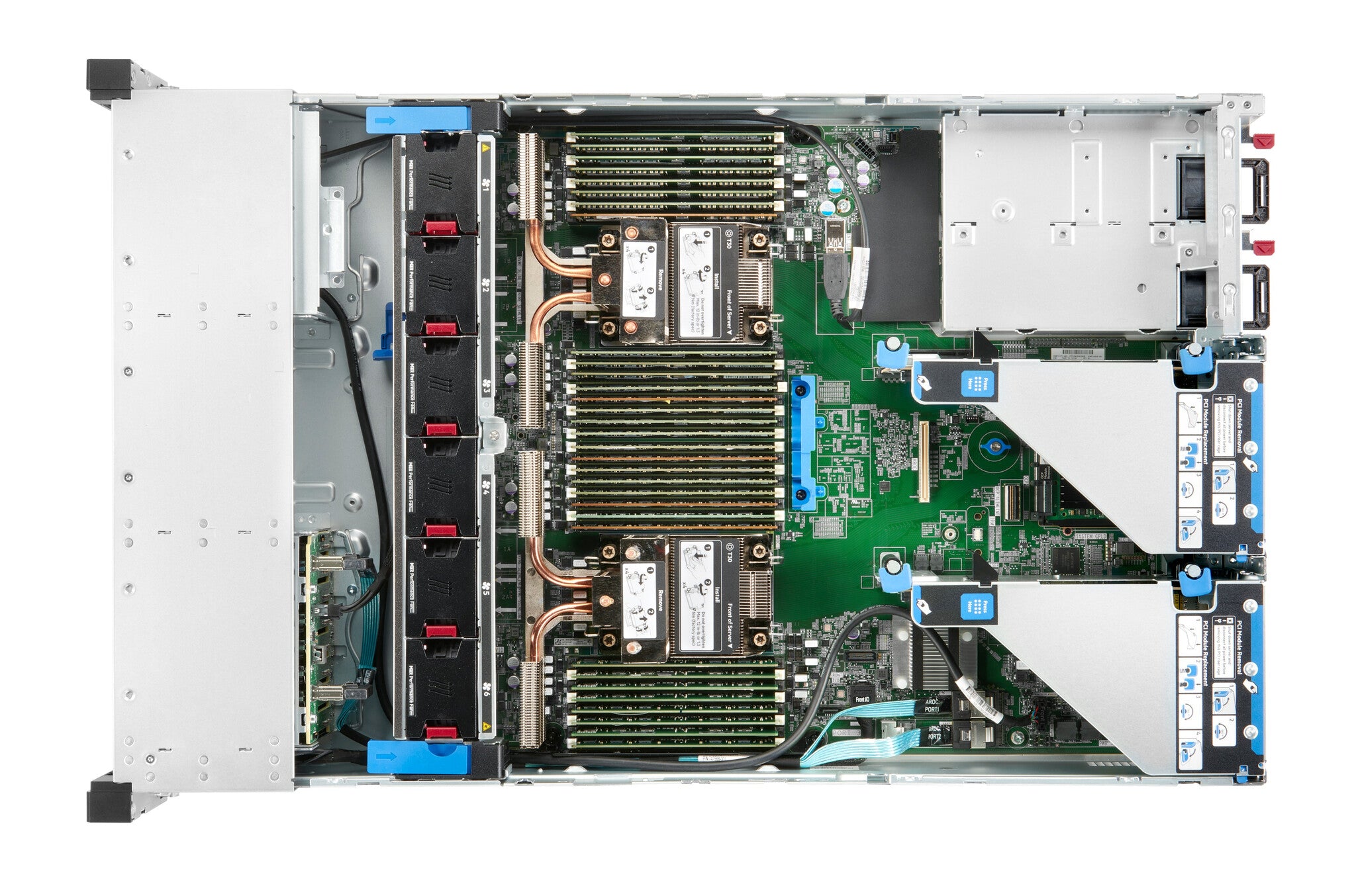

HPE ProLiant DL380 Gen10 Plus 4314 2.4GHz 16-core 1P 32GB-R MR416i-p NC 8SFF 800W PS Server
Couldn't load pickup availability
- Intel Xeon Silver 4314 2.4 GHz
- 32 GB 3200 MHz DDR4-SDRAM 1 x 32
- Rack (2U) 800 W
Do your servers need increased performance in storage, compute, or expansion? The HPE ProLiant DL380 Gen10 Plus server is adaptable for diverse workloads and environments, providing you with the right balance of expandability and scalability. Designed for supreme versatility and resiliency, this 2U/2P platform is capable for deployment in multiple environments, built on 3rd Generation Intel Xeon Scalable Processors, and backed by a comprehensive warranty. Equipped with PCIe Gen4 capabilities, the HPE ProLiant DL380 Gen10 Plus server offers improved data transfer rates and higher networking speeds.
What is new supporting point:
Support for PCIe Gen4, resulting in improved bandwidth and throughput.
Supports 3rd Generation Intel Xeon Scalable Processors.
Support for industry-standard OCP 3.0 Network Adapters.
Support for Trimodal (NVMe/SAS/SATA) HPE Smart Array controllers.
| Processor | |
|---|---|
| Maximum number of SMP processors | 2 |
| Number of processors installed | 1 |
| Motherboard chipset | Intel C621A |
| Processor cache | 24 MB |
| Processor cores | 16 |
| Processor boost frequency | 3.4 GHz |
| Processor frequency | 2.4 GHz |
| Processor model | 4314 |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 2.05 TB |
| Memory slots | 32x DIMM |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Supported RAID controllers | None |
| RAID support | Yes |
| SSD interface | PCI Express 4.0 |
| Supported HDD sizes | 2.5" |
| Number of HDDs supported | 8 |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 550.8 TB |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Network | |
|---|---|
| LAN controller | Broadcom 57412 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Wi-Fi | No |
| Ports & interfaces | |
|---|---|
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Serial ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
|---|---|
| PCI Express x16 slots | 3 |
| PCI Express x8 slots | 2 |
| Design | |
|---|---|
| Redundant fans support | Yes |
| Rack mounting | Yes |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Remote administration | iLO 5 ASIC |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2016, Microsoft Windows Server 2019, VMware vSphere 6.7 (ESXi) Update 3, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 15 SP2 |
| Operating system installed | No |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Power supply | 800 W |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Depth | 445.4 mm |
| Height | 87.5 mm |
| Width | 87.5 mm |
