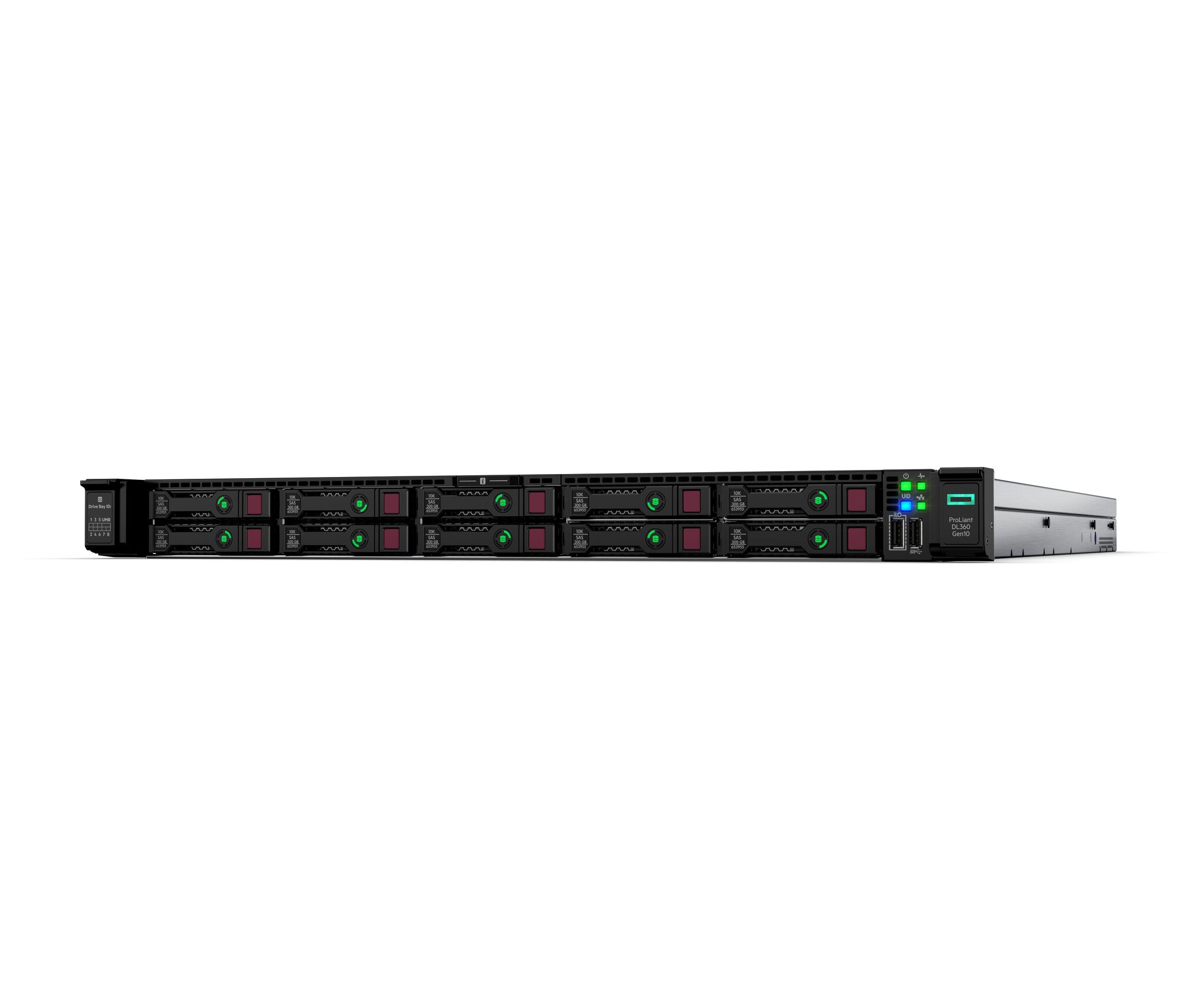

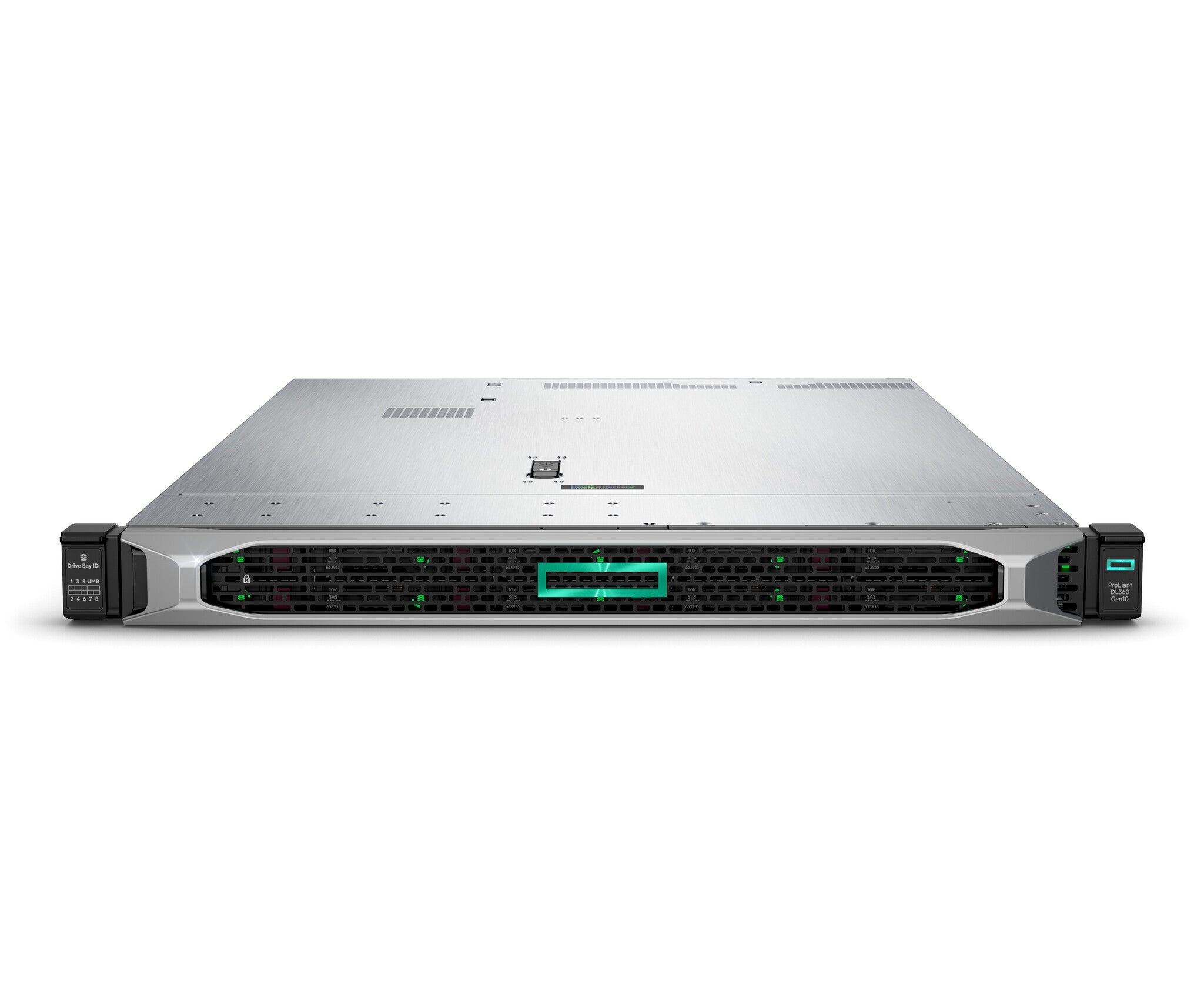

HPE ProLiant DL360 Gen10 5218 2.3GHz 16-core 1P 32GB-R P408i-a NC 8SFF 800W PS Server
Couldn't load pickup availability
- Intel® Xeon® Gold 5218 2.3 GHz
- 32 GB 2933 MHz DDR4-SDRAM 1 x 32
- Rack (1U) 800 W
Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel Xeon Scalable processor with up to a 60% performance gain [1] and 27% increase in cores [2], along with 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB [2] with an increase in performance of up to 82% [3]. With the added performance that Intel Optane™ persistent memory 100 series for HPE [6], HPE NVDIMMs [7] and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). Deploy this 2P secure platform for diverse workloads in space constrained environments.
What is new supporting point:
Intel Optane™ persistent memory 100 series for HPE offers the flexibility to deploy as dense memory or fast storage and enables per-socket memory capacity of up to 3.0 TB. [5]
Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Support for additional second generation Intel Xeon Scalable processors with improved price/performance.
Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
HPE 800 Watt Flex Slot Titanium hot-plug power supply available for EMEA
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 1 TB |
| Execute Disable Bit | Yes |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Processor threads | 32 |
| Processor operating modes | 64-bit |
| Processor codename | Cascade Lake |
| Tcase | 87 °C |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2667 MHz |
| Maximum number of PCI Express lanes | 48 |
| Processor package size | 76.0 x 56.5 mm |
| Supported instruction sets | AVX-512 |
| Scalability | 4S |
| Embedded options available | No |
| Maximum number of SMP processors | 2 |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 125 W |
| Number of processors installed | 1 |
| Motherboard chipset | Intel® C621 |
| Processor cache | 22 MB |
| Processor cores | 16 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 2.3 GHz |
| Processor model | 5218 |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor family | Intel® Xeon® Gold |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 1.53 TB |
| Memory slots | 24x DIMM |
| ECC | Yes |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Supported RAID controllers | HPE Smart Array P408i-a SR Gen10 x8 Lanes 2GB Cache SAS 12G Modular Controller |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| RAID support | Yes |
| SSD interface | PCI Express 4.0 |
| Number of HDDs supported | 8 |
| HDD size | 2.5" |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 26.4 TB |
| Graphics | |
|---|---|
| On-board graphics card model | Not available |
| On-board graphics card | Yes |
| Network | |
|---|---|
| LAN controller | Intel® I350-T4 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| Expansion slots | 2 PCIe 3.0, for detailed descriptions reference the QuickSpecs |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Ethernet LAN (RJ-45) ports | 4 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Black, Silver |
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| Management platform | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses) |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Remote administration | iLO 5 ASIC |
| Software | |
|---|---|
| Compatible operating systems | Windows Server 2019: Essentials, Standard, DatacenterWindows Server 2016: Essentials, Standard, DatacenterWindows Server 2012 R2: Essentials, Standard, DatacenterMicrosoft Hyper-V Server: 2012 R2, 2016 & 2019VMware vSphere: 6.0 U3, 6.5 U2 & 6.7 U1ClearVM: 7.6 & 8.0Red Hat Enterprise Linux (RHEL): 7.6 w/ KbaseSUSE Linux Enterprise Server (SLES): 12 SP4 & 15 SP1 (inc. Xen) |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 192444 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Power supply | 800 W |
| Power supply type | 1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84714100 |
| Weight & dimensions | |
|---|---|
| Weight | 13 kg |
| Depth | 434.6 mm |
| Height | 707 mm |
| Width | 42.9 mm |
| Other features | |
|---|---|
| Standard fans | 5 single rotor hot plug fans |
| Storage drive type | None ship standard, 8 SFF supported |
| Dimensions (W x D x H) (imperial) | 42.9 x 434.6 x 706.9 mm (1.69 x 17.1 x 27.8") |
| Weight (imperial) | 13 kg (28.7 lbs) |
| Security features | Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0 |
| Number of processors supported | 1 |
