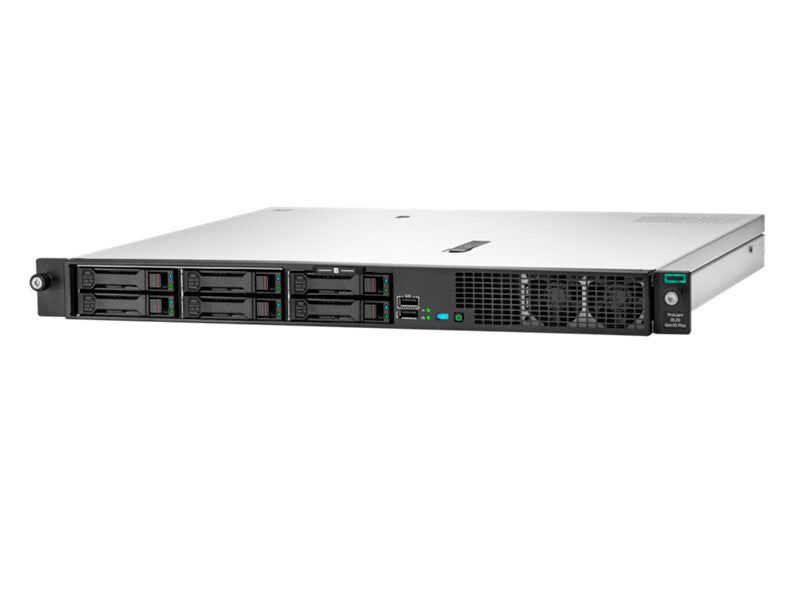

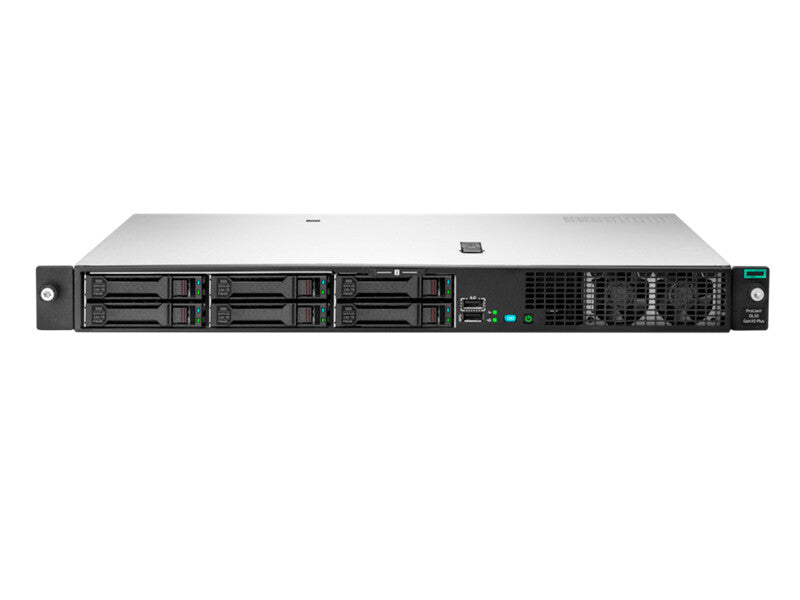

HPE ProLiant DL20 Gen10 server Rack (1U) Intel Xeon E E-2314 2.8 GHz 16 GB DDR4-SDRAM 500 W
£3,366.99
Couldn't load pickup availability
- Intel Xeon E E-2314 2.8 GHz
- 16 GB DDR4-SDRAM 1 x 16
- Rack (1U) 500 W
| Processor | |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor cache | 8 MB |
| Processor cores | 4 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 2.8 GHz |
| Processor model | E-2314 |
| Processor family | Intel Xeon E |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory slots | 4x DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Hot-swap | Yes |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| HDD size | 2.5" |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Power supply | 500 W |
| Redundant power supply (RPS) support | No |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Weight | 6 kg |
| Depth | 382.2 mm |
| Height | 43.2 mm |
| Width | 434.6 mm |
