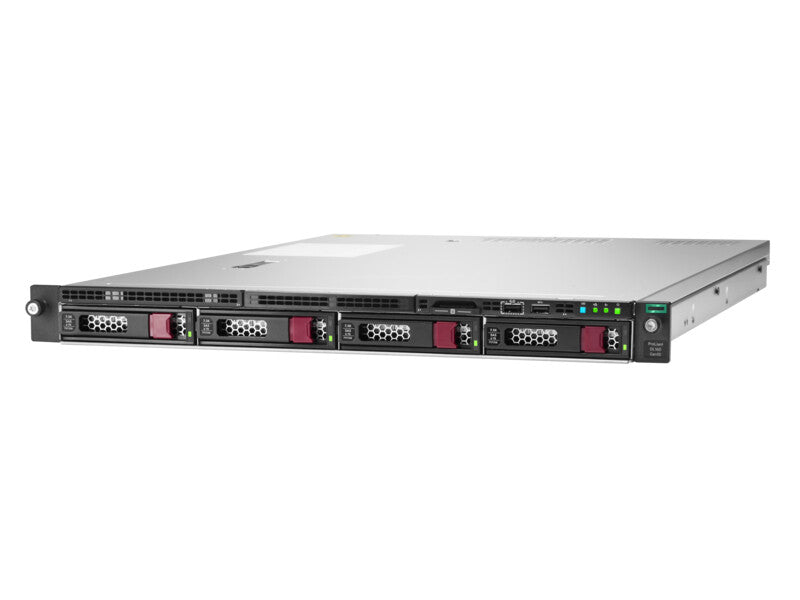

HPE ProLiant DL160 Gen10 server 0 GB Rack (1U) Intel Xeon Silver 4208 2.1 GHz 16 GB DDR4-SDRAM 500 W
Couldn't load pickup availability
- Intel Xeon Silver 4208 2.1 GHz
- 16 GB 2933 MHz DDR4-SDRAM 1 x 16
- Rack (1U) 500 W
Are you searching for a dense server with exceptional value to run on-premises and hybrid cloud solutions?
The secure 2P 1U HPE ProLiant DL160 Gen10 server delivers the right balance of performance, storage, reliability, manageability and efficiency in a dense and compact chassis, to meet the needs of growing businesses of a diverse set of customers – from SMB to service providers running wide range of workloads at a compelling price point.
What's new
- Enhanced iLO 5 security features such as iLO security dashboard and workload performance advisor.
- Available aggressively priced SMB offer models regionally released as “Smart Buy Express” in the U.S. and Canada, “Top Value” in Europe, and “Intelligent Buy” in Asia Pacific.
Features
Scalability and Efficiency in a Dense Design
- Supports Intel® Xeon® Scalable processors up to 8 cores and up to 85W.
- Deploy mid-level virtualization, IT/ web infrastructure for SMBs and small enterprises.
- Right balanced server to support multiple workloads.
Agile, Secure Infrastructure Management for Accelerating IT Service Delivery
- HPE iLO 5 enables the world’s most secure industry standard servers with HPE silicon root of trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
- New features include iLO Security Dashboard that helps detect and address possible security vulnerabilities and Workload Performance Advisor that provides server tuning recommendations for better server performance.
- Millions of lines of firmware code run before the server OS boots and with Runtime Firmware Verification, enabled by HPE iLO Advanced. The server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
- Secure Recovery allows server firmware to roll back to the last known good state or factory settings after detection of compromised code.
Industry-Leading Serviceability and Simplified Deployment
- HPE ProLiant DL160 Gen10 server comes with a complete set of services offered by HPE Pointnext, delivering confidence, reducing risk, and helping customers realize agility and stability.
- Services from HPE Pointnext simplify the stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an enhanced solution. Professional Services enables rapid deployment of solutions and Operational Services provides ongoing support.
- HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 1 TB |
| Execute Disable Bit | Yes |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| Processor codename | Cascade Lake |
| Tcase | 78 °C |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Maximum number of PCI Express lanes | 48 |
| Processor package size | 76.0 x 56.5 mm |
| Supported instruction sets | AVX-512 |
| Scalability | 2S |
| Embedded options available | No |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 85 W |
| Number of processors installed | 1 |
| Motherboard chipset | Intel C622 |
| Processor cache | 11 MB |
| Processor cores | 8 |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2.1 GHz |
| Processor model | 4208 |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 1 TB |
| Memory slots | 16x DIMM |
| ECC | Yes |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Hot-Plug support | Yes |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| HDD size | 3.5" |
| HDD interface | Serial ATA |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 48 TB |
| Graphics | |
|---|---|
| On-board graphics card model | Not available |
| On-board graphics card | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Black, Silver |
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Remote administration | iLO 5 ASIC |
| Software | |
|---|---|
| Compatible operating systems | Windows Server 2016Windows Server 2019VMware ESXi 6.0 U3VMware ESXi 6.5 U2VMware ESXi 6.7 U1Red Hat Enterprise Linux (RHEL) 7.6 (w/Kbase)SUSE Linux Enterprise Server (SLES) 12 SP4SUSE Linux Enterprise Server (SLES) 15 |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 193390 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Power supply | 500 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84714100 |
| Weight & dimensions | |
|---|---|
| Depth | 614.9 mm |
| Height | 42.9 mm |
| Width | 434.6 mm |
