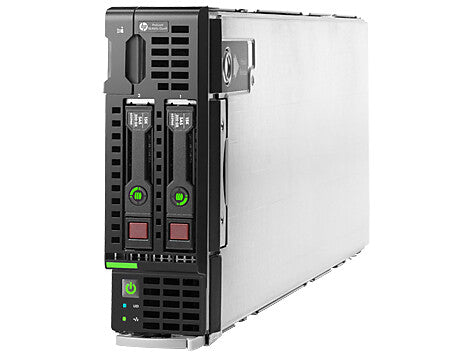

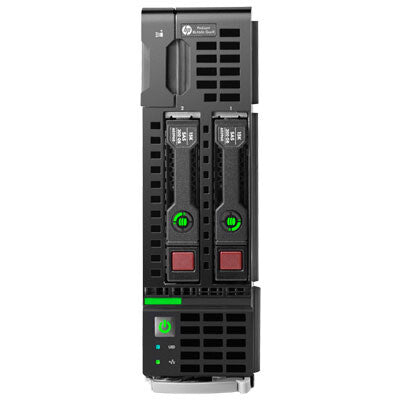

HPE ProLiant BL460c Gen9 server 0 GB Blade Intel Xeon E5 v3 E5-2640V3 2.6 GHz 32 GB DDR4-SDRAM
Couldn't load pickup availability
- Intel Xeon E5 v3 E5-2640V3 2.6 GHz
- 32 GB 2133 MHz DDR4-SDRAM 2 x 16
- Blade
Are you looking for the right server blade to be your data center workhorse for your demanding core IT and virtualization workloads? Designed for a wide range of configuration and deployment options, the HP ProLiant BL460c Gen9 Server Blade provides the flexibility to optimize your core IT applications with right-sized storage for the right workload for a lower TCO. All of this is managed by HP OneView, 1 the converged management platform that accelerates IT service delivery and boosts business performance. The BL460c Gen9 Server Blade uses Intel® Xeon® E5-2600 v3 processors with up to 70% performance 2 gain over the previous generation, plus enhanced HP DDR4 SmartMemory offering up to 33% performance 3 increase.
Flexible storage controller options additional support includes an optional 12 Gb/s SAS controller, 20 Gb FlexibleLOM NICs, and USB 3.0 on the internal connector.
Features
Superior Value Across Different Workloads
- The HP ProLiant BL460c Gen9 Server Blade delivers the right performance, scalability, and economics for the converged data center in the new era of compute at the lowest cost, fastest time to value with latest innovations.
- Provides the flexibility to optimize your core IT applications, with right-sized storage for the right workload lowering TCO, all managed by HP OneView the converged management platform that accelerates IT service delivery and boosts business performance.
Increased Performance in the Data Center
- The HP ProLiant BL460c Gen9 Server Blade delivers up to 70% performance increases with Intel® Xeon® E5-2600 v3 processors.
- HP DDR4 SmartMemory at 2133 MHz (up to 512 GB): +14% - 33% throughput compared to competition and 35% lower power consumption than 1.5v DDR3 at the same bin speed.
- Optional HP Smart Array P244br storage controller with 1 GB Flash-Write Back Cache (FWBC) DDR3 at 1866 MHz improves storage performance for demanding workloads.
More Versatile Than Ever Before
- The HP ProLiant BL460c Gen9 Server Blade delivers a flexible embedded storage controller options (HP Smart Array P244br, HP H244br Smart Host Bus Adapter, or the HP Dynamic Smart Array B140i Controller) for increased deployment flexibility.
- Every BL460c Gen9 Server Blade includes USB 3.0, future optional dual Micro-SD, and future optional M.2 support for configuration variety of system boot options at the best price.
- Both Unified Extensible Firmware Interface (UEFI) and Legacy BIOS modes available for increased configuration and deployment versatility.
Transforming Business Economics by Accelerating Service Delivery
- HP OneView provides the Power of One—a single comprehensive view of the data center, managing hardware, software, firmware, and drivers.
- HP Integrated Lights-out (iLO) software features server lifecycle management advancements including iLO Federation, which remotely manages groups of servers at scale with built-in rapid discovery of all iLOs, group configurations, group health status, and ability to determine iLO licenses.
| Processor | |
|---|---|
| Conflict-Free processor | No |
| Stepping | R2 |
| Thermal Monitoring Technologies | Yes |
| Processor code | SR205 |
| Maximum internal memory supported by processor | 768 GB |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 22 nm |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| Processor codename | Haswell |
| Tcase | 74.3 °C |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866 MHz |
| Maximum number of PCI Express lanes | 40 |
| Processor package size | 52.5 x 45 mm |
| Supported instruction sets | AVX |
| Scalability | 2S |
| Embedded options available | Yes |
| Maximum number of SMP processors | 2 |
| PCI Express configurations | x4, x8, x16 |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 59 GB/s |
| ECC supported by processor | Yes |
| Physical Address Extension (PAE) | Yes |
| Processor series | Intel Xeon E5-2600 v3 |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 8 GT/s |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 90 W |
| Number of processors installed | 1 |
| Memory channels supported by processor | Quad |
| Motherboard chipset | Intel C610 |
| Processor cache | 20 MB |
| Processor cores | 8 |
| Processor boost frequency | 3.4 GHz |
| Processor frequency | 2.6 GHz |
| Processor model | E5-2640V3 |
| Processor family | Intel Xeon E5 v3 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 512 GB |
| Memory slots | 16x DIMM |
| ECC | Yes |
| Memory clock speed | 2133 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Hot-Plug support | Yes |
| RAID levels | 0, 1 |
| RAID support | Yes |
| Number of HDDs supported | 2 |
| HDD size | 2.5" |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 4 TB |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Chassis type | Blade |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows ServerRed Hat Enterprise Linux (RHEL)SUSE Linux Enterprise Server (SLES)Canonical UbuntuOracle SolarisVMwareCitrix XenServer |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | No |
| Intel Clear Video Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Insider™ | No |
| Intel Dual Display Capable Technology | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel® Smart Cache | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 83359 |
| Intel® Quick Sync Video Technology | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel Flex Memory Access | No |
| Intel Demand Based Switching | Yes |
| Intel Identity Protection Technology version | 0.00 |
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | BL |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Weight | 6.33 kg |
| Depth | 517.6 mm |
| Height | 180.7 mm |
| Width | 55.4 mm |
| Other features | |
|---|---|
| Graphics card | G200eh |
| Graphics card family | Matrox |
