HPE P410 RAID controller PCI Express x8
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £178.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- Memory clock speed800 MHz
- Internal memory typeDDR2
- Internal memory512 MB
- Weight1.08 kg
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Supported storage drive interfaces: SAS, Serial ATA
- Host interface: PCI Express x8
- RAID levels: 0, 1, 1+0, 5, 5+0, 10, 50

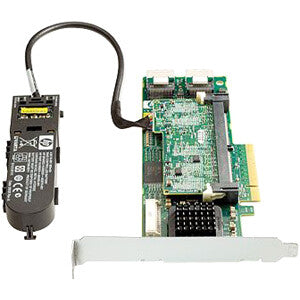

The HP Smart Array P410 is HP's PCI Express 2.0 (PCIe) Serial Attached SCSI (SAS) RAID controller. The low profile, half height card has 8 ports and utilizes DDR2-800 memory. The P410 is ideal for RAID 0/1, 1 0, 5 0 and can be upgraded with the 512MB battery-backed write cache (BBWC) module and Smart Array Advanced via license key for RAID 6 &, 6 0.
- 6G SAS and 3G SATA support. RAID 50 and 60. Improved battery life (48 hours). SATA NCQ for all controllers. Additional Features via Software upgrade – Smart Array Advance Pack (SAAP).
- Standard RAID 0,1, 1+0, 5, 5+0. RAID 6, 6+0 support with BBWC and Smart Array Advanced Pack (SAAP) license key.
- Supports SAS and SATA disk drives.
- Online Drive Flash. Remote monitoring and configuration. Mirror Splitting and recombining.
Specifications
Ports & interfaces
| Internal mini-SAS ports | 2 |
|---|---|
| Host interface | PCI Express x8 |
| Supported storage drive interfaces | SAS, Serial ATA |
Performance
| Memory clock speed | 800 MHz |
|---|---|
| Internal memory type | DDR2 |
| Internal memory | 512 MB |
| RAID levels | 0, 1, 1+0, 5, 5+0, 10, 50 |
Show all 12 specificationsShow fewer specifications
Weight & dimensions
| Weight | 1.08 kg |
|---|---|
| Height | 57.2 mm |
| Depth | 241.3 mm |
| Width | 190.5 mm |
Other features
| PCI Card form factor | Half-height (low-profile) |
|---|
