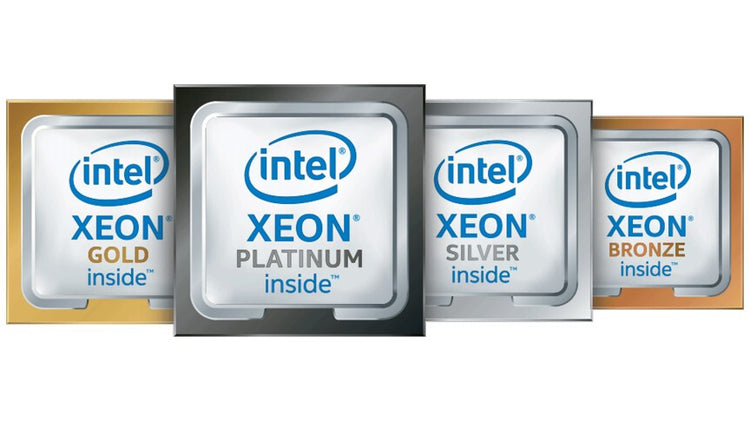

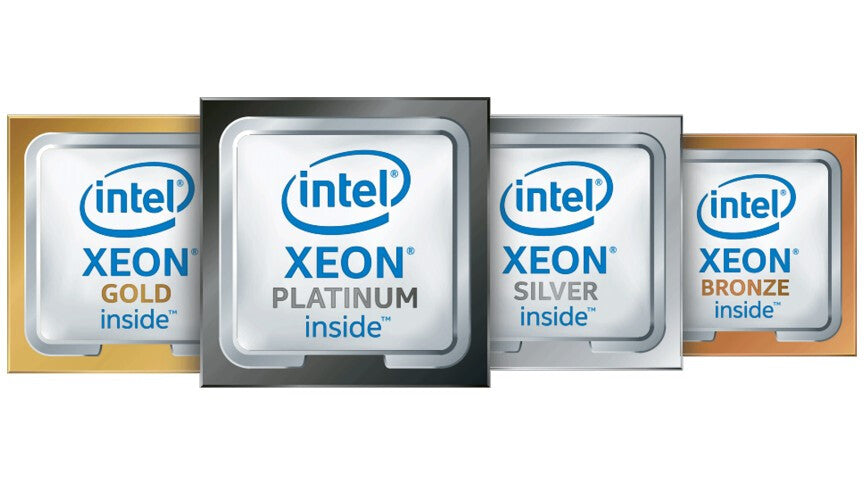

HPE Intel Xeon-Gold 5416S 2.0GHz 16-core 150W Processor for
£1,915.99
Couldn't load pickup availability
- Intel® Xeon® Gold 5416S 2 GHz
- 30 MB L3 LGA 4677 (Socket E)
- Processor cores: 16 64-bit 150 W
- Maximum internal memory supported by processor: 4 TB DDR5-SDRAM
.
| Processor | |
|---|---|
| Thermal Design Power (TDP) | 150 W |
| Processor cache type | L3 |
| Processor cache | 30 MB |
| Low priority core frequency | 1.7 GHz |
| Low priority cores | 12 |
| High priority core frequency | 2.1 GHz |
| High priority cores | 4 |
| Processor boost frequency | 4 GHz |
| Processor operating modes | 64-bit |
| Intel® UPI Speed | 16 GT/s |
| Processor threads | 32 |
| Processor socket | LGA 4677 (Socket E) |
| Processor cores | 16 |
| Processor base frequency | 2 GHz |
| Processor model | 5416S |
| Processor generation | Intel Xeon Scalable 4th Gen |
| Processor family | Intel® Xeon® Gold |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Octa-channel |
| Memory clock speeds supported by processor | 4400 MHz |
| Memory types supported by processor | DDR5-SDRAM |
| Maximum internal memory supported by processor | 4 TB |
| Graphics | |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Discrete graphics card | No |
| Features | |
|---|---|
| Supported instruction sets | AMX, AVX, AVX 2.0, AVX-512, SSE4.2 |
| Execute Disable Bit | Yes |
| Processor special features | |
|---|---|
| Intel® Speed Select Technology – Turbo Frequency | Yes |
| Intel® Speed Select Technology – Core Power | Yes |
| Intel® Advanced Matrix Extensions (AMX) | Yes |
| Intel® Data Streaming Accelerator (DSA) | 1 |
| Intel® Dynamic Load Balancer (DLB) | 2 |
| Intel® QuickAssist Technology (QAT) | 2 |
| Intel® On Demand Feature Activation | Yes |
| Intel® QuickAssist Software Acceleration | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Speed Select Technology - Base Frequency (Intel® SST-BF) | Yes |
| Intel® OS Guard | Yes |
| Intel® Speed Select technology - Performance Profile (Intel® SST-PP) | Yes |
| Intel® Run Sure Technology | Yes |
| Intel® Boot Guard | Yes |
| Intel® Crypto Acceleration | Yes |
| Intel® Platform Firmware Resilience Support | Yes |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel® Total Memory Encryption | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 680 g |
| Height | 287.3 mm |
| Depth | 222.3 mm |
| Width | 36.6 mm |
