Hewlett Packard Enterprise · MPN: JG406AR#B8X
£2,182.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £727.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Internal memory2048 MB
  • Internal memory typeDDR3
  • Weight7.9 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview

  • Ethernet WAN 3G/4G USB modem compatibility
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab
  • Gigabit Ethernet
  • DHCP client DHCP server
  • 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1

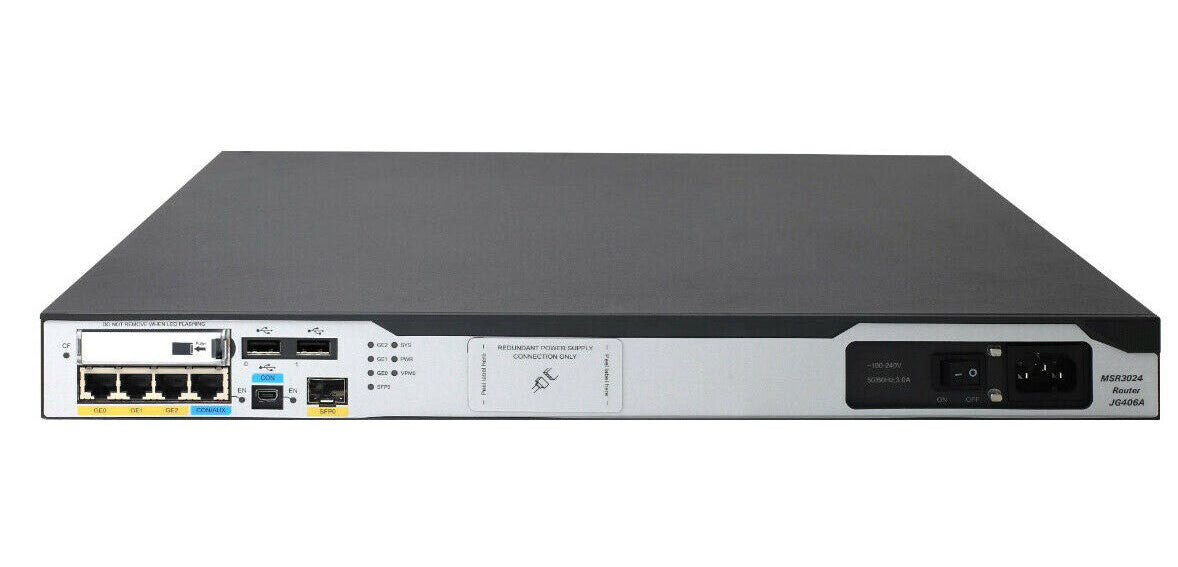

The HPE MSR3000 Router Series delivers high-performance medium to large branch routing up to 5 Mpps in a cost-optimized form factor. Featuring integrated routing, switching, security, and SIP with no additional licensing, you can boost your service delivery while simplifying management of your corporate WAN.

With the Open Application Platform module, the MSR3000 Router Series offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches.

Features

Reduces Complexity and Simplifies Your Network
- The HPE MSR3000 Router Series simplifies your network through integrated routing, switching, security, and voice, and combines the flexibility of modular upgrades to deliver high-performance medium-to-large branch routing.
- Makes administration easier with HPE Intelligent Management Center (IMC) Software.
- Reduces management complexity with zero-touch deployment (ZTP) and Dynamic VPN.

Enhances Time to Service and Branch Performance
- The HPE MSR3000 Router Series offers high performance routing with up to 5 Mpps forwarding and 3.3 Gbps of IPSec encryption throughput to meet bandwidth requirements of branch traffic.
- Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security.
- Satisfies medium to large branches with advanced hardware architecture and high port density.

Increase Your Return on Investment
- The HPE MSR3000 Router Series is a modular platform with a wide range of connectivity options that enables the right design for your needs.
- Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
- Deploy advanced features with no additional licensing.

Boosts Agility and Resiliency
- The HPE MSR3000 Router Series provides branch service and business continuity with 4G/LTE and 3G WAN.
- With the Open Application Platform module, support HPE AllianceOne applications such as WAN acceleration and Microsoft Skype for Business (Lync).
- Delivers an open standards approach to your network infrastructure.
- With advanced hardware architecture and FPBA modules, you get reliable, high-performance functionality with multi-core processors.

Specifications

WAN connection

Ethernet WANYes
DSL WANNo
SIM card slotNo
3G/4G USB modem compatibilityYes

Network

Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab
Ethernet interface typeGigabit Ethernet
Cabling technology10/100/1000Base-T(X)
Forwarding rate5 Mpps
VLAN supportYes
Multicast supportYes
Auto MDI/MDI-XYes
Show all 43 specificationsShow fewer specifications

Management features

Web-based managementNo
Quality of Service (QoS) supportYes

Ports & interfaces

Ethernet LAN (RJ-45) ports3
Combo SFP ports quantity1
Smart Interface Card (SIC) slots quantity4
USB version2.0
USB ports quantity2

Protocols

DHCP serverYes
DHCP clientYes
Routing protocolsBGP4, IS-IS, OSPF, OSPFv3, RIP

Security

Security algorithms3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1
FirewallYes
Authentication methodRADIUS, TACACS+, SSH2, EAP
Access Control List (ACL)Yes

Features

Built-in processorYes
Processor frequency1000 MHz
Flash memory256 MB
Internal memory2048 MB
Internal memory typeDDR3
Heat dissipation168 BTU/h

Design

Product colourGrey

Power

Power consumption (typical)125 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 90%

Weight & dimensions

Width440 mm
Depth480 mm
Height44.2 mm
Weight7.9 kg
