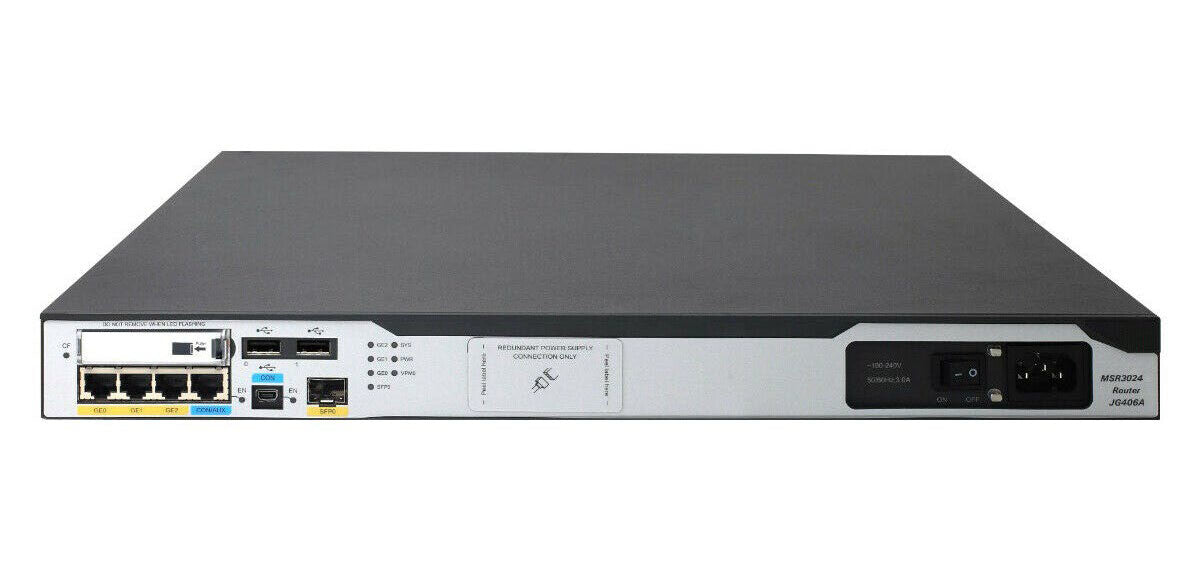

HPE FlexNetwork MSR3024 wired router Gigabit Ethernet Grey
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £727.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Ethernet WAN 3G/4G USB modem compatibility
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab
- Gigabit Ethernet
- DHCP client DHCP server
- 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1
The HPE MSR3000 Router Series delivers high-performance medium to large branch routing up to 5 Mpps in a cost-optimized form factor. Featuring integrated routing, switching, security, and SIP with no additional licensing, you can boost your service delivery while simplifying management of your corporate WAN.
With the Open Application Platform module, the MSR3000 Router Series offers a wide range of virtualized applications. Its distributed architecture and high reliability also strengthen the resiliency of medium to large branches.
Features
Reduces Complexity and Simplifies Your Network
- The HPE MSR3000 Router Series simplifies your network through integrated routing, switching, security, and voice, and combines the flexibility of modular upgrades to deliver high-performance medium-to-large branch routing.
- Makes administration easier with HPE Intelligent Management Center (IMC) Software.
- Reduces management complexity with zero-touch deployment (ZTP) and Dynamic VPN.
Enhances Time to Service and Branch Performance
- The HPE MSR3000 Router Series offers high performance routing with up to 5 Mpps forwarding and 3.3 Gbps of IPSec encryption throughput to meet bandwidth requirements of branch traffic.
- Supports branch services with a comprehensive feature set and eases the cloud transition with integrated security.
- Satisfies medium to large branches with advanced hardware architecture and high port density.
Increase Your Return on Investment
- The HPE MSR3000 Router Series is a modular platform with a wide range of connectivity options that enables the right design for your needs.
- Reduces your TCO through open standards, power and space savings, and energy-efficient hardware.
- Deploy advanced features with no additional licensing.
Boosts Agility and Resiliency
- The HPE MSR3000 Router Series provides branch service and business continuity with 4G/LTE and 3G WAN.
- With the Open Application Platform module, support HPE AllianceOne applications such as WAN acceleration and Microsoft Skype for Business (Lync).
- Delivers an open standards approach to your network infrastructure.
- With advanced hardware architecture and FPBA modules, you get reliable, high-performance functionality with multi-core processors.
Specifications
WAN connection
| 3G/4G USB modem compatibility | Yes |
|---|---|
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
Network
| Auto MDI/MDI-X | Yes |
|---|---|
| Multicast support | Yes |
| VLAN support | Yes |
| Forwarding rate | 5 Mpps |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab |
Show all 43 specificationsShow fewer specifications
Management features
| Quality of Service (QoS) support | Yes |
|---|---|
| Web-based management | No |
Ports & interfaces
| USB version | 2.0 |
|---|---|
| USB ports quantity | 2 |
| Smart Interface Card (SIC) slots quantity | 4 |
| Combo SFP ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
Protocols
| Routing protocols | BGP4, IS-IS, OSPF, OSPFv3, RIP |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
Security
| Access Control List (ACL) | Yes |
|---|---|
| Authentication method | RADIUS, TACACS+, SSH2, EAP |
| Firewall | Yes |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1 |
Features
| Heat dissipation | 168 BTU/h |
|---|---|
| Internal memory type | DDR3 |
| Internal memory | 2048 MB |
| Flash memory | 256 MB |
| Processor frequency | 1000 MHz |
| Built-in processor | Yes |
Design
| Product colour | Grey |
|---|
Power
| AC input frequency | 50 - 60 Hz |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 125 W |
Operational conditions
| Storage relative humidity (H-H) | 5 - 90% |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
Weight & dimensions
| Weight | 7.9 kg |
|---|---|
| Height | 44.2 mm |
| Depth | 480 mm |
| Width | 440 mm |
