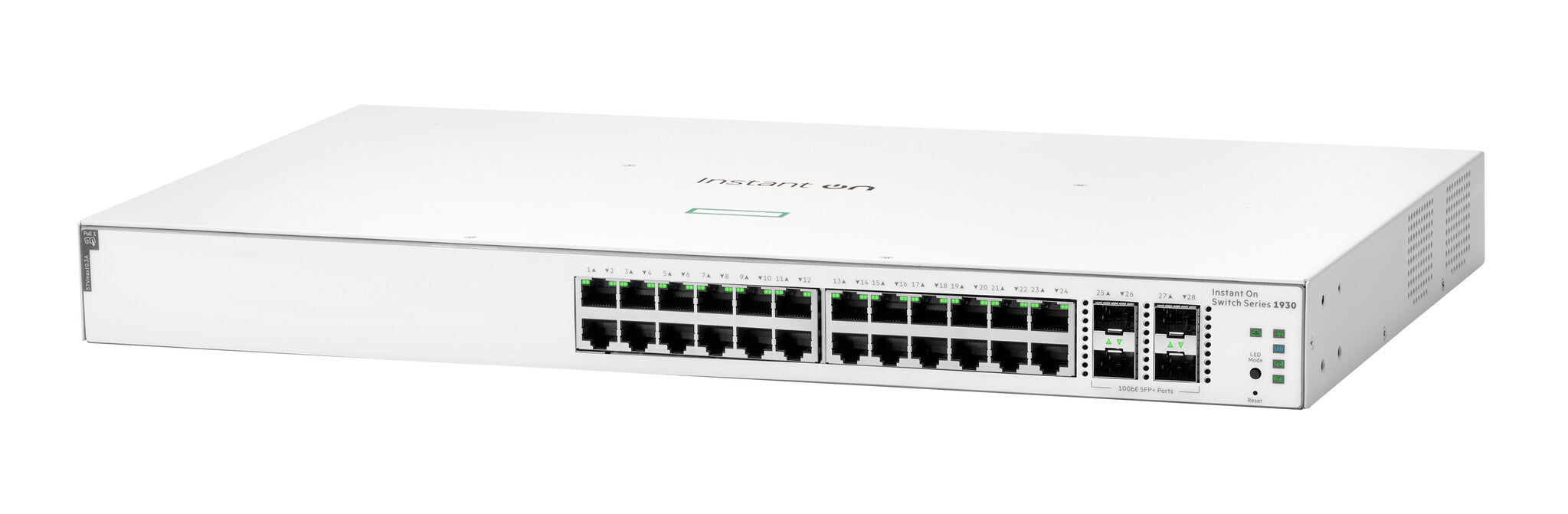

HPE Aruba Networking Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 195W 1930
Couldn't load pickup availability
- Managed L2/L3/L4 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- 10G support
- MAC address table: 16000 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC Power supply included Power over Ethernet (PoE)
The HPE Networking Instant On Switch 1930 series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1 G SFP slots on 8-port model and 1 G/10 G SFP+ slots on 24-/48 G models for fiber connectivity.
What is new supporting point:
Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Option to manage your switches through local web GUI.
| Management features | |
|---|---|
| System event log | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3/L4 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto-sensing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Qaz, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 1.5 MB |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Latency (10 Gbps) | 1.3 µs |
| Latency (1 Gbps) | 2.4 µs |
| Latency (10-100 Mbps) | 4.7 µs |
| Throughput | 95.23 Mpps |
| Switching capacity | 128 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Design | |
|---|---|
| Product colour | White |
| Form factor | 1U |
| Stackable | No |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Memory type | SDRAM / Flash |
| Processor frequency | 800 MHz |
| Processor model | ARM Cortex-A9 |
| Built-in processor | Yes |
| Power | |
|---|---|
| Power consumption (max) | 280 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 200 - 240 V |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 195 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.49 kg |
| Height | 264.7 mm |
| Depth | 442.5 mm |
| Width | 43.9 mm |
| General | |
|---|---|
| Product family | Aruba Networking |
