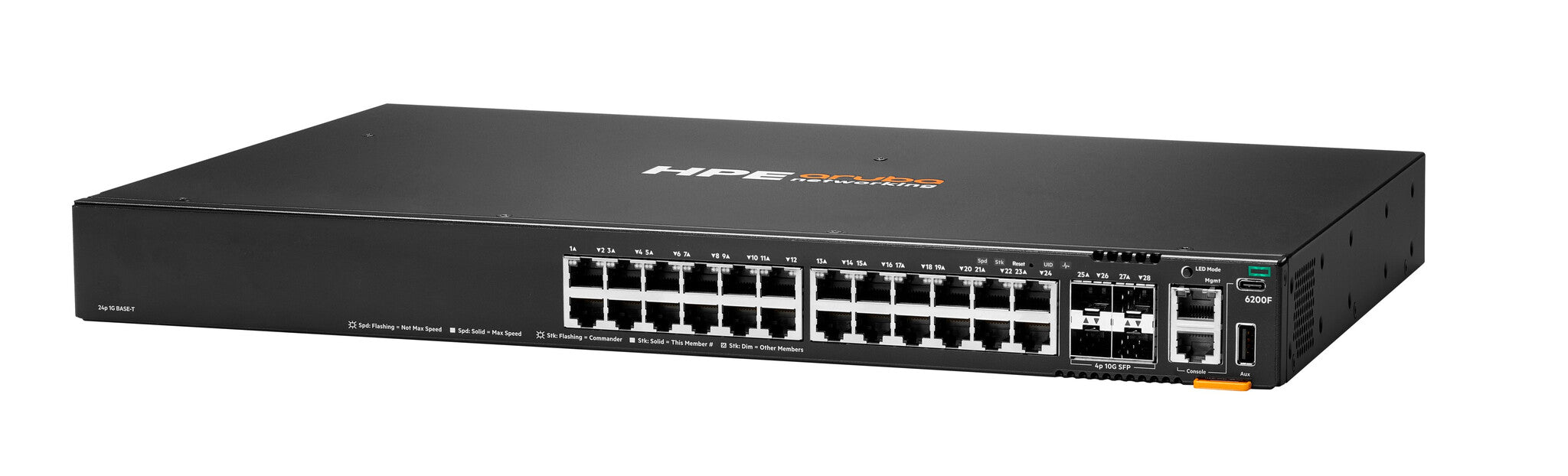

HPE Aruba Networking CX 6200F 24G 4SFP+ Switch
Couldn't load pickup availability
- Managed L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45/USB Type-C
- 10G support
- MAC address table: 32768 entries Switching capacity: 128 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC Power supply included
The HPE Aruba Networking CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Make your network ready for tomorrow’s unpredictable demands with a powerful Gen7 ASIC architecture to deliver fast, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high speed uplinks and up to 1440W of PoE to support IoT devices such as security cameras and wireless APs.
What is new supporting point:
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Intelligent monitoring and visibility via HPE Aruba Networking CX Network Analytics Engine. HPE Aruba Networking Switch Multi-Edit Software support for automation, configuration and verification.
Dynamic Segmentation enables secure access for users and IoT.
Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
Up to 384 ports of scalability with 8-member VSF stacking. 24 and 48-port fixed and modular switches can stack together with easy to deploy through the CX Mobile app.
Models include modular switches with 1/10 GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10 GbE SFP+ or 1 GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Console port | RJ-45/USB Type-C |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Optical fiber | |
|---|---|
| Transmission distance (max) | 10 km |
| Data transmission | |
|---|---|
| Packet buffer memory | 8 MB |
| Latency (10 Gbps) | 1.46 µs |
| Latency (1 Gbps) | 2.28 µs |
| Throughput | 95.2 Mpps |
| Switching capacity | 128 Gbit/s |
| MAC address table | 32768 entries |
| Security | |
|---|---|
| Authentication | MAC-based authentication, Web-based authentication |
| Authentication type | RADIUS, TACACS+ |
| IGMP snooping | Yes |
| Access Control List (ACL) ingress | 5120 |
| Access Control List (ACL) egress | 22048 |
| Access Control List (ACL) | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Flash memory | 16384 MB |
| Internal memory | 8000 MB |
| Memory type | DDR4-SDRAM |
| Processor frequency | 1800 MHz |
| Processor model | ARM Cortex-A72 |
| Built-in processor | Yes |
| Physical stacking (units) | 8 |
| Power | |
|---|---|
| Power consumption (max) | 59 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 200 - 240 V |
| Power supply included | Yes |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 5.1 kg |
| Height | 43.9 mm |
| Depth | 327 mm |
| Width | 43.9 mm |
| General | |
|---|---|
| Product family | Aruba Networking |
