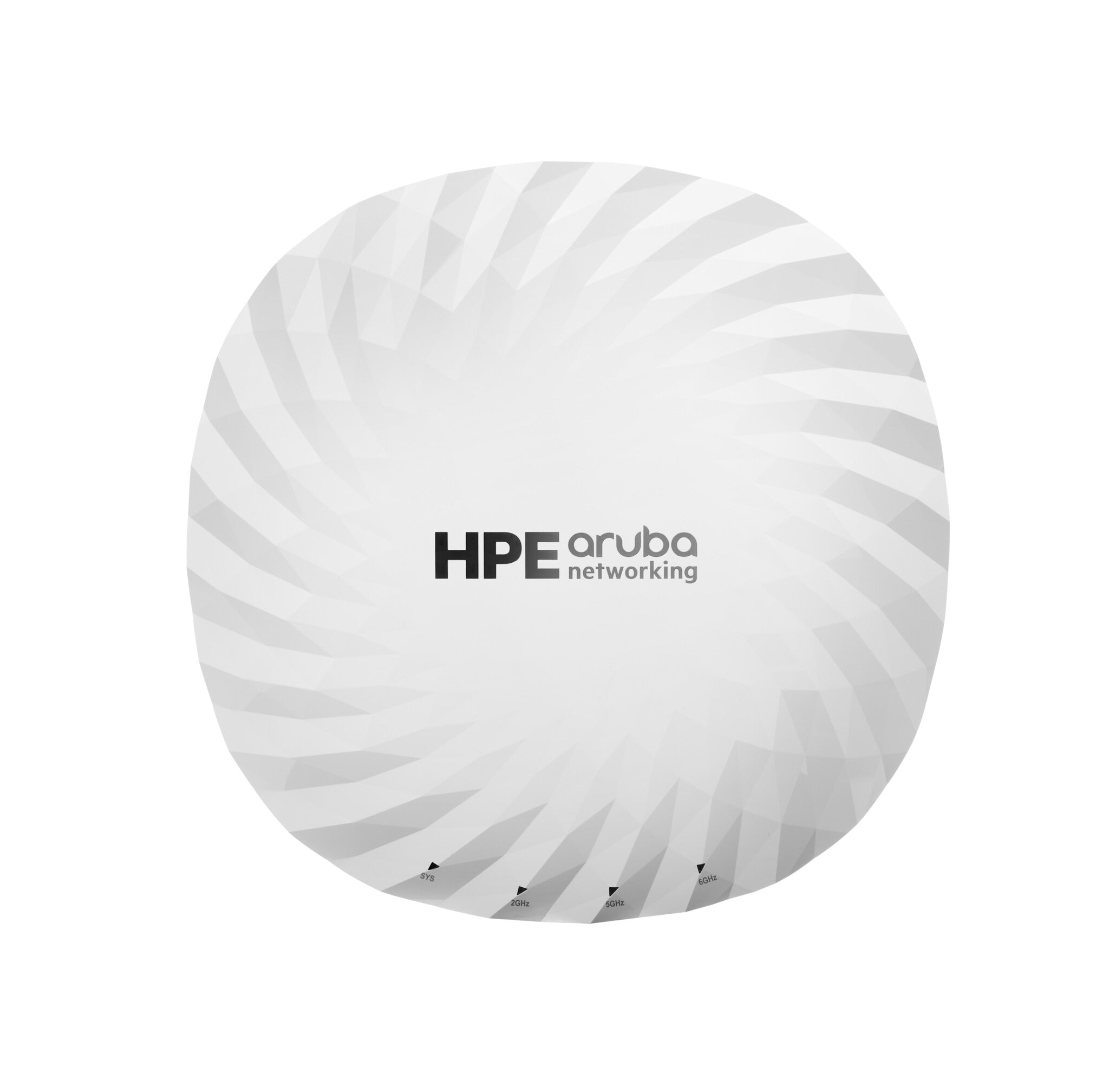

HPE Aruba Networking AP-755 (EG) Tri Radio 4x4 Wi-Fi 7 Internal Antennas Campus Access Point
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £666.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Wi‑Fi 7 (802.11be) brings multi‑link operation (MLO) for channel aggregation, 4K QAM for higher throughput and lower latency, and unlocks the 6 GHz band to more than double the available capacity
- Three 4x4 MIMO radios provide tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver 18.7 Gbps maximum tri‑band aggregate data rate
- Capable of up to 28.8 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes
- Up to three 320 MHz channels in 6 GHz support low‑latency, bandwidth‑hungry applications like high‑definition video and augmented reality/virtual reality applications
- Patented Ultra Tri‑Band (UTB) filtering enables 5 GHz and 6 GHz to operate without restrictions or interference
- High availability with dual HPE Smart Rate ports for redundant Ethernet and power. Configurable to 1, 2.5, 5, or 10 Gbps (or 100 Mbps)
- IoT‑ready platform with two integrated Bluetooth 6 and 802.15.4/ Zigbee radios and two USB‑port extensions
- Built in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self‑locate and act as reference points for accurate indoor location measurements
- MACsec support extends wired Ethernet protection to the AP
- Offered as optional eco‑friendly 5‑packs
- AI‑powered dynamic power save mode helps reduce energy use
HPE Aruba Networking 750 Series Campus Access Points are our flagship Wi-Fi 7 access points that deliver impressive wireless performance, strengthen network security, provide precise location-based services, and offer an Internet of Things (IoT) platform with enterprise-grade security, enabling enterprises to fully realize the value of their wireless investment and unlock operational efficiencies. This high performance access point is designed with three 4x4 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz), dual 10 Gbps Ethernet ports, dual IoT radios, built-in GNSS receiver, and patented ultra tri-band (UTB) filtering for high capacity, fast, and resilient connectivity with enhanced security. HPE Aruba Networking Central provide intelligent automation, AI insights, and unified infrastructure management to help drive efficient IT operations. The 750 series includes a limited lifetime warranty.
What is new supporting point:
Patented ultra tri-band (UTB) filtering enhances the use of 5 GHz and 6 GHz bands
High availability with dual 10 Gbps wired ports for redundant Ethernet and power, as well as the ability to combine power from both ports
Three 4x4 MIMO radios provide comprehensive tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz for up to 18.7 Gbps maximum aggregate data rate
High-density IoT support with two integrated Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions
AI-powered Wi-Fi 7 access points are ideal for the most demanding enterprise, healthcare, LPV, education, retail, and industrial IoT deployments
Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self locate and act as reference points for accurate indoor location measurements
Specifications
Features
| 2.4 GHz | Yes |
|---|---|
| 6 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate (2.4 GHz) | 1400 Mbit/s |
| Maximum data transfer rate (6 GHz) | 11500 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5800 Mbit/s |
| Ethernet LAN data rates | 10000 Mbit/s |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), and maximum peak data rate 28.8 Gbps |
| Networking standards | IEEE 802.11be, IEEE 802.11mc |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.4 |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| MACsec support | Yes |
| Trusted Platform Module (TPM) | Yes |
| BeamForming | Yes |
Management features
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
|---|
Show all 46 specificationsShow fewer specifications
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|---|
| USB 2.0 ports quantity | 2 |
| DC-in jack | Yes |
Power
| Power over Ethernet (PoE) | Yes |
|---|---|
| DC voltage range | 48 V |
| Power consumption (max) | 51 W |
Design
| Placement | Wall |
|---|---|
| Product colour | White |
| Reset button | Yes |
| Recommended usage | Indoor |
Antenna
| Antenna type | Internal |
|---|---|
| Antenna direction type | Omni-directional |
Performance
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10.7.0.0 or later |
|---|
General
| Product family | Aruba Networking |
|---|
Certificates
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
|---|---|
| Certification | UL2043 plenum rating Wi‑Fi Alliance: Wi‑Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
Weight & dimensions
| Width | 260 mm |
|---|---|
| Depth | 260 mm |
| Height | 57 mm |
| Weight | 1.53 kg |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Other features

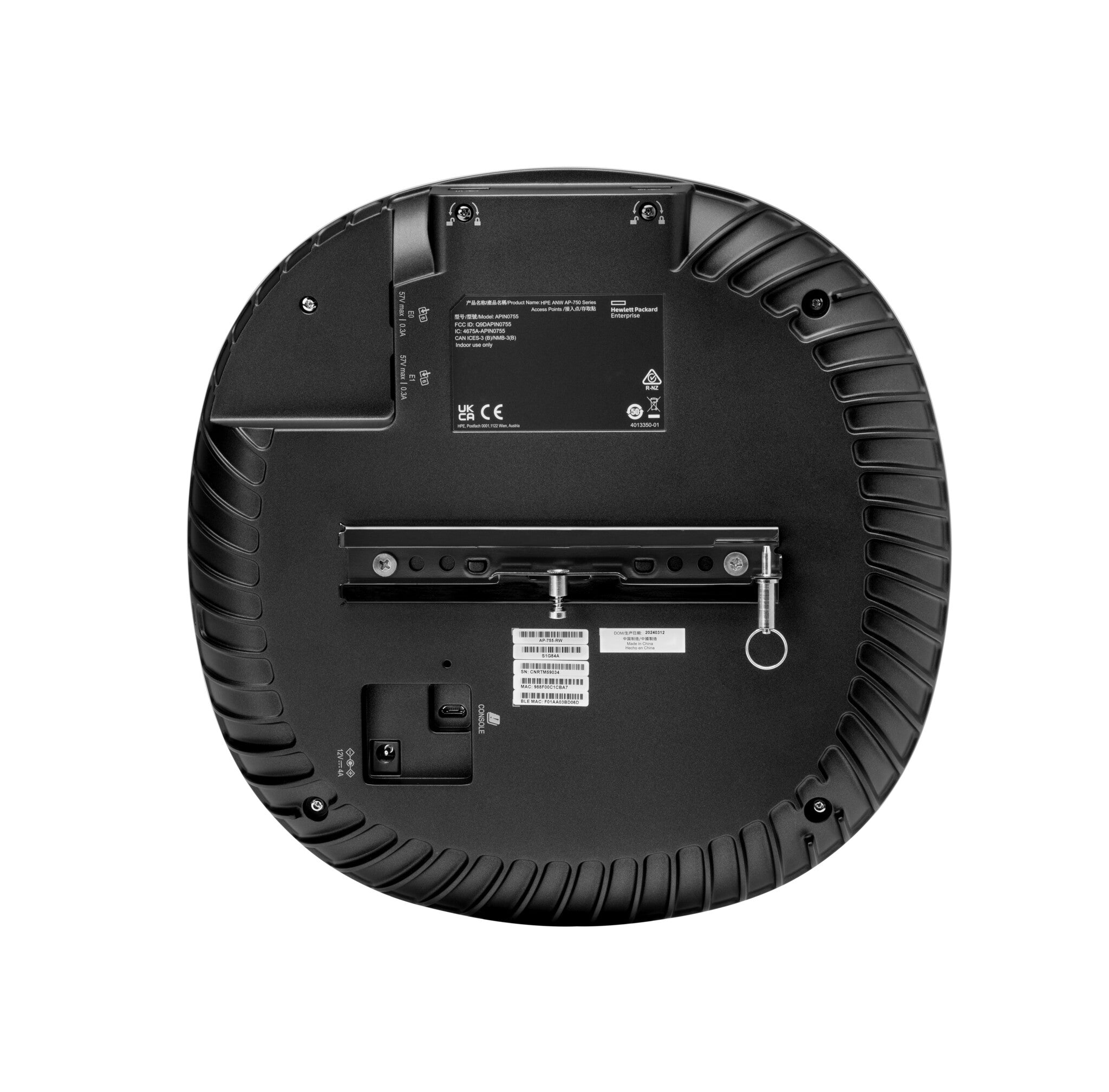

| I/O ports | E0, E1: Two Ethernet wired network ports (RJ‑45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Serial console interface (proprietary, micro‑B USB physical jack) Kensington security slot |
|---|
Operational conditions
| Operating relative humidity (H-H) | 5 - 95% |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
