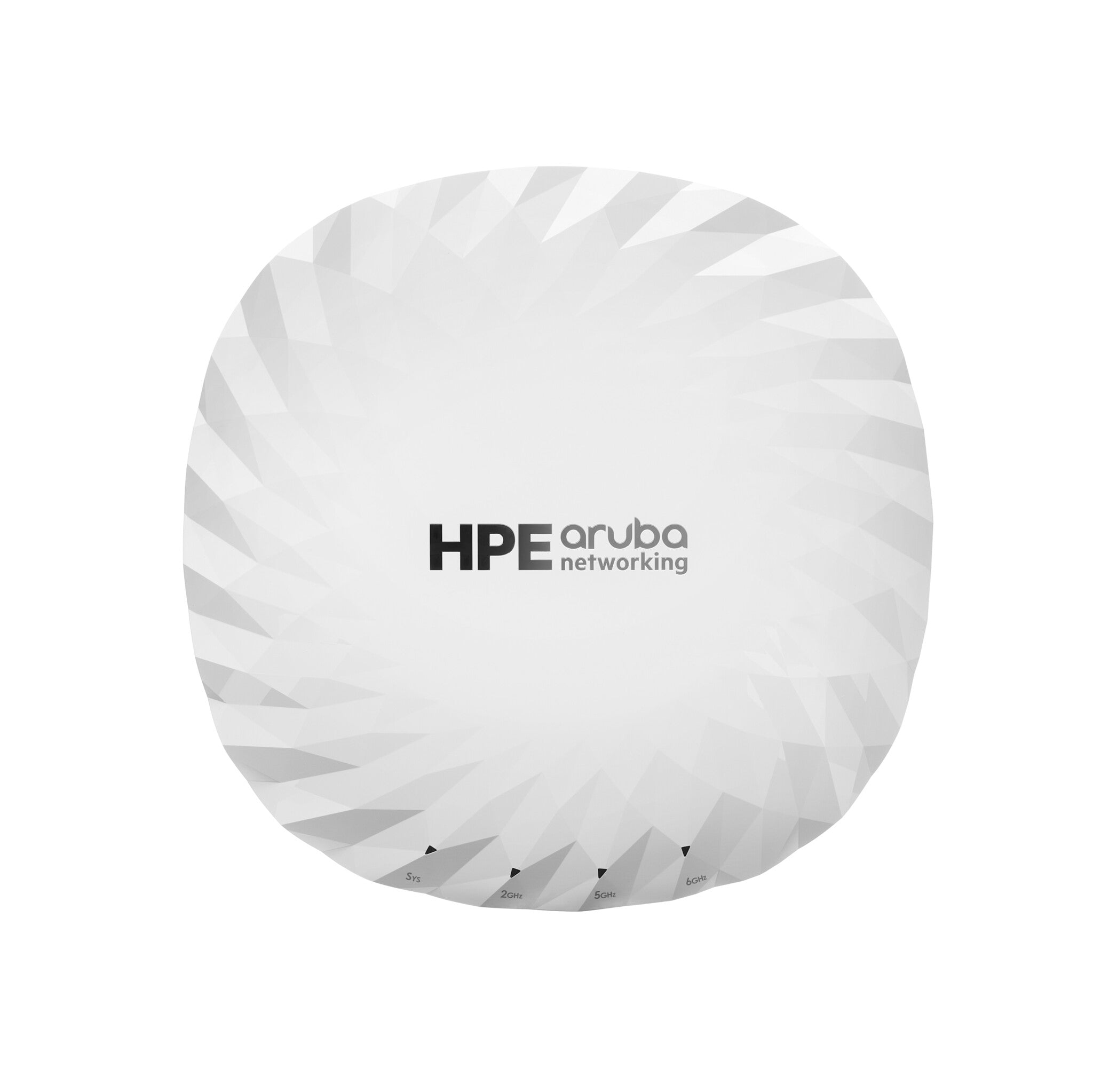

HPE Aruba Networking AP-735 (US) Tri Radio 2x2 Wi-Fi 7 Internal Antennas Campus Access Point
Couldn't load pickup availability
- Wi‑Fi 7 (802.11be) brings multi‑link operation (MLO) for channel aggregation and 4K QAM for higher throughput and lower latency
- Unlocks the 6 GHz band to more than double the available capacity
- Comprehensive tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver 9.3 Gbps maximum tri‑band aggregate data rate
- Capable of up to 14.4 Gbps maximum aggregate data rate using optional dual 5 GHz and 6 GHz radio modes1
- Up to three 320 MHz channels in 6 GHz support low‑latency, bandwidth‑hungry applications like high‑definition video and augmented reality/virtual reality applications
- Patented Ultra Tri‑Band (UTB) filtering enables 5 GHz and 6 GHz to operate without restrictions or interference
The HPE Aruba Networking 730 Series Campus Access Points go beyond the Wi-Fi 7 standard to improve wireless performance, strengthen network security, deliver precise location-based services, and act as a secure Internet of Things (IoT) platform, enabling enterprises to increase the value of their wireless investment and unlock operational efficiencies. The 730 series includes unique ultra tri-band (UTB) filtering and dual 5 Gbps Ethernet ports to remove coverage gaps, provide greater resiliency, and deliver fast connectivity with enhanced security. HPE Aruba Networking Central provides intelligent automation, AI insights, and unified infrastructure management to help drive efficient IT operations. The 730 series includes a limited lifetime warranty.
What is new supporting point:
Wi-Fi 7 access points (APs) are ideal for enterprises, healthcare, LPV, education, retail, and industrial IoT deployments
Comprehensive tri‑band coverage across 2.4 GHz, 5 GHz, and 6 GHz delivers up to 9.3 Gbps maximum aggregate data rate
Patented ultra tri-band (UTB) filtering improves the use of 5 GHz and 6 GHz bands
High-density IoT support with two integrated Bluetooth 5.4 and 802.15.4 radios for Zigbee support and two USB port extensions
Built-in GNSS receiver, barometric pressure sensor, and intelligent software enable APs to self-locate and act as reference points for accurate indoor location measurements
High availability with dual 5 Gbps ports for redundant Ethernet and power
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 6 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (6 GHz) | 5800 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2900 Mbit/s |
| Ethernet LAN data rates | 5000 Mbit/s |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), maximum peak data rate 14.4 Gbps |
| Networking standards | IEEE 802.11be, IEEE 802.11mc |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.4 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| MACsec support | Yes |
| Trusted Platform Module (TPM) | Yes |
| BeamForming | Yes |
| Management features | |
|---|---|
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| DC-in jack | Yes |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 36 W |
| Design | |
|---|---|
| Placement | Pole, Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Reset button | Yes |
| Recommended usage | Indoor |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Performance | |
|---|---|
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 10 |
| General | |
|---|---|
| Product family | Aruba Networking |
| Certificates | |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
| Certification | UL2043 plenum rating Wi‑Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac, 6, 7 WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE) WMM, WMM-PS, W-Fi agile multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5) |
| Weight & dimensions | |
|---|---|
| Width | 240 mm |
| Depth | 240 mm |
| Height | 56 mm |
| Weight | 1.44 kg |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|

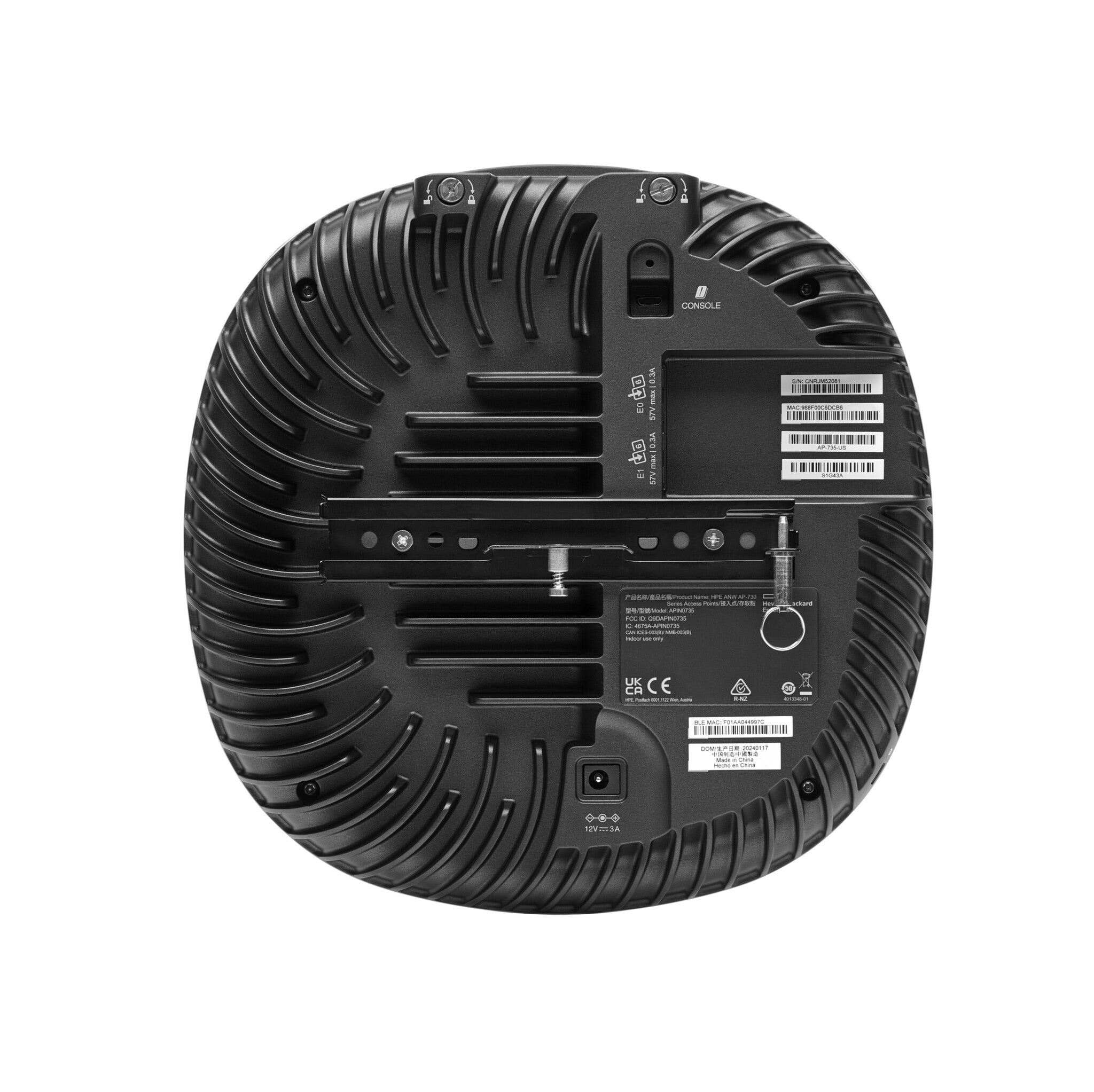

| I/O ports | E0, E1: Two Ethernet wired network ports (RJ‑45) U0, U1: Two USB 2.0 host interfaces (Type A connector) Kensington security slot Serial console interface (proprietary, micro‑B USB physical jack) |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
