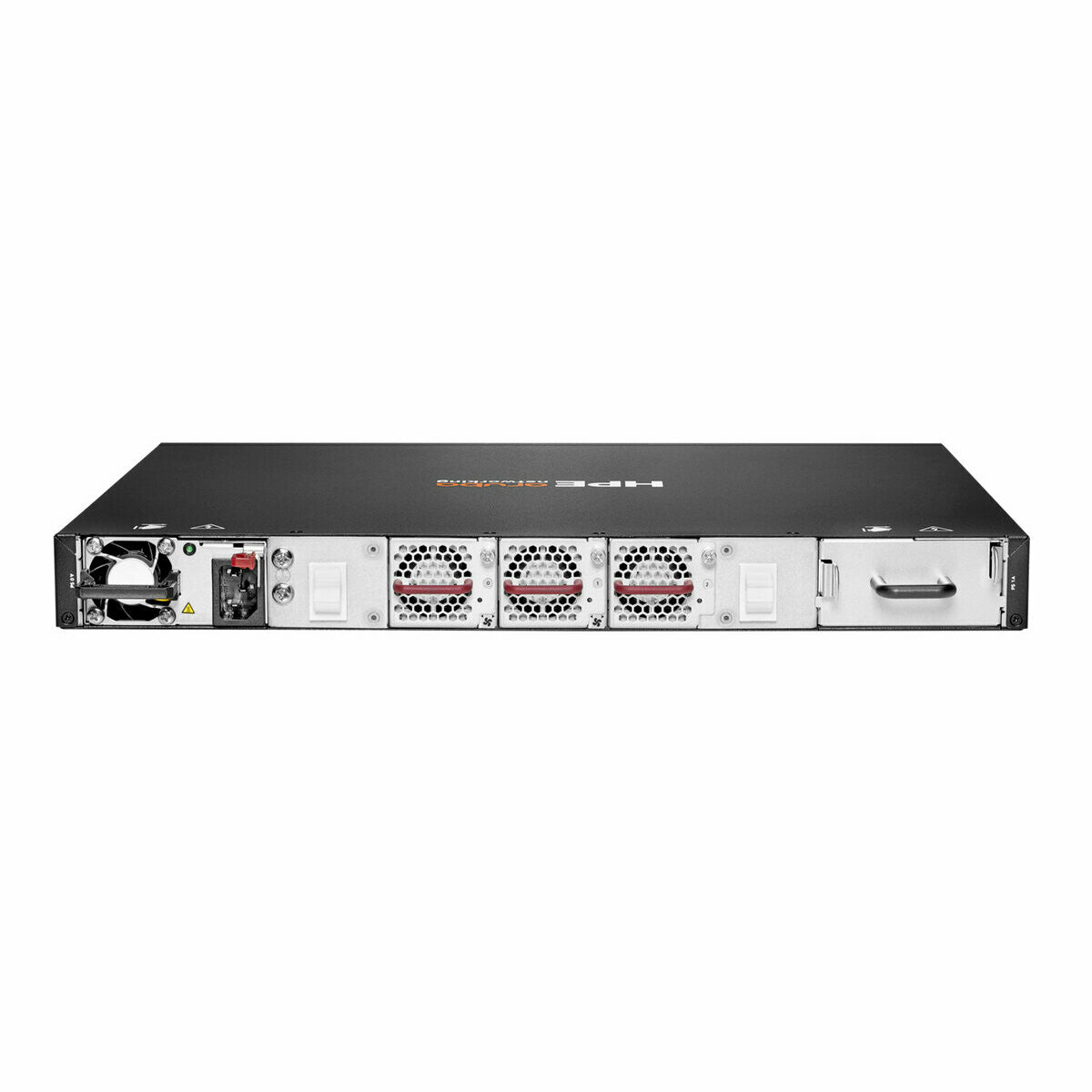

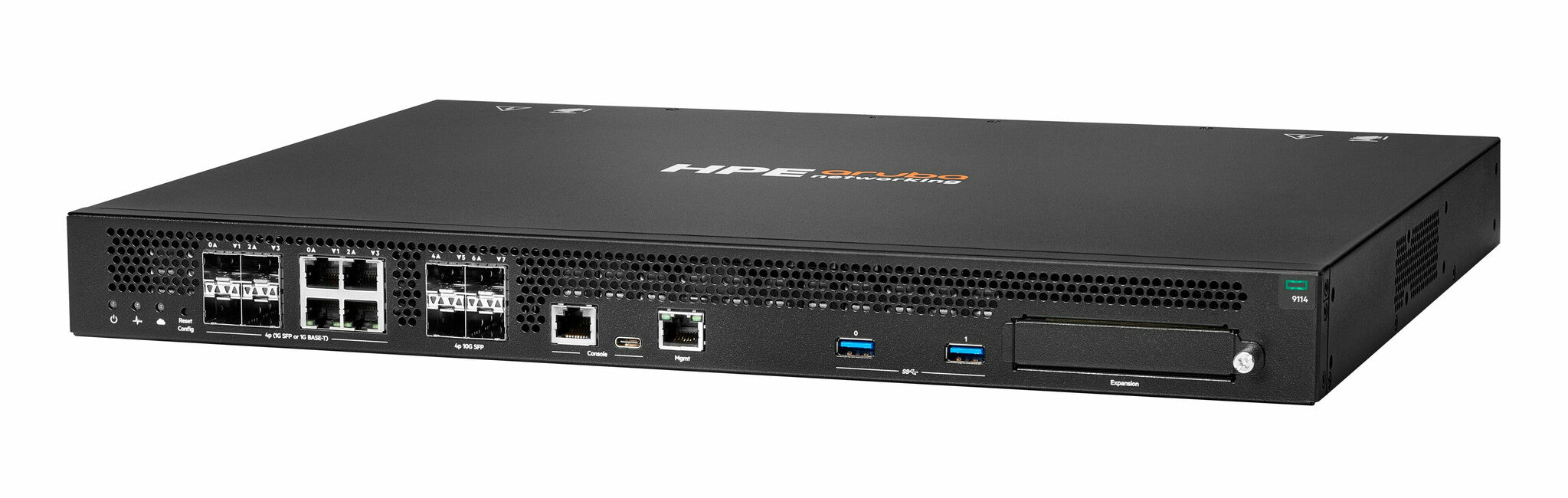

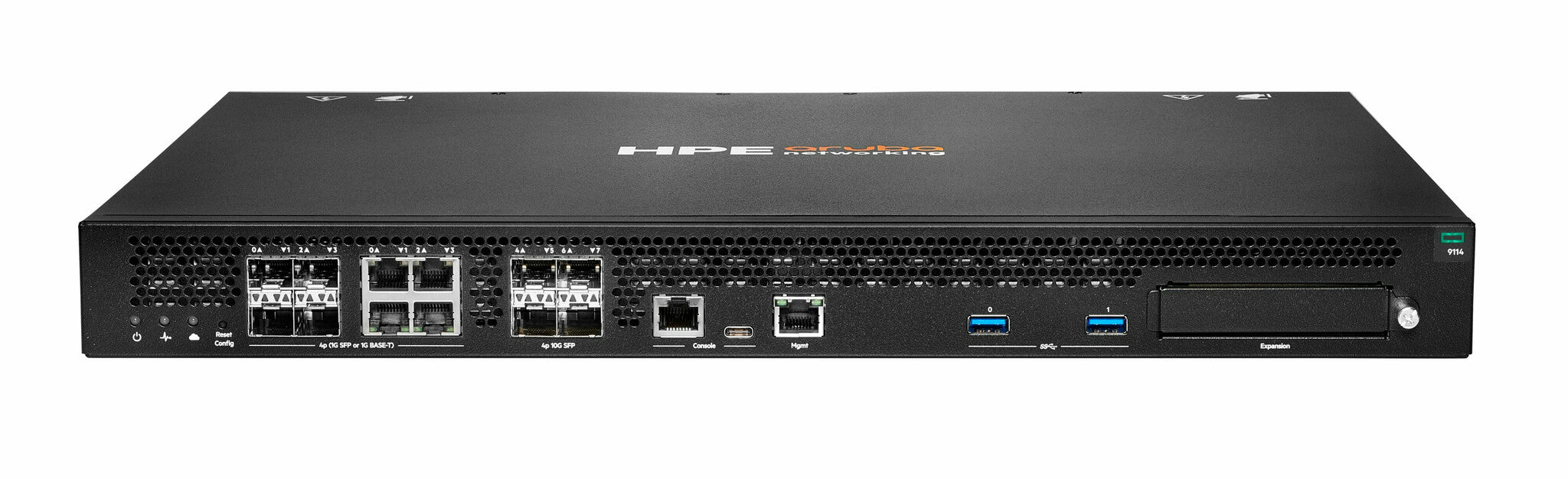

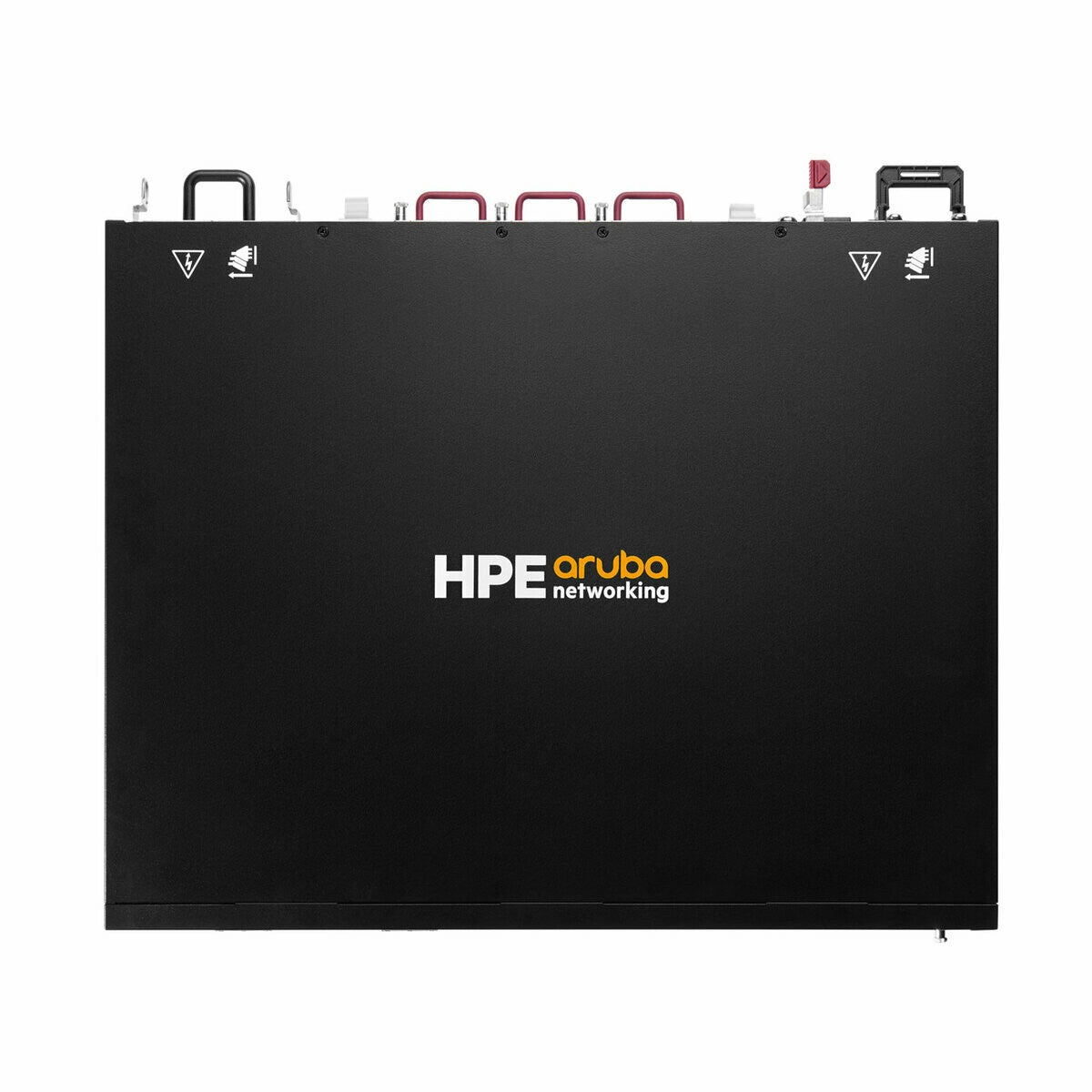

HPE Aruba Networking 9114 Hybrid gateway/controller 1000, 10000 Mbit/s
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £4,469.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 1000,10000 Mbit/s
- Rack mounting
- Black
Scalable, secure, and intelligent cloud-based edge appliance
The HPE Aruba Networking 9100 Series Hybrid Gateways is a cloud-optimized edge appliance designed to extend enterprise services securely and seamlessly to large branch and small campus networks. This purpose-built high-performance edge appliance delivers Wi-Fi roaming, 24x7 reliability, and always-on connectivity – even during upgrades. Intelligent automation, AI insights, and unified infrastructure management, provided by HPE ArubaOS 10 and HPE Aruba Networking Central, help drive efficient IT operations.
The HPE Aruba Networking 9100 Series Hybrid Gateway provides advanced wireless capabilities, intelligent routing with both wireless and wired tunnel orchestration, and strengthens security with automated and unified role-based policy enforcement for users and IoT across LAN, WAN and SD-WAN. This cloud-based edge appliance takes advantage of HPE ArubaOS 10 distributed software architecture and HPE Aruba Networking Central for greater scalability, security, and AI-powered optimization. Importantly, it adds the versatility for network services to be provided on-premises, allowing the HPE Aruba Networking 9100 Series Hybrid Gateways to bring needed scalability to campus wireless gateway use cases or to optimize local routing and services at branch networks.
Ideal for large branch deployments and small campus networks, the HPE Aruba Networking 9100 Series Hybrid Gateway is cloudmanaged which reduces on-site IT requirements. It can operate in several modes: as an SD-Branch gateway for tunnel and route orchestration, security, and WAN management; as a powerful cloud-based wireless gateway; or VPN Concentrator (VPNC) for remote network and client VPN connectivity.
Specifications
Design
| Mounting type | Rack mounting |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
Features
| Mean time between failures (MTBF) | 280165 h |
|---|
Show all 25 specificationsShow fewer specifications
Network
| Firewall throughput | 20000 Mbit/s |
|---|---|
| 3DES/AES throughput | 20 Gbit/s |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
Security
| MAC address filtering | Yes |
|---|---|
| Access Control List (ACL) | Yes |
Ports & interfaces
| SFP+ ports quantity | 4 |
|---|---|
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Power
| Output voltage | 12 V |
|---|---|
| Input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 185 W |
Weight & dimensions
| Weight | 6.2 kg |
|---|---|
| Width | 442 mm |
| Depth | 351 mm |
| Height | 43.7 mm |
Operational conditions
| Storage relative humidity (H-H) | 10 - 95% |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
