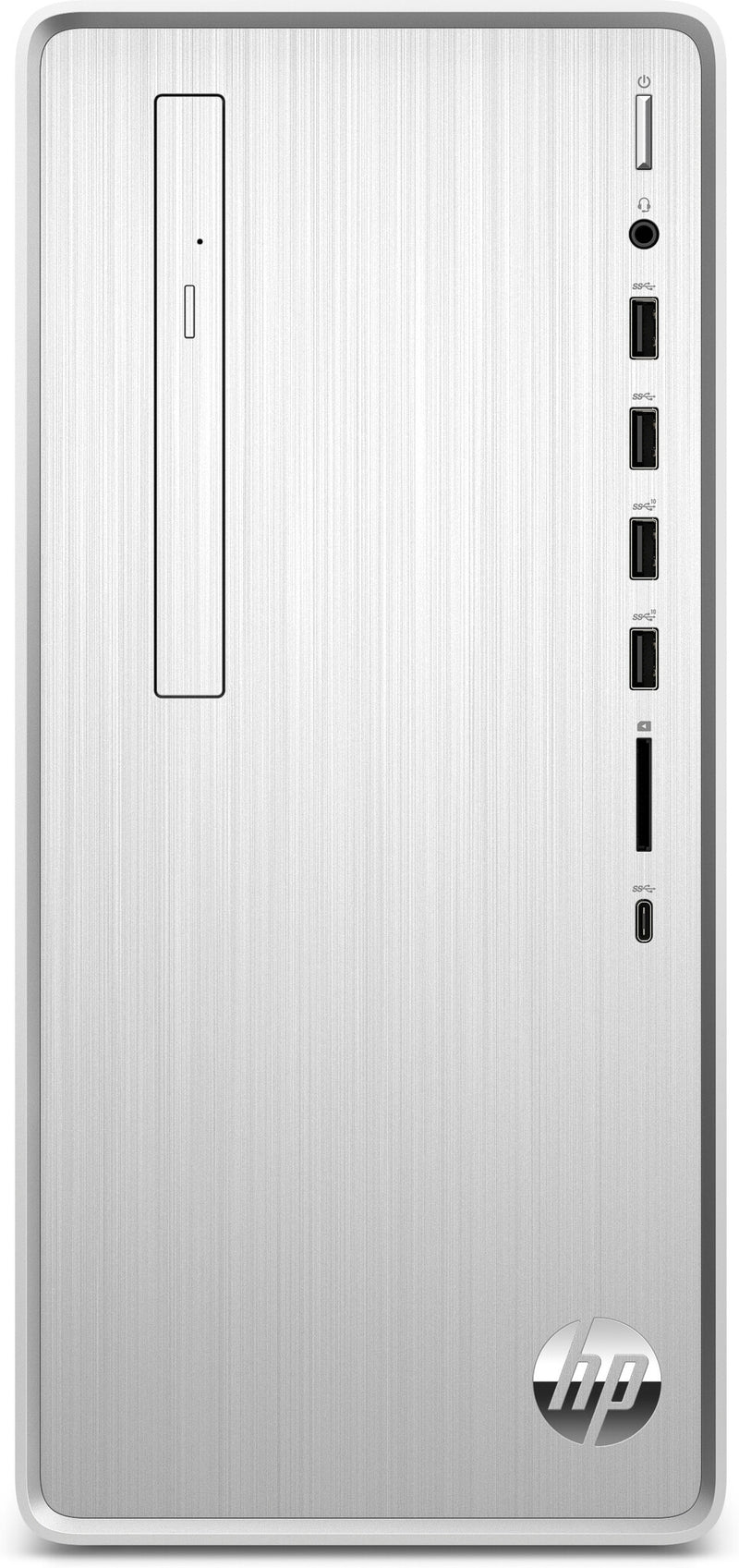

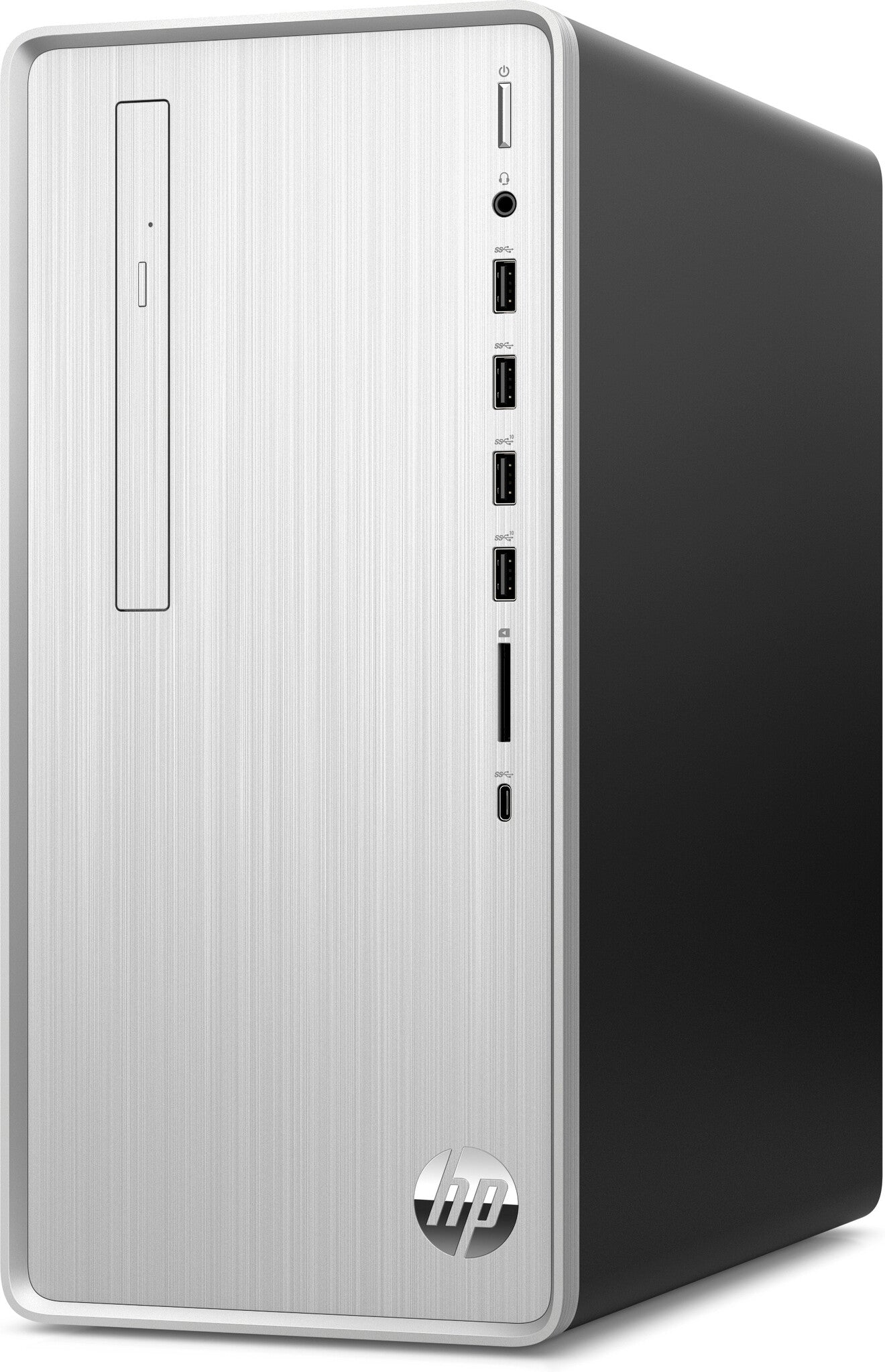

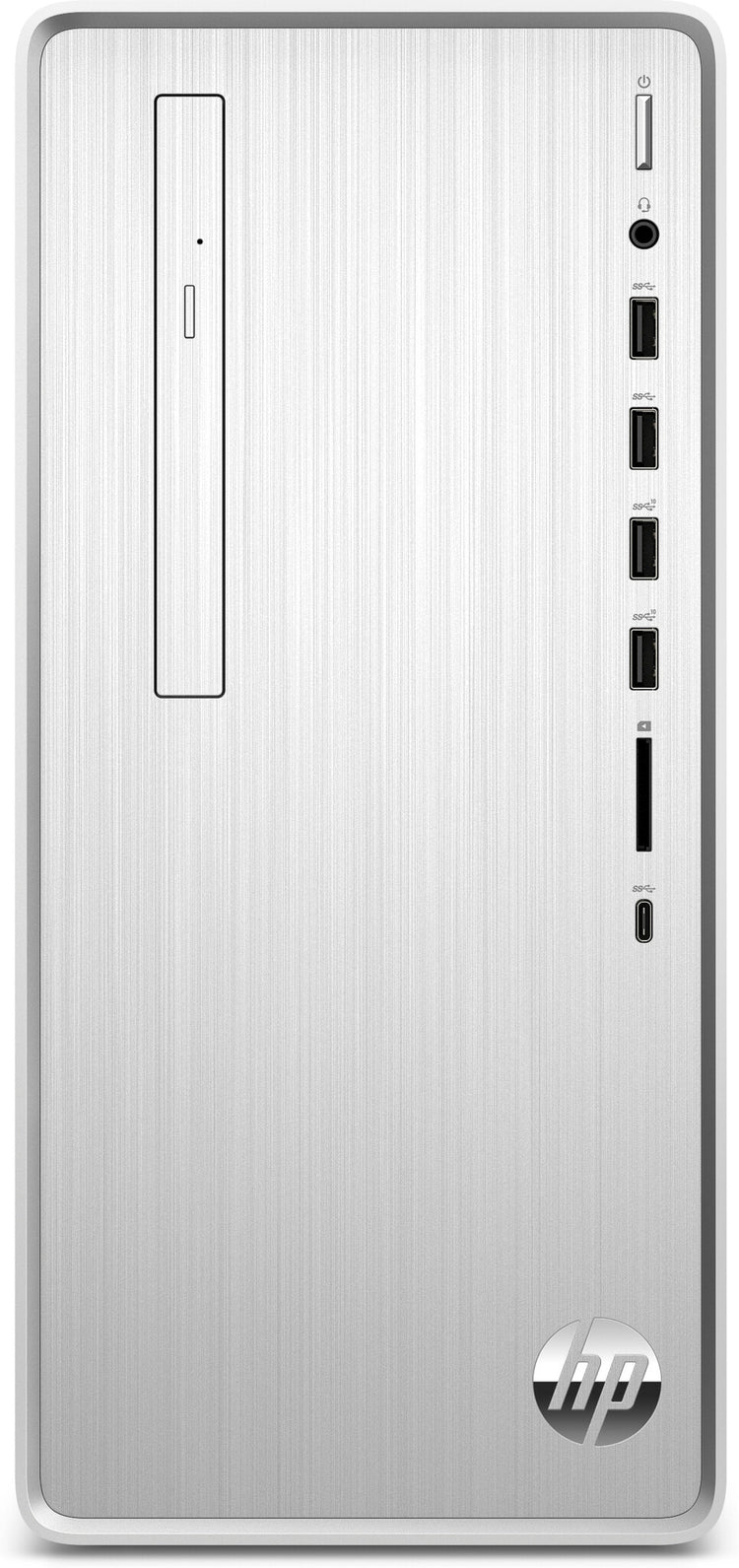

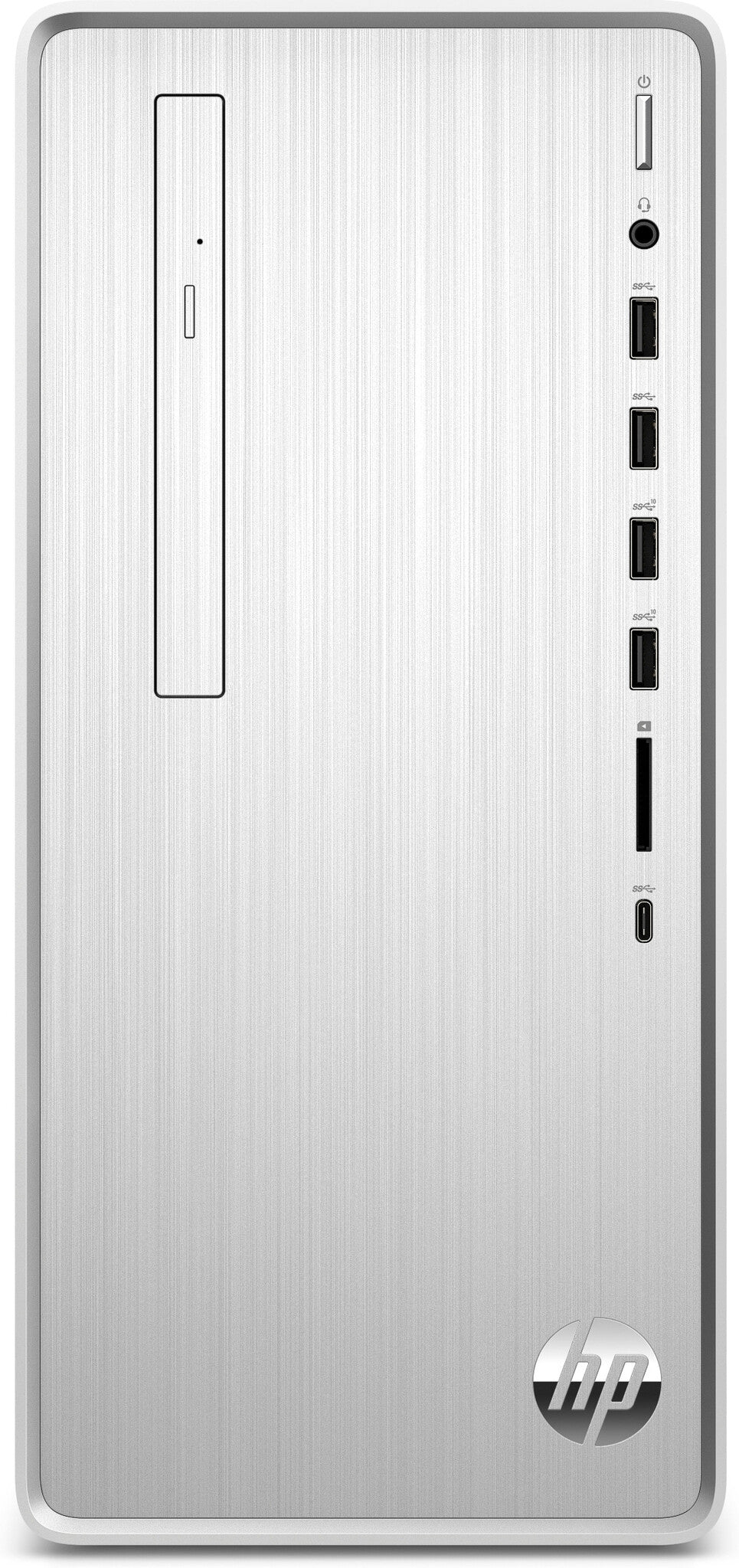

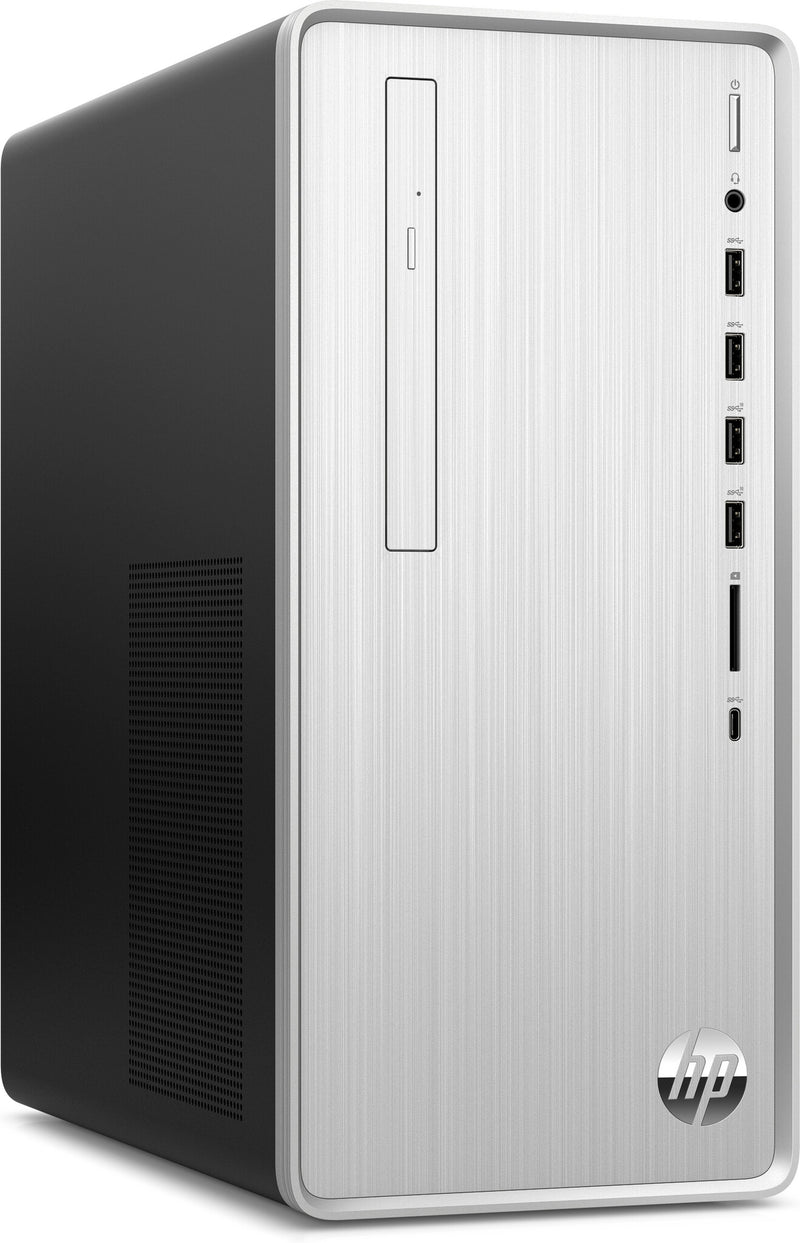

HP Pavilion TP01-1010na Intel® Core™ i7 i7-10700 16 GB DDR4-SDRAM 2.26

HP

£959.44

Stock Available: 0

Product Information

Windows 10 Home 64-bit
Intel Core i7-10700 (16MB Cache, 2.9GHz)
16GB (2933MHz) DDR4-SDRAM (1 x 16) & 2000GB HDD, 256GB SSD

Built reliably for real life
Real-life action demands serious performance and tested durability. The HP Pavilion Desktop PC brings high performance and reliability from a trusted brand that protects what matters to you most.

Product Specifications

Processor
Memory bandwidth supported by processor (max)	45.8 GB/s
Memory clock speeds supported by processor	2933 MHz
Memory types supported by processor	DDR4-SDRAM
Maximum internal memory supported by processor	128 GB
Number of processors installed	1
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Tjunction	100 °C
Processor codename	Comet Lake
Thermal Design Power (TDP)	65 W
Processor lithography	14 nm
Processor operating modes	64-bit
System bus rate	8 GT/s
Processor cache type	L3
Processor cache	16 MB
Processor socket	LGA 1200 (Socket H5)
Processor frequency	2.9 GHz
Processor boost frequency	4.8 GHz
Processor threads	16
Processor cores	8
Processor model	i7-10700
Processor generation	10th gen Intel® Core™ i7
Processor family	Intel® Core™ i7
Processor manufacturer	Intel

Memory
ECC	No
Memory clock speed	2933 MHz
Memory slots	2x DIMM
Memory layout (slots x size)	1 x 16 GB
Internal memory type	DDR4-SDRAM
Internal memory	16 GB

Storage
Card reader integrated	Yes
SSD form factor	M.2
SSD interface	PCI Express, NVMe
NVMe	Yes
SSD capacity	256 GB
Number of SSDs installed	1
Total SSDs capacity	256 GB
HDD speed	7200 RPM
HDD interface	SATA
HDD capacity	2 TB
Number of HDDs installed	1
Total HDDs capacity	2 TB
Number of storage drives installed	2
Storage media	HDD+SSD
Optical drive type	DVD-RW
Total storage capacity	2.26 TB

Graphics
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x9BC5
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card model	Intel® UHD Graphics 630
On-board GPU manufacturer	Intel
Discrete graphics card model	Not available
On-board graphics card	Yes
Discrete graphics card	No

Network
Bluetooth version	5.0
Bluetooth	Yes
Antenna type	2x2
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller manufacturer	Realtek
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes

Ports & interfaces
M.2 card slot (storage)	2
Combo headphone/mic port	Yes
Line-out	Yes
Line-in	Yes
Headphone outputs	1
Microphone in	Yes
Ethernet LAN (RJ-45) ports	1
HDMI version	1.4b
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 2.0 ports quantity	4

Expansion slots
PCI Express x16 slots	1
PCI Express x1 slots	1

Design
Country of origin	China
Product colour	Silver
Cable lock slot type	Kensington
Cable lock slot	Yes
Placement supported	Vertical
Chassis type	Mini Tower

Performance
Audio output channels	5.1 channels
Motherboard chipset	Intel H470
Market positioning	Everyday
Product type	PC

Software
Bundled software	Dropbox
Trial software	McAfee LiveSafe, Microsoft Office 365
Pre-installed software	Netflix
Operating system architecture	64-bit
Operating system installed	Windows 10 Home

Processor special features
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Intel Clear Video Technology	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel 64	Yes
Thermal Monitoring Technologies	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Embedded options available	No
Intel® Secure Key	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel® OS Guard	Yes
Idle States	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Processor package size	37.5 x 37.5 mm
Intel Trusted Execution Technology	Yes
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Execute Disable Bit	Yes
Scalability	1S
CPU configuration (max)	1
Thermal solution specification	PCG 2015C
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Processor ARK ID	199316
Intel Virtualization Technology (VT-x)	Yes
Intel Software Guard Extensions (Intel SGX)	Yes

Brand-specific features
HP segment	Home
HP Software provided	HP Audio Switch
HP Support Assistant	Yes

Power
Power supply	180 W

Weight & dimensions
Package weight	8.2 kg
Package height	287 mm
Package depth	400 mm
Package width	499 mm
Weight	5.96 kg
Height	337.4 mm
Depth	303 mm
Width	155.4 mm

Packaging content
Keyboard included	Yes
Mouse included	Yes
Display included	No

General
Product family	Pavilion
Product series	TP01
