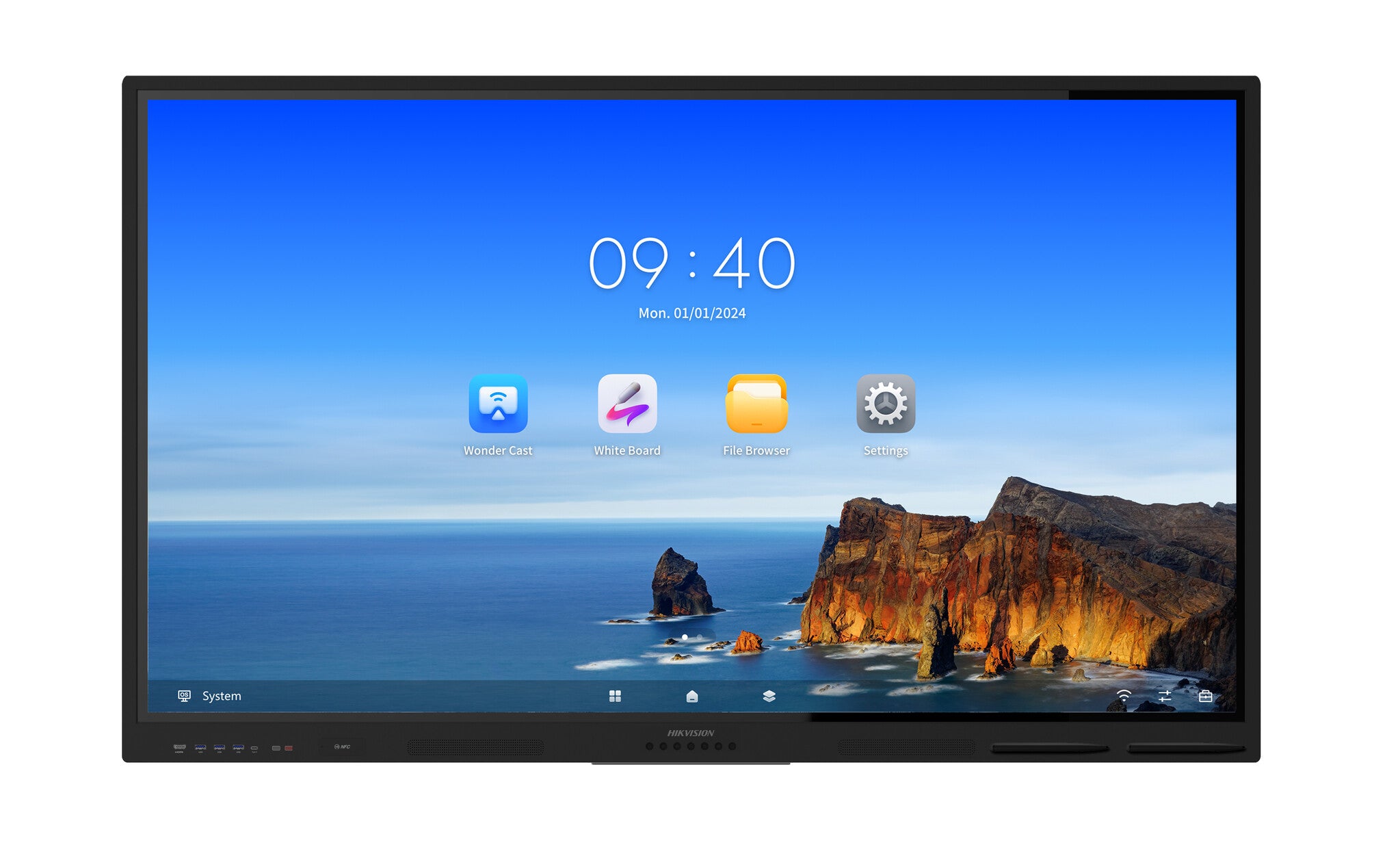

Hikvision Interactive Whiteboard 86" Touchscreen - Black (DS-D5B86RB/EL)
Couldn't load pickup availability
- UHD 4K display with resolution of 3840 × 2160.
- Anti-glare and anti-blocking design to ensure smooth interaction.
- Dual systems of Android and Windows (optional) saving cost and easy to use, video conference software are recommended to run under Windows system.
- Quick response, at most 40-point touch controls and smooth writing experience.
- Multi-button design in front, convenient for classroom use.
- Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems.
The Hikvision Value Series Interactive Displays provide an affordable yet feature-rich solution for organisations seeking to enhance collaboration and engagement.
With 4K Ultra HD resolution, these displays deliver sharp, vibrant visuals, ensuring clarity in presentations and lessons.
The multi-touch functionality supports up to 20 touch points, making it easy for multiple users to interact simultaneously.
Powered by an Android operating system, the Value Series offers a user-friendly interface and essential tools for effective collaboration.
With built-in connectivity options, including HDMI, USB, and Type-C ports, these displays integrate seamlessly with various devices, making them versatile for different applications.
Combining reliability, simplicity, and cost-efficiency, the Hikvision Value Series is an ideal choice for schools and businesses looking to upgrade their spaces with interactive display technology.
| Display | |
|---|---|
| Hardness | 9H |
| Haze rate | 25% |
| Screen glass thickness | 3.2 mm |
| Working area | 1895.04 x 1065.96 mm |
| Colour gamut | 72% |
| Pixel pitch | 0.165 x 0.494 mm |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Touch object size (min) | 2 mm |
| Touch system response time | 5 ms |
| Touch resolution | 32767 x 32767 pixels |
| Number of simultaneous touchpoints | 40 |
| Touchscreen type | Infrared |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Maximum refresh rate | 60 Hz |
| Response time | 5 ms |
| Contrast ratio (typical) | 5000:1 |
| Contrast ratio (dynamic) | 30000:1 |
| Native aspect ratio | 16:9 |
| LED backlighting type | Direct-LED |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display number of colours | 1.07 billion colours |
| Display brightness | 400 cd/m² |
| Display diagonal | 2.18 m (86") |
| Computer system | |
|---|---|
| Graphics card | Mali-G52 MP2 |
| Graphics card family | ARM |
| RAM capacity | 8 GB |
| User memory | 64 GB |
| Processor cores | 4 |
| Processor frequency | 1.92 GHz |
| Processor architecture | ARM Cortex-A55 |
| Built-in processor | Yes |
| Operating system version | 13 |
| Operating system installed | Android |
| Audio | |
|---|---|
| Speaker power | 40 W |
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Projector | |
|---|---|
| Built-in projector | No |
| Network | |
|---|---|
| Near Field Communication (NFC) | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| Audio output | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI version | 2.0 |
| HDMI ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 Type-B Touch ports quantity | 1 |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 3 |
| HDCP version | 1.4/2.2/2.3 |
| HDCP | Yes |
| Ergonomics | |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
| Panel mounting interface | 800 x 600 mm |
| VESA mounting | Yes |
| Product colour | Black |
| Performance | |
|---|---|
| Ambient light sensor | Yes |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 268 W |
| Power consumption (max) | 326 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 59.7 kg |
| Height | 1164.7 mm |
| Depth | 82.5 mm |
| Width | 1960.4 mm |
| Packaging data | |
|---|---|
| Package weight | 79 kg |
| Package height | 1345 mm |
| Package depth | 223 mm |
| Package width | 2157 mm |
| Packaging content | |
|---|---|
| Stylus included | Yes |
| Remote control included | Yes |
| Mounting kit | Yes |
| Cables included | AC |
| Manual | Yes |
