Hikvision DS-D5B86RB/C interactive whiteboard 2.18 m (86") 3840 x 2160 pixels Touchscreen Black HDMI
£2,575.99
Couldn't load pickup availability
- Touchscreen 2.18 m (86") Black
- 4K Ultra HD 3840 x 2160 pixels 16:9
- 350 cd/m² 1200:1 6 ms 60 Hz
- Built-in speaker(s) 16 W
- Wi-Fi 5 (802.11ac) Bluetooth 5.0 Ethernet LAN
- VESA mounting
- 490 W
The next generation of digital technologies is transforming the way people live, work, and study. And now, interactive flat panels have emerged to meet the needs of today’s customers. In settings where communication and collaboration are necessary, daily requirements, such as office meetings and classrooms, interactive flat panels can elevate efficiency and bring everyone together.

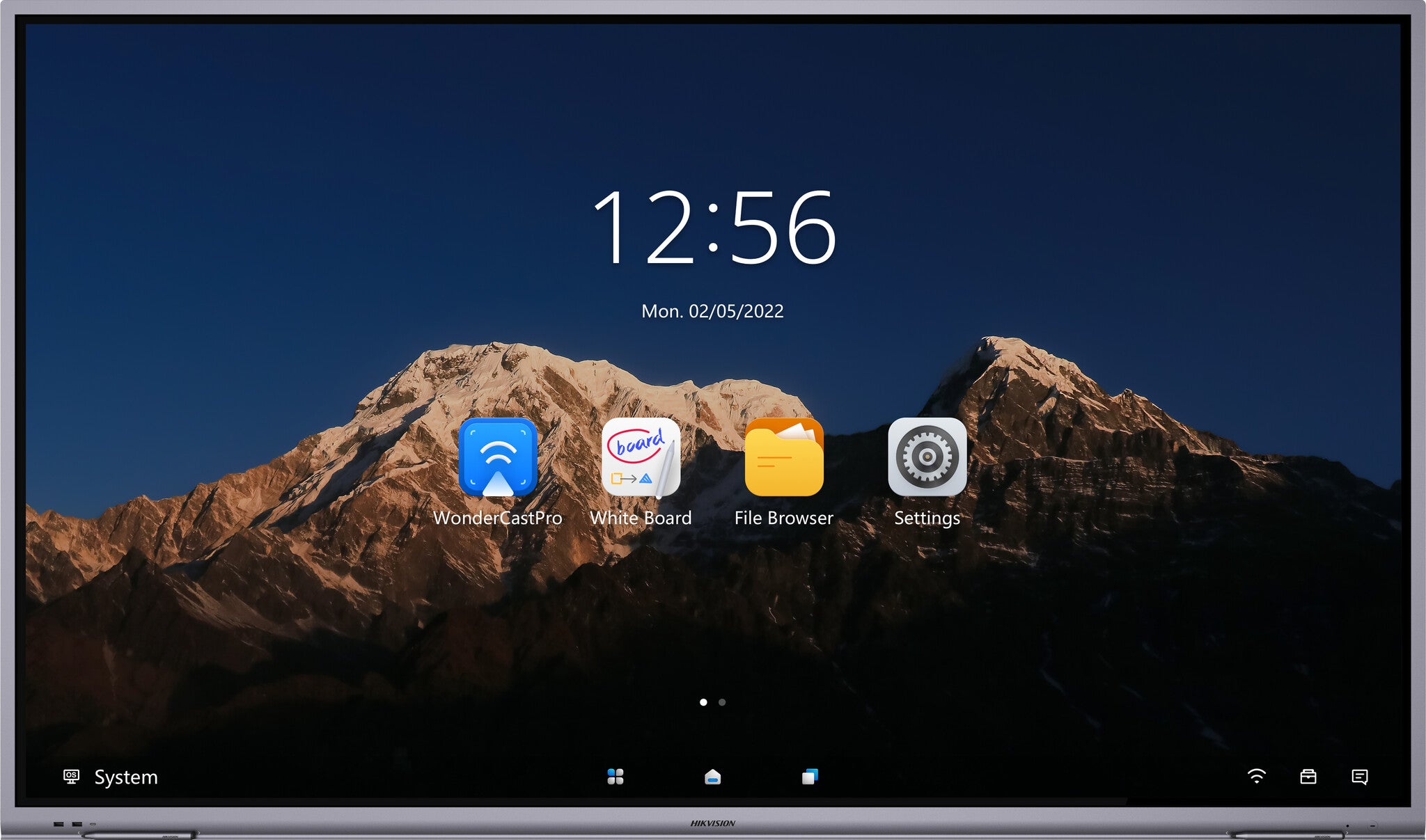

Here, Hikvision's products take the lead with flexible, multi-functional solutions featuring ultra-4K resolution, accurate on-screen writing, built-in whiteboard software, and wireless screen projection.
| Display | |
|---|---|
| Colour gamut | 90% |
| Pixel pitch | 0.164 x 0.493 mm |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Touch object size (min) | 1 mm |
| Touch system response time | 10 ms |
| Number of simultaneous touchpoints | 45 |
| Touchscreen type | Infrared |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Maximum refresh rate | 60 Hz |
| Response time | 6 ms |
| Contrast ratio (typical) | 1200:1 |
| Native aspect ratio | 16:9 |
| LED backlighting type | Direct-LED |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 350 cd/m² |
| Display diagonal | 2.18 m (86") |
| Computer system | |
|---|---|
| RAM capacity | 4 GB |
| User memory | 64 GB |
| Maximum internal memory | 64 GB |
| Processor cores | 6 |
| Processor frequency | 1.8 GHz |
| Processor architecture | ARM Cortex A72 + ARM Cortex A53 |
| Built-in processor | Yes |
| Operating system version | 11 |
| Operating system installed | Android |
| Audio | |
|---|---|
| Speaker power | 16 W |
| Number of built-in speakers | 2 |
| Built-in speaker(s) | Yes |
| Projector | |
|---|---|
| Built-in projector | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Antenna type | 2x2 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI output ports quantity | 1 |
| HDMI version | 2.0 |
| USB Type-C ports quantity | 1 |
| HDMI ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB 2.0 Type-B Touch ports quantity | 1 |
| USB 2.0 ports quantity | 6 |
| Interface | HDMI |
| Ergonomics | |
|---|---|
| Wall mountable | Yes |
| VESA mounting | Yes |
| Product colour | Black |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 490 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 65.1 kg |
| Height | 1159 mm |
| Depth | 87.5 mm |
| Width | 1963 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package weight | 86.2 kg |
| Package height | 1366 mm |
| Package depth | 274 mm |
| Package width | 2187 mm |
