• 16 Gigabit Ethernet output ports, with up to 4096 × 2160@60 Hz signal input
• DP1.2 input interface: Up to 4096 × 2160@60 Hz
• Dual HDMI2.0 input interface: 4096 × 2160@60 Hz ( Up to 7680 × 1080@60 Hz supported)
• DVI input interface: Up to 3840 × 1080@60 Hz
• Automatic source search: Enabled by default.
• 3D synchronized signal input and output interface: 3D signal accessible, 3840 × 1080@60 Hz input and output for each card.
• Audio device access: Audio device accessible, with audio input and output interfaces.
• Light sensor extension: Realize light sensor adjustment with no need to add a multi-functional card.
• Dual-mode remote control expansion interfaces: Infrared and USB RF Wi-Fi expansion interfaces, remote control enabled.
• Competent with load capacity: 10 MP
• Cloud upgrade: Remote cloud online upgrade accessible.
• Strip display: Single line super long subtitle display with the content being left-justified, right-justified, centered, or scrolled.
• Remote control with the screen displaying remote control UI menu.
• Scene management: Scenes customizable and switchable.
• Multi-controller cascade display realizes better synchronization.
• 3840 Hz high refresh rate and nanosecond response time ensure smooth video pictures.
• Split-screen display: Enable customized content and slogans displayed on both sides.
• Automatic dehumidification to protect the lamp beads from damp, applicable for different areas with four degrees of dehumidification modes.
• Anti-Blue light screen with a certificate issued by TUV.
• 256 degrees of luminance adjustment through device button, PC client, and remote control.
• Signal switchable through device button, PC client, and remote control.

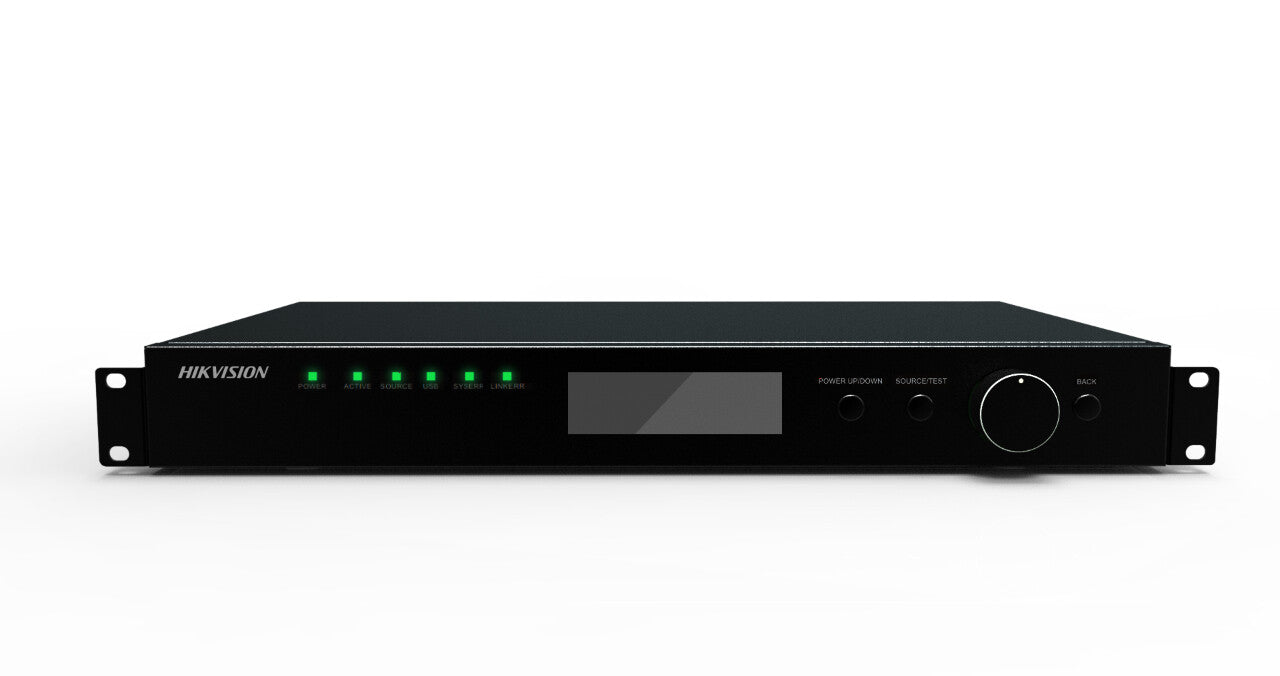

DS-D42C16-H LED Display Controller, used with LED full-color display screens, can achieve seamless stitching of the video wall in any dimensions. It is applicable to meeting rooms, studios, stadiums, airports, stations, banks, advertisements, family cinemas, etc.
