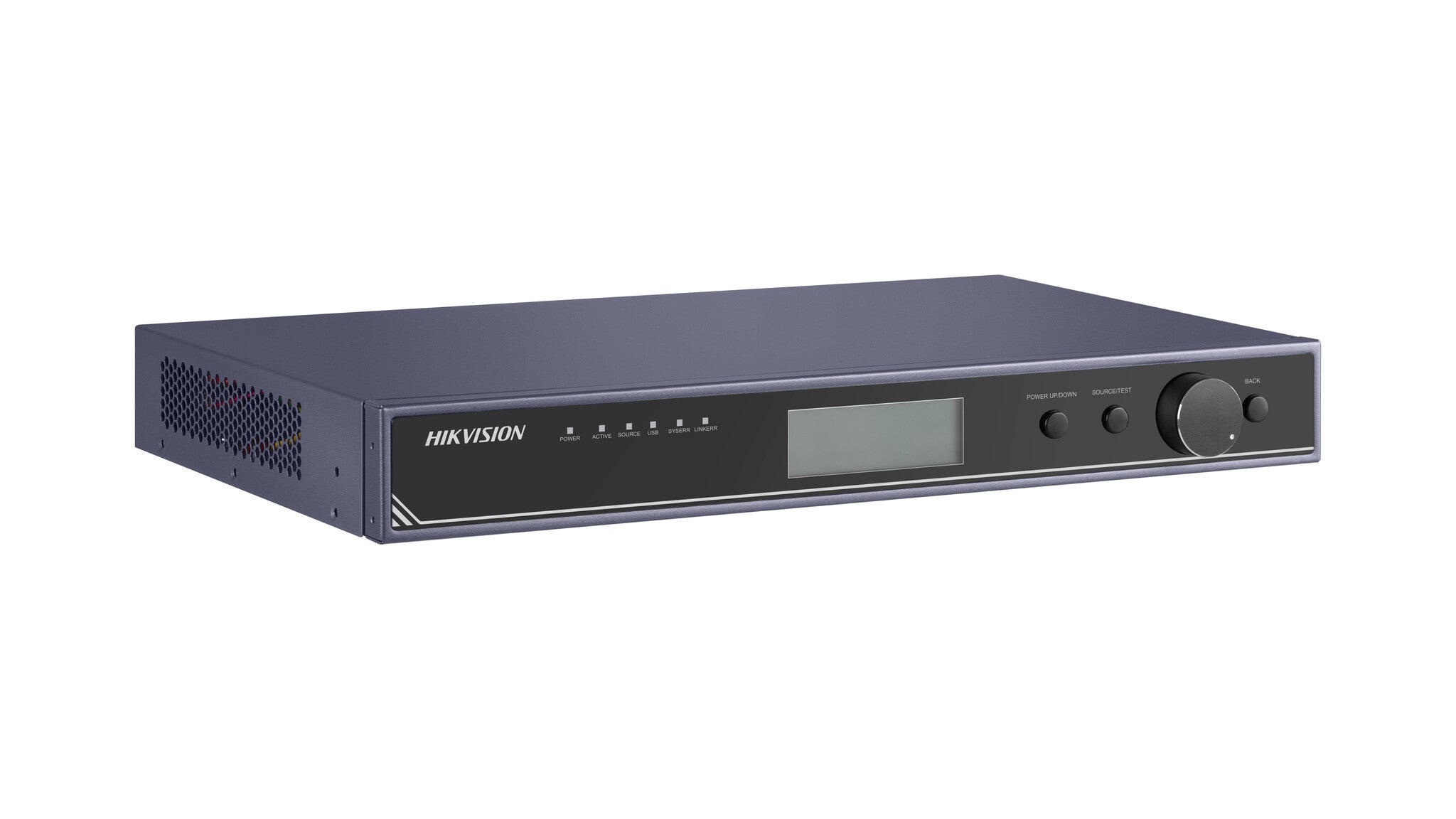

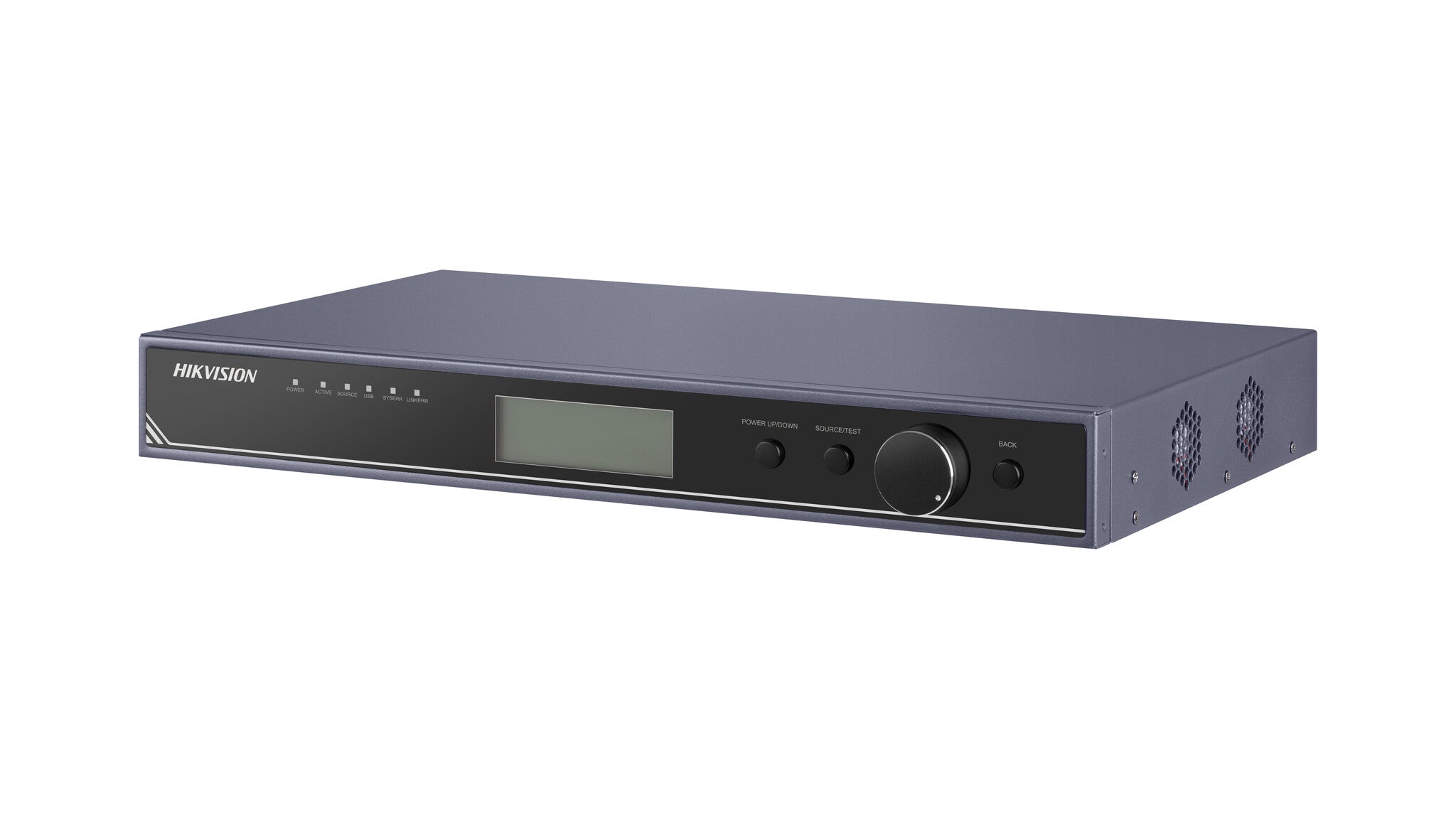

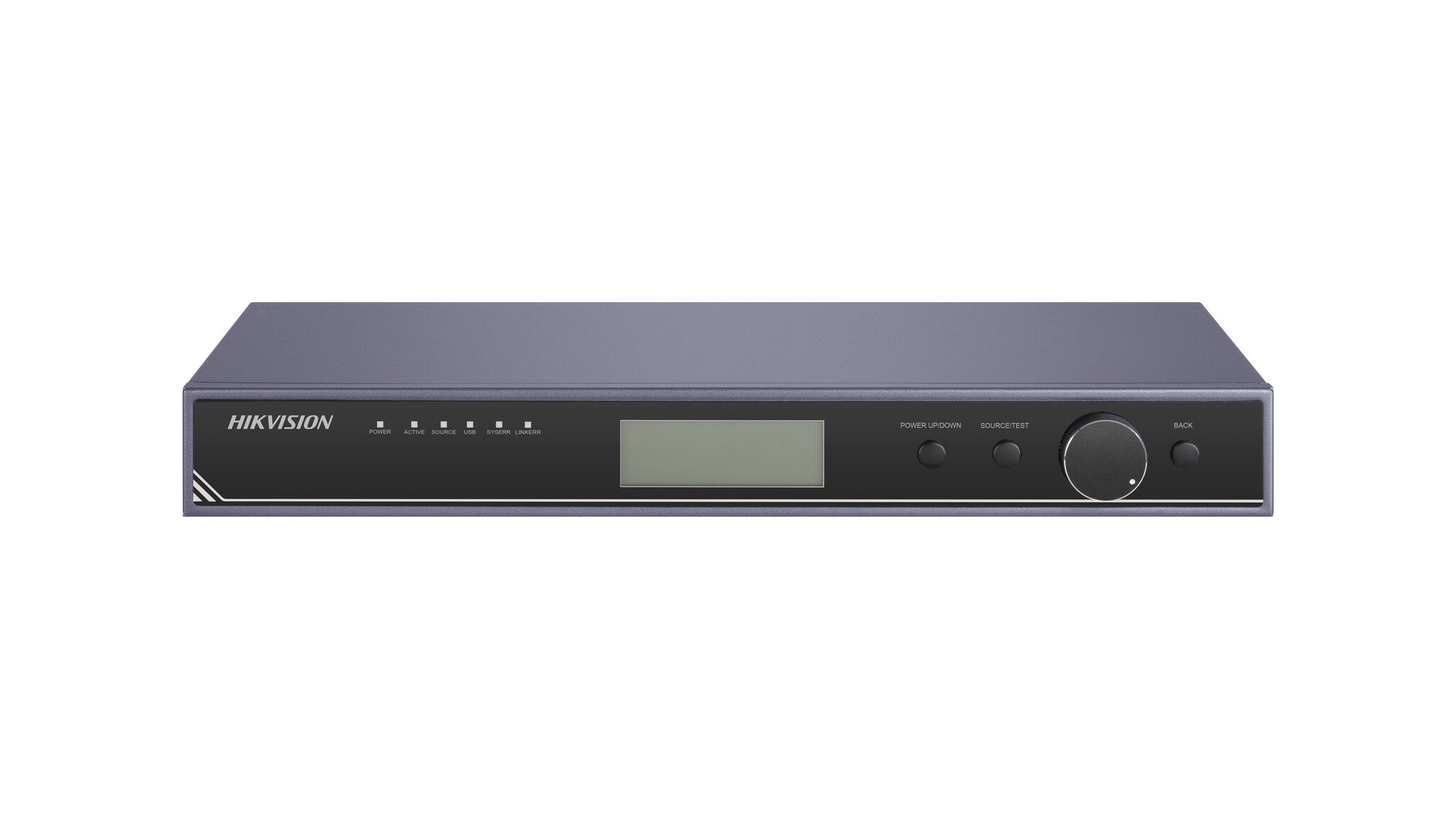

Hikvision DS-D42C08-H video wall processor Black 40 W
iFrame
£1,376.99
Couldn't load pickup availability
- 8 Gigabit Ethernet output ports, with up to 4096 × 2160@30 Hz signal input
- Up to 3840 × 1080@60 Hz signal input. Point-to-point display for 8 network interfaces
- Automatic source search: Enabled by default
- 3D synchronized signal input and output interface: 3D signal accessible, 3840 × 1080@60 Hz input and output for each card
- Audio device access: Audio device accessible, with audio input and output interfaces
- Light sensor extension: Realize light sensor adjustment with no need to add a multi-functional card
- Dual-mode remote control expansion interfaces: Infrared and USB RF Wi-Fi expansion interfaces, remote control enabled
- Competent with load capacity: 5 MP
- Cloud upgrade: Remote cloud online upgrade accessible
- Strip display: Single line super long subtitle display with the content being left-justified, right-justified, centered, or scrolled
- Scene management: Scenes customizable and switchable
- Multi-controller cascade display realizes better synchronization
- 3480 Hz high refresh rate and nanosecond response time ensure smooth video pictures
DS-D42C08-H LED Display Controller, used with LED full-color display screens, can achieve seamless stitching of the video wall in any dimensions. It is applicable to meeting rooms, studios, stadiums, airports, stations, banks, advertisements, family cinemas, etc.
| Design | |
|---|---|
| Built-in display | Yes |
| Product colour | Black |
| Features | |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Ethernet LAN | Yes |
| Colour depth | 10 bit |

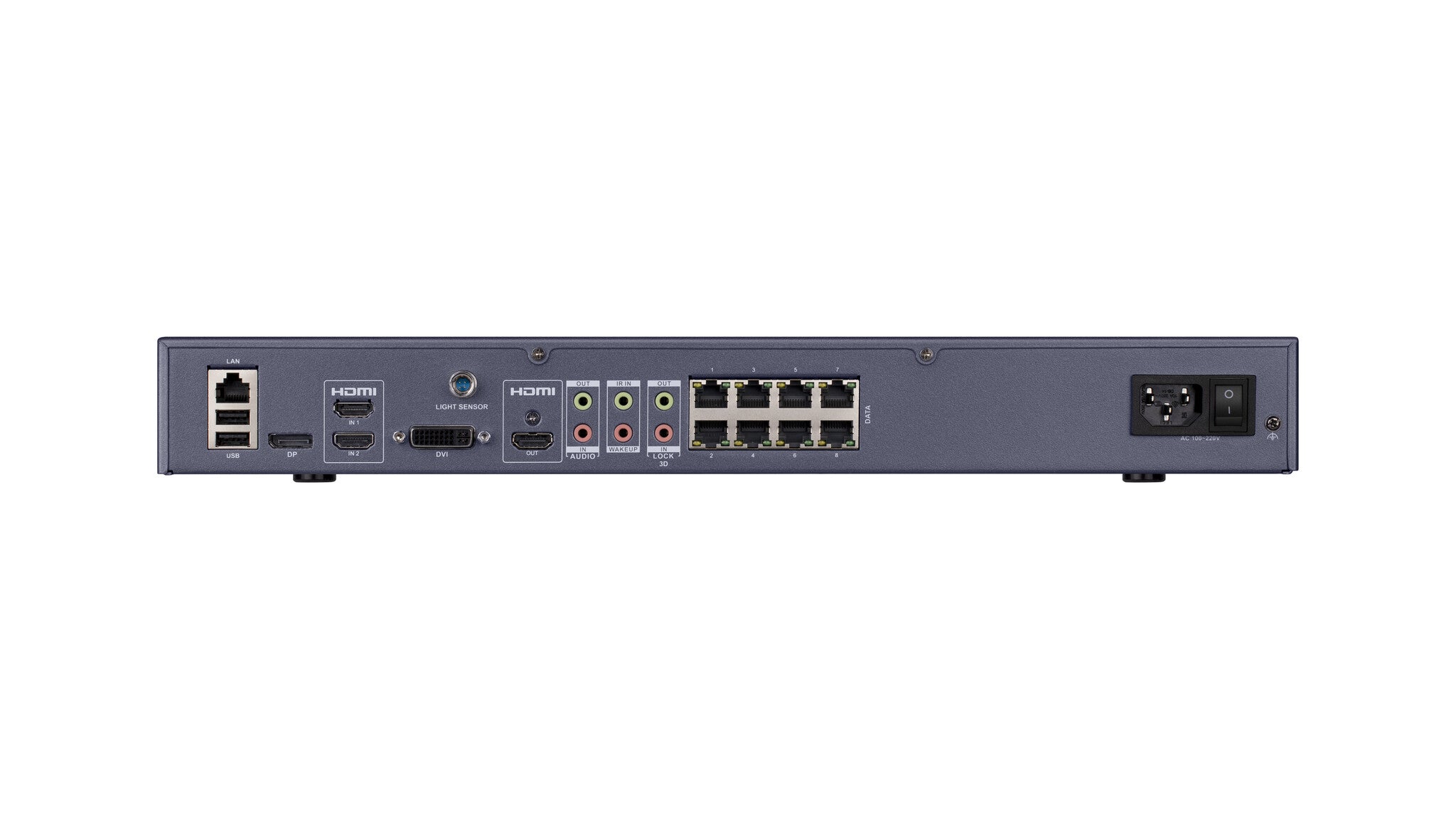

| Ports & interfaces | |
|---|---|
| USB 2.0 Type-A ports quantity | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 8 |
| RJ-45 ports quantity | 9 |
| DVI input ports | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| HDMI version | 2.0 |
| HDMI output ports quantity | 1 |
| HDMI input ports quantity | 2 |
| Power | |
|---|---|
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 30 W |
| Power consumption (max) | 40 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 80% |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 5.2 kg |
| Package height | 428 mm |
| Package depth | 121 mm |
| Package width | 576 mm |
| Weight | 4.2 kg |
| Height | 249.5 mm |
| Depth | 57 mm |
| Width | 442 mm |
