- Support network interface cascading between or behind the receiving card
- Support infrared signal input

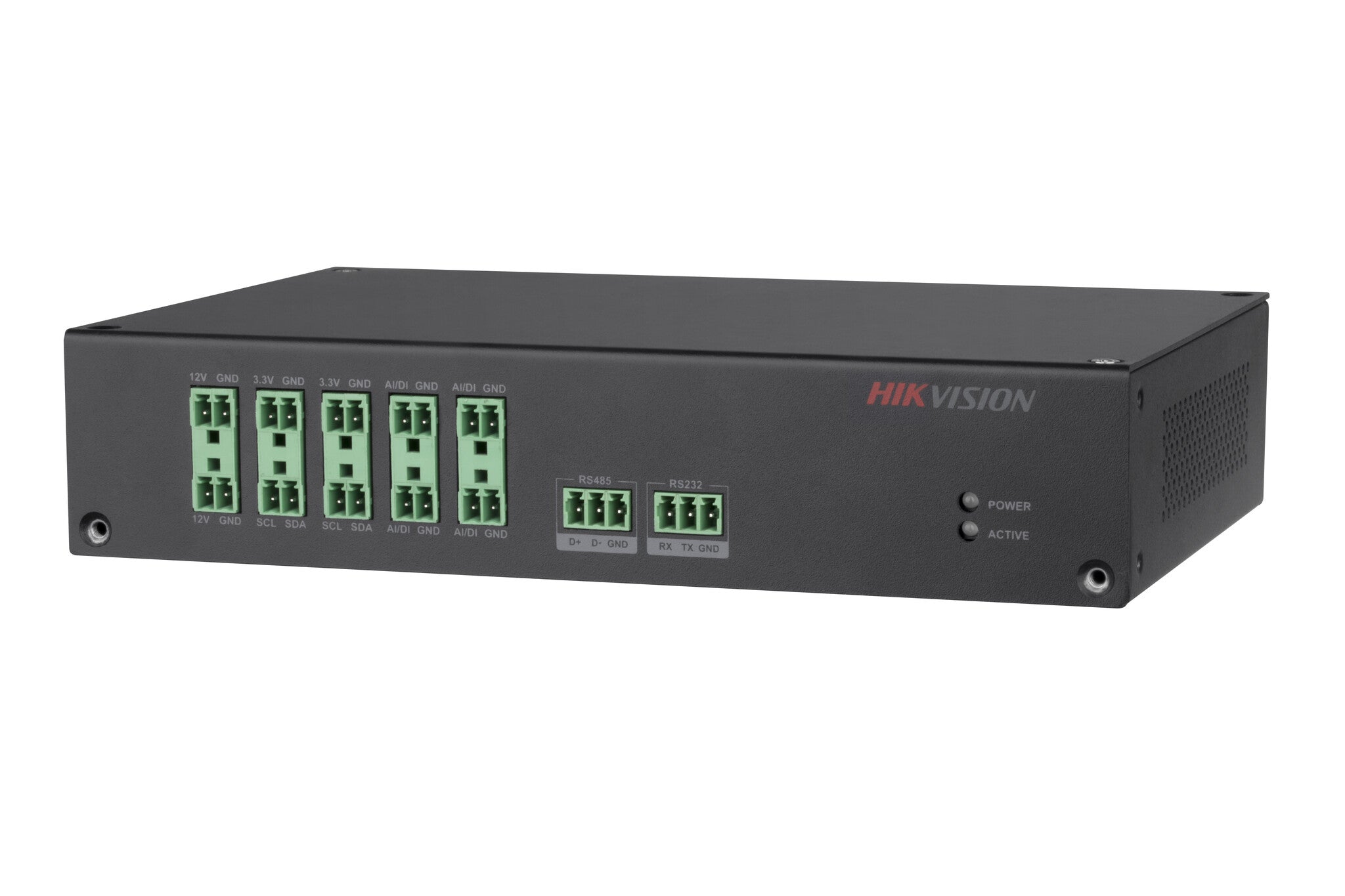

LED multi-functional card is an (optional) accessory for 3D scene display and remote control in LED display system. This product is equipped with remote control and infrared signal receiver by default, which can realize multi-functions including multi-scene switch, signal source switch, brightness control, system information check, intelligent dehumidification, anti-blue light, and image enhancement.
| Design |
|---|
| Housing colour |
Black |
| Power |
|---|
| Current |
1 A |
| Connected load |
8 W |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
-10 - 40 °C |
| Weight & dimensions |
|---|
| Package height |
82 mm |
| Package depth |
242 mm |
| Package width |
317 mm |
| Weight |
700 g |
| Height |
42 mm |
| Depth |
126.7 mm |
| Width |
200 mm |
